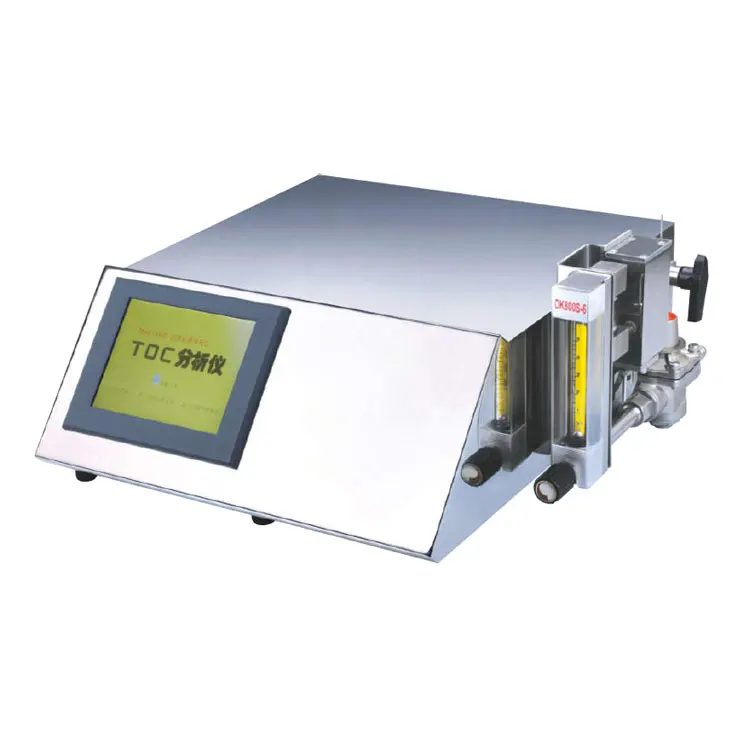

Портативный анализатор общего органического углерода (ТОЦ)

Описание и отзывы

Трекер стоимости

Характеристики

The organic matter in the sample is oxidized into carbon dioxide under the effectof ultraviolet and titanium dioxide.Determination of carbon dioxide by Electrical Conductivity Detection Technology,Total carbon and conductivity of samples after oxidation of Oxidation Reactor by Electrical Conductivity Sensor determination of Total inorganic carbon in samples without oxidation of oxidative reactors by Rate Sensors,Get the total organic carbon in the sample.(TOC=TC-TIC).

Power supply	AC220V±22V
Frequency	50HZ±1HZ
Power consumption	95W
Size	200*400*235mm
Wieght	12.5kg
TOCDetection Range	0.001mg/l-1.0mg/l
Accuracy of Detection	±5%
Analyzer rate	≤4min/time
Response time	≤10min
Flow rate	0.5ml/min
Temperature of sample	1-95℃
Humidity	≤85%RH
Temperature	10-40℃
Repeatability	≤3%
Zero/span drift	±5%

1, High precision, high sensitivity, simple operation
2, Human Interface, easy operation, automatic pipe cleaning function.
3, High Performance CPU,touch screen,800*480 True Color Display.
4, Replace UV lamps and pump without open the machine.
5, Detection ceiling can be set,Automatic Upper Limit Alarm function.
6, Data can be stored for 5 years and output by USB device.
7, Offline Detection and Online Detection optional.
8, Comply with USP GMP standard.
9, Online graph.
10, Optional Automatic Sampler.

1. This instrument can be used to detect pure water, injection water and organiccarbon in ion water in Pharmaceutical Industry thick.Degree; also available for testing of ultra-pure water in Semiconductor Industry.
2. Clean validation process in pharmaceutical field and biochemistry field, can be used to verify cleaning effect.
3. This instrument has on-line detection function, can monitor pharmaceutical industry system and semiconductor industry online. Preparation of ultra-pure water preparation system and chip process, power plant, etc.
