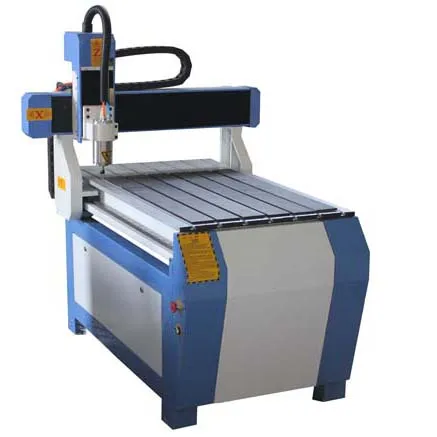

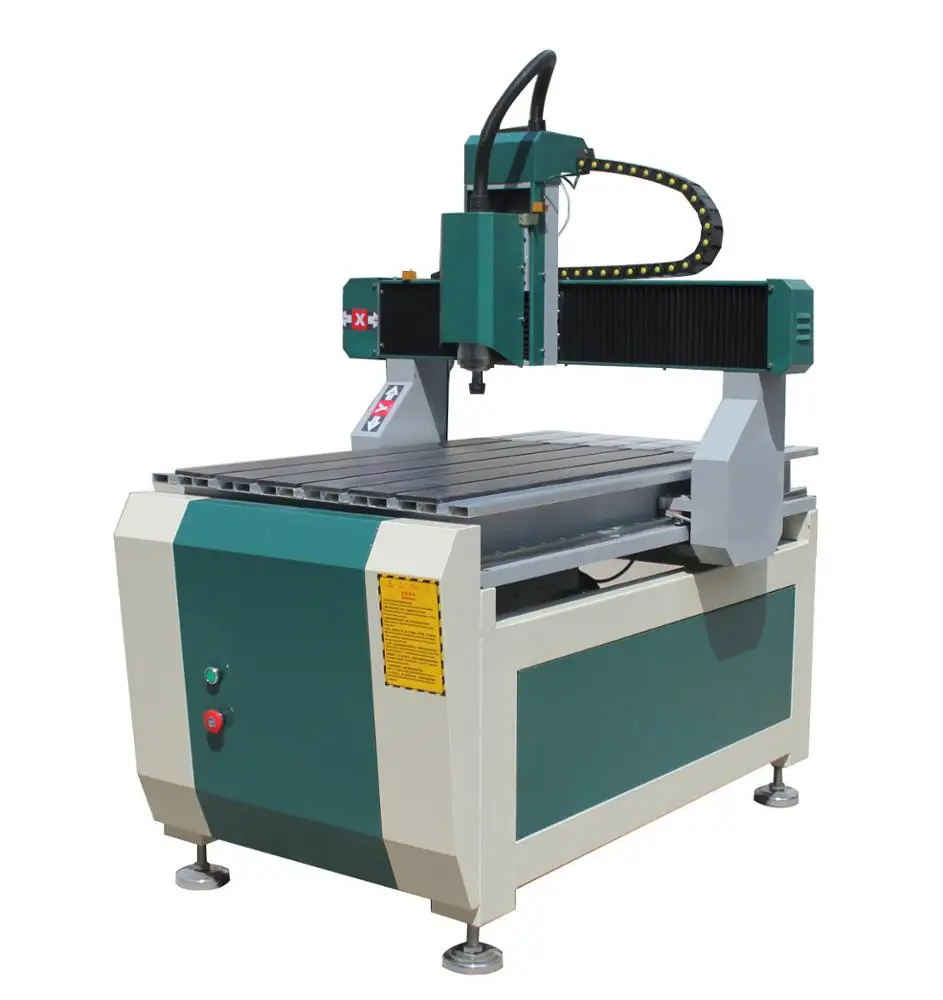

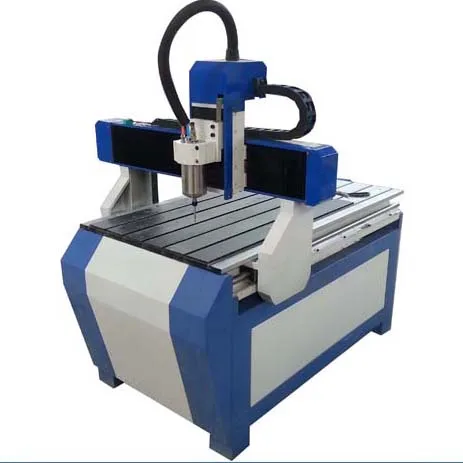

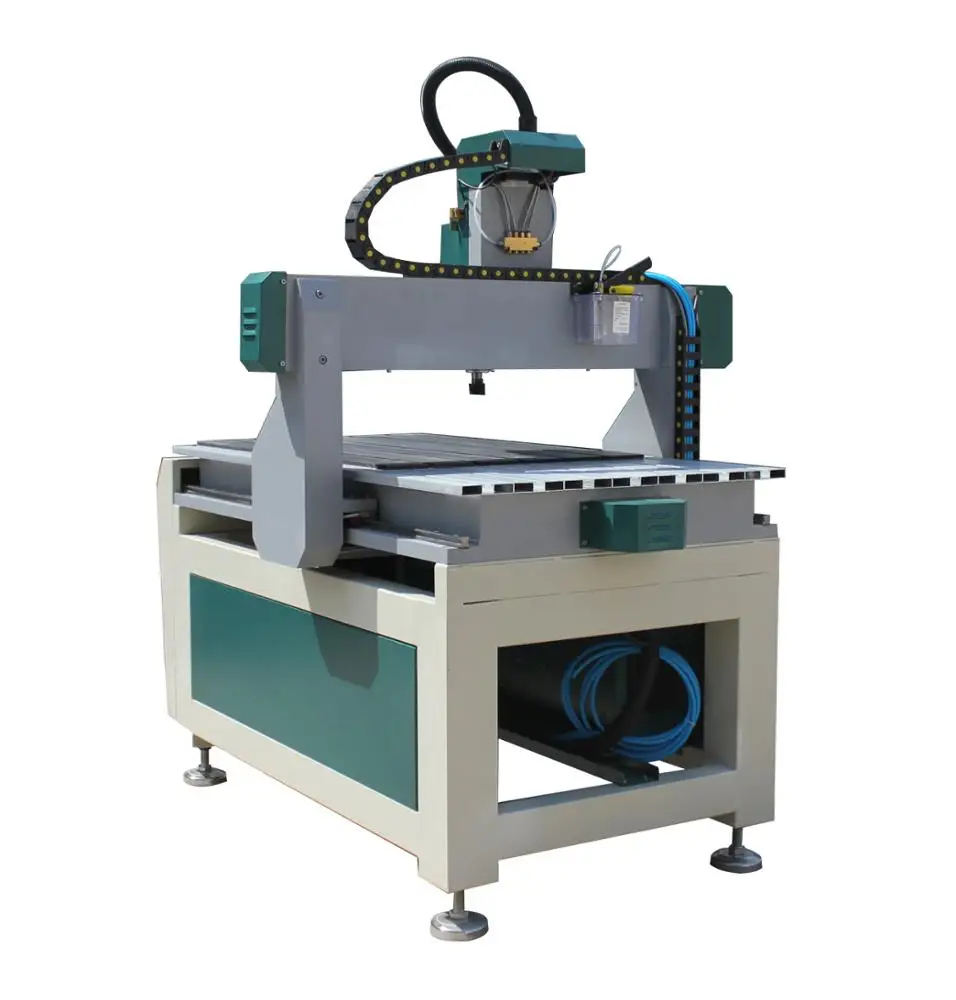

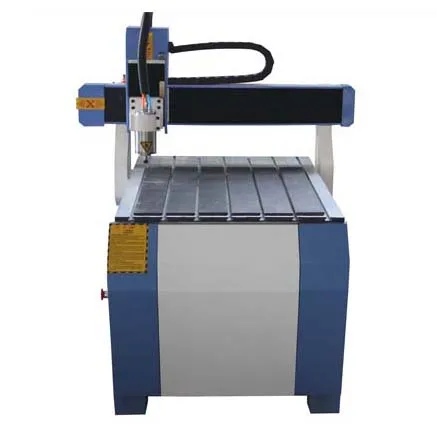

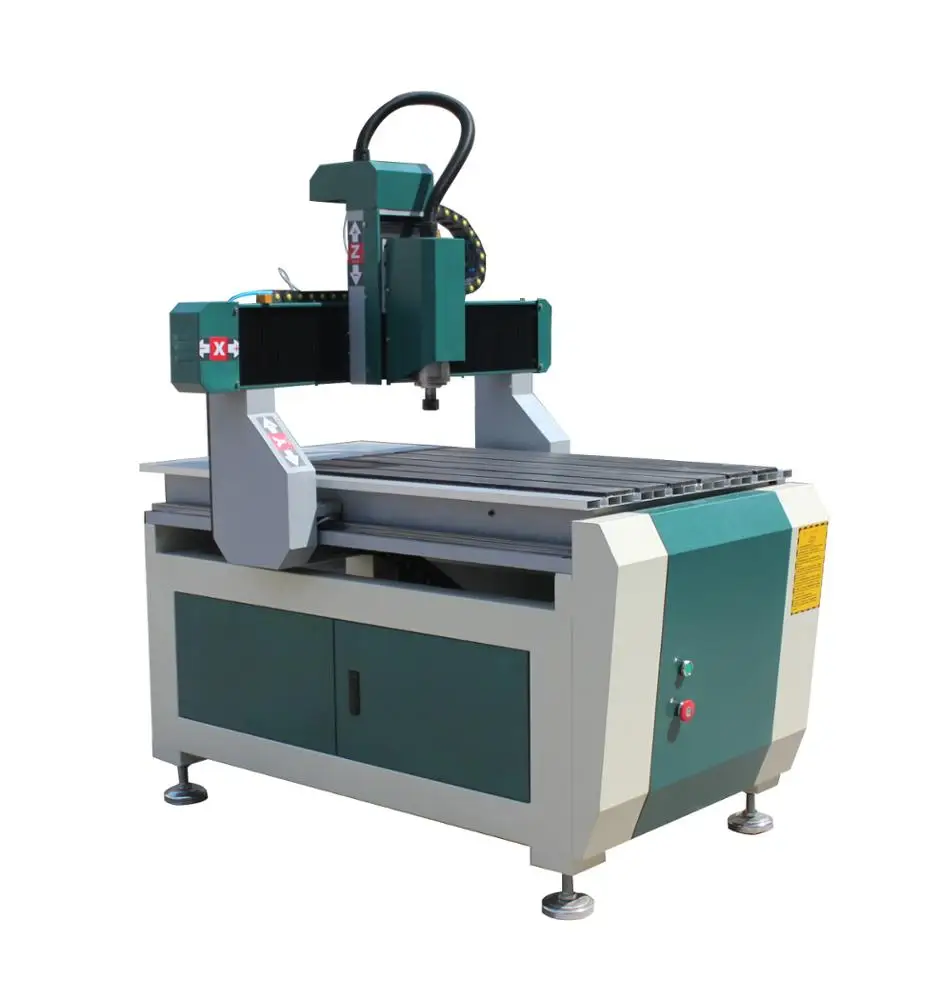

Фрезерный станок с ЧПУ деревообрабатывающий мини-фрезерный

Micro-engraving machine, also known as small engraving machine, with compact structure, compact size, the use of improved industrial numerical control operation software and typesetting processing software, stable and reliable, operation becomes very simple, non-professional can also quickly learn to use.

Mainly used for carving and milling of PVC, acrylic, plexiglass, dichroic board, engineering plastics, bakelite, solid wood and soft metal materials, graphite electrode processing, also suitable for carving PCB circuit boards, substitute wood model moulds, handicraft products, plastic boxes, aluminum alloy chassis, panels not exceeding the specified specifications, and milling holes on aluminum alloy, copper and other gold with low feed rate. It belongs to three-dimensional carving and drilling and milling of materials.

Application

Suitable for simple die industry, seal industry, professional cutting double-color board, non-embroidered steel, plexiglass, fiberboard, PCB circuit board. Handicraft processing industry; such as: copper electrodes, stamping dies, stainless steel breastplate, bronze stamp, wax mold, etc. Among them, metal, inkstone, jade, sign and other small engraving machine steel codes. It is suitable for the carving and cutting of small objects, such as moon cake mould, high precision and speed, copper and aluminium carving and cutting, mould carving, wood cutting and carving, handicraft carving and cutting, handicraft box carving, building model making, interior decoration, lamp industry carving, logo making, acrylic carving and cutting, sign carving. Small sign engraving machine, small handicraft.

PRICE: USD 2180 FOB Qingdao port

Payment term: T/T 30%in advance,70% before shipping

Package: plywood package\tWarranty:12 months

X,Y,Z,working                                                         600*900*100mm

Whole structure                                                    Welded Steel gantry structure

Guide rail                                                                Taiwan HIWIN square guide rail 20mm

X,Y,Z structure                                                       Taiwan TBI ball screw,high precision

X,Y,Z Traveling Positioning Accuracy               ±0.04mm

X,Y,Z repositionin Positioning Accuray            < 0.01mm

Spindle                                                                   1.5kw Air cooling spindle (China made HQD brand)

Control system                                                     NC studio card or DSP control system

Working mode                                                      stepper motor and drivers(Optional: servo motor and driver)

Spindle Speed                                                      0-18000rpm

Working Voltage                                                  220V/380V AC 3 PHASE /50-60Hz

Command Code                                                  G code (plt, mmg, uoo, bmp)

Operating System                                               NCstudio card or DSP control system

X,Y Delicacy                                                         <0.01mm

Running circumstance\tTemperature              0°C~45°C

Relative humidity                                               30%~75%

Main parts configuration

#Welded Steel gantry structure

#1.5kw Water or air cooling spindle spindle (China made HQD brand)(Optional:2.2kw,3.5kw)

#Shanghai FULING or BEST inverter

# Leadshine stepper motor and driver

#Taiwan HIWIN round guide rails

#Taiwan TBI ball screw

#NCstudio or DSP control system

#Manual oiling system

# 10 pcs for engraving and cutting

#Aluminum T-slot surface

#Large compatibility of software such as Type3,artcam and others

#exporting plywood package

Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing Details  : Standard exporting plywood package

Delivery Details :  Deliver by sea after 15-20 days when order of machine

A: We are manufacturer.

A: Generally it is 15-20 days, it is according to quantity.

A: No .

A: Payment by USD , 30% T/T in advance ,balance before shippment.
