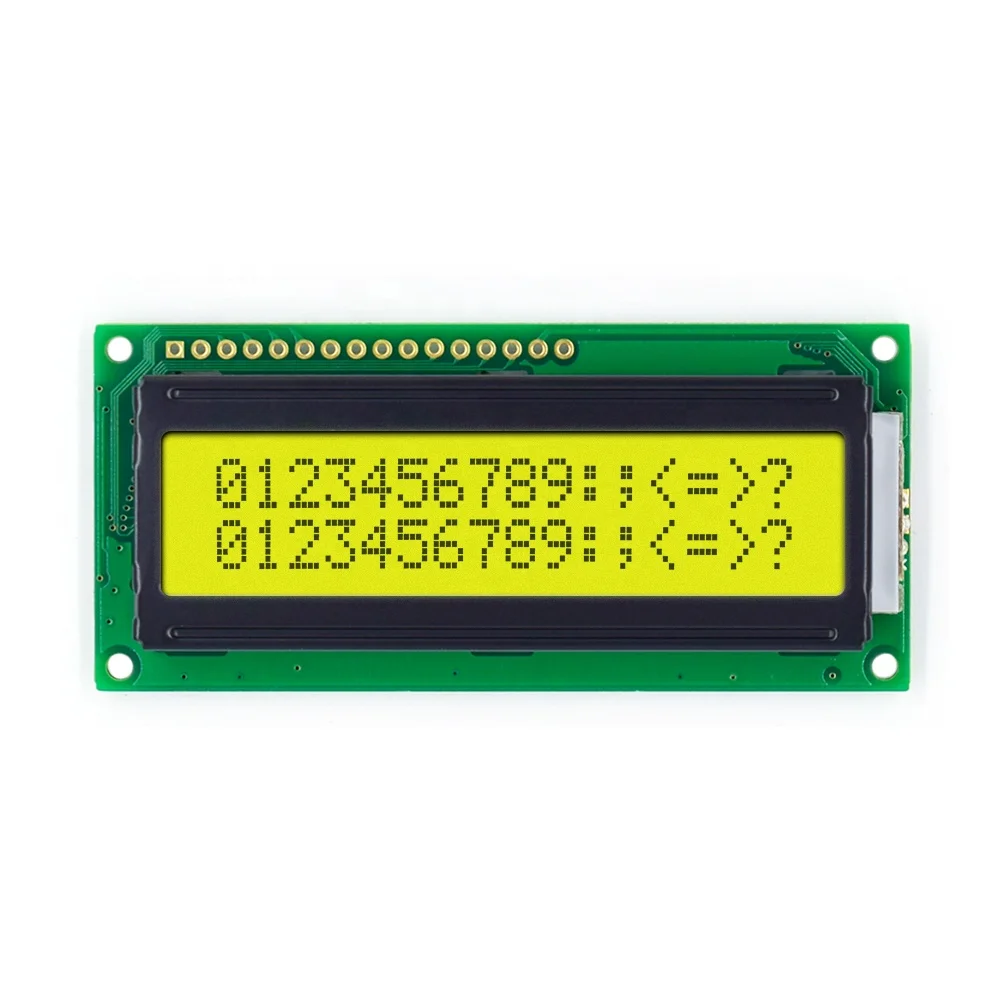

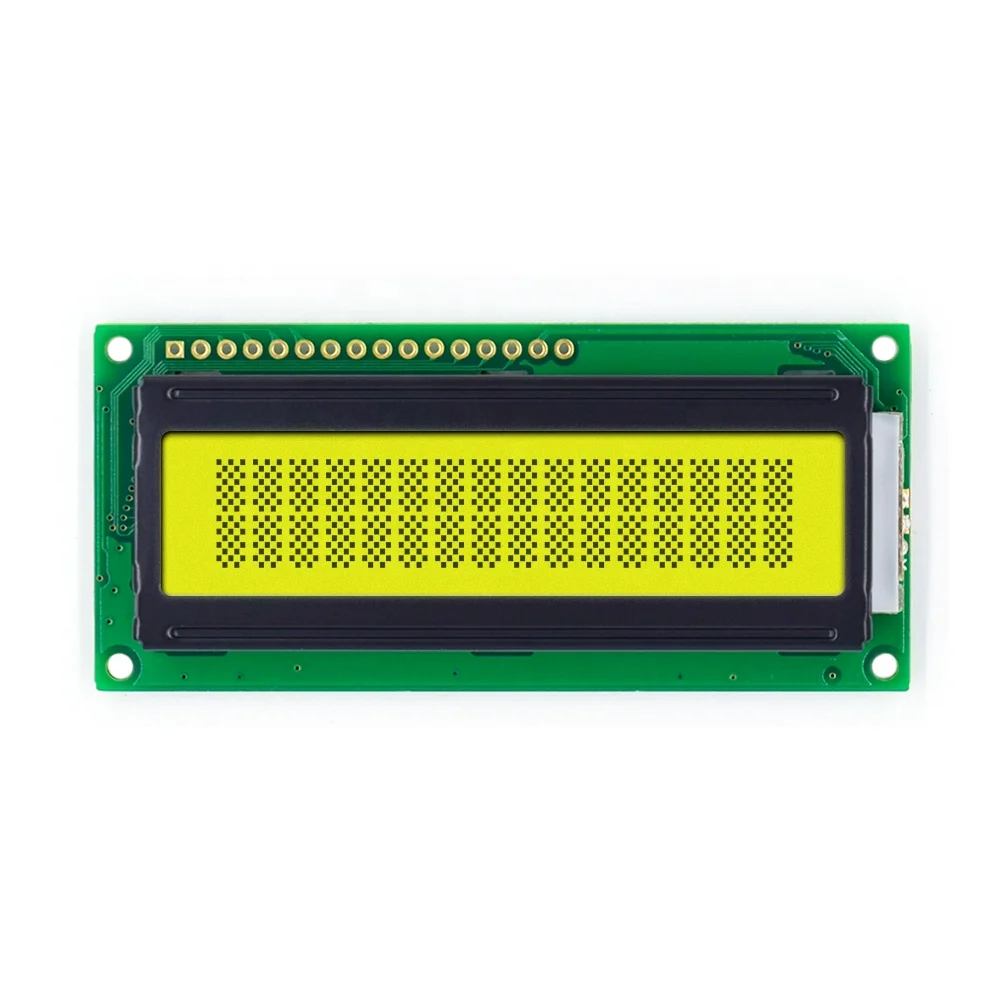

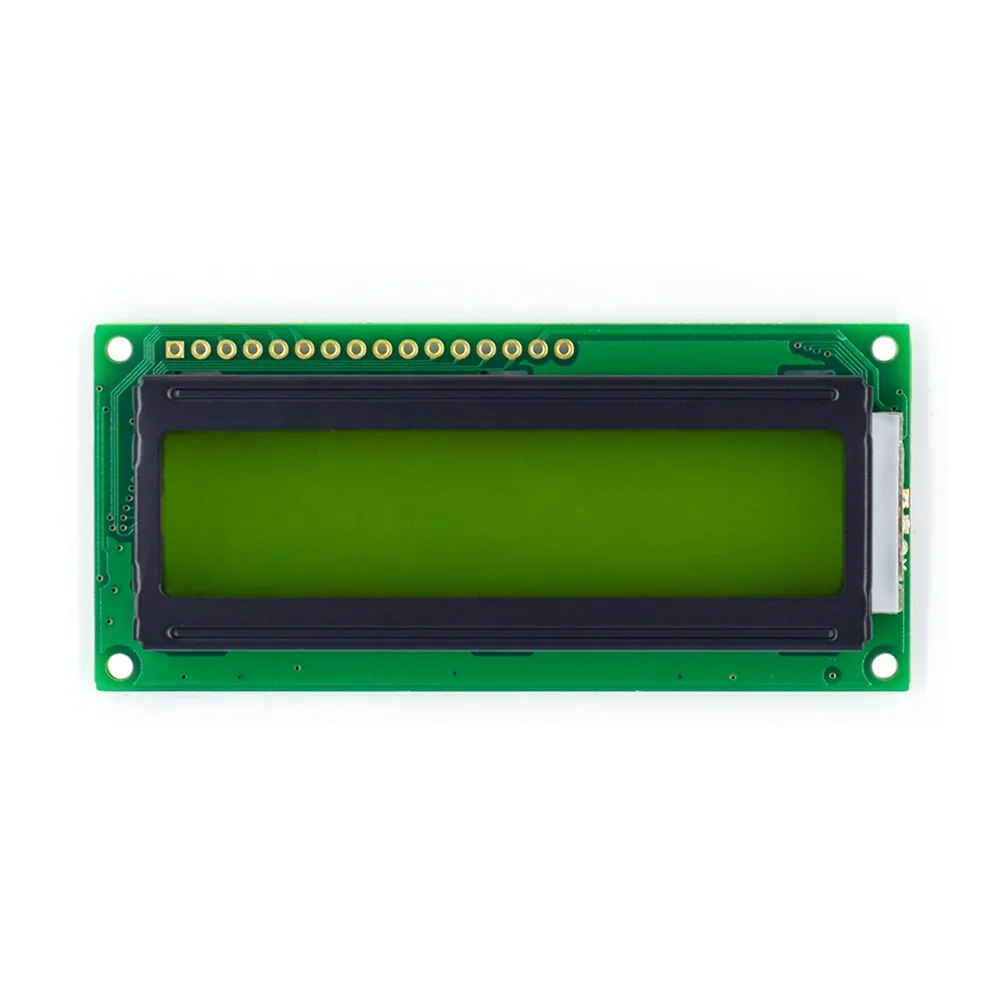

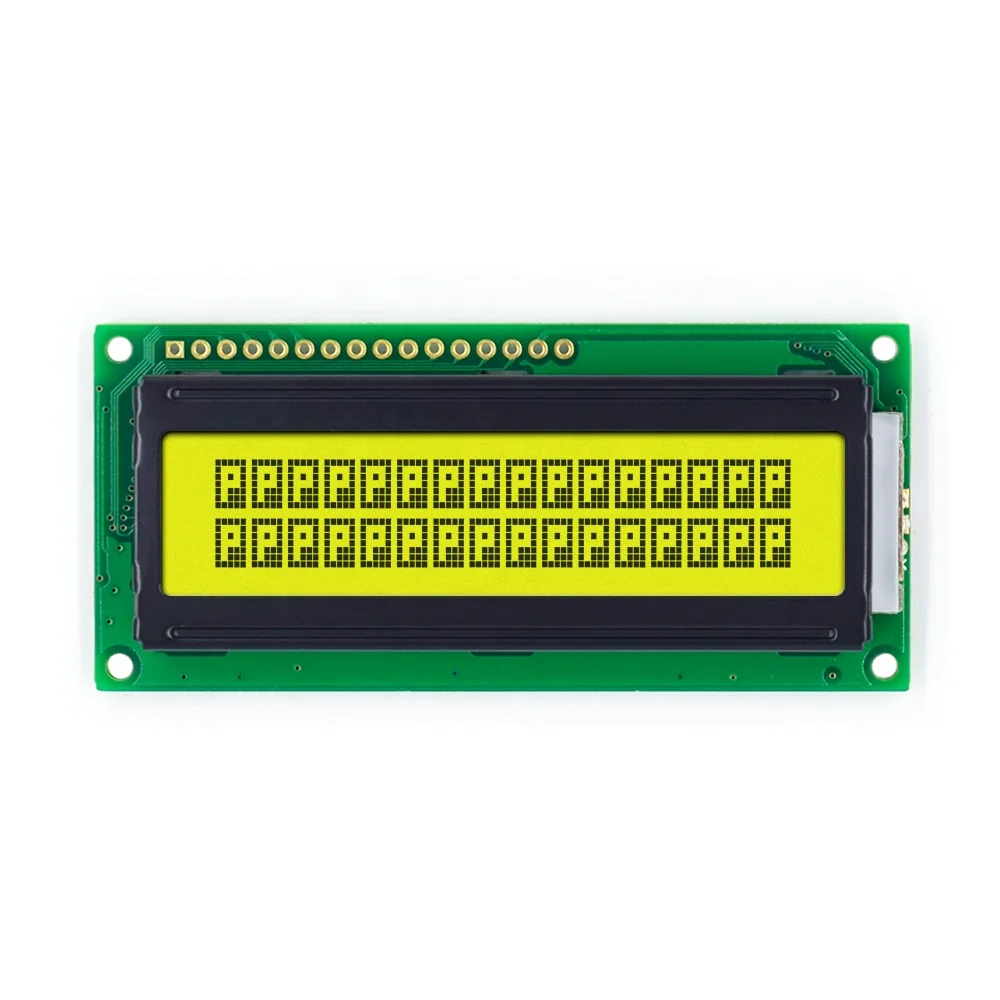

TCC(1602A4V11) моно 16 символов 2-линейный ЖК-модуль 18 pin 16x2
- Категория: Character Display >>>
- Поставщик: Shenzhen,TCC,LCD,Hi-Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.47 $* | 4.36 $* |
| Jul-16-2025 | 3.49 $* | 3.64 $* |
| Jun-16-2025 | 4.67 $* | 4.28 $* |
| May-16-2025 | 4.9 $* | 4.98 $* |
| Apr-16-2025 | 3.85 $* | 3.55 $* |
| Mar-16-2025 | 4.93 $* | 4.52 $* |
| Feb-16-2025 | 4.36 $* | 4.22 $* |
| Jan-16-2025 | 4.71 $* | 4.27 $* |
Характеристики
Specification
Resolution | 16*2 |
Viewing Angle | 6 O'clock |

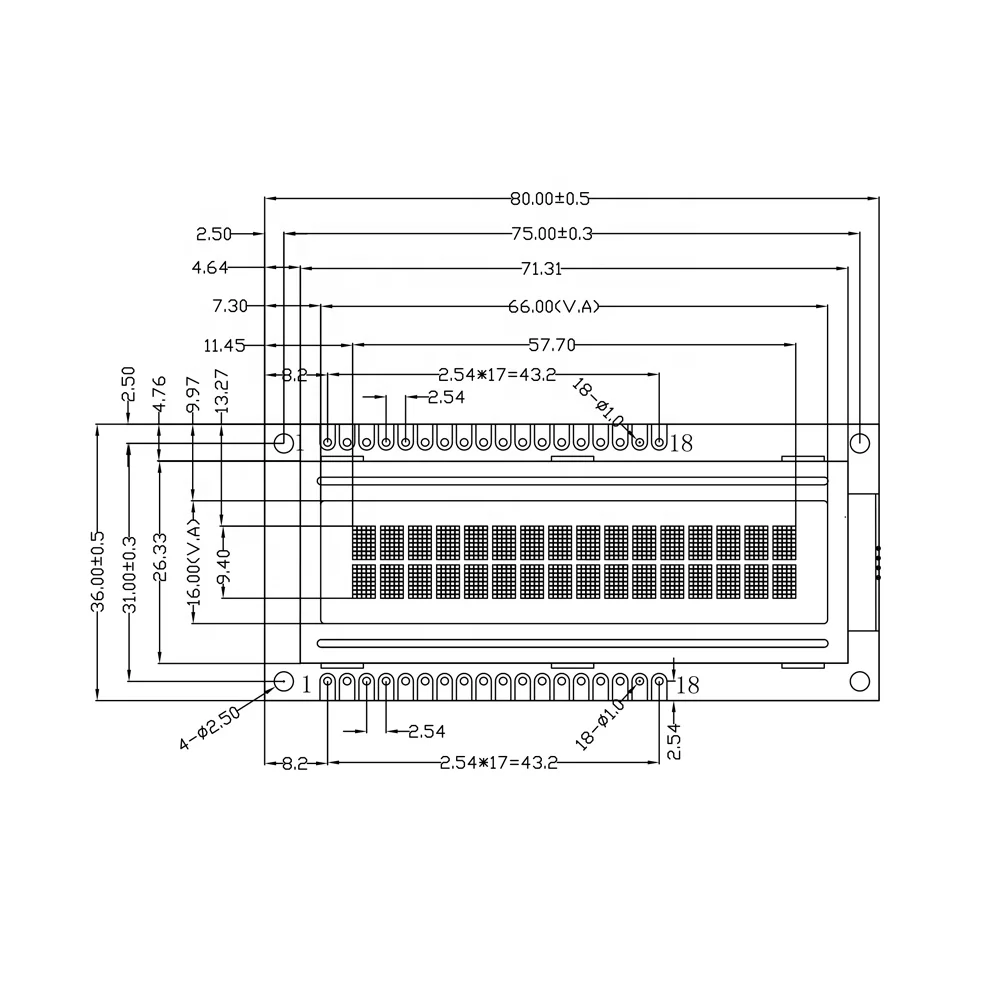

External dimensions | 80.0*36.0*13.0mm |
Visual area | 66.0*16.0mm |
Active area | 57.7*9.4mm |
interface | 8-bit parallel |
Display mode | STN/Positive/Transflective/YG |
Backlight | LED Yellow green |
Controller | SPLC780/ST7066 |
Operating Temp | -20°c~+70°c |
Storage Temp | -30°c~+80°c |
Number of pins | 18 pin |

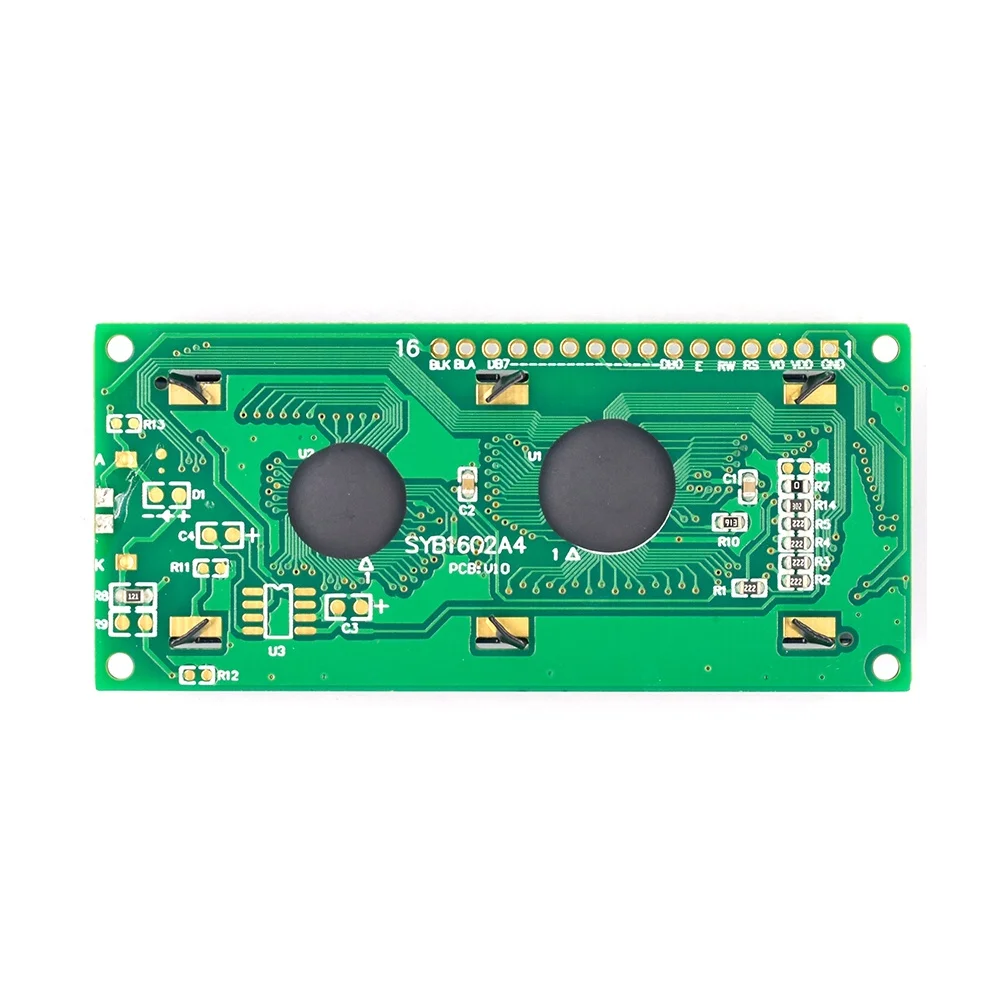

SYB1602A4V11
8-bit parallel interface
Product packaging
Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure that the product is not damaged during transportation.
More products
Product application
Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.
Certifications
We have a complete quality management system and have passed ISO9001:2015, SGS, TUV,BV, RoHS, and other certifications.
Manufacturing Technique
The company has advanced manufacturing equipment to provide customers with a strong guarantee for fast service and delivery.
TCC always adhere to the "Quality First" and strictly control the production process, the product after high temperature aging 100% inspection of qualified shipments.
Company Profile
Shenzhen TCC LCD Hi-tech Co.,LTD.
production of lcd display module full scheme.
The company's products include two series: standard and custom-made products, related to:Segment code lcd display, Character lcd display,Graphic lcd display, COG lcd display, TFT color display, OLED display; covers TN, HTN, STN, FSTN, TFT and other film types; fusion of COG, TAB, COB, SMT and other process.
TCC has been established for 15 years and has always believed in humanistic care. It has built a stable and excellent work team to provide customers with satisfactory services.
FAQ
Q: Can you customize the product? what do you need?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed ISO9001, SGS, TUV, BV, RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1weeks,Mass production for 2 weeks.
Q: Are you a merchant or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed ISO9001, SGS, TUV, BV, RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1weeks,Mass production for 2 weeks.
Q: Are you a merchant or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
