SS-TM80 почвы компактный вскрытия каток вибротрамбовка

Описание и отзывы

Трекер стоимости

Характеристики

Model	SS-TM80HR	SS-TM80EH	SS-TM80H	SS-TM80L
Engine Model	Honda GXR120	Robin EH12-2D	Honda GX100	Loncin G168F
Engine type	Air-cooled,single cylinder,4-stroke,petrol engine
Displacement [cc]	121	121	98	196
Engine power [HP]	3.5	4	3	6.5
Rated power [KW]	2.6	2.9	2.2	4.1
Speed [RPM]	3600
Starting system	Manual start
Employed fuel	93#
Employed oil	10W-30
Fuel tank capacity [L]	3.6
Oil tank capacity [L]	0.35
Leap height [mm]	45-80
Operating Weight [kg]	77
Impact Force [kn]	10
Jumping Stroke(max)cm(In)	6.5(2.6)
Foot Width [mm]	345x285
Fuel Tank [L]	2.8
Impact Number(number per minutes)	450-650
Package (L x W x H) [mm]	750x430x1270

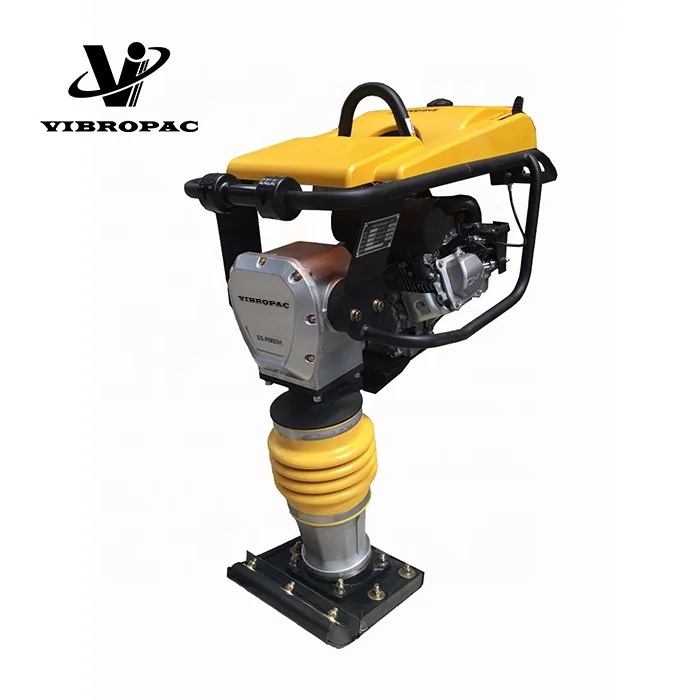

Vibration Tamping Rammer has the characteristics of small size, light weight, light tamping capacity, large tamping capacity, high production efficiency, good edging performance, flexible operation, simple, safe and reliable.

This machine is not only suitable for compaction of sand, tri-soil and various sandy soils, but also for compaction of asphalt sand and gravel, lean concrete and clay, especially suitable for the construction of narrow spaces such as indoor flooring, courtyards and trenches.



Tamping Rammer can perform construction tasks that cannot be completed by large and medium-sized compaction machines.



Exclusively designed engine



Honda GX120, Loncin LC165F-3H engine was designed exclusively for tamping rammer of high performance to



offer fast starting, low noise, low maintenance as well as low fuel consumption.

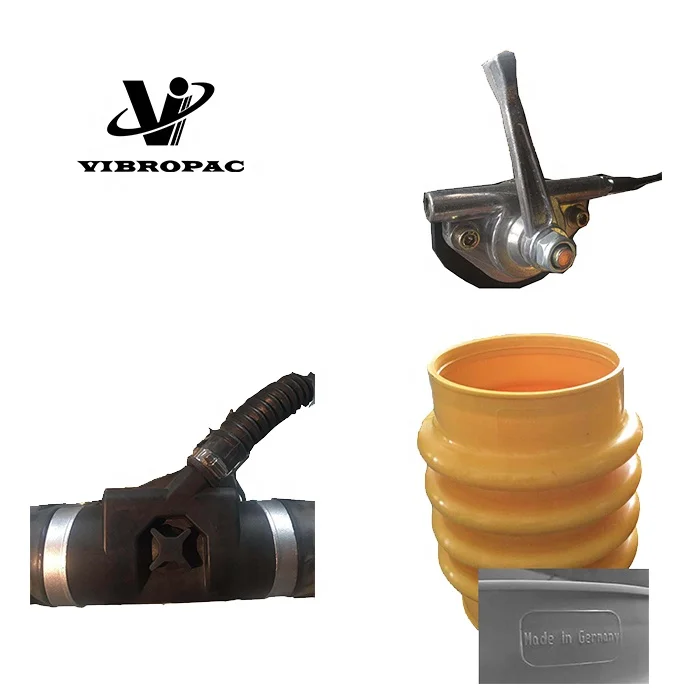

New design throttle lever

Throttle lever using new design and material to extend usage life with smooth operation.



Effective shock absorber

Heavy duty shock buffering system effectively reduced shock to arms therefore improve operation comfort.

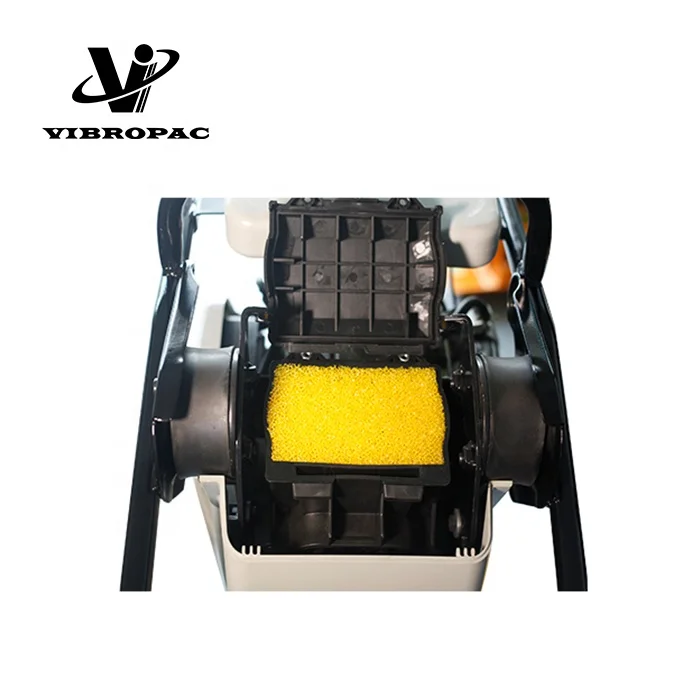

Safety device

Dust-proof cover and side panel of the engine provided needed protection of the power system.
