Модуль управления генератором DC30D ЖК-дисплей для небольшого
- Категория: Generator Parts & Accessories >>>
- Поставщик: Chongqing,Yokden,E&M,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 44.97 $* | 45.28 $* |
| Jul-15-2025 | 36.44 $* | 37.21 $* |
| Jun-15-2025 | 44.5 $* | 45.35 $* |
| May-15-2025 | 43.71 $* | 44.73 $* |
| Apr-15-2025 | 35.15 $* | 36.45 $* |
| Mar-15-2025 | 43.71 $* | 44.69 $* |
| Feb-15-2025 | 42.47 $* | 43.94 $* |
| Jan-15-2025 | 42.89 $* | 43.91 $* |
Характеристики
Product Description

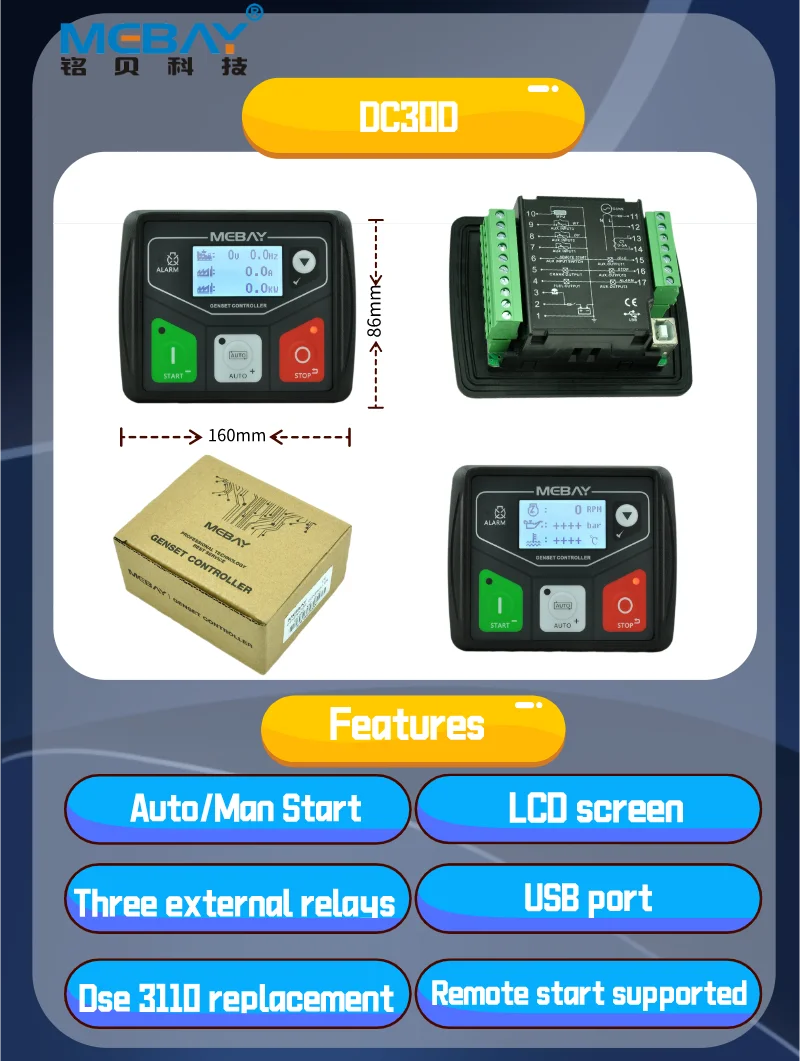

DC30D Replace Smartgen HGM1790 Genset Controller with IP 54 Protection Level
Specification of the Generator controller DC30D | ||
Operation Voltage | DC8-36V Continuous | |
AC Voltage Input | 1P2W(L-N input) 30VAC-360VAC(ph-N) | |
Rotate speed sensor Frequency | 50-9000Hz | |
Generator Frequency input | 50/60Hz | |
Insulation strength | Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. | |
Working condition | -25-65℃ | |
Protection Level | IP54:when waterproof rubber gasket is added between controller and its panel | |
Panel cutout | 78mm×66mm | |

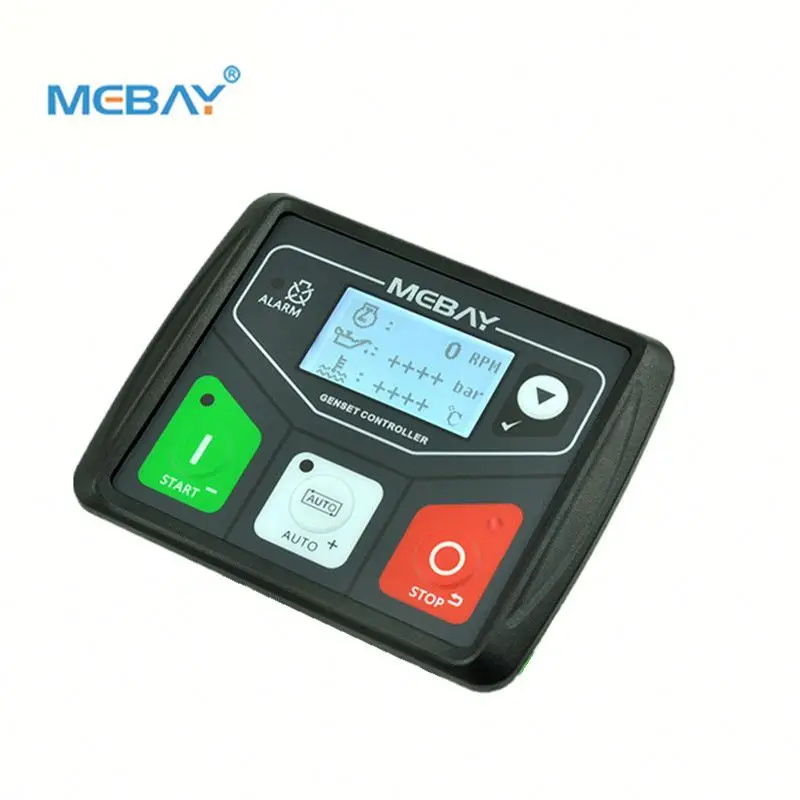

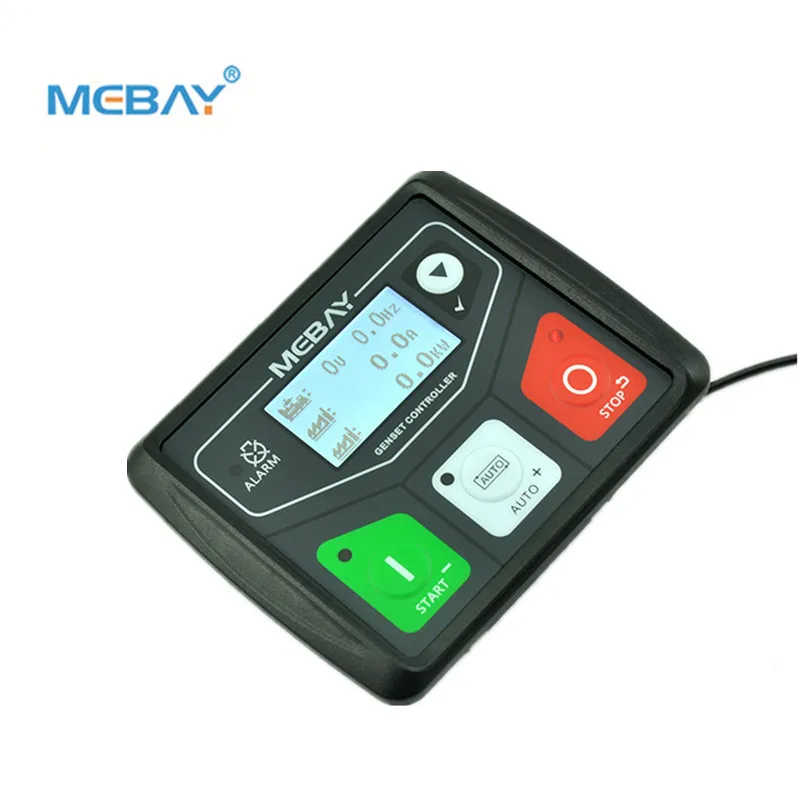

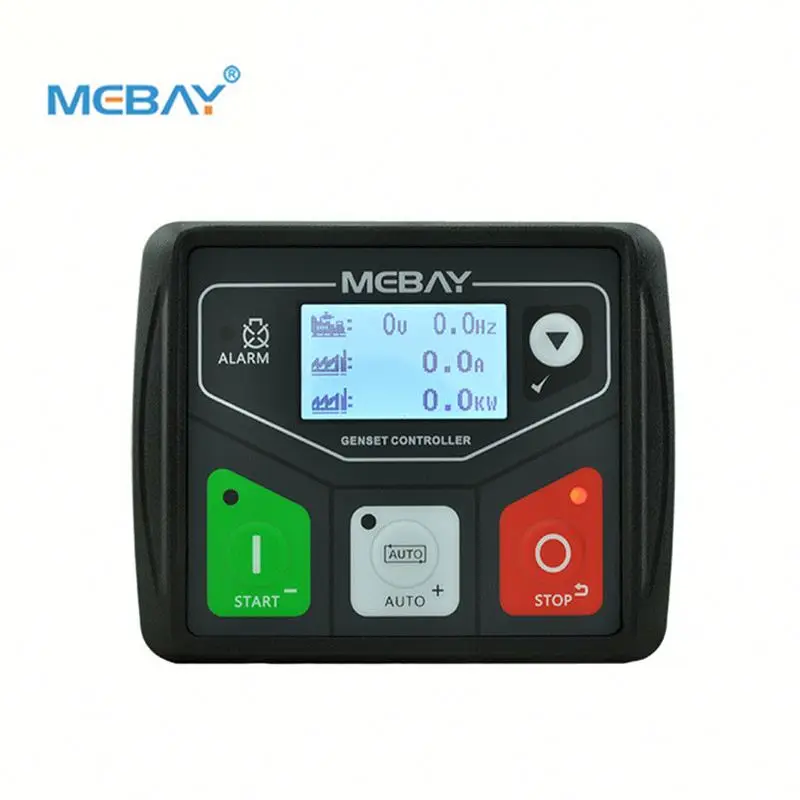

Detailed Image
Main Features
32 units Micro-procession technology is used.
1.8 inches 128*64 LCD display with backlight, option language interface (Chinese/English), user's language set if necessary.
PC front face panel, which is water-proof, oil-proof, UV proof so that the durability is longer
USB Port: parameters can be set even without power.
All the parameters can be set through front panel buttons.
Collect and display a variety of engine and generator parameters.
Records function: relative faults shall be recorded in real time.
It has 5 relay outputs, 3 of which are configurable, and more than 10 functions can be selected for each channel.
1 switch value input, and each can be set as max 20 functions.
3 sensor simulation input connectors, various kinds of units can be set.
Sensor can be self-defined by front face button or PC software.
Various of crank conditions(RPM,Frequency, Oil Pressure) can be chosen
Control Protection:Auto Start/Stop of genset,load transfer and perfect failure display and protection.
3 sensor simulation input connectors, various kinds of units can be set.
Sensor can be self-defined by front face button or PC software.
Various of crank conditions(RPM,Frequency, Oil Pressure) can be chosen
Control Protection:Auto Start/Stop of genset,load transfer and perfect failure display and protection.
