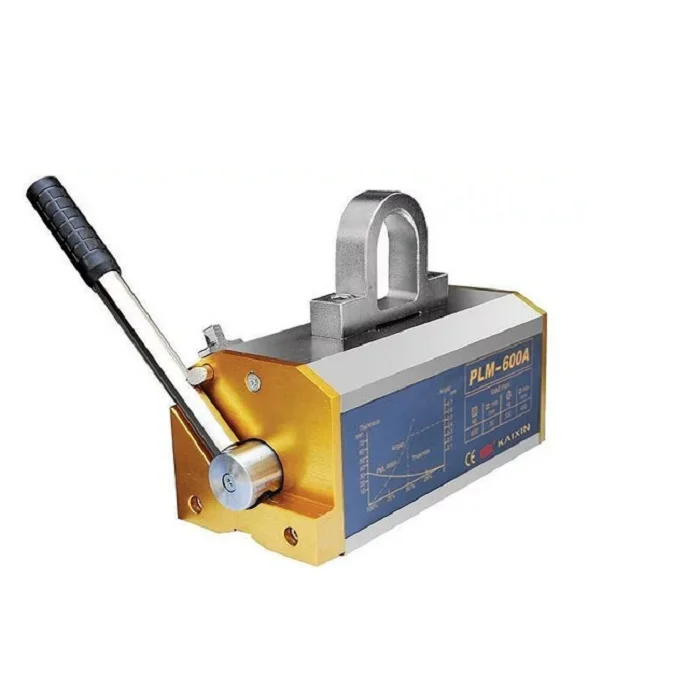

Permanent Magnetic Lifter



Product Induction
Magnet lifter has strong magnetic path produced by NdFeB magnet. On and off magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and without power supply. They are been used to lift and transport the steel and iron for factories, docks, ware houses, and so on.

Features for portable magnet lifter for steel plate:
1.Nd-Fe-B Magnet as core component,smaller size,stronger lifting force and lasting magnetic force.
2. High safety factor up to 3.5 times pulling-out force than rated lifting

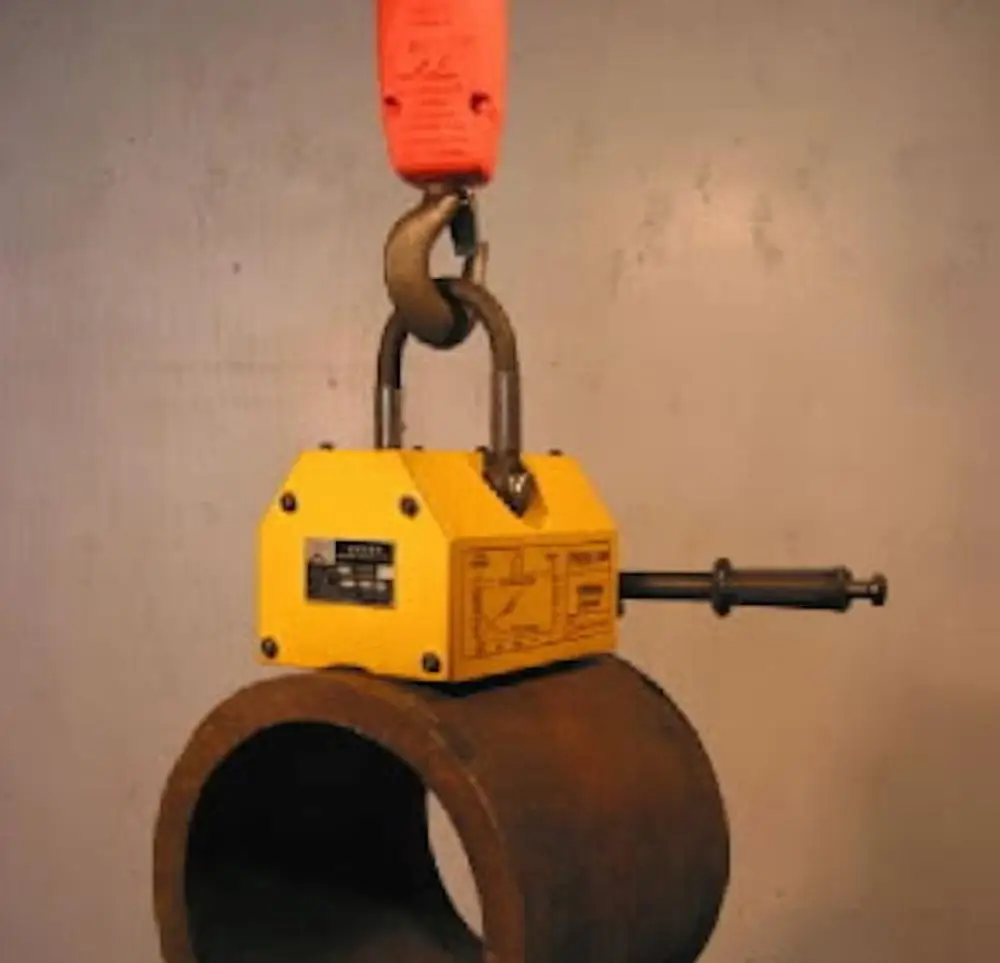

3. V style design at the bottom of lifter,can lift opposite round steel or steel board
4. Easy to use and free to power
5. Optimized magnetic circuit design makes residual magnetism almost zero
6. Professional appearance design makes product more attractive

Usage

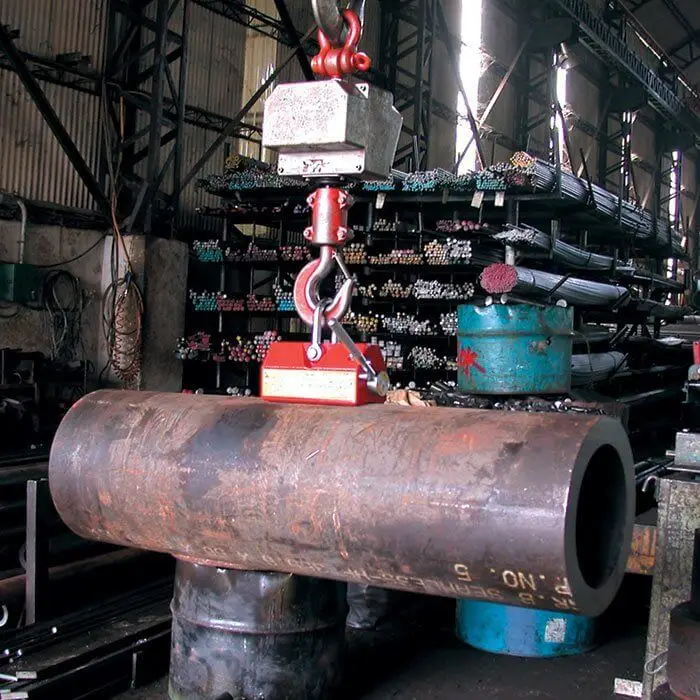

Widely use for lifting flat mechanical parts and steel,and in some mechanical manufacturing industries,such as machine-building plant,machining center,shipping building industry etc.
Using high-performance permanent magnetic materials, Strong in magnetic suction, patent circuit design, remanence almost zero.
High safety factor, maximal breakway force is 3.5 times rated lifting power.
Handle switches with safety twist, easy for Single-hand operation, more safety and convenience.
V style design at the bottom of lifter,can lift opposite round steel or steel board.
Magnet lifter without electricity, magnetic lasting popularity, more safety on using, aside may operated at open country.

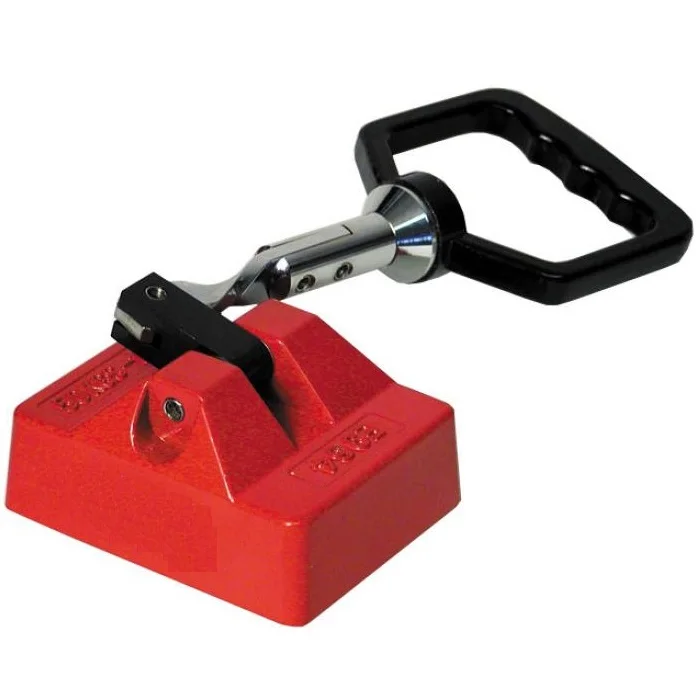

We also have other lifting magnet.



Model	Rated Lifting Capacity(KG)	Dimension(mm)				Max Breakaway Force(N)	Net Weight(KG)
		Length	Width	Height	Handle Length
SYB-100	100	90	63	68	146	350	3
SYB-400	400	160	95	180	160	1400	11
SYB-600	600	220	115	125	230	2100	22
SYB-1000	1000	260	145	145	280	3500	40
SYB-2000	2000	340	160	165	410	7000	60
SYB-3000	3000	420	185	185	510	10500	90
SYB-5000	5000	580	300	300	650	17500	400



This is the information for standard 3times safety factor magnet lifter.
