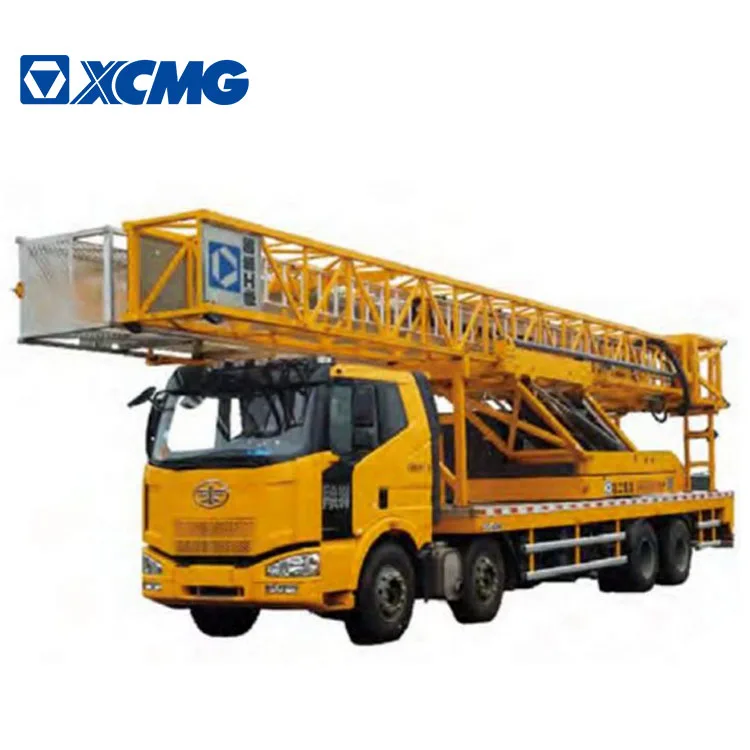

XZJ5318JQJC4 Bridge Inspection Truck

1,Bridge inspection truck is a special vehicle, which supply work platform for person while working, it can be equipped with bridge detector, used for mobile inspection and maintenance work. Bridge inspection truck can be divided into bucket type.

2,Under-bridge access equipment type according to working equipment. under-bridge access equipment type use access platform, with good stability and big carrying capacity, it is convenient for personnel entering the platform from bridge or return to bridge.

3,bucket-type aerial platform, with compact structure, work is flexible, almost is not subject to the limit of bridge structure, it not only an inspect under bridge but also can inspect the upper structure outside the bridge, sometimes it can be used as an Aerial work platform.

Description	Unit	Parameter value
Overall length of unit	mm	12970
Overall width of unit	mm	2500
Overall height of unit	mm	3990
Total weight of unit	kg	31000
Max. horizontal working range	m	22.2
Max. overcoming barrier	m	4.8/5.4
Max. overbridging of sidewalk	m	3.0/3.5
Max. overcoming barrier of show car	m	4.0/4.5
Max. overbridging of sidewalk of show car	m	2.8/3.3
Max. lowering depth	m	9
Max. crossing box girder	m	7.8
Max. payload of platform	kg	800
Max. payload of platform front	kg	400
Max. platform width	m	1.1
Rotation range of 1st slewing organization	°	0~90
Rotation range of 2nd slewing organization	°	0~180
Walking speed	m/min	≥13
Chassis model	Jie Fang CA1310P63K2L6T4A1E4(State IV)/CA1310P63K1L6T4E5(StateV)
Max.net power of engine	300Ps(State IV 220kw)/320Ps (StateV 236kW)
