handheld fiber optical opm light source mini laser pon power meter
Product Description
Portable optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fibre network. It is a compact device with backlight switch and auto power on-off ability. Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition, it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.
Features:
Self calibration by user himself
Rechargeable lithium battery supports continuous work for up to 48 hours.
Linear indicators (mW) and non-linear indicators (dBm) display in one screen

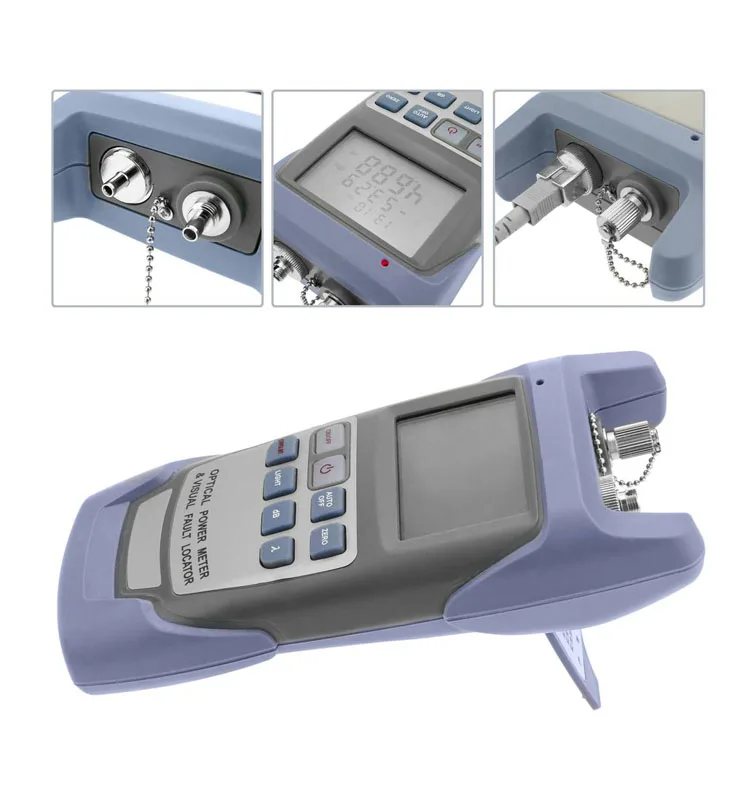

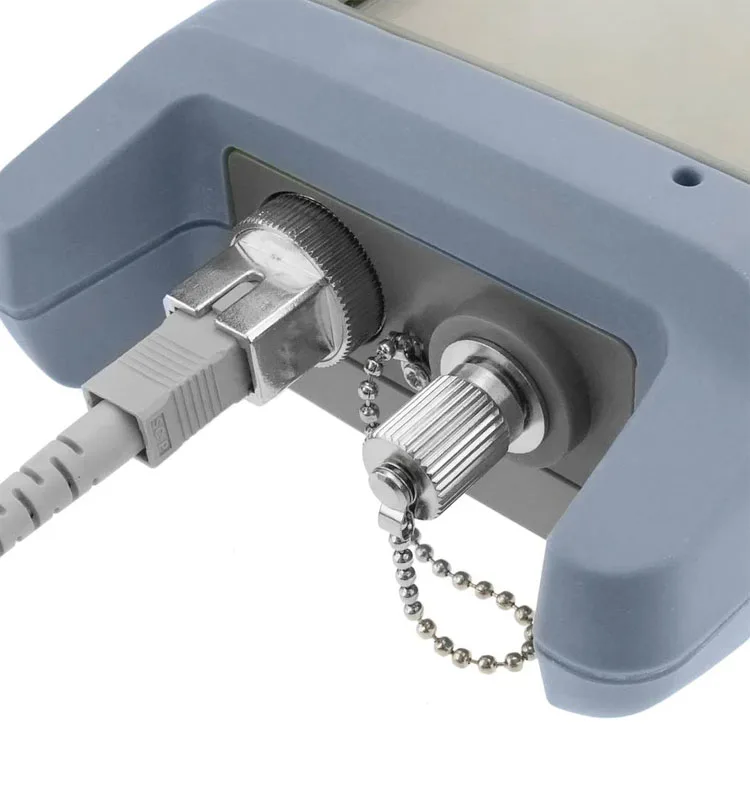

Unique FC/SC/ST universal port (see Figures 1, 2), no complex conversion
Optional auto power-off ability
Backlight ON/OFF
Model | A | B |
Measurement range | -70~+3 | -50~+26 |
Type of probe | InGaAs | |
Range of wave length | 800~1700 | |
Uncertainty | ±5% | |
Standard wave length (nm) | 850,980,1300,1310,1490,1550 | |
Resolution | Linear indication: 0.1% Logarithmic indication: 0.01dBm | |
Working temperature (℃) | -10~+60 | |
Storage temperature (℃) | -25~+70 | |
Auto power-off time (min) | 10 | |
Continuous working hours | At least 48 hours | |
Dimensions (mm) | 190×100×48 | |
Power supply | Rechargeable lithium battery | |
Weight(g) | 400 | |
Notice:
1. Range of wave length: a standard working wave length that we specified: λmin – λmax, the optical power meter within this range can work well with all indicators meeting requirements.
2. Measurement range: the maximum power that the meter can measure as per required indicators.
3. Uncertainty: the error between the test results and standard test results over a popular optical power.
