0.2% Высокоточный расходомер Кориолиса из всех материалов

Описание и отзывы

Трекер стоимости

Характеристики

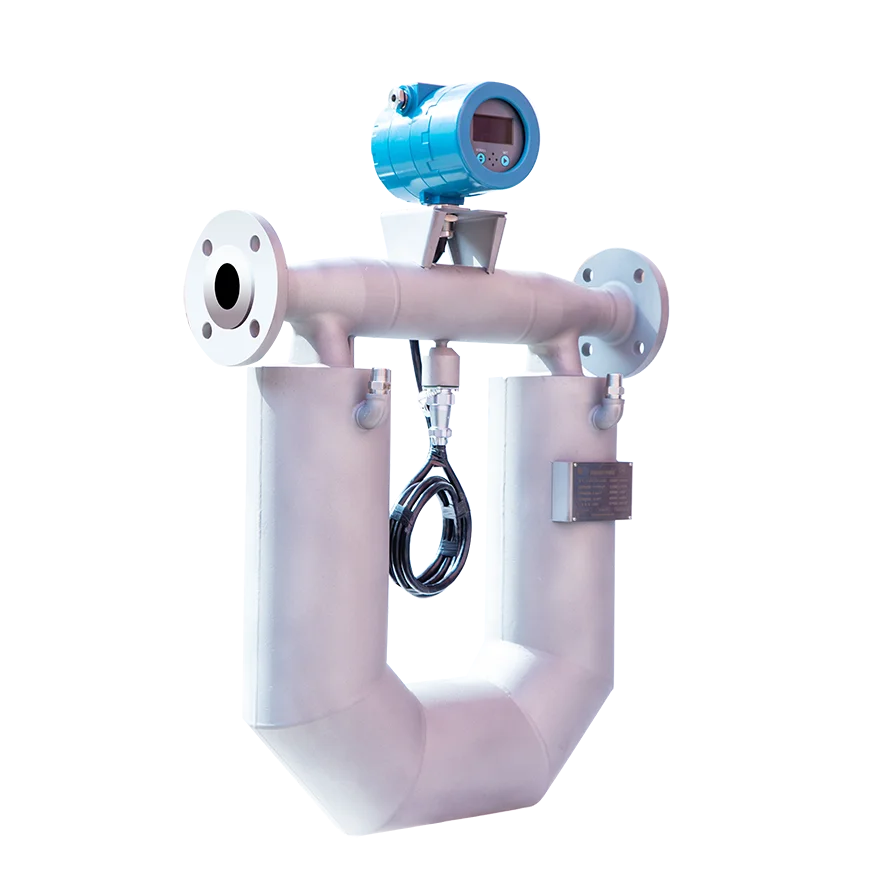

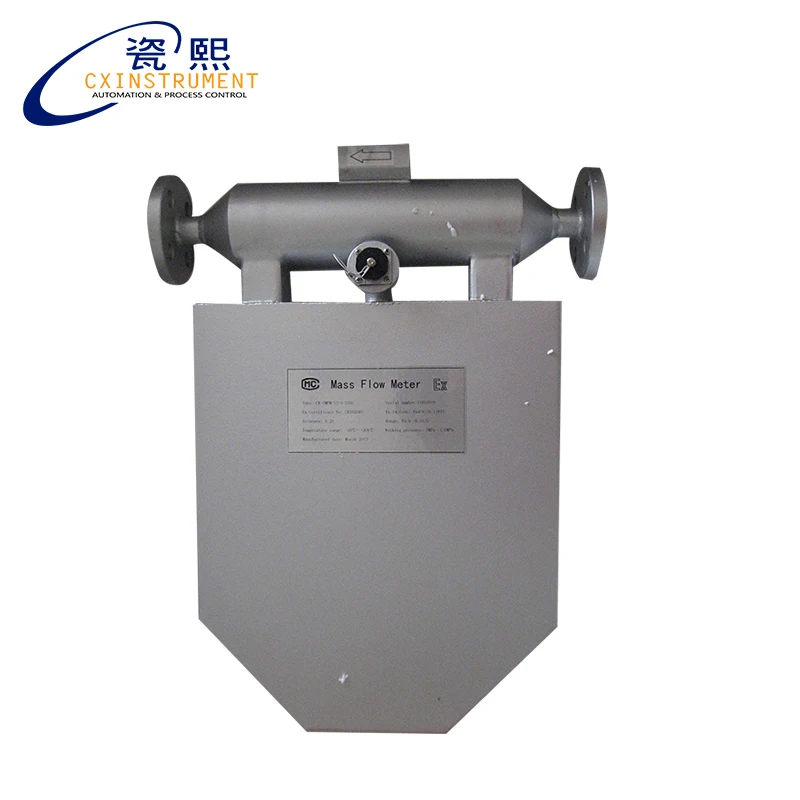

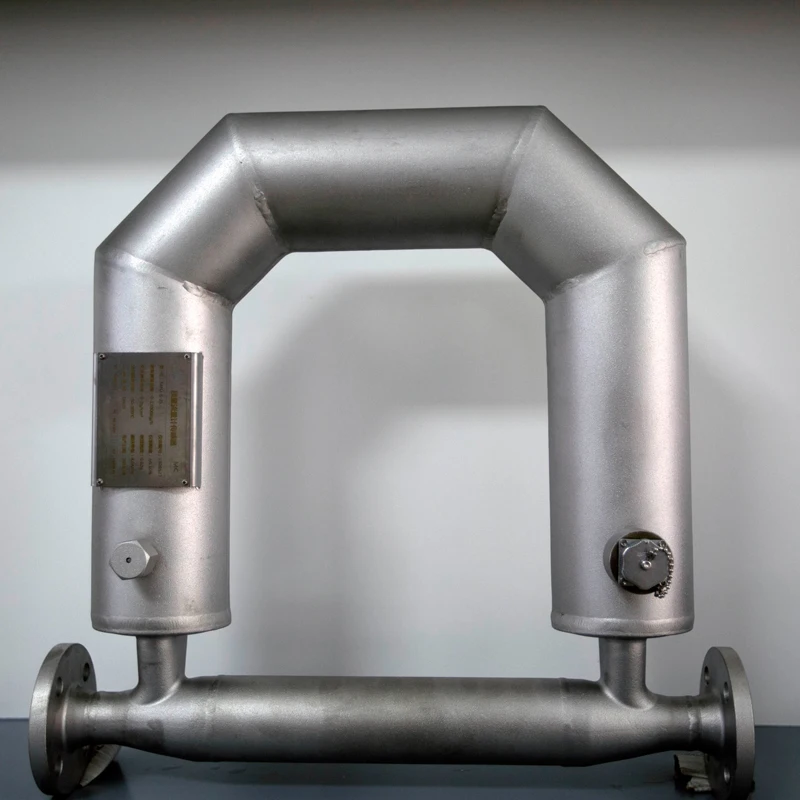

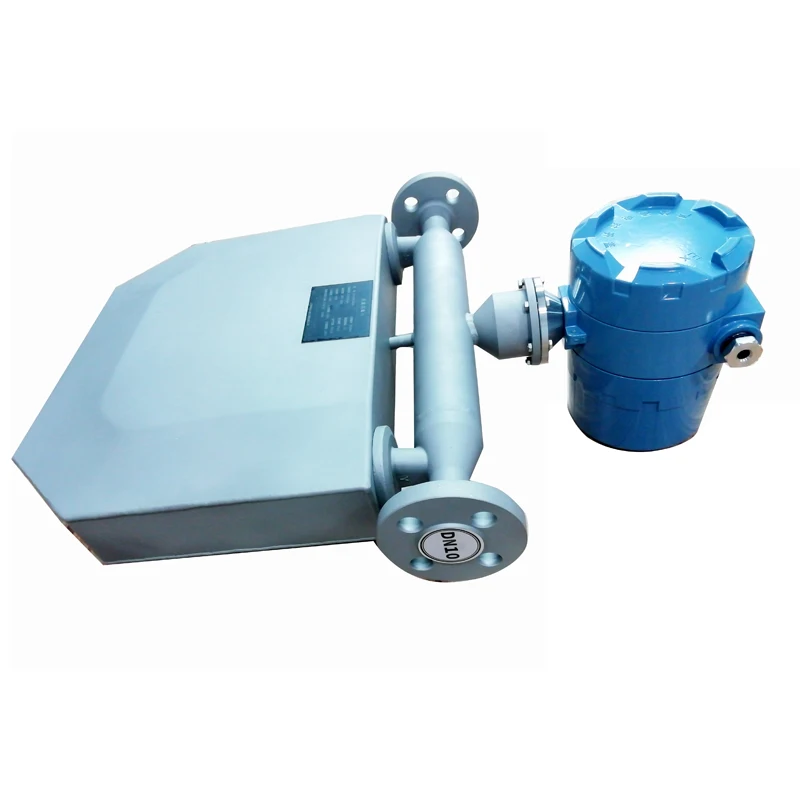

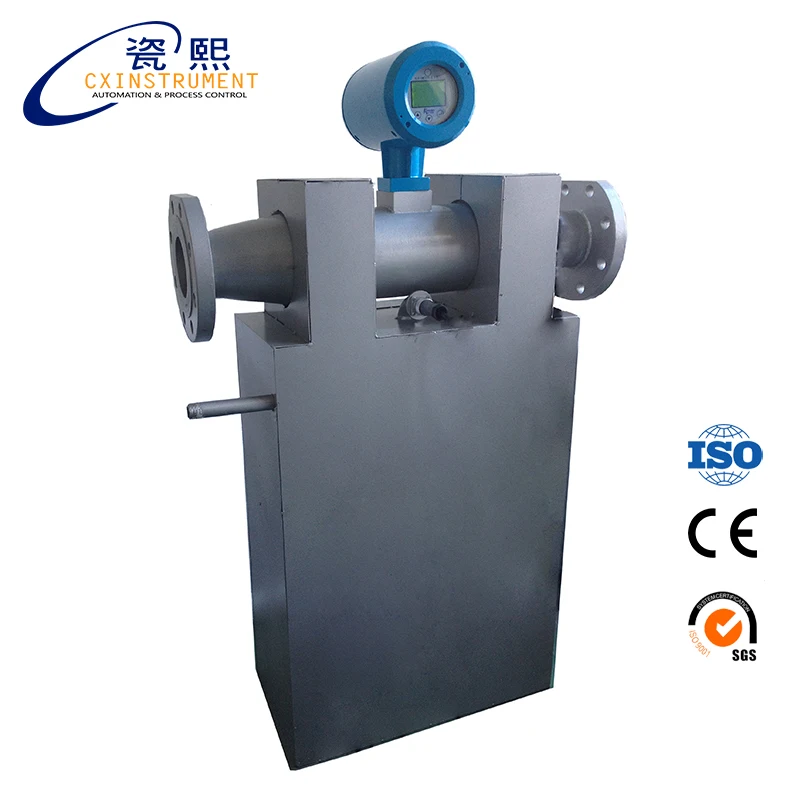

Coriolis Mass FlowMeter



A.[Features of coriolis mass flowmeter]



High Accuracy

The coriolis mass flowmeter with high accuracy,the standard type is 0.2%;



High Quality Material

The coriolis flowmeter with high quality material all stainless steel 316L;



Display more details of medium

The coriolis mass flowmeter display the mass flow;volume flow;density;temperature;



Various Output

The flow meter with RS485/MODBUS/HART/4~20mA output for you reference;



Widely measuring range

The mass flow meter min diameter is DN1,the max is DN150



B.[Parameter]



Coriolia Mass Flow Meter---Basic Information
Flow Accuracy	+/-[0.2% or 0.1%+(zero stability /flow rate ×100% )]
Diameter	DN1~DN150mm
Flow Repeatability	+/-(1/2)×[zero stability /flow rate ×100%]
Density range	0.2 g/cm3~3.5 g/cm3
Density Accuracy	+/-0.002 g/cm3
Temperature range	-60~200℃
Temperature accuracy	+/-1℃
Output of current loop	4~20mA
Output of frequency/pulse	0Hz~10KHz
Relay	24V/0.1A
Explosion-proof	Essential safety:Exib[ib]IIBT4   ;Composite:Exdib[ib]IIBT4
Contactor form	Normal Open
Enviroment Specifications
Medium temperature range	-40C~+200℃
Enviroment temperaure range	0~+40℃
Enviroment humidity	≤90% RH, non condensation
Atmospheric pressure range	86kPa~106kPa
Power supply of transmitter	Essential safety Voltage: AC(220±10%)V,(50±5%)Hz;Composite Voltage: DC (24±10%) V



The Flow Range of Coriolis Mass Flow Meter
Specs	Line Size	Flow Range	Calibration range	Max.Pressure	Zero Stability	Velocity
	(mm)	(t/h)	(t/h)	(Mpa)	(t/h)	(h m/t s)
DN1	1	0~0.04	0.004~0.04	30.0	0.000008	353.7
DN3	3	0~0.35	0.035~0.35	30.0	0.000067	39.3
DN6	6	0~0.7	0.07~0.7	30.0	0.00016	19.65
DN10	10	0~1.2	0.12~1.2	30.0	0.0002	4.912
DN15	15	0~6.4	0.64~6.4	4.0	0.0011	2.183
DN25	25	0~16	1.6~16	4.0	0.002	0.902
DN40	40	0~40	4.0~40	4.0	0.003	0.334
DN50	50	0~65	6.5~65	4.0	0.006	0.197
0.197	80	0~160	16~160	2.5	0.01	0.0873
DN100	100	0~250	25~250	2.5	0.015	0.0544
DN150	150	0~550	55~550	2.5	0.03	0.0239





CAD of Coriolis Mass Flow Meter
Spec	Line Size(mm)	Fitting Options(mm)				Connection size	Weight(kg)
		A	B	C	D
DN1	13	193	200	75	234	M12*1.5 Screw join	4
DN3	3	193	225	75	288	M12*1.5 Screw join	4.5
DN6	6	214	234	69	328	M16*1.5 Screw join	7.5
DN10	10	256	291	73	370	M20*1.5 Screw join	9
DN15	15	413	503	90	φ65	4-φ14	15
DN25	25	473	548	96	φ85	4-φ14	18.5
DN40	40	522	613	116	φ110	4-φ18	25.5
DN50	50	597	676	137	φ125	4-φ18	35
DN80	80	650	837	175	φ160	4-φ18	53.5
DN100	100	714	934	198	φ190	4-φ22	70
DN150	150	815	1123	265	φ250	4-φ26	80



C.[Company info]

• Our Company is Top 10 Manufacture on Alibaba;


• We have about 30 years of experience in Manufacture;


• Our products have been exported to more 100 coutries and area;


• ISO,SGS,CE and more ceterficates for you reference;


• Patent technology and more than 3 years working life
