3D CNC автомобильный подушки сиденья проволочного каркаса делая машину станок для гибки проволоки (автокресло

3D CNC автомобильный подушки сиденья проволочного каркаса делая машину станок для гибки проволоки (автокресло

Категория: Other Bending Machines >>>
Поставщик: Dongguan,Xinsheng,Hardware,Machinery,Co.,Ltd.

Цена:38 888,00 $ - 48 888,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	46277.78 $*	48591.85 $*
Aug-18-2025	45888.44 $*	48182.19 $*
Jul-18-2025	38499.10 $*	40424.96 $*
Jun-18-2025	45110.19 $*	47366.89 $*
May-18-2025	39277.0 $*	41241.13 $*
Apr-18-2025	44332.74 $*	46549.74 $*
Mar-18-2025	43943.78 $*	46140.15 $*
Feb-18-2025	43555.99 $*	45733.47 $*
Jan-18-2025	43166.65 $*	45324.67 $*

Характеристики

Product Description

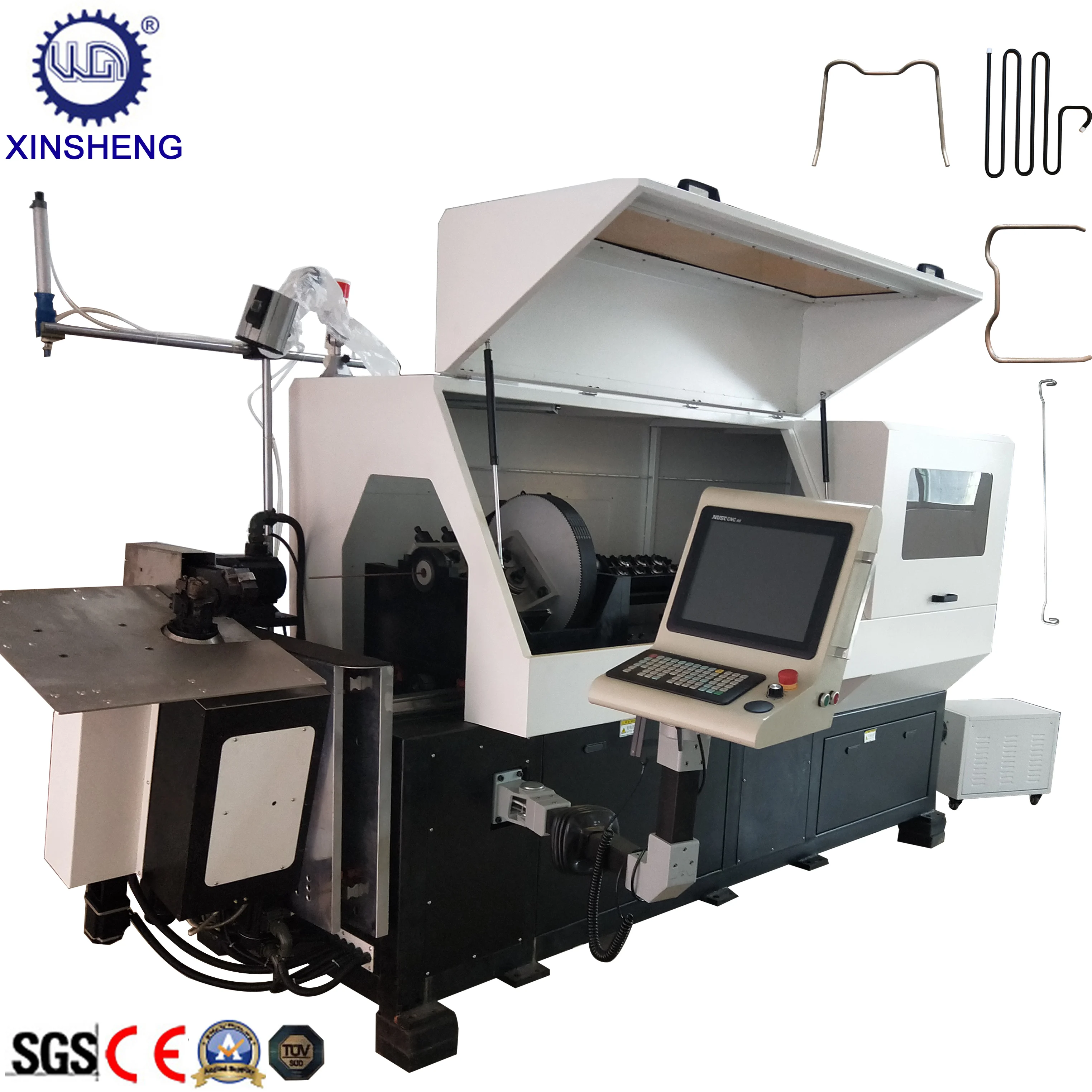

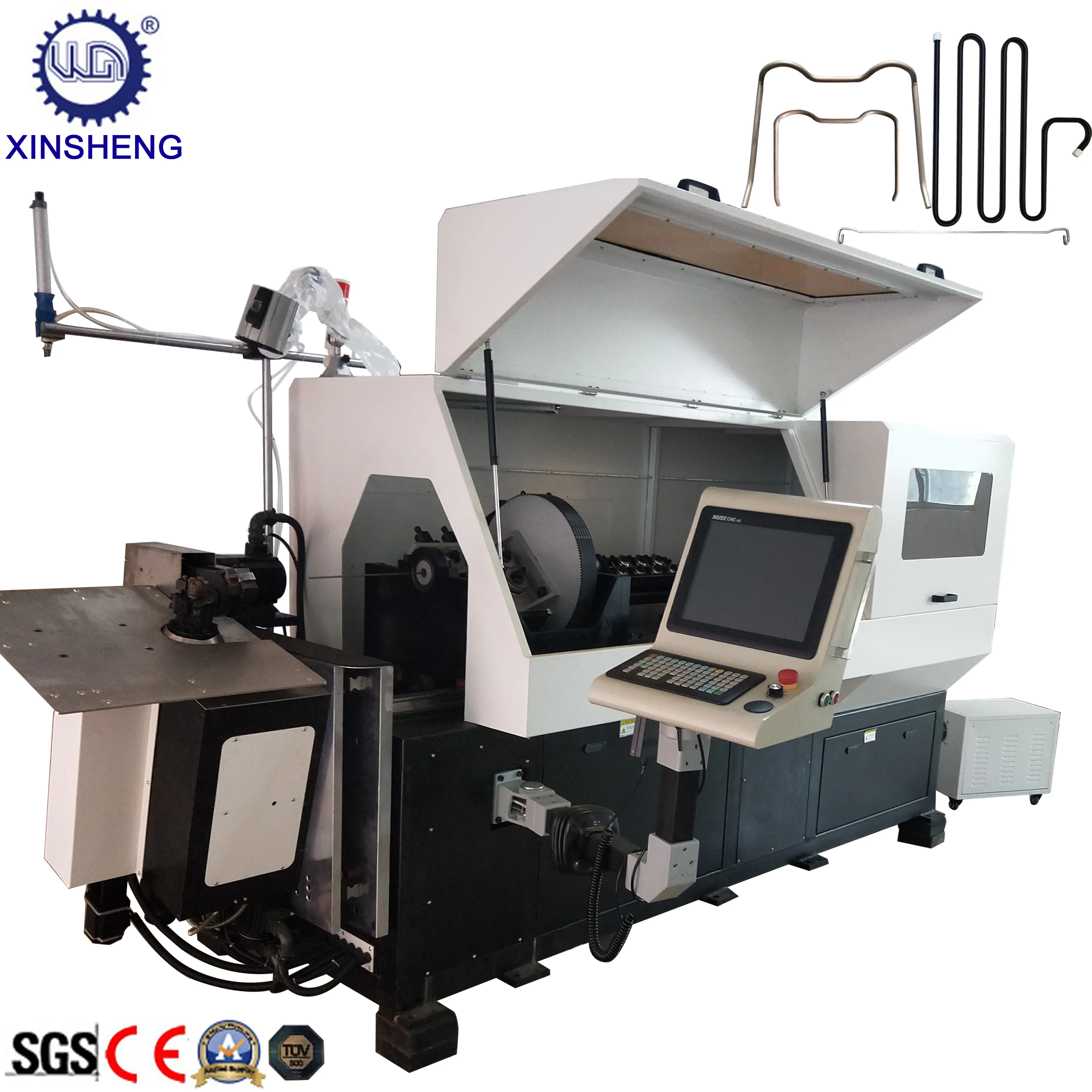

3D CNC Wire Baskets Bending Machine

Production description :CNC 3D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.

\t Model	\t GT-WB-60-5A	\t GT-WB-60-10A	\t GT-WB-80-9A	\t GT-WB-100-9A	\t GT-WB-120-7A
\t Wire Size(mm):	\t 2.0-6.0	\t 2.0-6.0	\t 3.0-8.0	\t 5.0-10.0	\t 5.0-12.0
\t Axis:	\t 5	\t 10	\t 9	\t 9	\t 7
\t Feeding Roller Number:	\t 3 pairs	\t 3 pairs	\t 3 pairs	\t 4 pairs	\t 4 pairs
\t Wire Turning Angle:	\t Unlimited	\t Unlimited	\t Unlimited	\t Unlimited	\t Unlimited
\t Platform lifting height:	\t 50-170mm	\t 50-170mm	\t 25-120mm	\t 25-120mm	\t 25-120mm
\t Twisting head lifting height:	\t 20-100mm	\t 20-100mm	\t 20-80mm	\t 20-80mm	\t 20-80mm
\t Distance between cutting and bending head	\t /	\t /	\t /	\t 305mm	\t 305mm
\t Distance between bending head and machine body	\t /	\t /	\t /	\t 800mm	\t 800mm
\t Out twisting lifting height	\t /	\t 20-55mm	\t /	\t /	\t /
\t Left to right moving range	\t /	\t left:80mm right:40mm	\t left:100mm right:60mm	\t /	\t /
\t Feeding front and back moving range	\t /	\t front:300mm back:100mm	\t front:300mm back:100mm	\t /	\t /
\t Machine size(cm)	\t 180120120	\t 300120140	\t 350120150	\t 380140170	\t 450180170
\t Machie weight(kg)	\t 3000.0	\t 3200.0	\t 3400.0	\t 4800.0	\t 8600.0

Advantages & Main Features

1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.

2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer

3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.

4) Running in a high automatization and intellectualization,no pollution

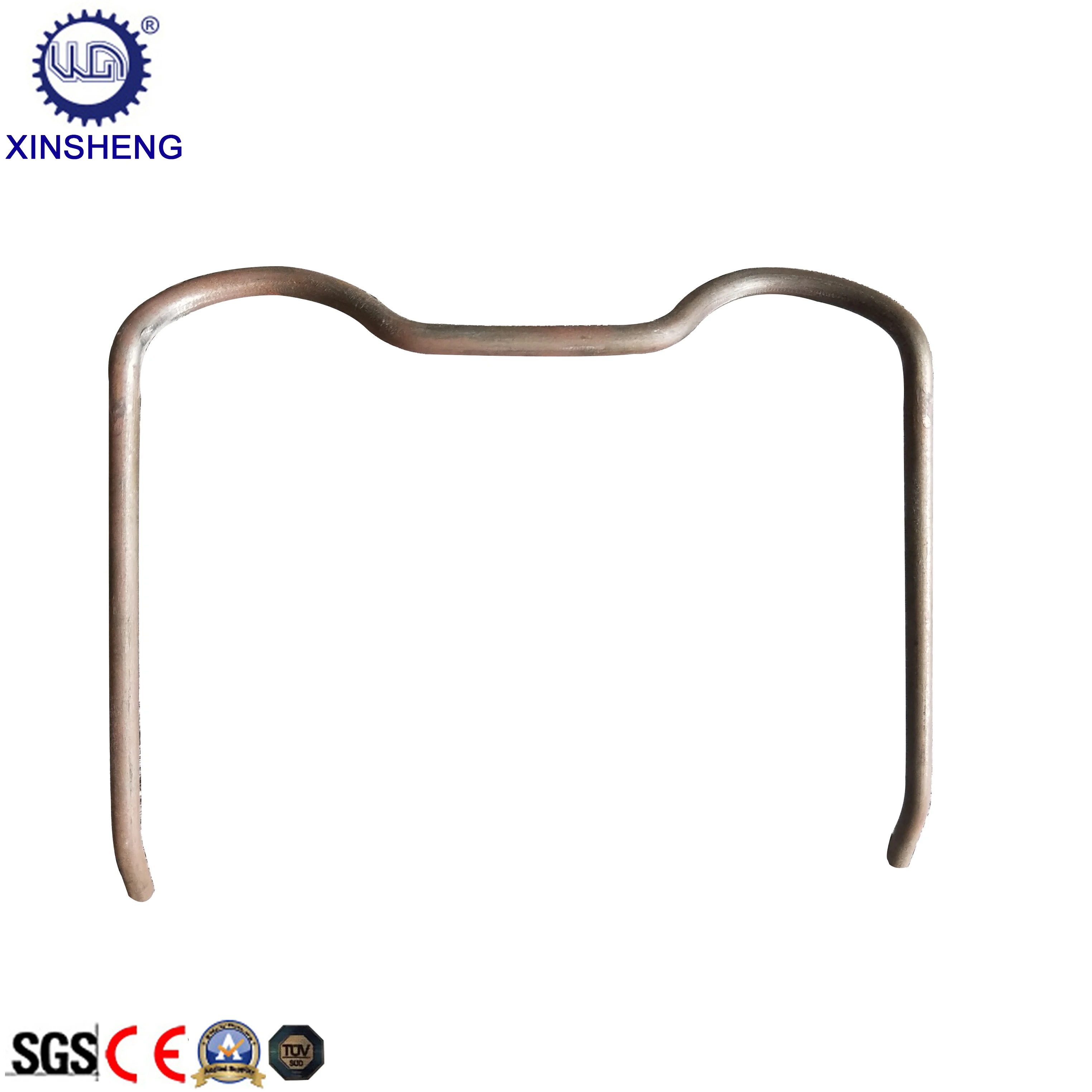

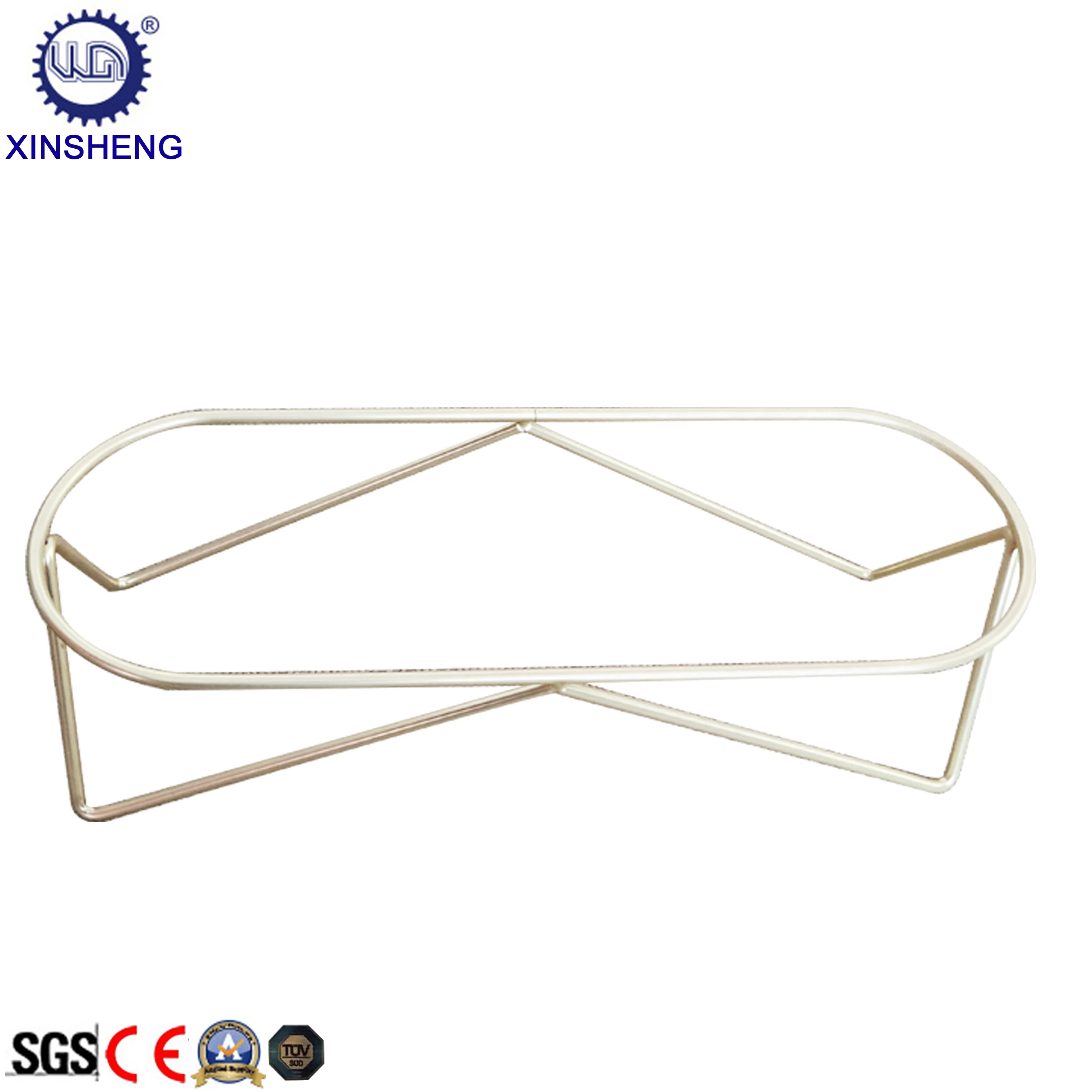

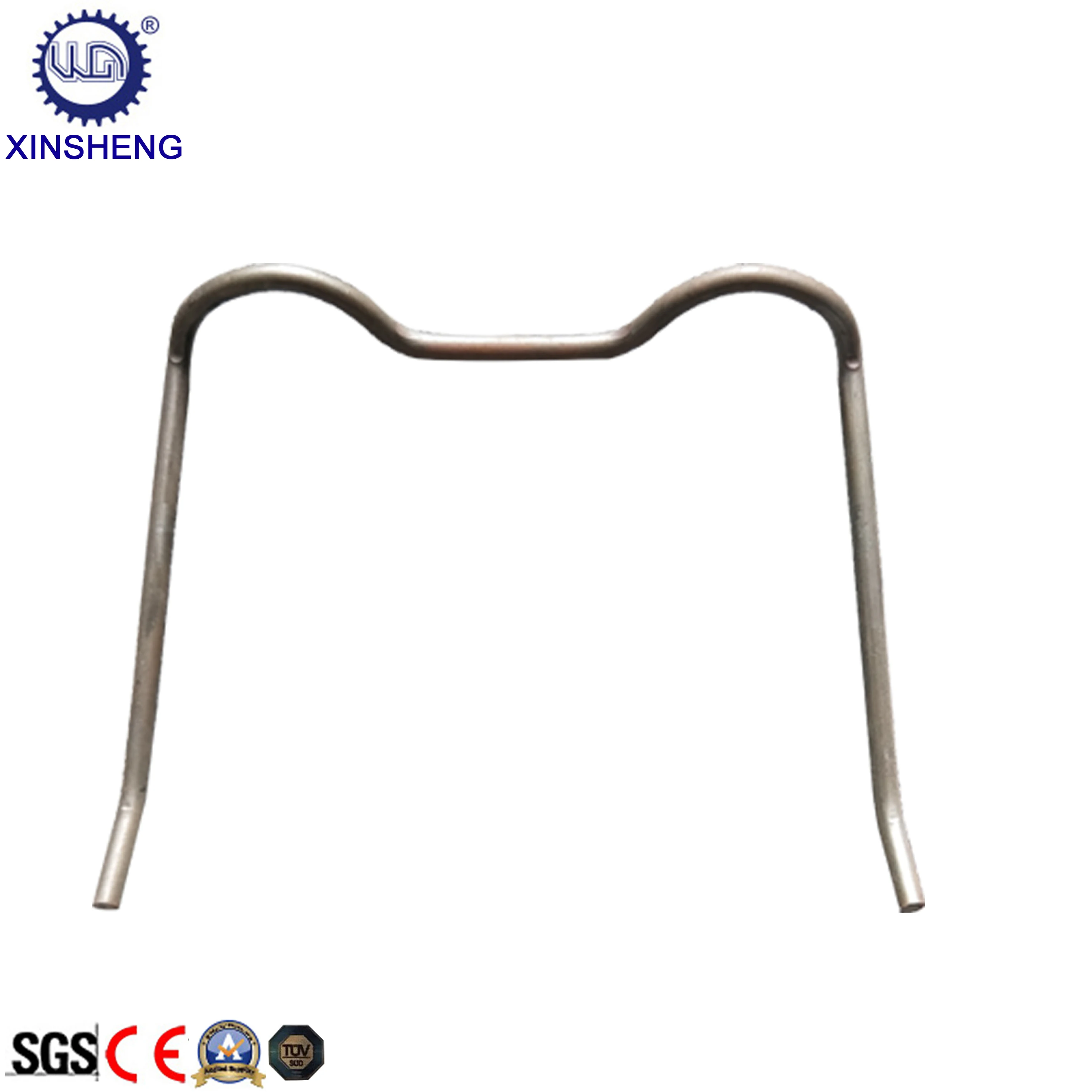

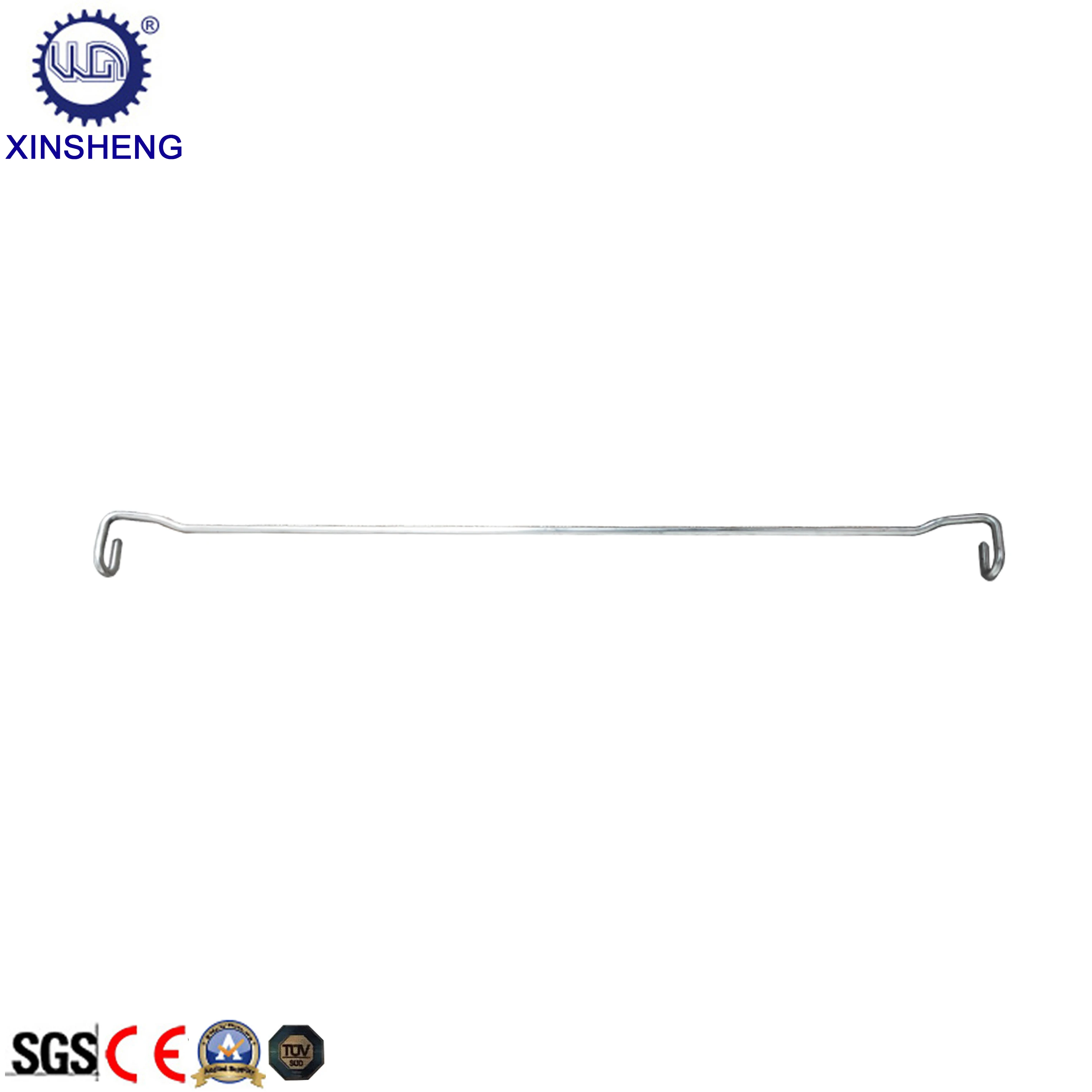

Detailed Images
