BDM-150A прицеп монтируется DTH буровая установка для бурения скважин на
- Категория: Горное оборудование >>>
- Поставщик: Shandong,Better,Drilling,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 658100.86 $* | 671262.46 $* |
| Jul-20-2025 | 533735.53 $* | 544410.5 $* |
| Jun-20-2025 | 647736.76 $* | 660691.36 $* |
| May-20-2025 | 642554.3 $* | 655405.74 $* |
| Apr-20-2025 | 513007.15 $* | 523267.37 $* |
| Mar-20-2025 | 632191.36 $* | 644835.13 $* |
| Feb-20-2025 | 627009.11 $* | 639549.76 $* |
| Jan-20-2025 | 621827.11 $* | 634264.17 $* |
Характеристики
Product Description

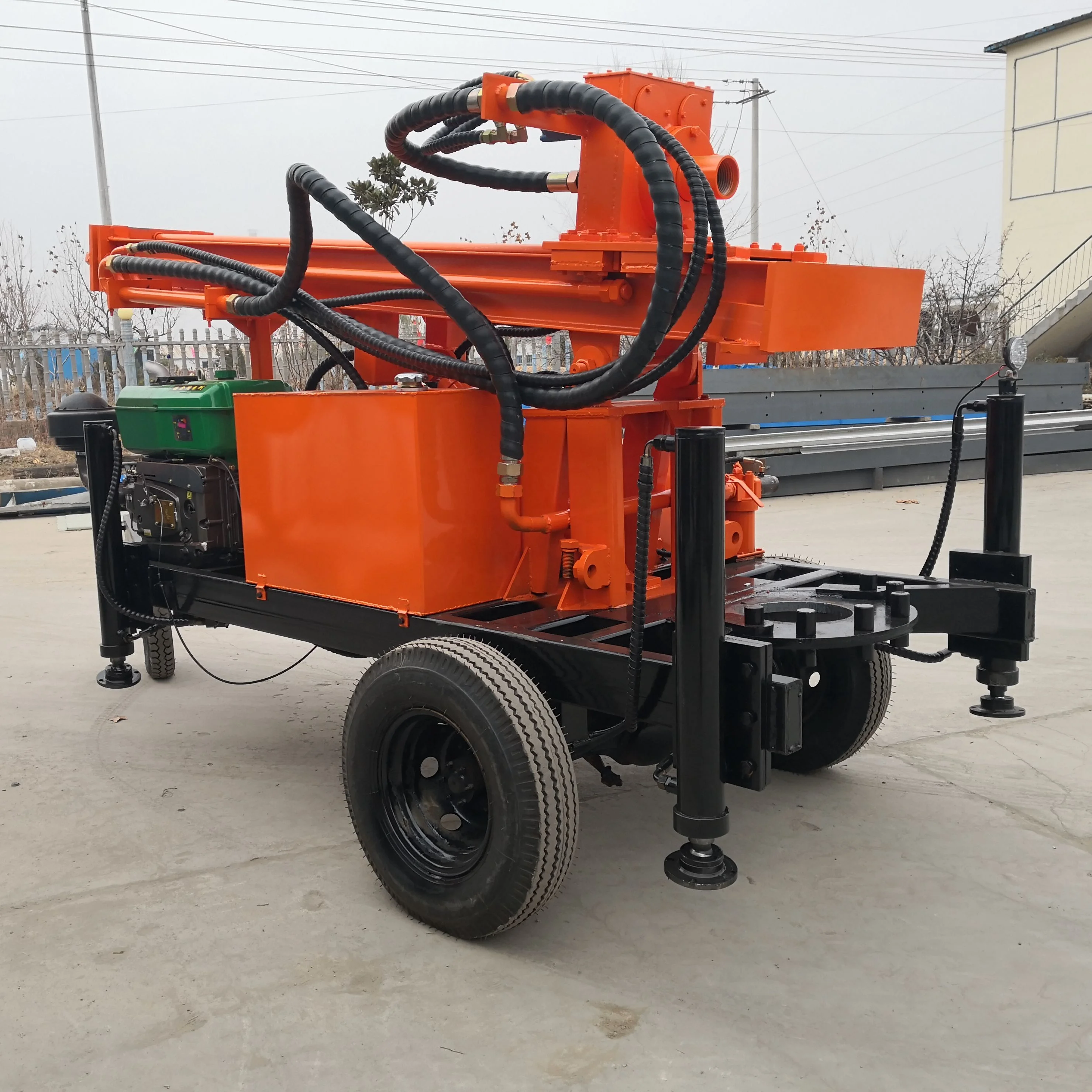

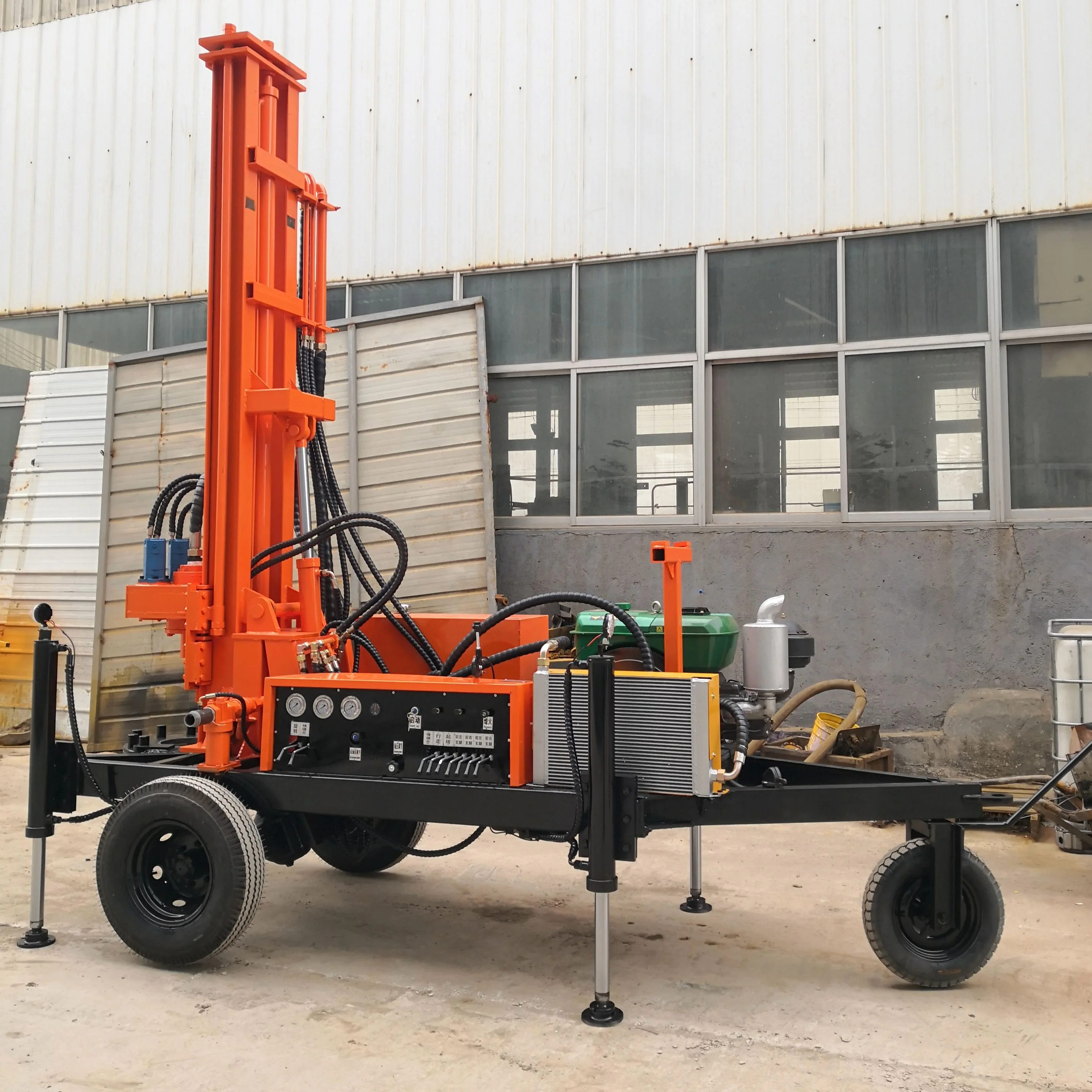

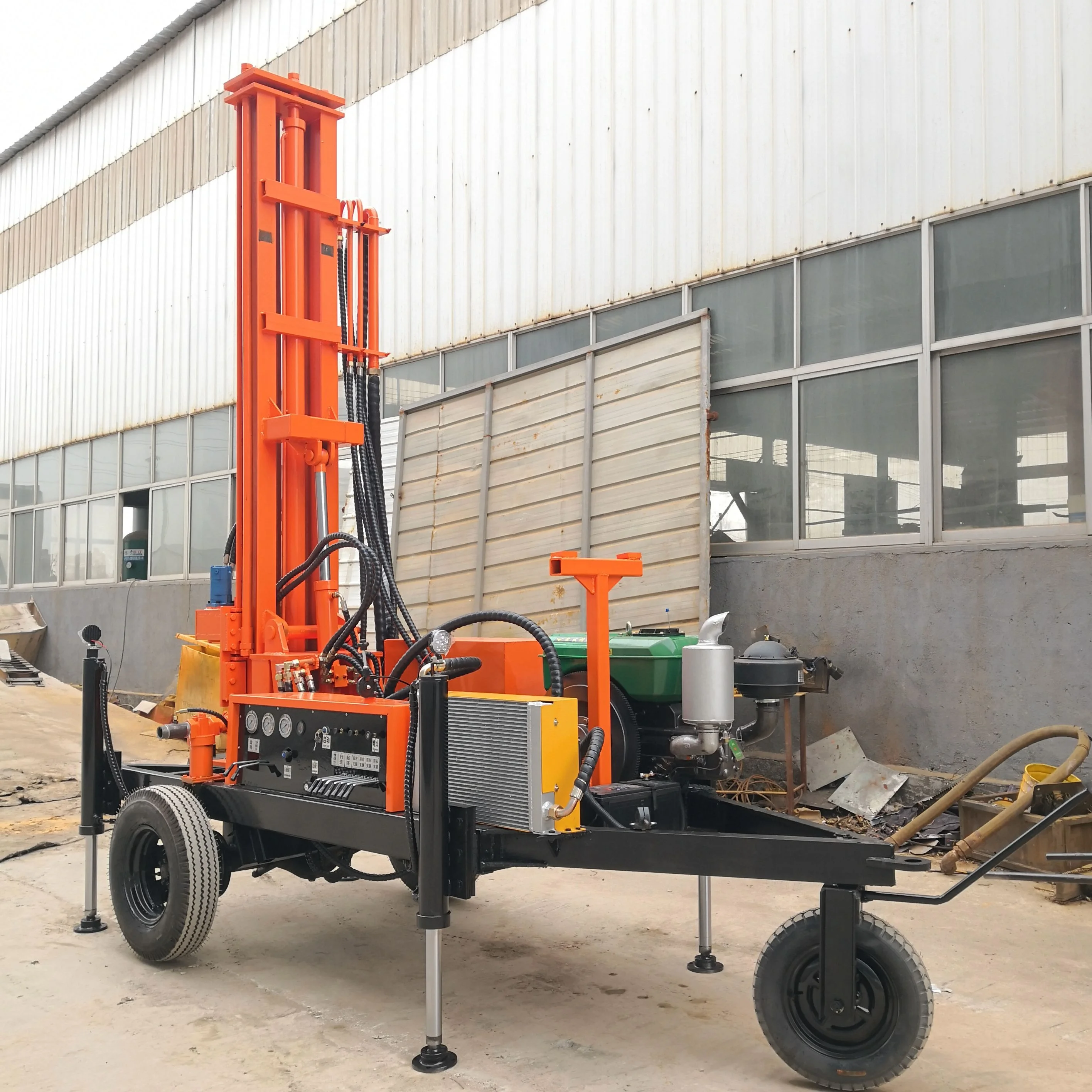

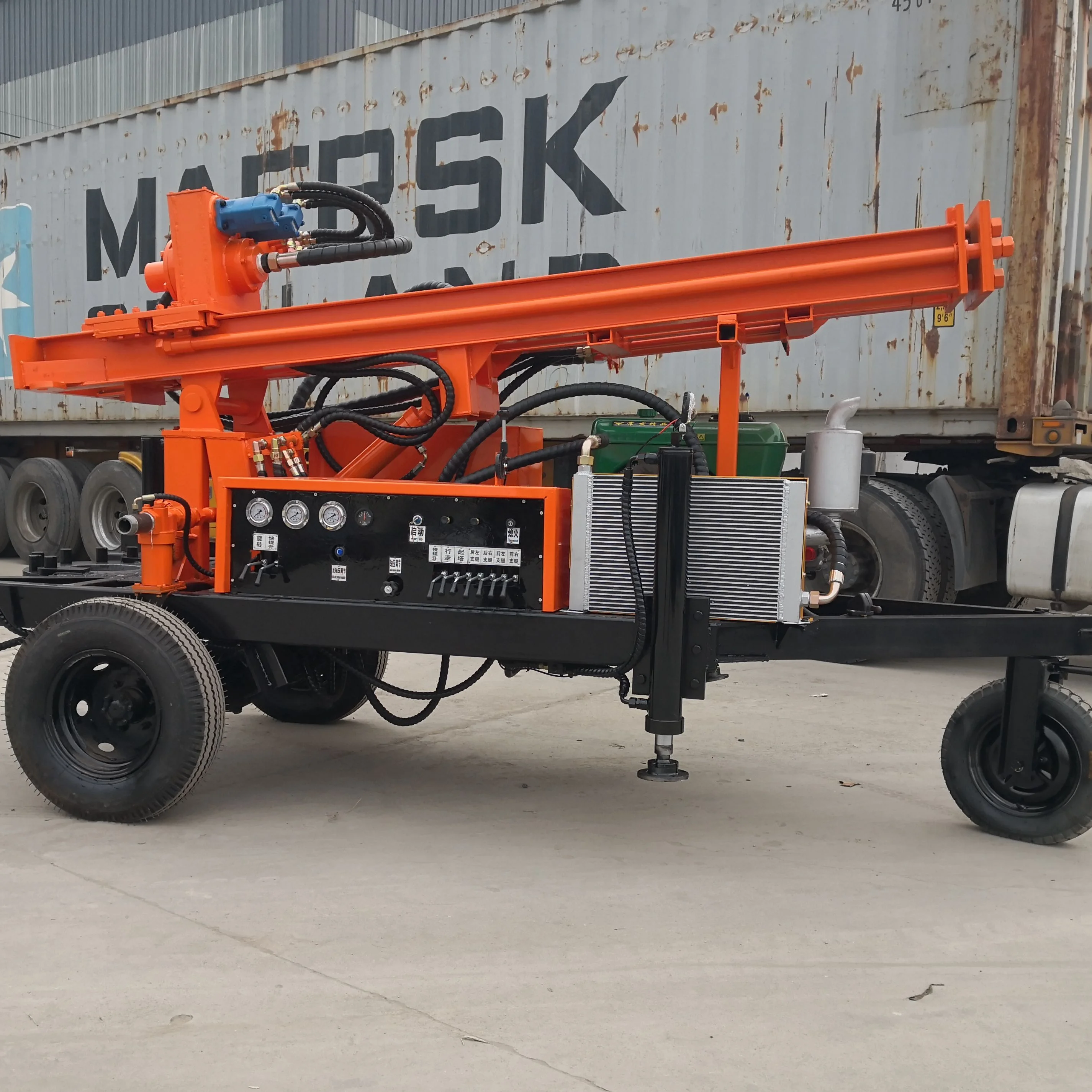

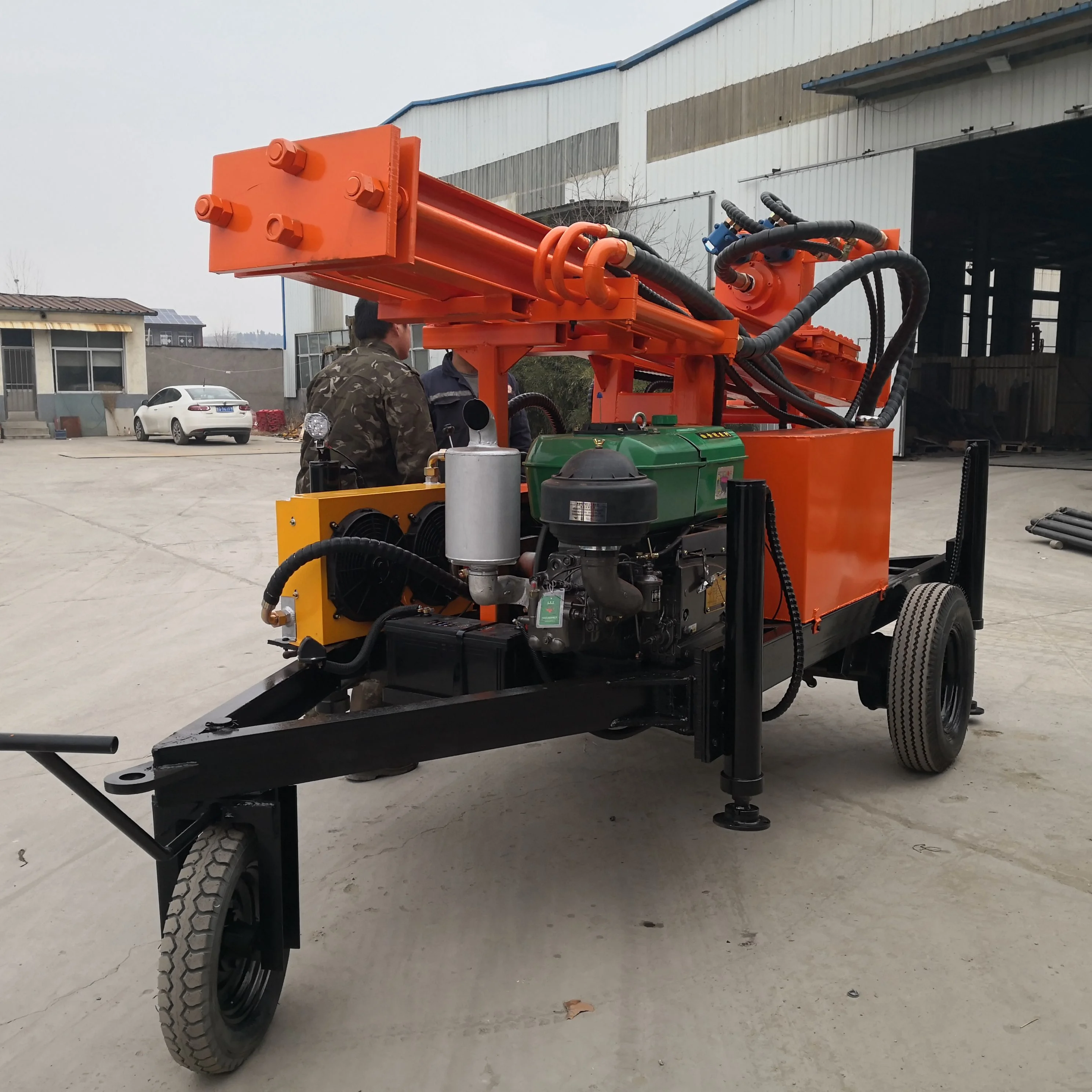

Trailer Water Well Drilling Rig Introduction:
1. BDM-150A series rotary trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment

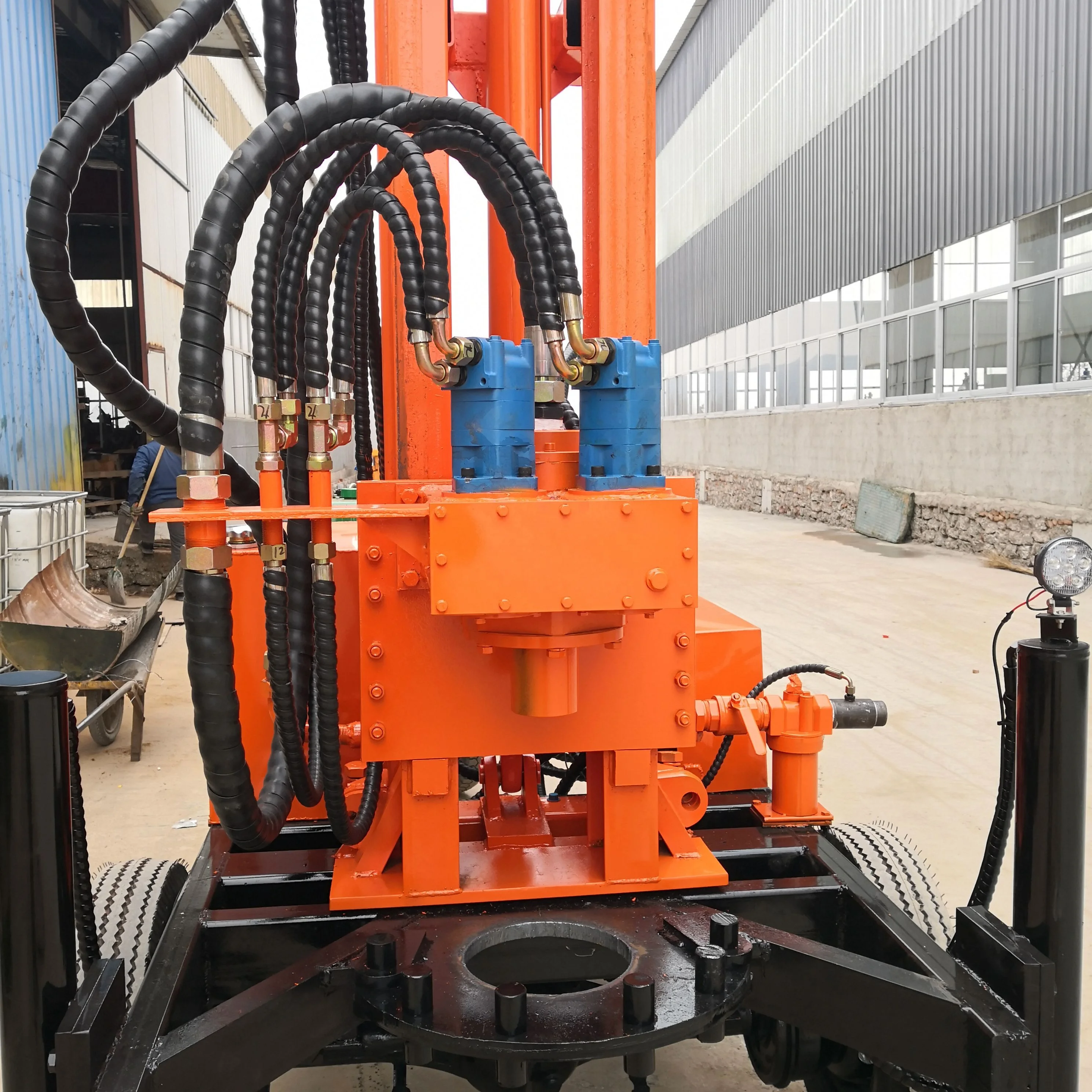

2. Equipped with hydraulic feed mechanism, drilling efficiency is greatly improved.
3. Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to monitor the hole.
4. Falling tower for hydraulic operation, convenient and reliable
5. Diesel engine with electric start, labor saving
BDM-150A | |
Drilling hole diameter | 130-220mm |
Drilling depth | 150-200m |
Drilling angle from ground | 45-90· |
Drilling tools propel stroke per time | 1500mm, 2000mm |
Air consumption | 12-22m³/min |
Diesel engine | 28-33HP |
Drilling head rotary speed | 0-80 r/min |
Using pressure | 0.8-2.1 Mpa |
Rotary torque | 1960N.m |
Lifting max force | 120KN |
Drilling rod | 76mm |
The weight rig | 2500kgs |
Rig in worksite
