0-10v водяной ультразвуковой датчик уровня топливного бака 4-20ma жидкости противовзрывная защитная
- Категория: Level Measuring Tools >>>
- Поставщик: Huaibei,Huadian,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.34 $* | 0.55 $* |
| Aug-19-2025 | 0.26 $* | 0.99 $* |
| Jul-19-2025 | 0.23 $* | 0.37 $* |
| Jun-19-2025 | 0.36 $* | 0.54 $* |
| May-19-2025 | 0.80 $* | 0.33 $* |
| Apr-19-2025 | 0.45 $* | 0.59 $* |
| Mar-19-2025 | 0.70 $* | 0.70 $* |
| Feb-19-2025 | 0.4 $* | 0.58 $* |
| Jan-19-2025 | 0.11 $* | 0.38 $* |
Характеристики
Product Description
Brief Description
HDL300 series water level transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission.
It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.

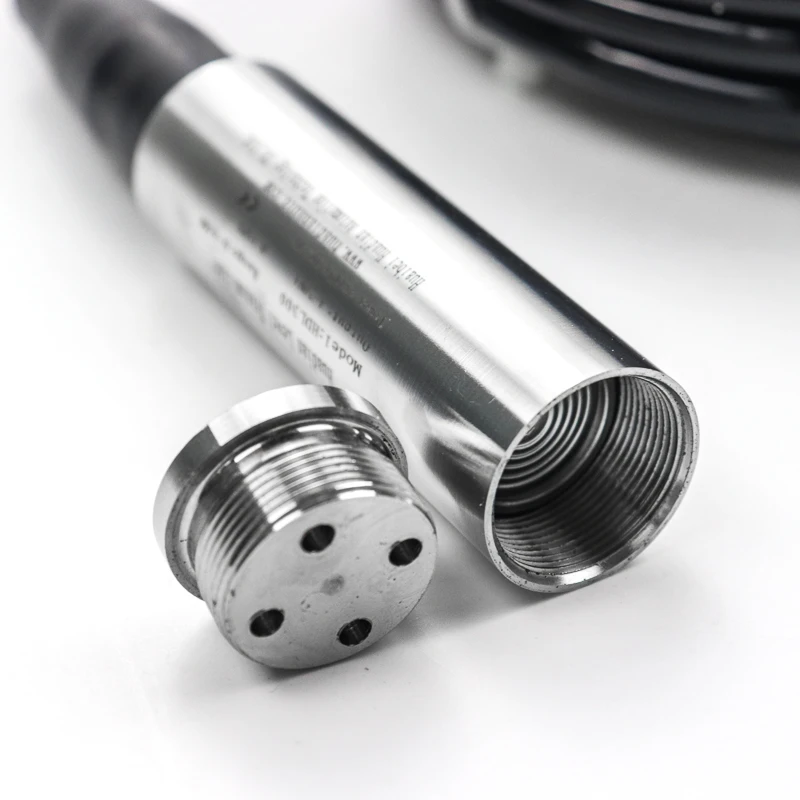

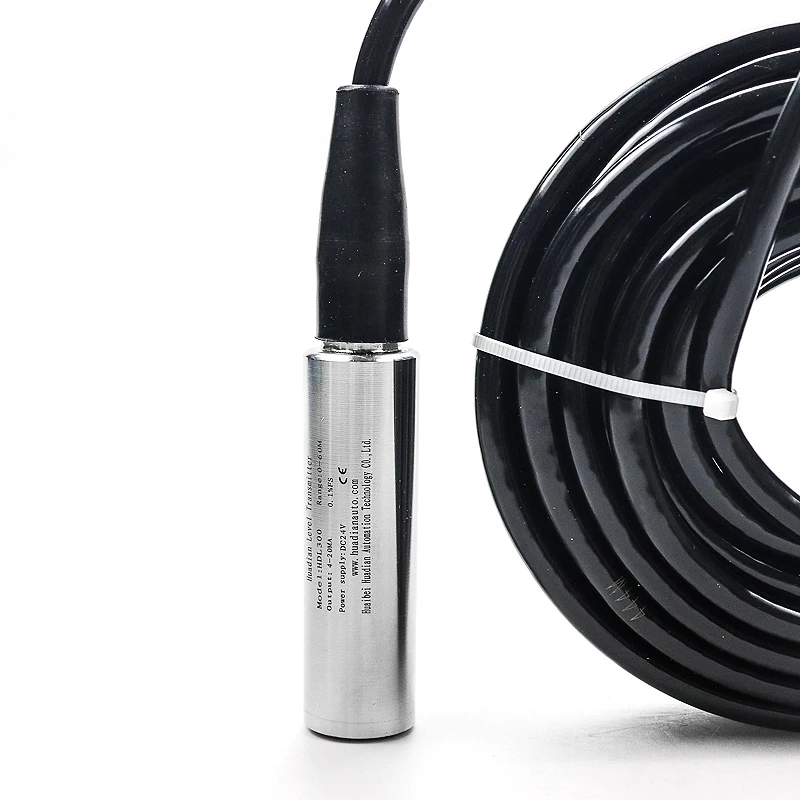

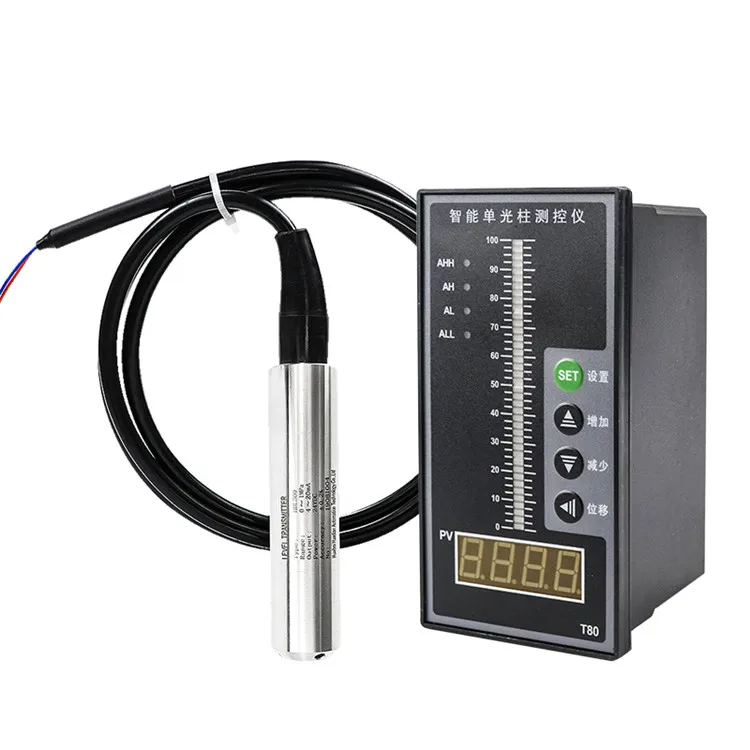

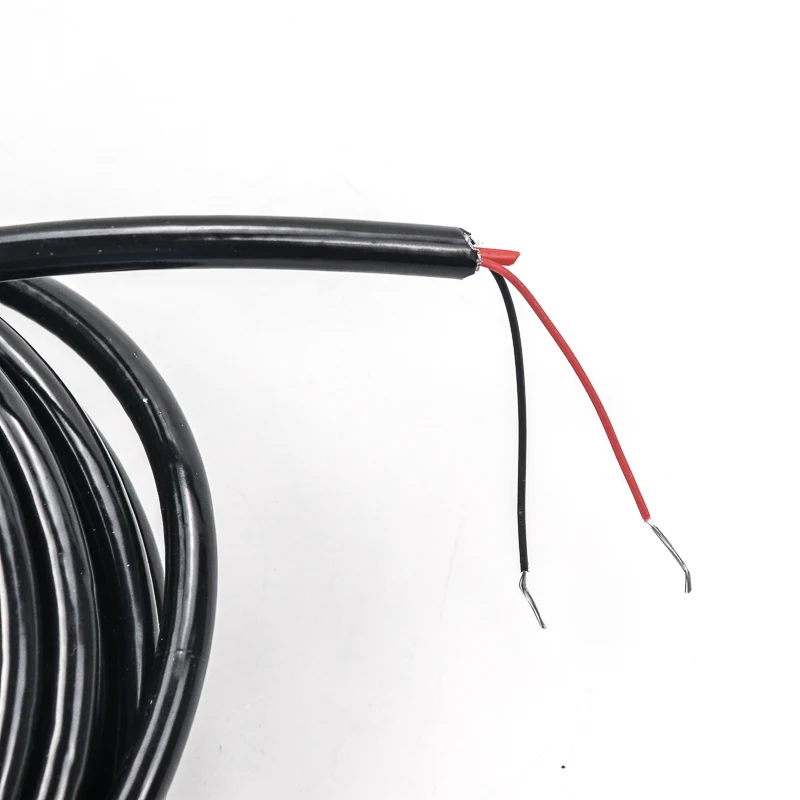

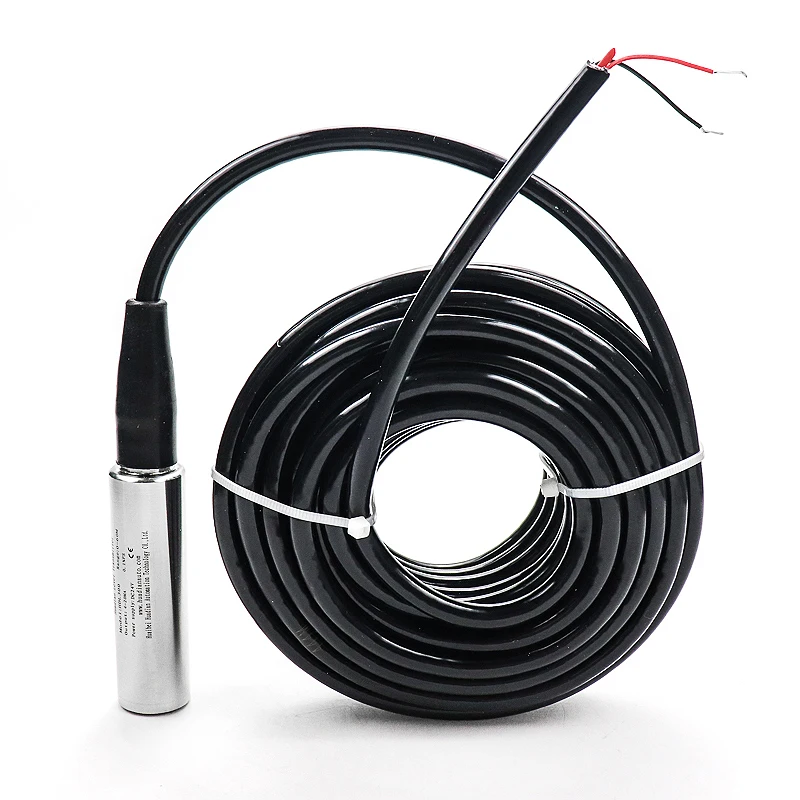

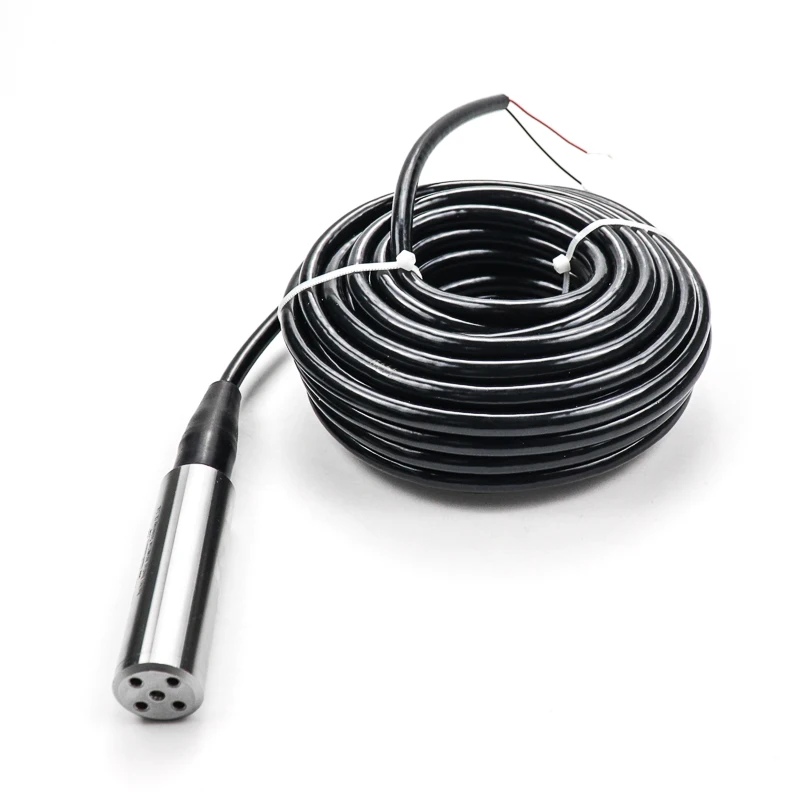

Details Images
Dimension
Main Technical Parameters
HDL300 | |
Power supply | 3-5VDC,12-36VDC(standard) |
Output signal | 4~20mA,1~5V,0~10V,RS485 |
Measuring range | 0.5... 500 metre |
Compensation temperature | -10~70℃ |
Medium temperature | -40~80℃ |
Environment temperature | -40~85℃ |
Measuring media | Liquid,Water |
Accuracy | 0.1%F.S,0.25%F.S(standard) |
Zero tempe drift | ±0.03%F.S/℃ |
Sensitivity temperature drift | ±0.03%F.S/℃ |
material | 316L core&Rubber breathable cable |
Overload | 200%F.S |
Long-term stability | ≤0.2%F.S/year |
Inherent frequency | 5kHz~650kHz |
Protection grade | IP68 |
Selection Table
Wiring Diagram
