Характеристики
Product Description

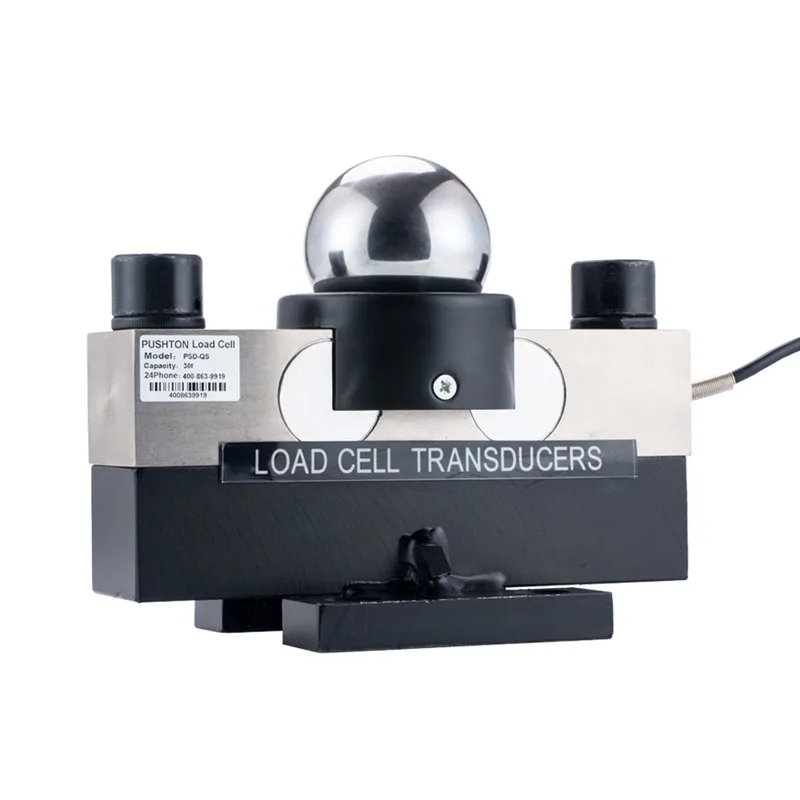

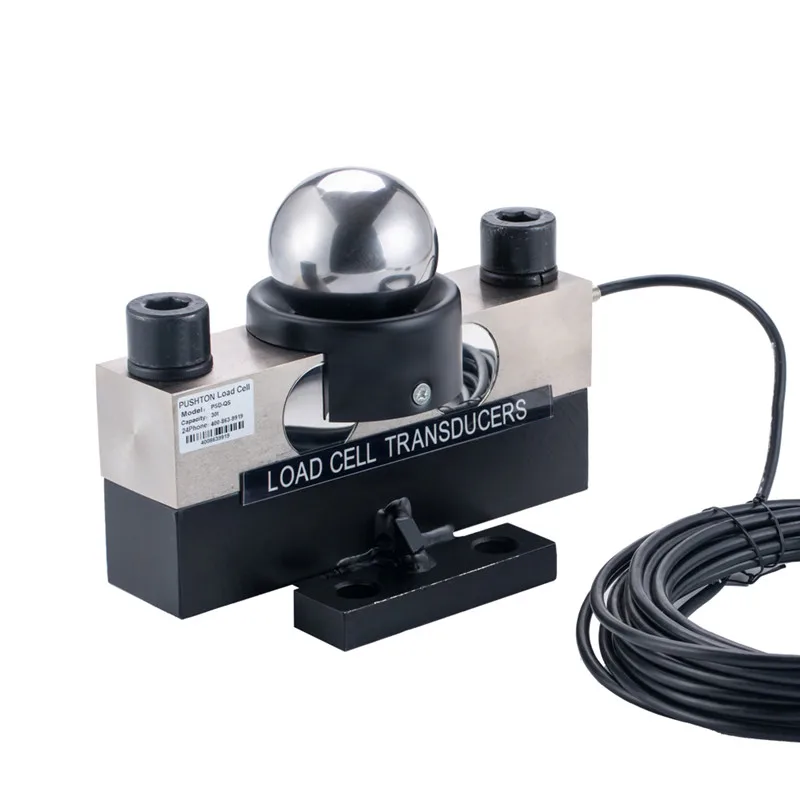

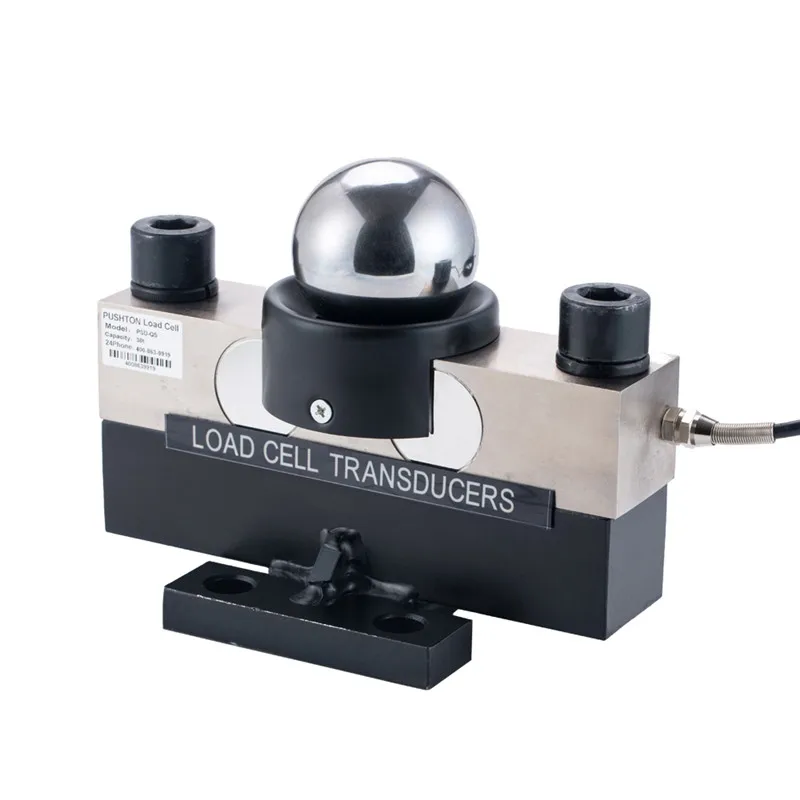

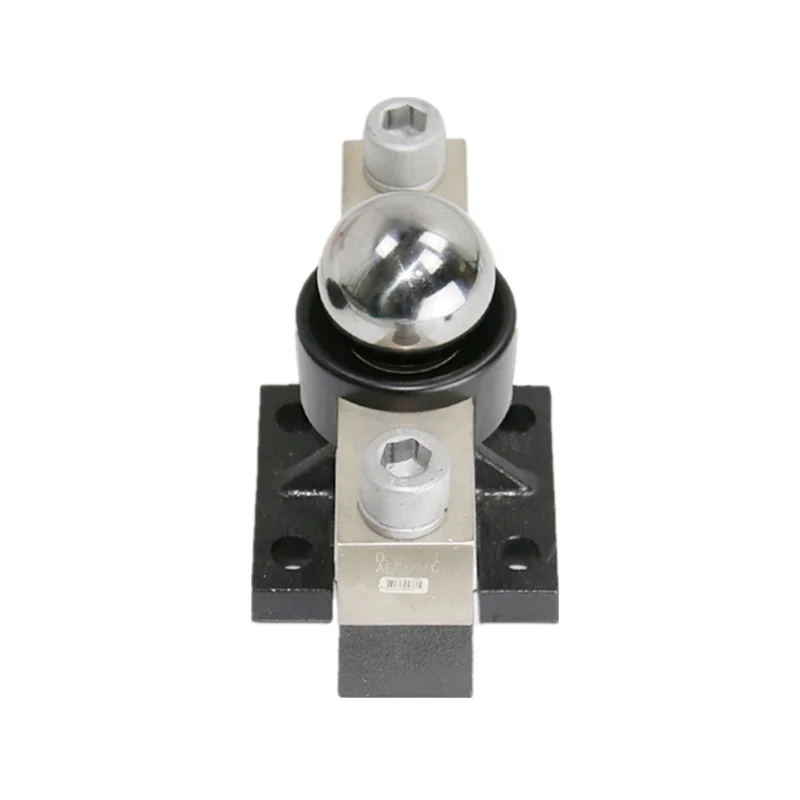

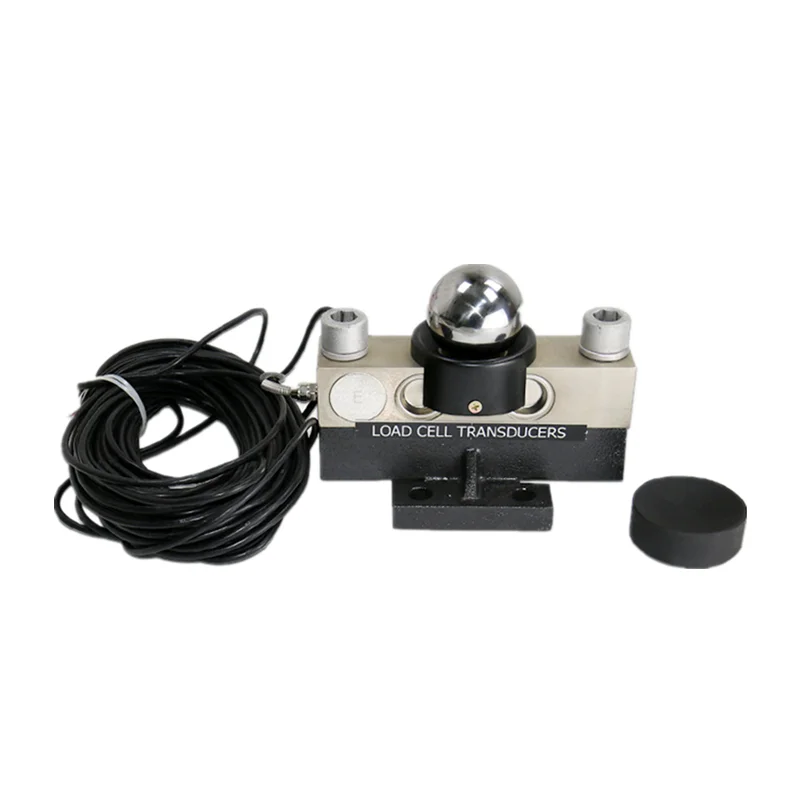

QS 5/10/15/20/25/30/40t bridge load cell

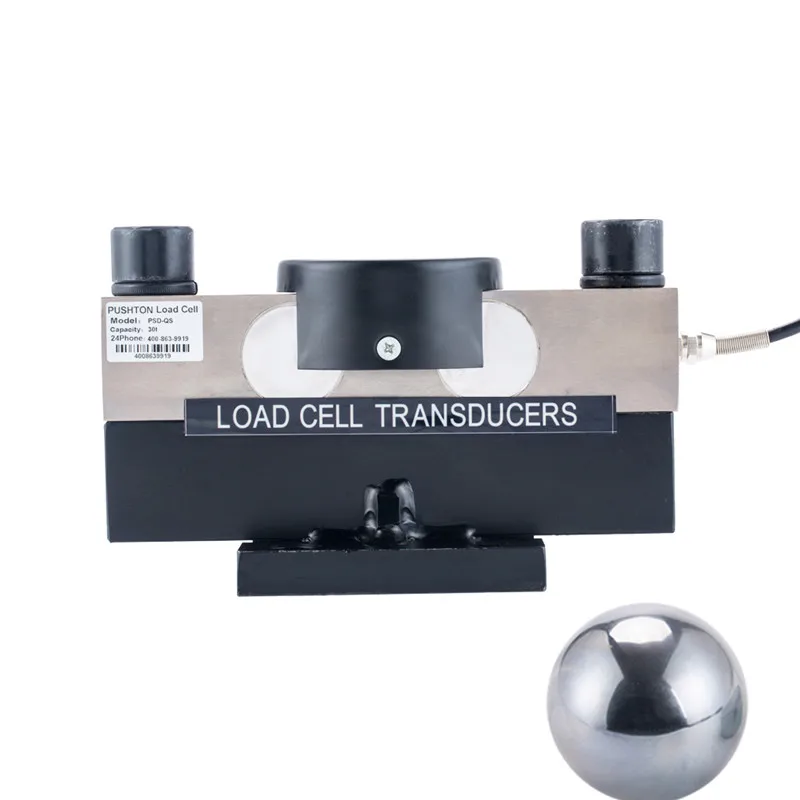

Steel Ball Indenter
Pressure Steel Ball
KeLi Load Cell
Original Packaging
Analog sensor
Capacity: 5t 10t 15t 20t 25t 30t 40t
Production description
A load cell is actually a device that converts a quality signal into a measurable electrical signal output. The sensor should first consider the actual working environment of the sensor. This is the correct choice of the load cell, which is related to the normal operation of the sensor and its service life, and even the reliability and safety of the entire scale. On the basic concepts and evaluation methods of the main technical indicators of the load cell, there are qualitative differences between the old and new national standards. There are several types of S-type, cantilever type, spoke type, plate ring type, bellows type, bridge type, and column type.
Technical Parameter
Application | Truck Scales,Railway Scales, Blending Scales , Special scales |
Rated Load | 5, 10,15,20,25,30, 40T |
Sensitivity | 2.0±0.002mV/V |
Accuracy Class | C1-C5 |
Creep(30min) | ±0.02%F.S |
Zero balance | ±1%F.S |
TCO | ±0.02%F.S/10 |
TC SPAN | ±0.02%F.S/10 |
Input resistance | 750±10Ω |
Output resistance | 702±3Ω, 703±5Ω(L≥15M), |
Recommend excitation | 10∼12V DC |
Maximum excitation | 15V DC |
nsulation resistance | ≥5000MΩ |
Protection Class | IP67(5T)/IP68(10-40T) |
Temperature Range. Compensated: | -10∼+40 |
Operating Temp Range | -30∼+70 |
Safe load limit | 150%F.S, 120%F.S ( 40-50T) |
Construction | Alloy Steel-S/-SS;Stainless steel |
Over load limit | 300%F.S. 200%F.S ( 40-50T) |
Cable | Length;5.2m(5t),10m(15t) ,10/12m(20t) |
12/15m(25t), 12/16m(30t), 16m(40t) Diameter:6mm |
