Цветной IPS TFT ЖК-модуль 2 4 дюйма 240x320 QVGA интерфейс MCU/SPI/RGB полный угол обзора с емкостной сенсорной


Поделиться:


Цена:15,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 19.11 $* 19.38 $*
Jul-16-2025 15.90 $* 15.37 $*
Jun-16-2025 19.52 $* 19.21 $*
May-16-2025 19.73 $* 19.64 $*
Apr-16-2025 15.75 $* 15.40 $*
Mar-16-2025 18.76 $* 18.13 $*
Feb-16-2025 18.5 $* 18.22 $*
Jan-16-2025 18.78 $* 18.59 $*

Характеристики













PRODUCT DESCRIPTION

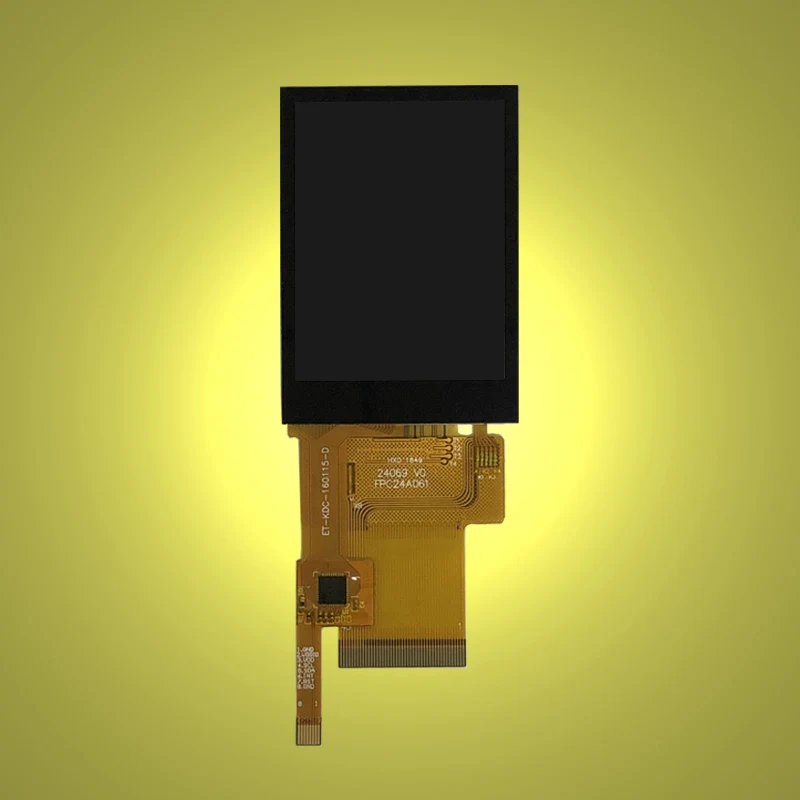

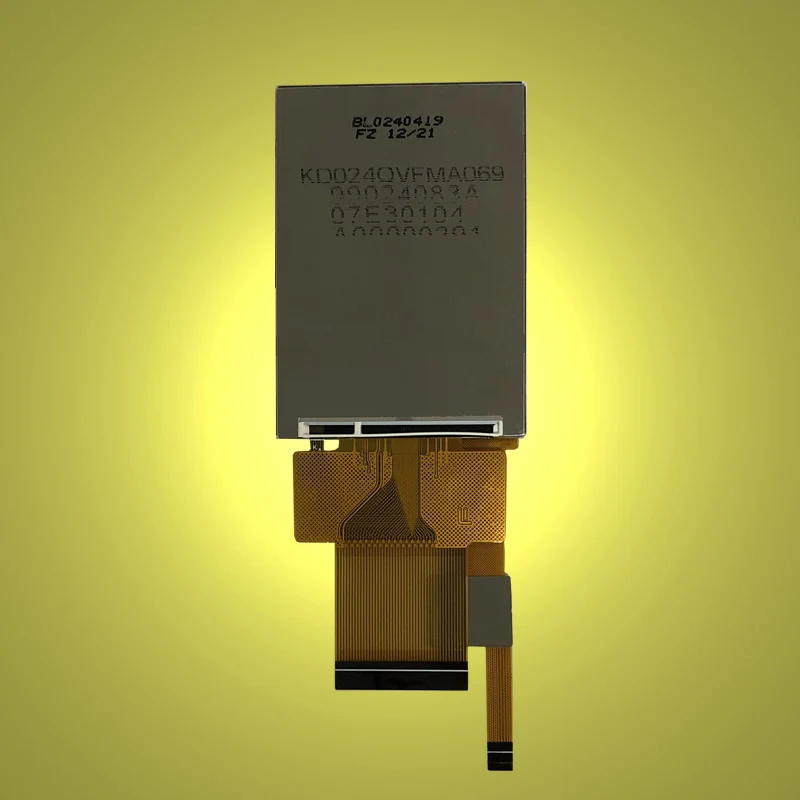

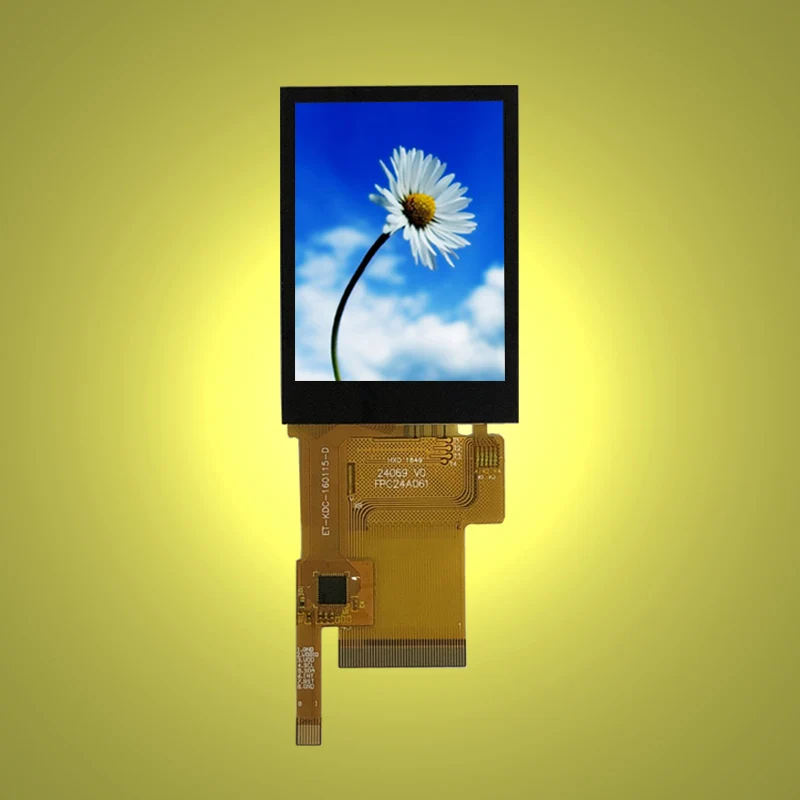

2.4 inch IPS TFT Display with CTP | Part No.:  KD024QVFMA069-C009A



Module Size
42.92x60.26x4.25 mm
Resolution
240 x RGB x 320 Dots
Touch Panel Type
Capacitive
Interface
8/9/16/18 Bit MCU

3/4-Line SPI + 8/9/16/18Bit RGB

3/4 Line Serial
CTP interface
i2C
Driver IC
ST7789V / FT6336G
Special Feature
520 nits high brightness, IPS free viewing angle, sunlight readable, RTP



White LED Backlight, Free Viewing angle, Wide temp, Transmissive/ Normally black, Capacitive Touch Panel, 520 NITS, RoHS Compliant.






DOCUMENTATION.

Please contact us at Skype: jimlee_28 or just send us an message on Trade Manager.

and we will send the datasheet for reference within 24 hours.

- TFT Datasheet

- Driver IC Datasheet

- RoHS

- REACH

- CMRT Questionnaire




ACCESSORIES.

- Mating Connectors

- Transfer Board with Connector

- Demo Boards (Test Kit)

- HDMI driver boards  (Optional)




CONTACT US.

Send us a message by Trade Manager or just send an Inquiry and share us your original idea. we will write you back within 24 hours.  Or use the most popular IM APP to find me at:

Skype: jimlee_28

Wechat: 15712152881

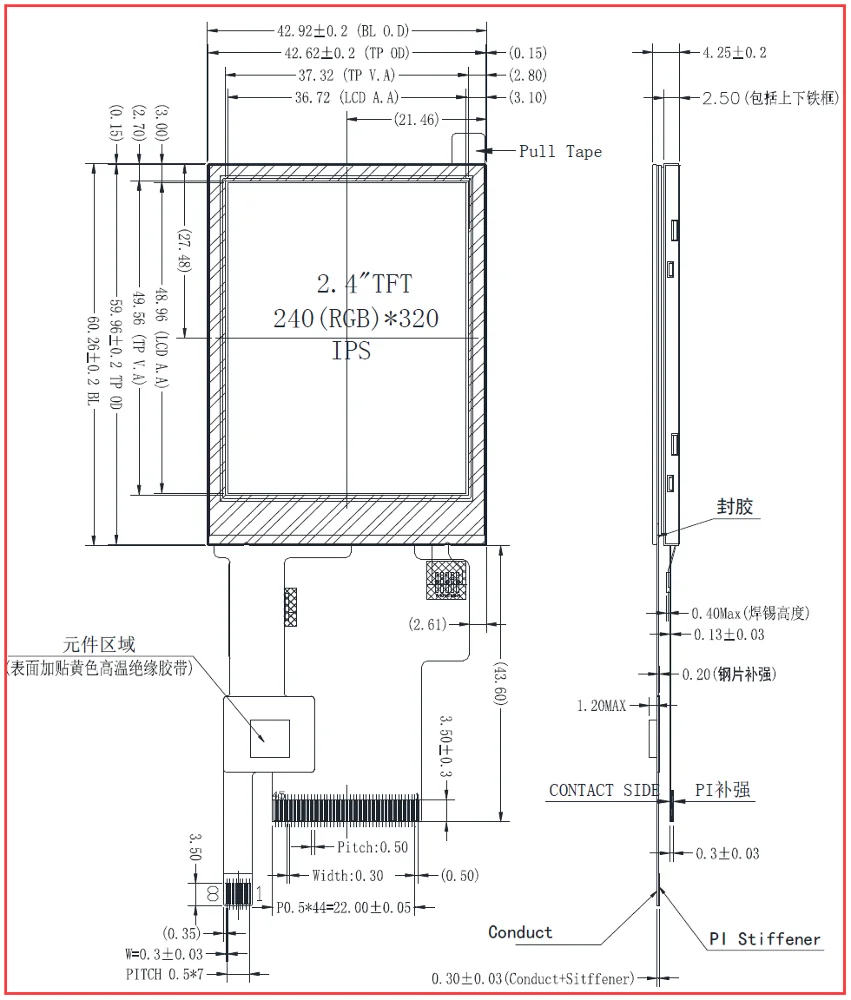

Outline Drawing.

For reference only, for design purpose, please reference the datasheet.





\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t






ISO9001 IATF16949 ISO13485 ISO14001


\t\t\t\t\t\t\t\t\tCustomized LCD \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tCompany Profile \t\t\t\t\t\t\t


Shenzhen Startek Electronic Technology Co.Ltd

Startek was founded in 2011 and primarily manufactures LCD Modules and PCT Sensors.The business comprises development, production and sales, and has approximately 90 million RMB investment, of which 50 million RMB is made up of inventory and raw materials. The company is located inside Hengshou Sci-tech Park, Guangming New District in Shenzhen, the plant area totals 8000 square meters of 100-class clean room and 300 square meters of 10-class clean chamber. The company currently suppliers 1200 existing customers, with afurther 13,000 prospective customers working towards mass production status.










---OUR CUSTOMERS---







\t\t\t\t\t\t\t\t\tFrequently FAQ \t\t\t\t\t\t\t


1. Where can I get the datasheet, initialization code and other technical files ?

Unfortunately, Alibaba can not Support upload/download the files for the time being, please contact with our sales

chat on Trade Manager or send me a email  ( jim©lcdlcd.com  pls replace the © with @), we will send the datasheet by mail.



2. Is there a Touch Panel (Touch screen) on the display ?

We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.

Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.

Capacitive touch panel – Allows multi-touch operation as seen on a smart cell phones or tablets, and allow more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.



3. Is there a possibility to make a more brighter display?

Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high brightness backlight for you. And make it sunlight readable.



4.\tHow to Understand Stock for Sale?

Stock levels are based on item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact with our sales for price, stock availability and lead time (jim©lcdlcd.com).



5.\tNever End of Supply, Our Long-term Continuity Supply Warranty

We understand you probably worry whether we still offer the display after your long development time. STARTEK gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply. Some controller IC may stop the production, we'll try our efforts to find the completely compatible ones. If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement. So you don't have to worry even your research time is very long.



6.\tWhat is covered under warranty and for how long?

All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.



7.\tI am new for developing LCD modules.

Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get started.
