Машина для прокатки листового металла
US $10000
Станок для Формовки Профилей дверей
- Категория: Машины для производства плитки >>>
- Поставщик: Botou,Kefa,Roll,Forming,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11900.37 $* | 12495.11 $* |
| Aug-19-2025 | 11800.15 $* | 12390.74 $* |
| Jul-19-2025 | 9900.57 $* | 10395.23 $* |
| Jun-19-2025 | 11600.66 $* | 12180.29 $* |
| May-19-2025 | 10100.70 $* | 10605.5 $* |
| Apr-19-2025 | 11400.45 $* | 11970.51 $* |
| Mar-19-2025 | 11300.37 $* | 11865.48 $* |
| Feb-19-2025 | 11200.66 $* | 11760.53 $* |
| Jan-19-2025 | 11100.92 $* | 11655.70 $* |
Характеристики
Door and Window Frame Roll Forming Machine Hydraulic 45° Corner Cutting Machine
Products Parameter
Suitable to process | Steel plate |
Width of the plate | ? mm |
Rollers | 16 rows |
Dimensions | About 7.2*0.8*1.51m |
Power | 7.5+5.5kw |
Thickness of the plate | 1.0-1.2mm |
Productivity | 8-10m/min |
Diameter of the roller | ￠75mm |
Weight | About 2.5T |
Voltage | 380V 50Hz |
Uncoiler | one set |
Feeding platform | one set |
Rolling galvanization thickness | 0.05 mm |
Rolling material | Forging Steel 45# |
Material of Shearing blade | Cr12 |
Number of Shearing tool | one set |
Hydraulic system | one set |
Computer System | PLC |
Processing precision | within ±2.00mm |

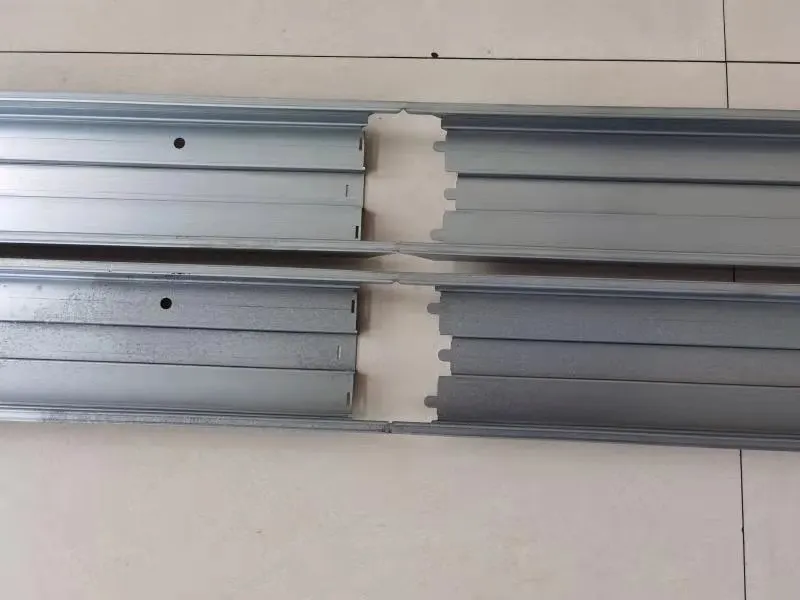

Product Picture
Rolled Curved or Straight, Punched or Slotted

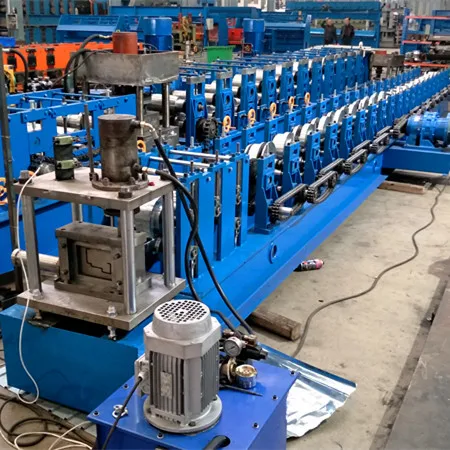

Product Details
Rolled Curved or Straight, Punched or Slotted
Applications
Rolled Curved or Straight, Punched or Slotted
Recommend Products
Steel Silos Making Machine | Stone-coated roof tile production line |
Pallet rack rollformed machine | Scaffold board rollformed machine |
Layer cage frame rollformed machine | Pipe Arch Machine |
Cable tray rollformed machine | K type Arch Span Roof Machine |
Ceiling Furring rollformed machine | Sheet Crimping Machine |
Container House Profile making machine | Shutter door rollformed machine |
Standing seam panel rollformed machine | Mudguard/Fender machine |
Drywall stud and track partition machine | Wheel Rim rollformed machine |
Floor deck rollformed machine | Leveling/slit & cut to length line |
Gutter & downspout rollformed machine | Vineyard post rollformed machine |
Wall panle rollformed machine | |
About Us
Contact Information
Packaging and Shipping
Q: How to maintain the machine?
A: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q:How many workers to operate the machine?
A:Only 1-2 workers.
Q: How to visit your company?
A:a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
Q:How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
A: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
