Product Description

_02

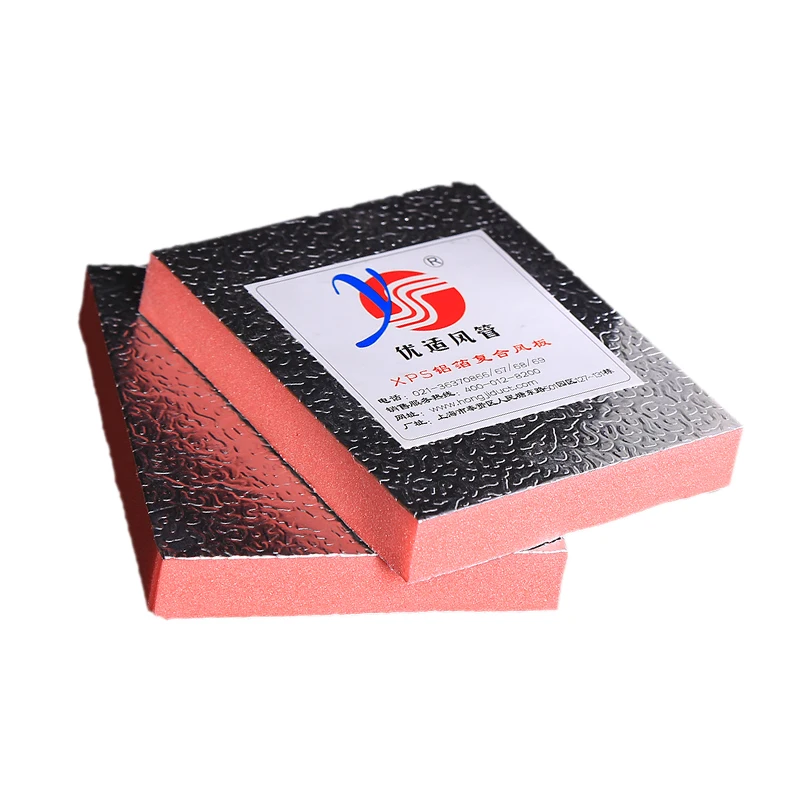

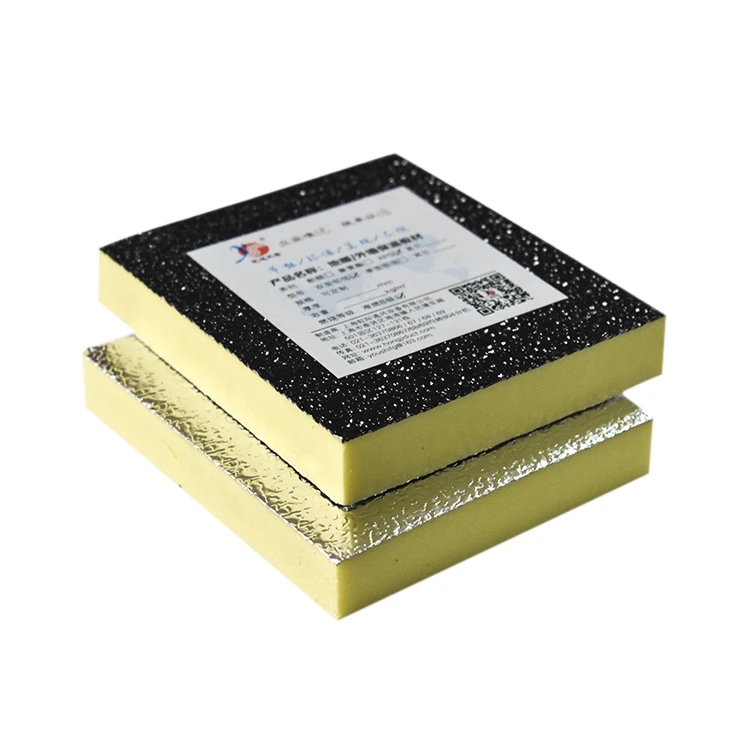

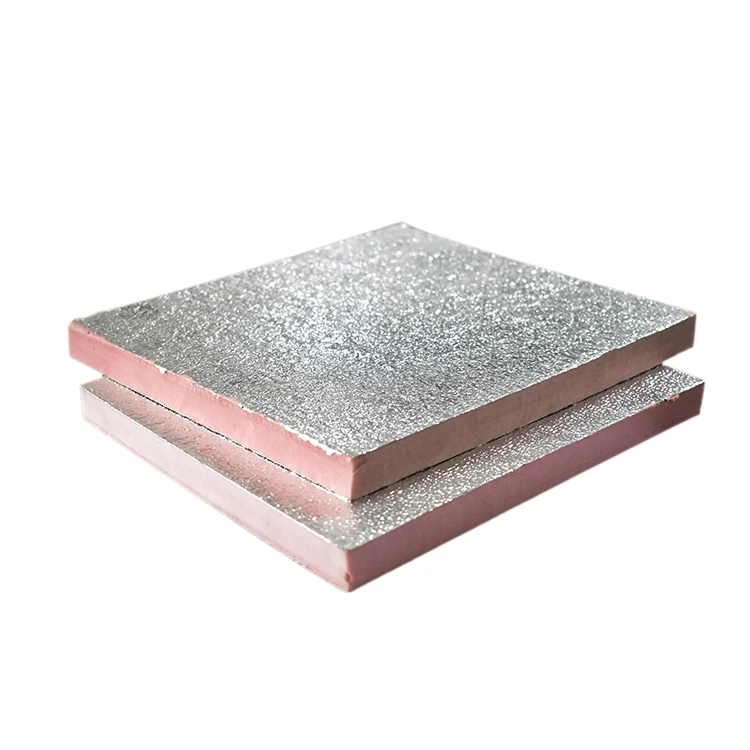

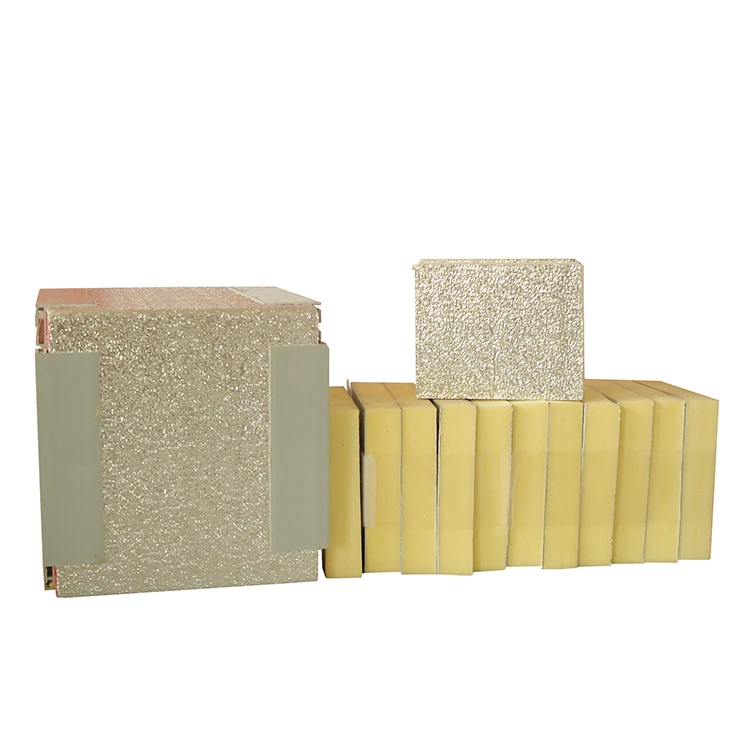

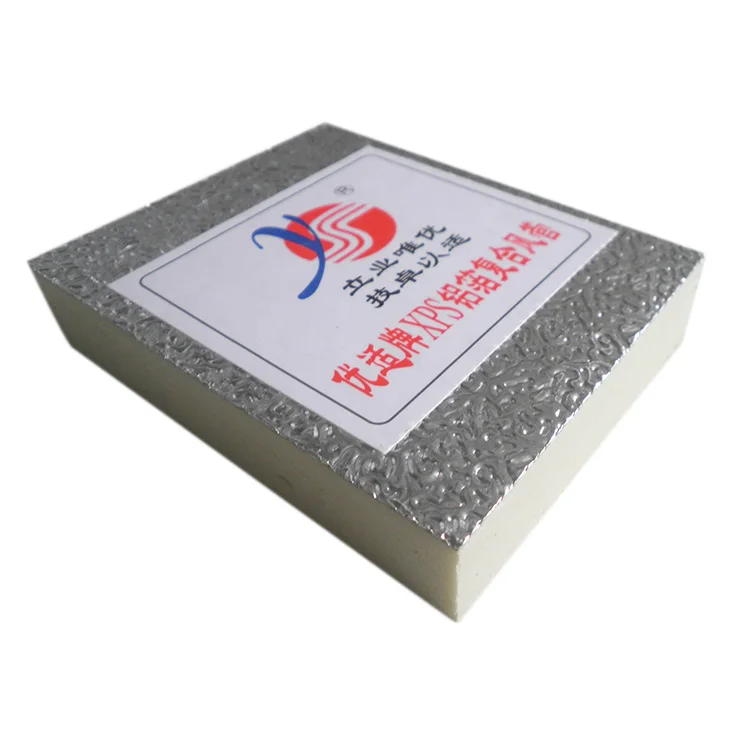

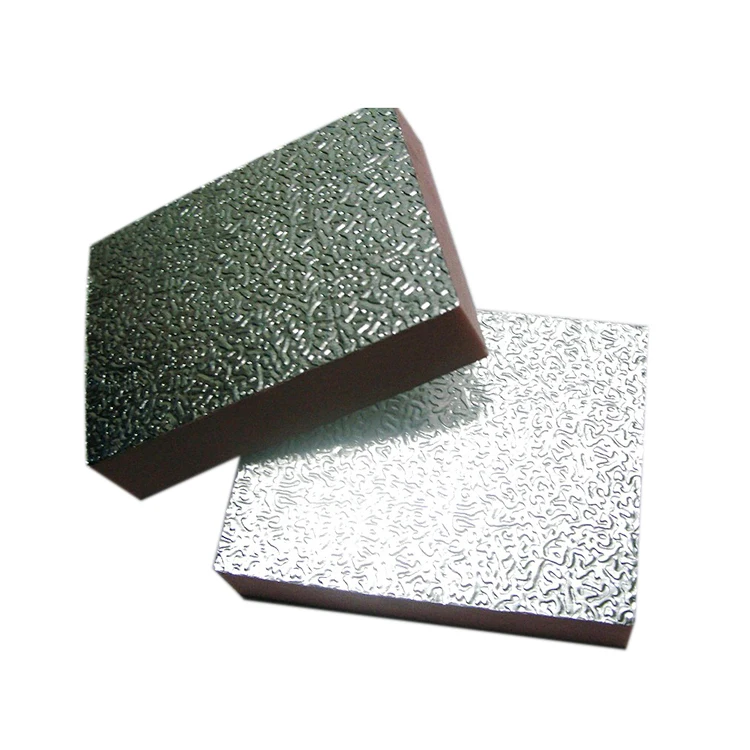

aluminum foam XPS panel Characteristics:

• Light, safe, decrease the load of the building.

• Easy to install, shorten the construction period.

• Protect environment, sandwich structure with antioxidant surfaces.

• High performance in heat insulating, can be served in both high and low temperature environment.

• Fireproof, meet the National standard, makes building safe.

• Soundproof, makes a quieter environment.

• Long service life up to 20 years, very low cost in wastage and maintenance.

• Nice appearance.

• Improve air quality



Hongji duct system including:

 • Hongji duct panels

• Accessories for duct installation( including PVC flange connection,glue,silicone gun and so on)

• Training and installation service for duct installation

 Installation Manual

• Undertake projects of duct installation



Product Data Sheet:

Thickness of panel

 20mm-100mm

Air leakage

 1.2%

Density

 36-42 kg/m3

Dimension stability

 2%

Thermal conductivity

 <0.03 W/m.k

Fire Retardant Level

 Anti-flamming level-B

Water absorption

 1.5%

Wind Press-resistant strength

 1500pa

Recyclability Rate

 144Kpa



Hongji duct panel satisfies the following standards:

•  GB50243-2002

     Acceptance standard for construction quality of HVAC works.

•  GB50045-95

     Criterion of fireproof design of civil tall buildings.

  GB8624-2006

Building materials and combustion performance grading

  GB/T8811-2008

Rigid foam dimensional stability test methods

  GB50404-2007

Polyurethane foam insulation and waterproof engineering specification



 Environmental Protection:
Inspected by the National Fire Protection Building Materials Quality Supervision and Inspection Center,

Hongji duct passed the formaldehyde volatilization test, could be applied indoor directly.

• Approved by the National Quality Test Center and China Construction Material Association,

    Hongji duct is a stable qualify, safe and environment protective product.

• Inspected by Shanghai quality monitor inspection spot, if s innocuous and a safe product.

• There is no Freon in Hongji duct, and wondo harm to aerosphere.



Installation Accessories:

Various flanges,H bayonet, Hooked hanger bracket, Aluminum shaped disk, Covering angle, G.I.

Square, etc.
