USB3.0 USB flash drive PCB circuit board Assembly with Electronic Pcb Board 8GB

Описание и отзывы

Трекер стоимости

Характеристики

USB3.0 USB flash drive PCB circuit board Assembly with,Electronic Pcb Board, 8GB memory.

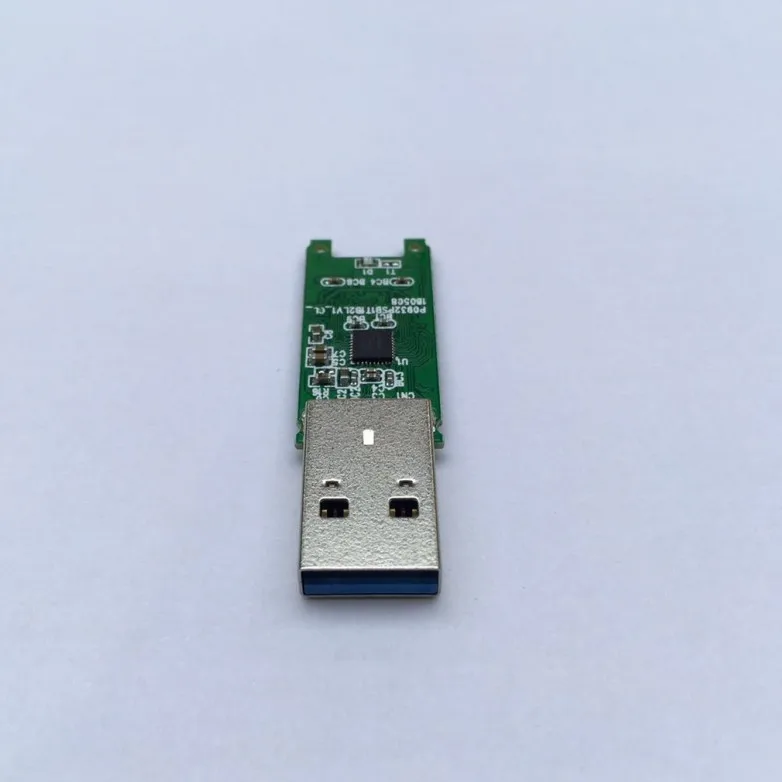

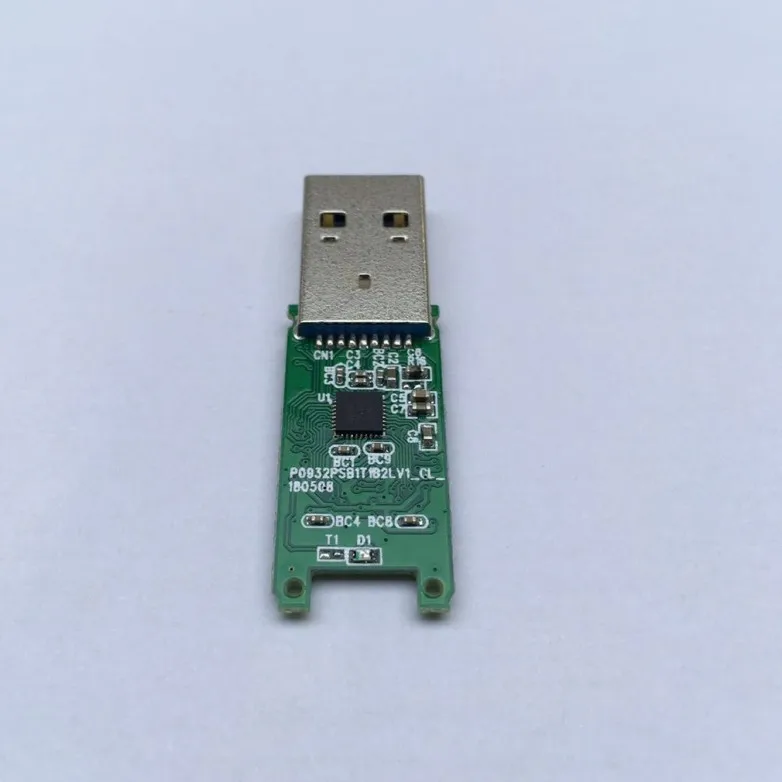

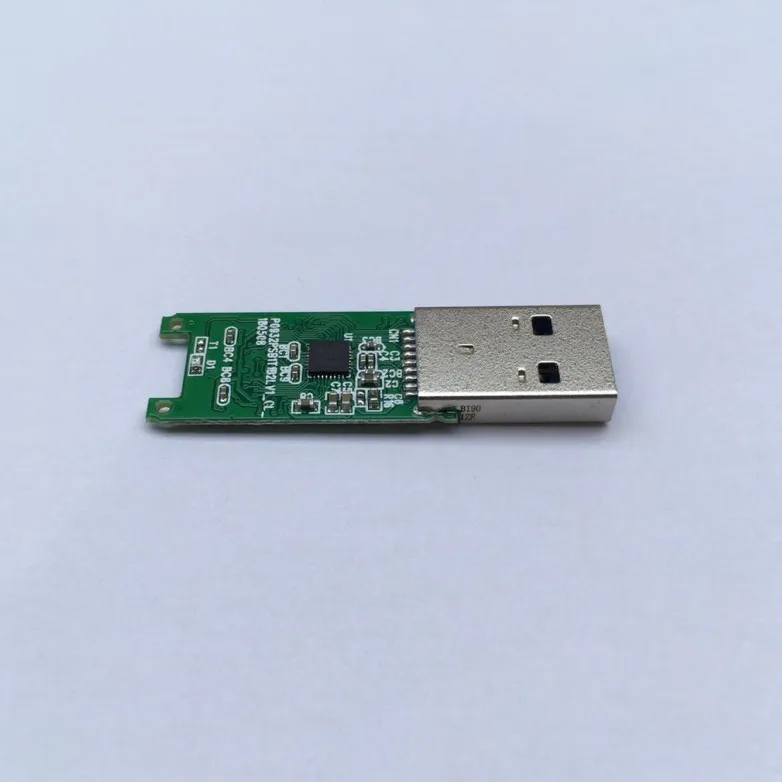

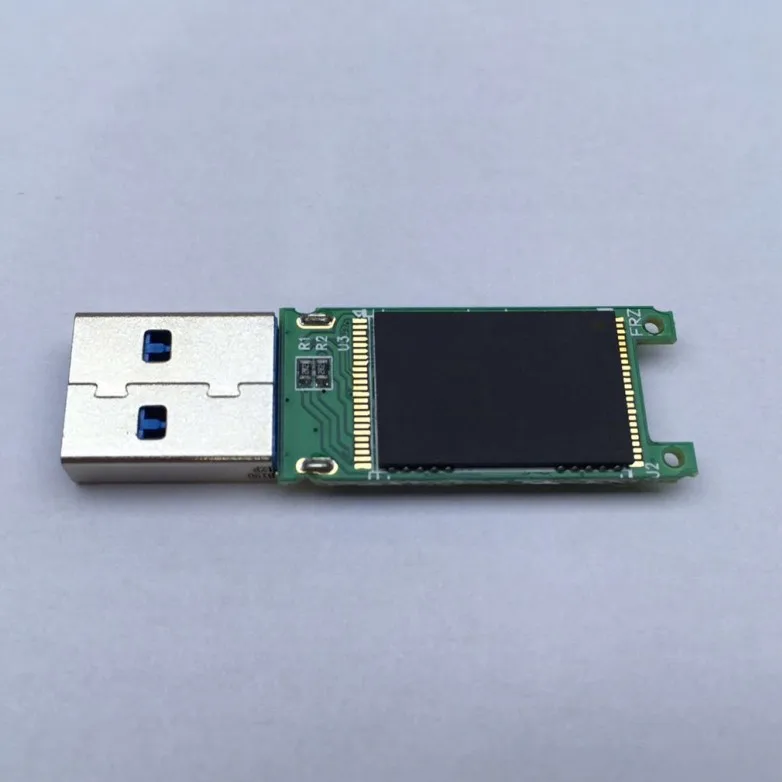

USB flash drive PCBA board details:

Shenzhen King Field Electronic Co.,ltd

20 years Manufacturing experience,leading PCB producer in Shenzhen

our Metal PCB board service



*One-Stop Service:

1. PCB Reverse Engineering

2. PCB drawing / design according to your schematic diagram

3. PCB manufacturing

4. Component sourcing

5. PCB Assembly

6. PCBA 100% test

OEM/ODM/EMS Services For PCBA:

· PCBA, PCB Board assembly: SMT & PTH & BGA

· PCBA and enclosure design

· Components sourcing and purchasing

· Quick prototyping

· Plastic injection molding

· Metal sheet stamping

· Final assembly

· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

· Custom clearance for material importing and product exporting



 *Specification of Metal PCB circuit board :

Type of  Assembly	SMT,DIP, Mixed(surface mount and through hole) technology,Cable assembly
Solder Type	Water Soluble Solder Paste,Leaded and Lead-Free
Minimum IC Pitch	0.2mm
Minimum chip size	0201 (0.2x0.1)/0603 (0.6 x 0.3mm)
Maximum BGA size	74x74mm
BGA ball pitch	1.00mm (minimum),3.00mm (maximum)
BGA ball diameter	0.40mm (minimum),1.00mm (maximum)
Components	BGA and VFBGA
	Leadless Chip Carriers/CSP
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	BGA Repair and Reball
	Passive components
	As small as 0402 package
	As small as 0201 with design review
	Ball Grid Arrays(BGA)
	As small as .5mm pitch
	Part Removal and Replacement
Bare Board  Size	Smallest:0.25*0.25 inches
	Largest:20*20 inches
File Formate	Bill of Materials
	Gerber files
	Pick-N-Place file
Types of  Service	Turn-key,partial turn-key or consignment
Component packaging	Cut Tape,Tube,Reels,Loose Parts
Turn Time	Same day service to 15 days service
Testing	First prototype test before mass quantity production,Flying Probe Test,X-ray Inspection AOI Test,BGA X-ray, PCB E-test

Other PCB board we manufacture:



 International ISO9001:2015, ISO14001:2015 certifications:



*Packaging&Shipping

Our company is not only trying to give customers a good product,
but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:

PCB: Sealed bag, Anti-static bags, Suitable carton.

PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.

Regular Cartons Specification.

No. Dimension (L*W*H)

Small Size : 33cm*28.5cm*18.5cm

Medium Size: 44.5cm*30cm*15cm

Big Size: 51.5cm*32.5cm*17.5cm

Customized Cartons:

Carton Outside according to the requirements

Of customers printed the name of customer address,

Trademark and other UPC codes

Frequently Asked Questions

1. Do you provide full turnkey services for small quantities?
Yes. In fact, we provide full turnkey services for prototypes, short runs, medium runs, and long runs.

2. What is your lead time for a quote?
With our automated tool for part procurement, we turnaround quote within the same day or up to 24 hours.

3. Can we provide you the components for assembly?
Yes, we will use your components, and we will provide the labor for the assembly.

4. Do you undertake partial turnkey assembly?
Yes. You provide whatever components you can, we will obtain the balance of parts and provide the labor for the assembly.

5. Do you use machines to place components?
Yes, we use fully automated machinery for ensuring precision and repeated installation. After placement of parts, they are soldered by automated wave/reflow soldering machines.
