Китай поставщиком древесины мебель ламинационная машина TM-2480P вакуумный мембранный

Китай поставщиком древесины мебель ламинационная машина TM-2480P вакуумный мембранный

Категория: Press >>>
Поставщик: Taian,Xinbaodi,Experimental,Equipment,Co.,Ltd.

Цена:557 453,25 ₽ - 594 616,80 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	707965.45 $*	722124.25 $*
Jul-19-2025	574177.87 $*	585661.22 $*
Jun-19-2025	696816.90 $*	710752.91 $*
May-19-2025	691242.51 $*	705067.17 $*
Apr-19-2025	551878.72 $*	562916.32 $*
Mar-19-2025	680093.75 $*	693695.60 $*
Feb-19-2025	674518.25 $*	688008.46 $*
Jan-19-2025	668944.85 $*	682323.44 $*

Характеристики

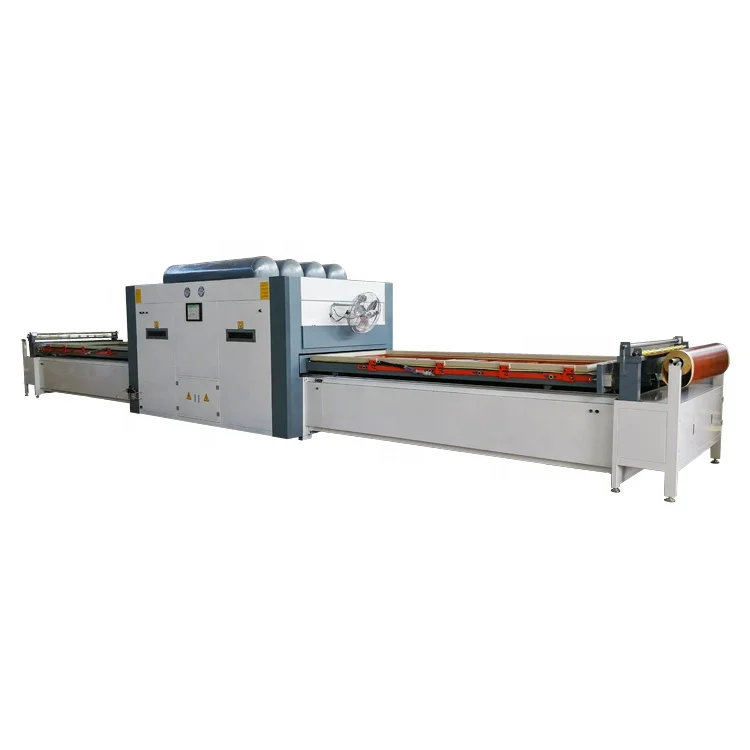

TM2480P vacuum membrane press machine for wood furniture

Specifications

1 Power: 35kw
2 Overall Dimension:Overall Dimension
3 pressure: 0.9Mpa
4 Overseas service center available
5 CE

TM2480P vacuum machine just for decoration

Brief Introduction of TM2480P vacuum machine just for decoration

Equipment configuration: (1) The equipment adopts computer intelligent control, with touch screen, has memory function, can store a variety of process data, greatly improve work efficiency, simple operation, female workers can operate

(2) The whole machine is a Chint brand, and all high temperature lines are 10 square meters. This machine features faster heating than similar equipment, good thermal insulation effect, energy saving and easy operation.

(3) The appearance of the whole machine is high-end atmosphere, and the pressure frame is automatically locked. Reduce the labor intensity of workers,

(4) The heating method of the equipment, the six sides are heated at the same time, the main heating is aluminum row heating, the belt is heated up and down, the surrounding is auxiliary heating, the heating is more uniform, and the bottom of the workbench is heated.

(5) The vacuum pump is Shanghai Xikeshi 140 pump and 4 extended gas storage tanks. The gas storage capacity is larger. The advantage is that the suction force is large and the molding is good.

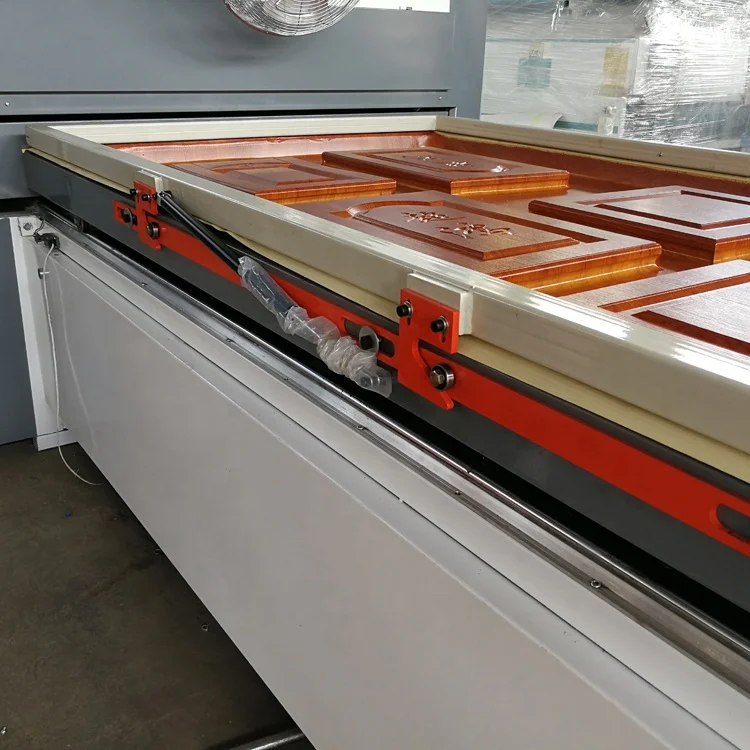

(6) The worktable is driven by the rack, reliable and never derailed. Worktable walking inverter intelligent control, low speed start, high speed walking, low speed stop, prevent door movement

(7) Workbench with automatic inflation function to prevent film folding, with automatic film cutting, reduce labor intensity, improve work efficiency, save materials

(8) The bearing steel cylindrical guide with diameter of 20mm is used for smooth walking, low noise and wear resistance.

TM2480P vacuum machine just for decoration can be used to paste PVC on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes. With a special silicon sheet, it can also work with hot transfer and veneer.

Technical Specification Of TM2480P vacuum machine just for decoration

Overall Dimension	10800×2000×1850mm
Platen Size	2500×1300×60mm
Rated working pressure	Negative pressure ≥-0.095Mpa
Power	35kw
Heating	Six-sided stereo heating
Actual Power Consumable	10kw
Weight	2.5T
Voltage	380V 50HZ / 220V 60HZ
Packing Size	3500×2100×2400mm

Features of TM 2480P vacuum machine just for decoration

1. The electronic part of vacuum machine just for decoration is fully automatic and digitalized control. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.

2. Use infrared heating system and high quality heat preservation material, which can ensure even heating and energy saving.
3. This machine uses integrated movement electromotor. It produces less noise and seldom breaks down.
4. This machine uses Germany technology vacuum pump. It is stable and reliable and the maintenance work is simple. (You can also opt for German-made vacuum pump, which is strong and tough).
5. Large volume vacuum tank. It charges with double channels so that it can work with strong power.

Exterior size 5800(one plate)/8800(double plate)×1500×1400mm
Working plate size 2550×1150/1300mm(inner size)
1150mm for PVC door, width of PVC film more than1260mm
1300mm for cabinet, width of PVC film more than 1400mm
Maximum height of the work piece 50mm
Rating working pressure Negative Pressure≥-0.095Mpa
General Power 15kW(the power may be different for different devices)
Actual power consumption About 5kw
Weight About 2.5T
Top temperature 180°C
