2 1 сабвуфер динамик Dc 12 В 24 2*50 Вт + 100 Xh-m139 Pcb цифровая стереоплата питания треххосевой компас Spi аудио модуль

Features:

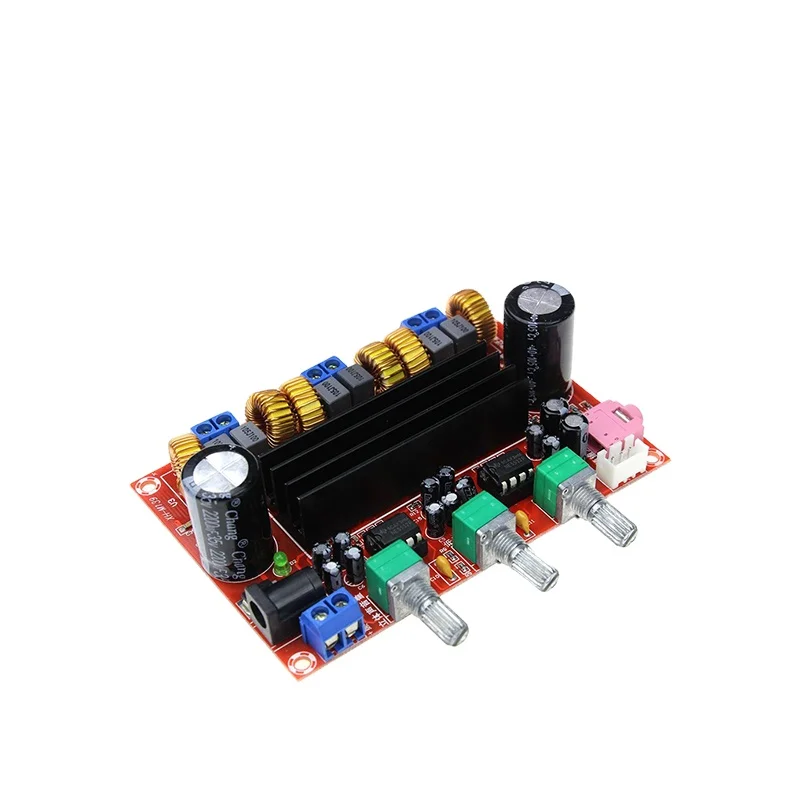

• The amplifier board adopts two imported TPA3116D2 digital amplifier chip as the core,one piece as left and right channel power amplifier,other piece as pre-bridge briver with NE5532 subwoofer ,with a small ,high effeciency,high power characteristics.


• Product name:2.1-channel audio amplifier


• Chip Select:TPA3116D2


• Chip Select:TPA3116D2


• Output power:50W*2+100W Subwoofer*1


• Output Impedance:4-8ohm


• Frequency range:14-100Khz


• Number of channels:3(left channel,right channel,subwoofer)


• Switch frequency:1.2MHz

Specification:

Color: red
Material: electronic components
Length: 10cm
Width: 8.5cm
Height: 3cm

weight:111g
Chip selection: TPA3116D2 * 2
Supply voltage: DC12-24V
Output power: 200W
Signal to noise ratio: 100db
Number of sound channels: 3
Switching frequency: 1.2MHZ

Feature:

The amplifier board uses TPA3116D2 chip as core which is a high-performance digital power amplifier chip.
Wide voltage power supply from 12V to 24V DC, energy saving design, the efficiency is high.
You can adjust the volume by themselves easily.

Package includes:

1Set x XH-M139 2.1 Channel Digital Amplifier Board 12V-24V TPA3116D2 (2 * 50W + 100W * 1)
1Lot x Accessories
