Характеристики


Product Description

LH 125T - standard parameter table (125T)

           Items

Unit

Specification

125T

Hydraulic Working Pressure

MPa

7

Clamping Force

KN

1250

Space Between Tie Bars

mm

420*420

Tie Bar Diameter

mm

80

Die Opening Stroke

mm

350

Injection Force(intensify)

KN

180

Plunger Launch Distance

mm

120

Injection Position

mm

0  --  140

Plunger Diameter

mm

40----60

Injection Stroke

mm

320

Casting Pressure (intensify)

MPa

143/92/64

Casting Fiange Protrusion

mm

10

Casting Fiange Diameter

mm

110

Max Casting Area Under 40Mpa

CM2

375

lnjection Weight(Al)

Kg

1.6

Die Height(Min--Max)

mm

200-550

Ejector Force

KN

100

Ejector Stroke

mm

80

Motor Capacity

Kw

11

Machine Dimensions  (L*W*H)

m

4.5*1.2*1.5

Referential Machine Weight For Uplifting

T

4.5

Oil Tank Capacity

L

300

We reserve the right to make any technical improvement without further notice.

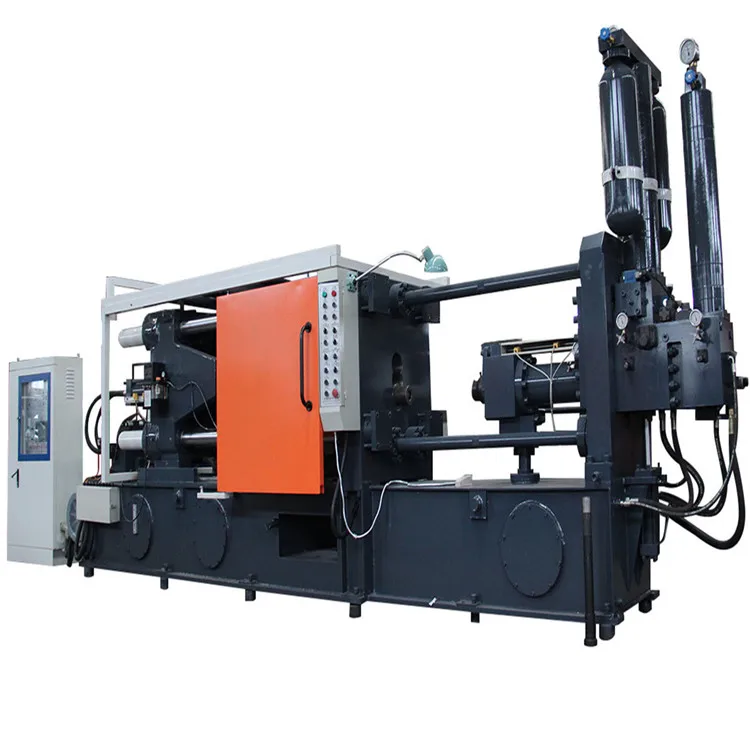

This die casting  machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.

computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection  rate over 4M/s, and minimum boosting time less than 30ms.
