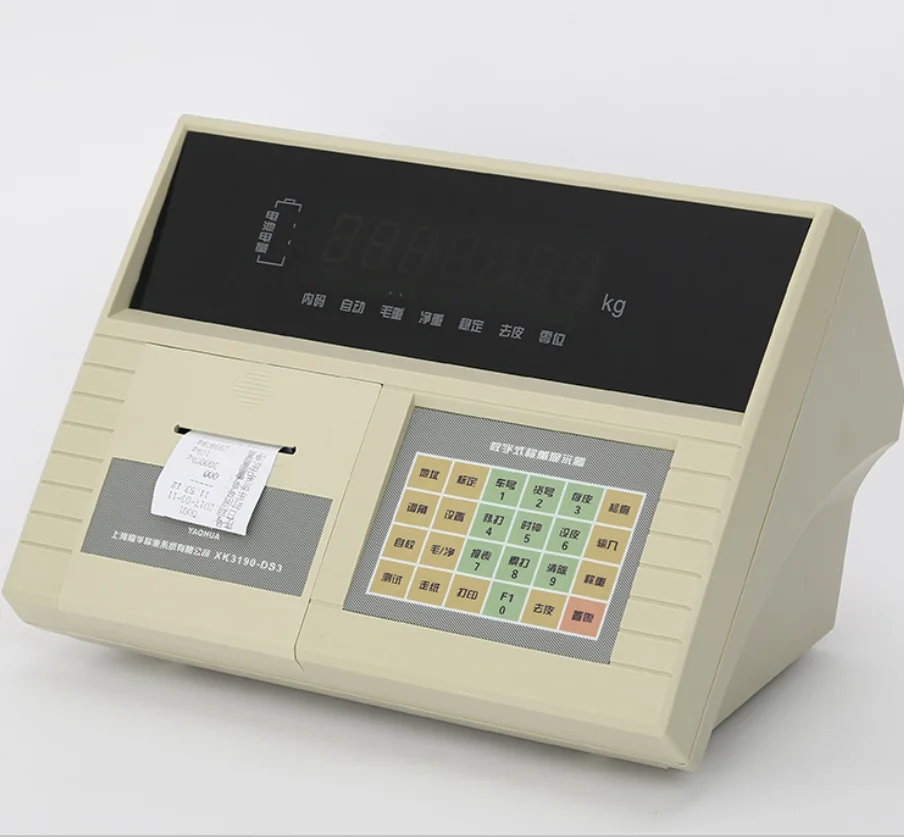

Индикатор YAOHUA XK3190DS3 для весы

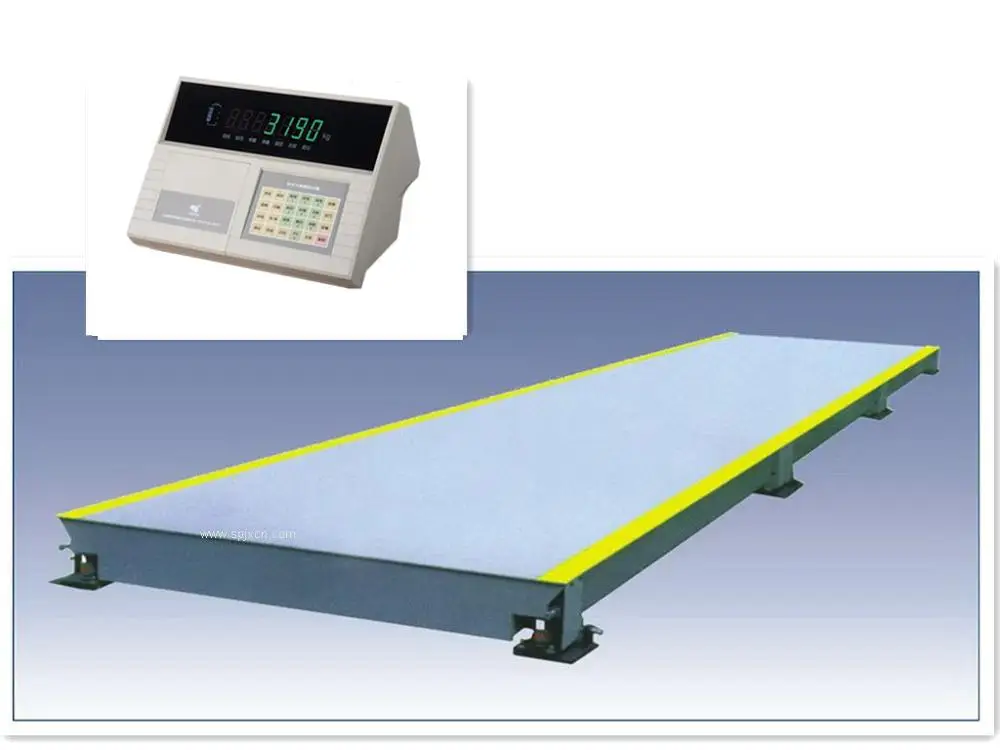

Weighing indicator XK3190 DS3 is widely applied in electronic floor scale ,electronic truck scale, static railway scale and so on like static weighing system equipped with 1-16 digital load cell.

Feature:
AC/DC power supply, wide voltage input
Interface adopts new magnet-proof technology
Simple to debug

Standard function:

Able to connect with digital load cell (e.g. HBM)
Auto/ manual angle correction
Digital load cell communication address modification function
Single load cell and single angle data check function
With two divisions auto switch function
Non linearity correction and calibration tolerance correction
Time power-off function
Able to set up print function for fast filled weighing bill
Standard RS232C (RS422/ RS485 optional) communication interface
Standard scoreboard interface with 20mA current loop method
Standard parallel print interface
Able to save 1500 vehicle ID and corresponding tare weight, 210 cargo ID and cargo name, 1001weighing records.
Able to print out various parameters of indicator

Technical parameter:
Digital load cell connection
Connection method:RS485
Connection distance: about 1000 meters
Connection quantity: 1-16
Communication protocol of load cell: YAOHUA
Load cell power: DC12V, 0.8A(MAX)

Display:
Display method: 7 bits super light LED display, 10 indications
Clock: real clock
Scoreboard interface:
Signal output method: 20mA current loop ,serial
Baud rate:600
Transmission distance:≤1200 meters
Printer interface:
Available for wide line printer: DS-300. XK-P1121. XK-1131. TM800. LQ300K
Thermal printer:POS58. T58D
Serial communication interface:
Standard interface:RS232C (RS422/RS485 optional)
Power supply:AC187~242V;49~51HZ
DC power supply: outside rechargeable 12V/7Ah batter
