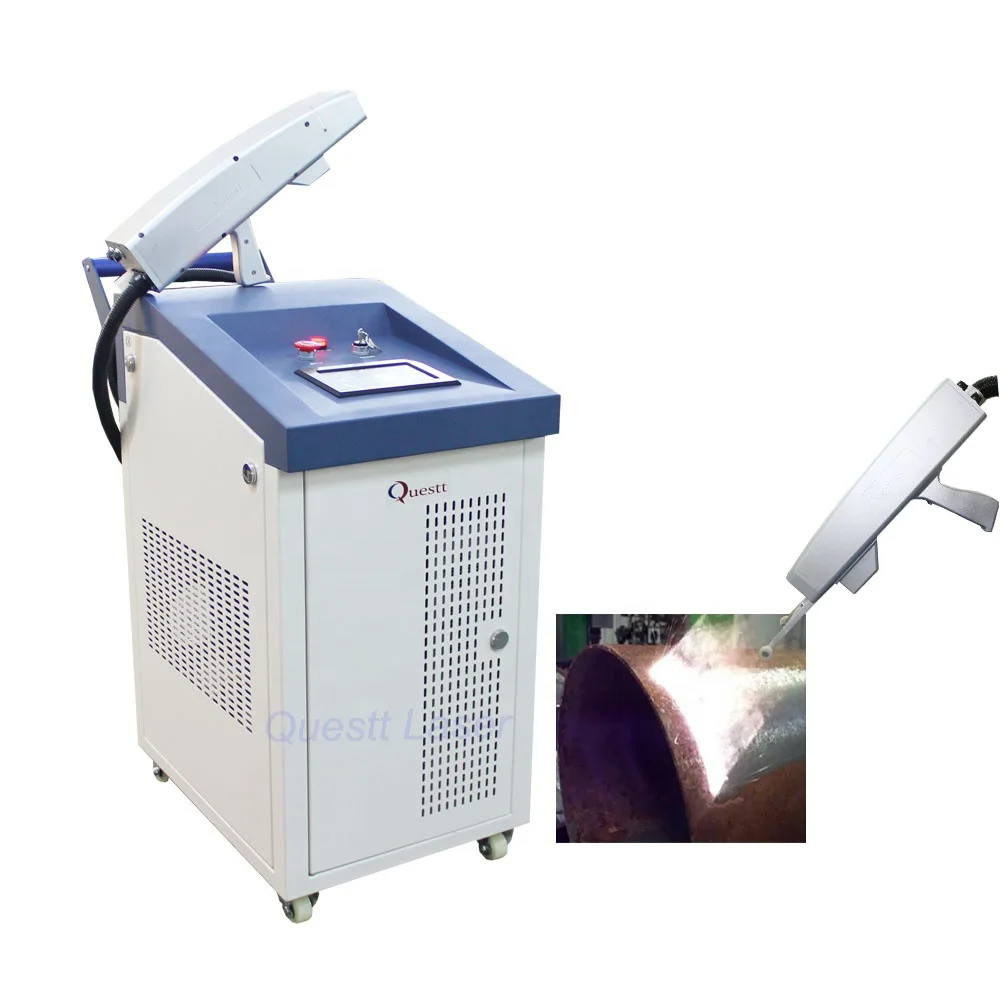

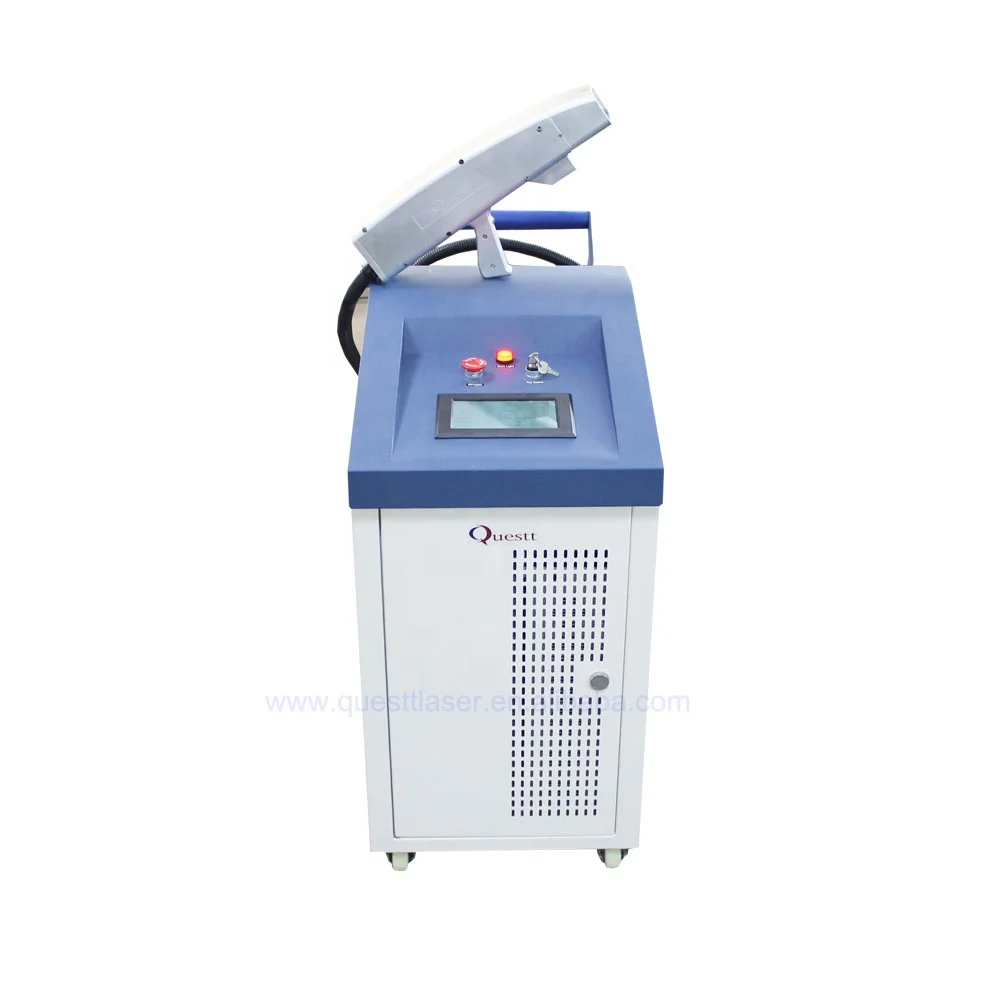

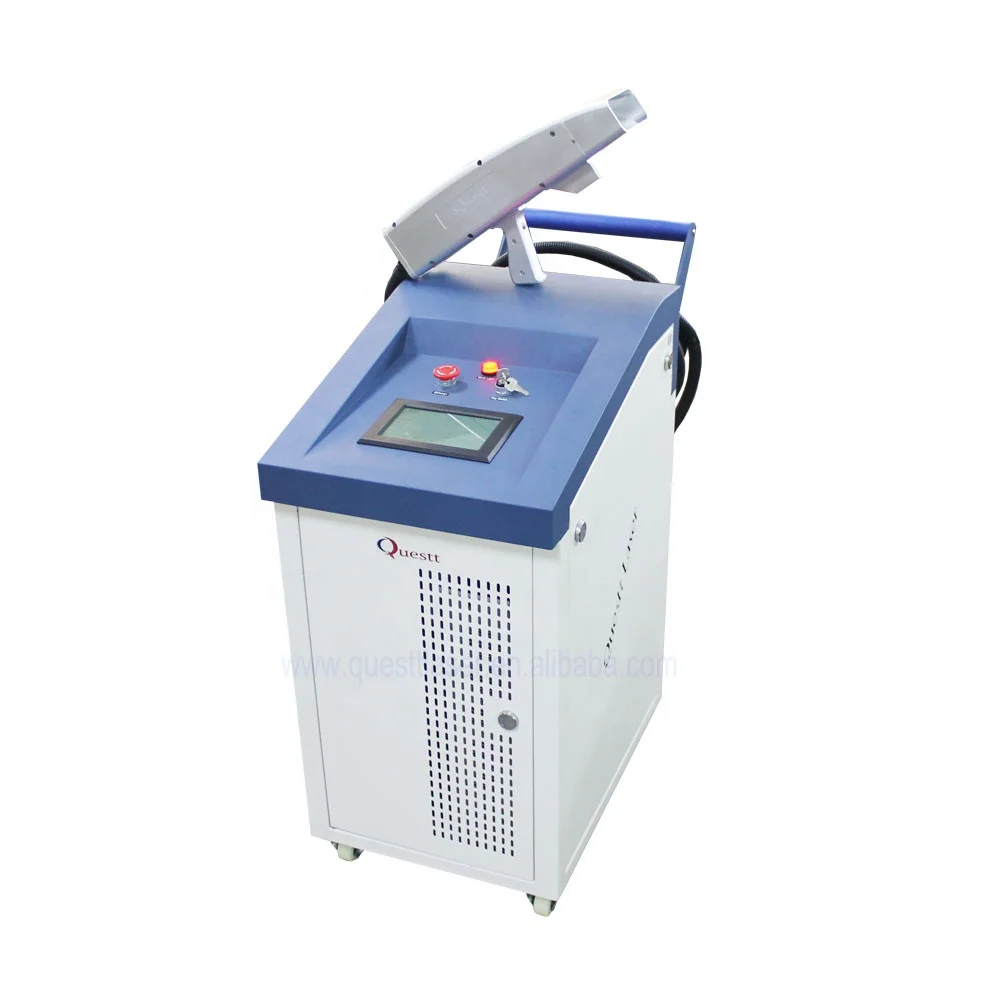

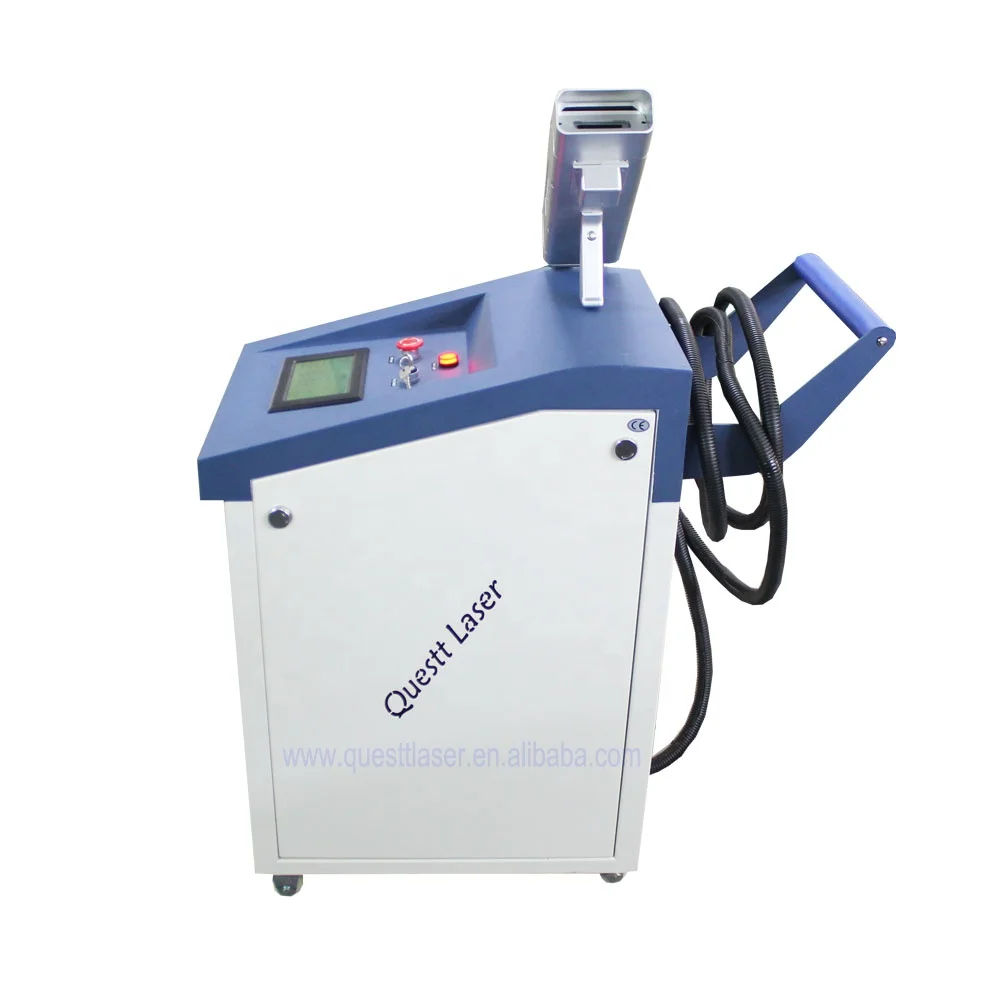

Cleaner Laser Electric Rust Remover Graffiti/Oil/Oxide/Paint of Automobile/Ship/Raiway/Tier Mould/Wall 500W 200W 100W



Machine introduction

Fiber Laser rust removal Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.



Features

1. Low cost;

2. Quick investment recovery;

3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.

4. Clean or remove the surface paint layer quickly and cleanly;

5. Accurate cleaning and paint removal effect;

6. No damage to the base material;



Specifications:



Model	QA-LC60	QA-LC100	QA-LC200	QA-LC500
Laser source	Fiber	Fiber	Fiber	Fiber
Laser Power	60W	100W	200W	500W
Fiber cable L	3 M	3 M	5 M	10M
Pulse Energy	1.5 mJ	1.5 mJ	2 mJ	50 mJ
Wavelength	1060nm	1060nm	1060nm	1060nm
Frequency	50-500KHz	50-200KHz	20-50KHz	10-50KHz
Clean speed	≤5 M²/Hour	≤10 M²/Hour	≤15 M²/Hour	≤50 M²/Hour
Scann speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling	Air cooling	Water cooling
Dimension	450*350*500	650*350*560	900*600*1100	1600*1100*1800
Weight	30Kg	40Kg	120Kg	300Kg
Beam width	10-100mm	10-100mm	10-100mm	10-100mm
Optional	Manual	Manual	Manual	Manual
Temperature	5-40 ℃	5-40 ℃	5-40 ℃	5-40 ℃
Voltage	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ



Comparison with Traditional Clean Methods:



Comparison	Laser Cleaning	Chemical Cleaning	Mechanical Grinding	Dry ice cleaning
Washing Method	non-contact cleaning	contact cleaning	Abrasive contact cleaning	non-contact cleaning
Harm to base material	None	Yes	Yes	None
Washing Efficiency	High	Low	Low	Mid.
Consumable	Power	Chemical Detergent	Abrasive paper, grinder, abrasive stone	Dry Ice
Washing result	Very good, very clear	Medium, uneven	Medium, uneven	Good, uneven
Precision Washing	Accuracy controllable. High precision	Uncontrollable, low precision.	Uncontrollable, medium precision.	Uncontrollable, poor precision.
Safety/Environment	No pollution	Chemical pollution	Dust pollution	No pollution
Operation	Easy to operate, portable or automation optional.	Complicated process, higher technical requirement of the operator. Pollution prevention measures required.	Need more time & manpower. Pollution prevention measures required.	Easy to operate, portable or automatic.
Investment	High investment on machine. But no consumable, low maintenance cost	Low investment on machine. But expensive consumables	Medium investment on machine. High man-power cost.	Medium investment on machine. High consumable cost.

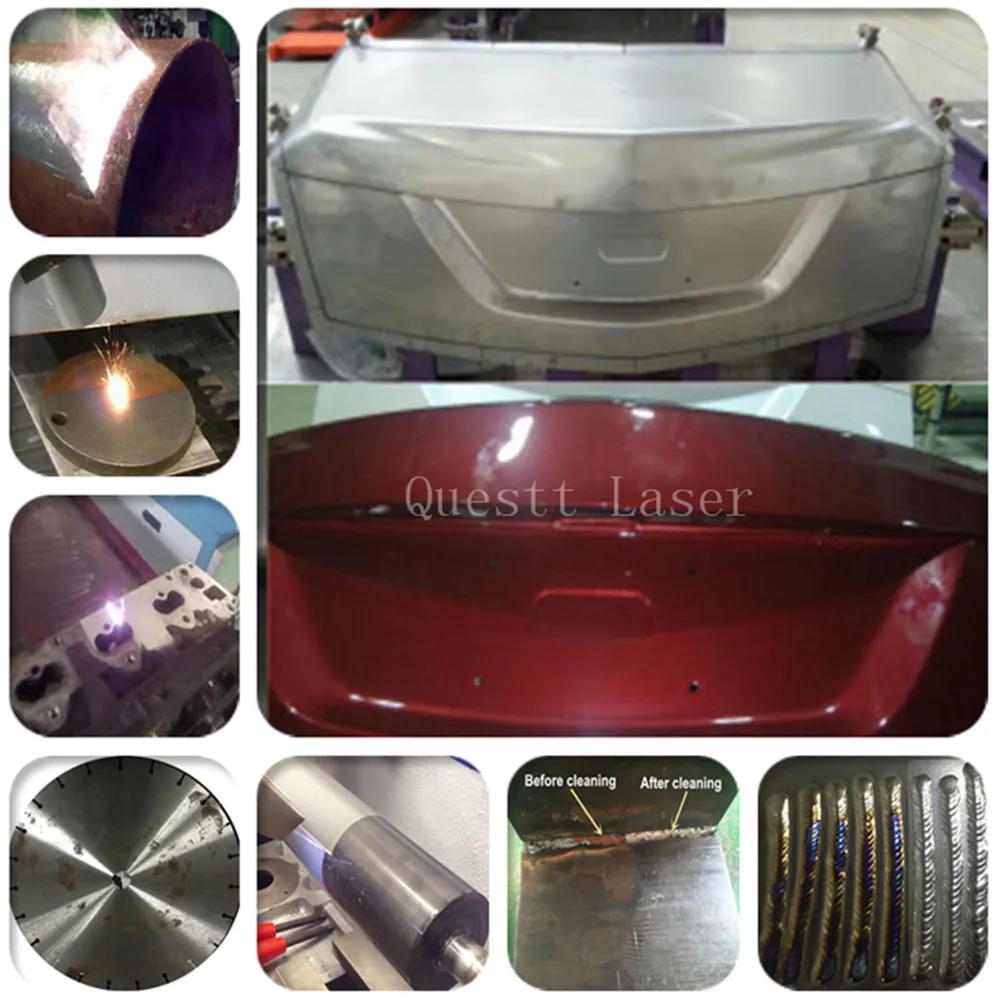

Application

industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy Rust, painting coating, oxide coating removal

Rust removal: High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formating plasma blasting, finally achieve the relativel smooth corrosive layer of boject surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust.







1.Q:What is the warranty of the laser cleaning machine?

   A:2 years.

2.Q:Are you a factory or trading company?

   A:Quesstt Laser is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

   A:Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

   A:If needed,Questt Laser offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

   A:Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

 6.Q:How can i get assurance of my Payment?

 A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
