Миниатюрный вибраторный уплотнитель C50 46 кг 2 5hp

Описание и отзывы

Трекер стоимости

Характеристики

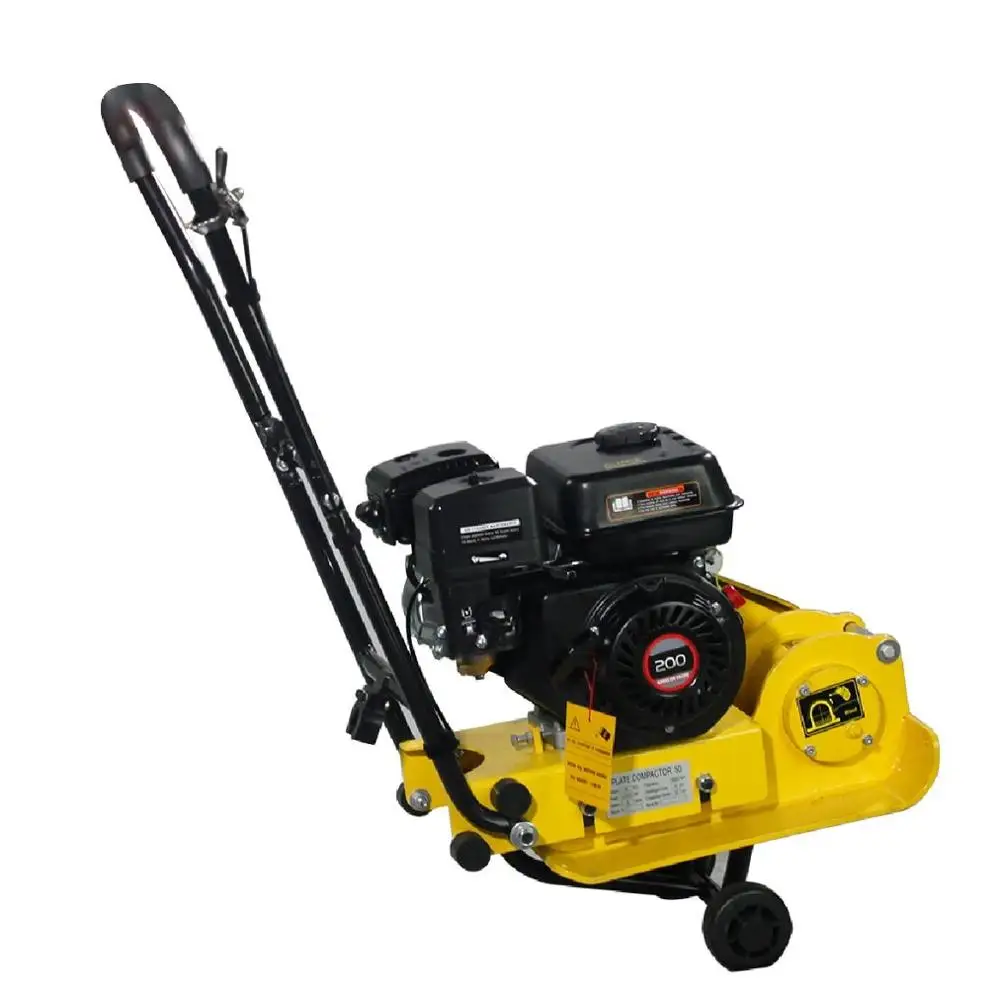

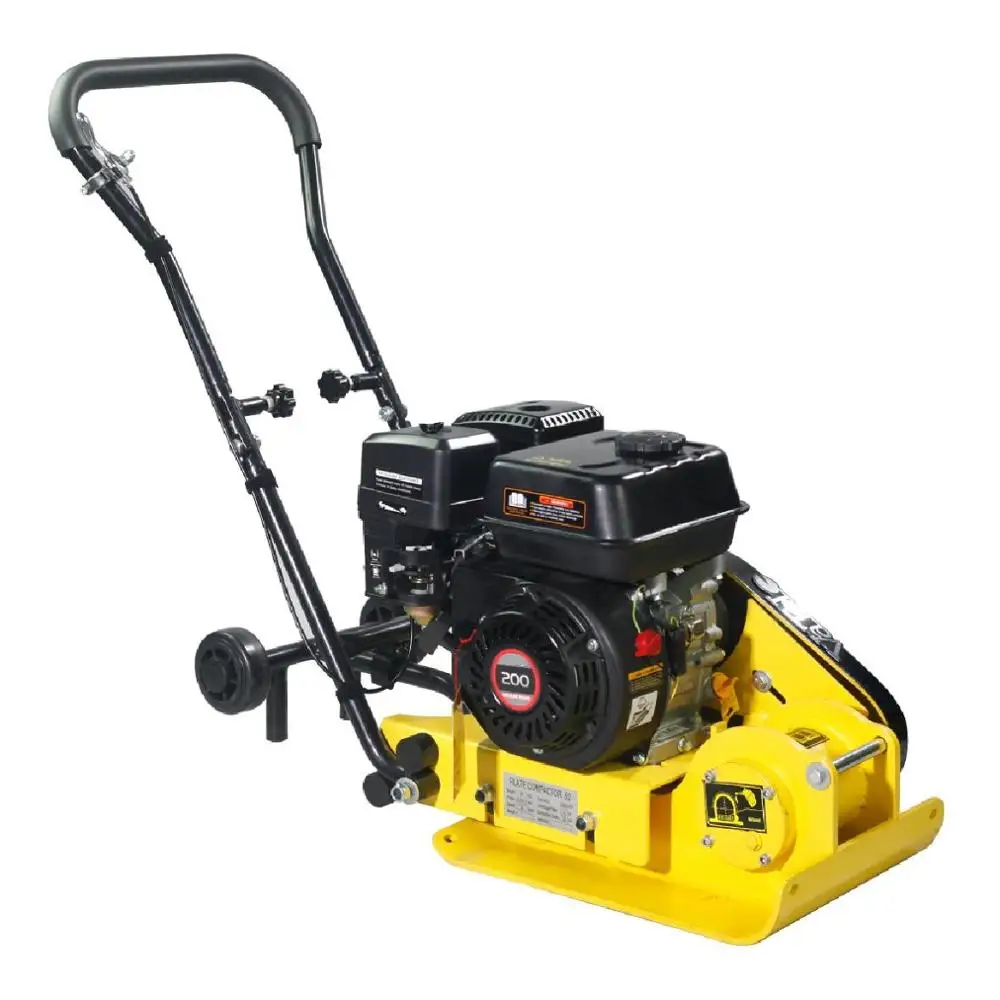

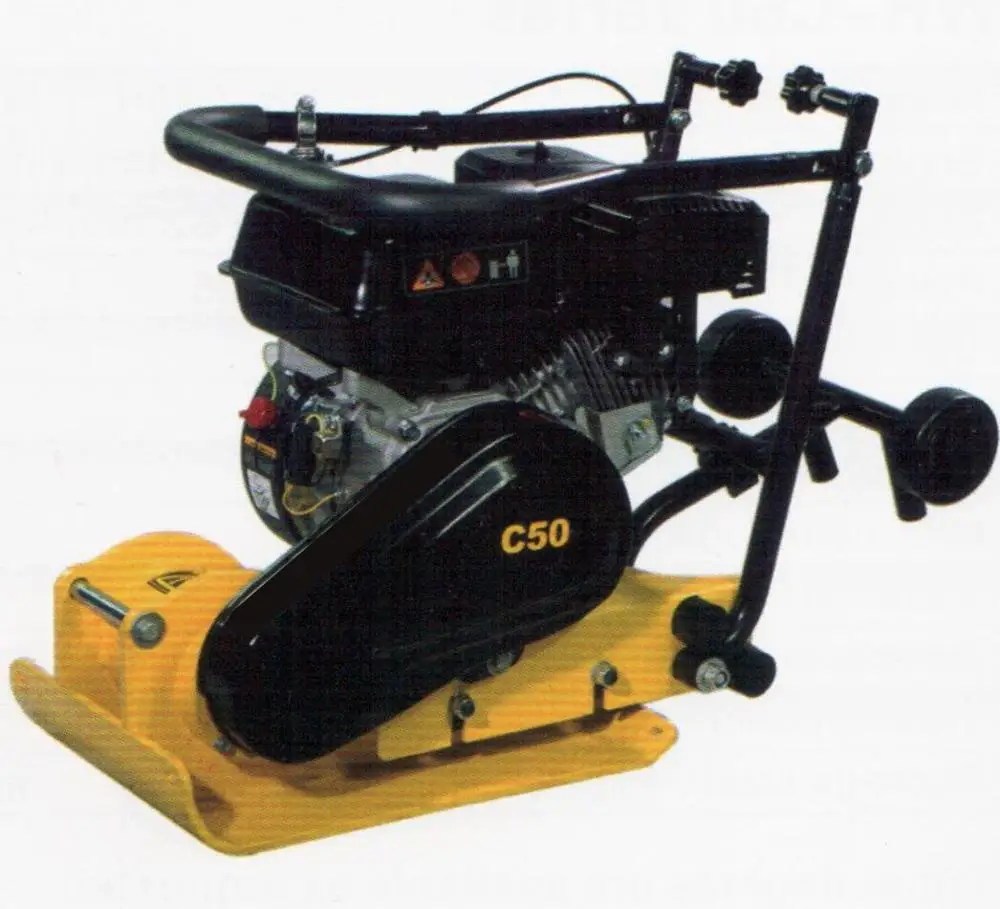

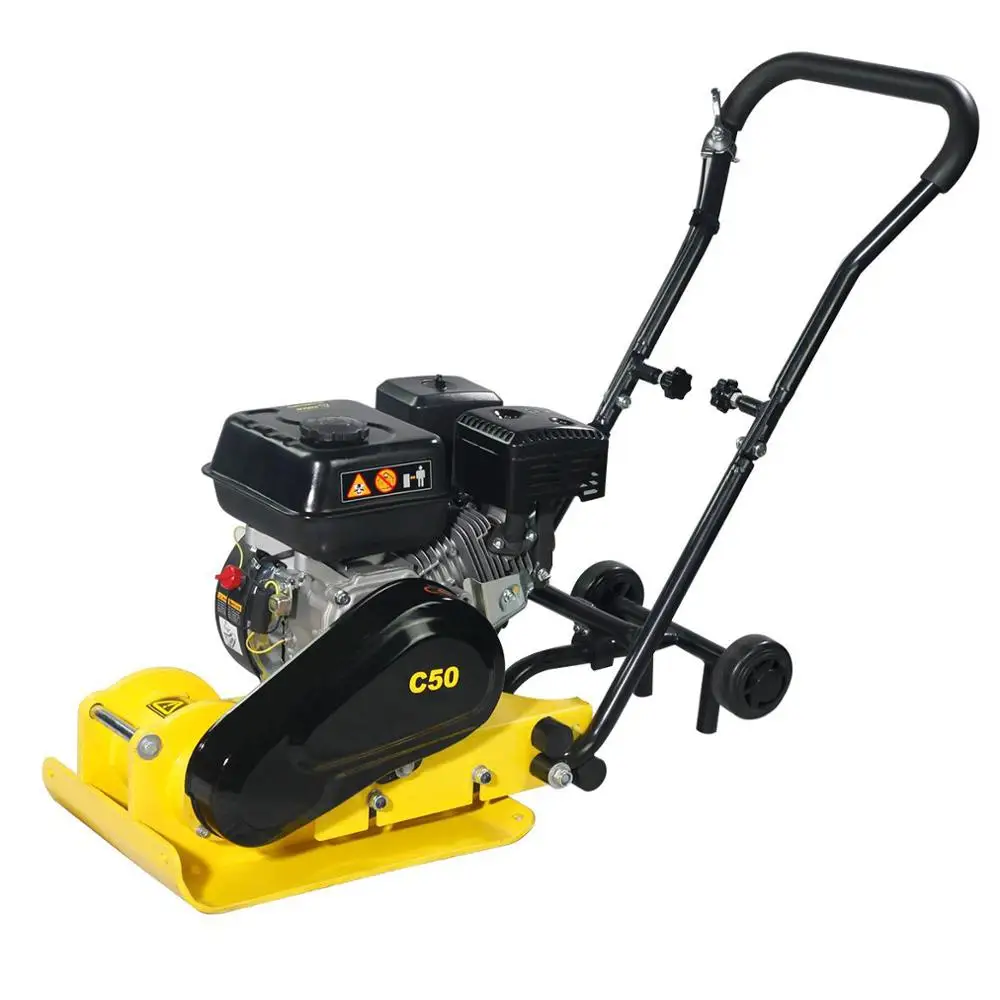

C50 46kg 2.5hp 8cn mini vibro plate compactor



Standard spec :foldable handle; push wheel

Optional item :rubber mat

Model	KK-C50
Engine	Lifan 154F
Power(hp)	2.5
Operating Weight(kg)	46
Shipping Weight(kg)	49
Frequency(v.p.m)	5600
Centrifugal force(KN)	8
Compaction depth(cm)	20
Travel speed(cm/s)	22
Efficiency(m2/hr)	350
Plate Size(cm)	43*30
Package size(L*W*H)(cm)	71*42*54.5

Function

Ideal for sand, gravel and mixer soils in narrow trenches and along foundations, walls and abutments, even brick paving compaction(with optional rubber mat) in narrow place.

Safety

The V-belt drive is fully enclosed for better safety and trouble free use.

More utilisation

Properly curved edges for easy access to corners during compaction.

Easy transportation

Foldable handle easy for transportation and storage.

Build in wheels for easy transportation.

Easy cleaning

Open bottom plate to faciliate self cleaning.

Comfortable operation

The designing of square-shaped bed and handle is more helpful and comfortable for the operators to changing working directions.

Heavy-duty shock mounts reduce vibration to the upper engine&handle.

Principle:
Plate compactors are the machine that compact the ground and they intend to make the surface smooth by transmitting vibration through vibrating plate, whose power generated from the motor in vibrator case. The exciter system(directed vibrator) is driven via V-belt and centrifugal clutch.
Application:
Plate compactor is an indispensable piece of construction equipment. As the professional manufacturer of this item, we has many models of plate compactors for different construction jobs, which differ in size, weight, power and operating mechanism.
Plate compactors are designed to be used for trench compaction, earthworks, road maintenance, landscaping, brick paving(with rubber mat), driveway topping etc.
Plate compactors can compress different types of soil(excluding soil with much water, especially clay soil), asphalt and gravel.
Welcom to choose according to your demand. Choosing the right machines can increase productivity and improve construction quality.
