Датчик давления плавления с наполненным песком щук PT3616B выход 0-10

Датчик давления плавления с наполненным песком щук PT3616B выход 0-10

Категория: Pressure Transmitters >>>
Поставщик: Chengdu,Sand,Electronic,Co.,Ltd.

Цена:240,00 $ - 260,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	286.51 $*	300.11 $*
Aug-20-2025	283.37 $*	297.49 $*
Jul-20-2025	238.63 $*	250.15 $*
Jun-20-2025	278.68 $*	292.72 $*
May-20-2025	242.91 $*	254.94 $*
Apr-20-2025	274.31 $*	288.2 $*
Mar-20-2025	271.79 $*	285.99 $*
Feb-20-2025	269.50 $*	282.29 $*
Jan-20-2025	266.54 $*	279.88 $*

Характеристики

Product Description

This series of products is mainly used for measurement of high temperature melt pressure .the maximum diaphragm temperature of normal high temperature melt pressure transducer is up to 400℃.These series are made of special material and pressure transmitting methods .it has more scientific construction design,even put them in the 550℃ working conditions ,they can also measure very precisely .

Performance

.Maximum diaphragm temperature:550℃

.Comply with FDA standard and the eu RoHS directive

.6PIN mating connection.more reliable and stable

.Stainless steel housing , beautiful ,rugged, durable

.Accuracy:±0.5%FS,±1.0%FS

.Output signal:

Transducer:3.33mv/v,3.0mv/v

Transmitter :0-10v,4-20mA

.Corrosion resistant coating to extend the service life of 3 to 5 times (optional)

.Thermometric config:

Thermocouple:E,J,K,J type

Thermal resistance:Pt100etc

Order format:

Example:PT3716-100MPa-1/2-20-150-4-20mA

Note:product model"PT3716",function code "B"stand for pressure transmitter

Coating code null stands for without coating

Pressure range:0-100MPa,thread size:1/2"-20UNF

Rigid stem length:150mm/no flexible stem

Pressure output signal 4-20mA.signal-function,non-temperature configuration

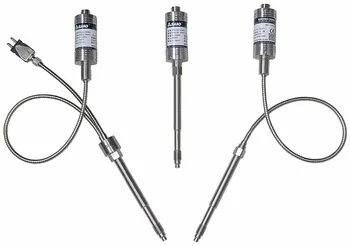

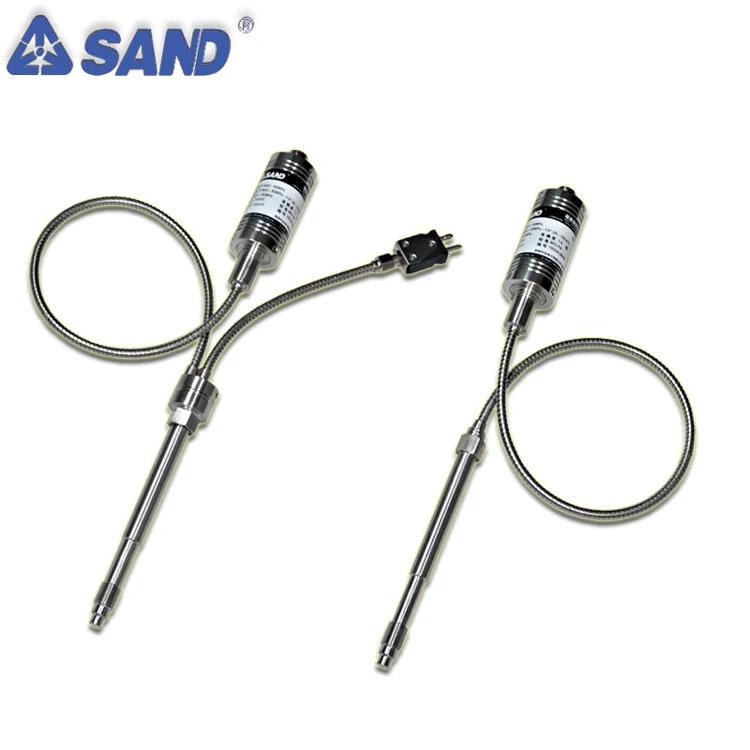

Detailed Images

Order Format

Example1:

PT3716-350bar-M18-150-3.33mV/V

Note:

Product design Model "PT3716".

Function code "Null" stands for melt pressure transducer.

Coating code "Null" stands for without coating .

Pressure range: 0 ~ 350bar.

Thread size : M18 * 1.5.

Rigid stem length:150mm .

Pressure output signal: 3.33mV/V.
