Однофазный Автоматический выключатель NFC62411 BAC0 EDF 2P 4P 5/15A 10/30A 15/45A 30/60A 300mA

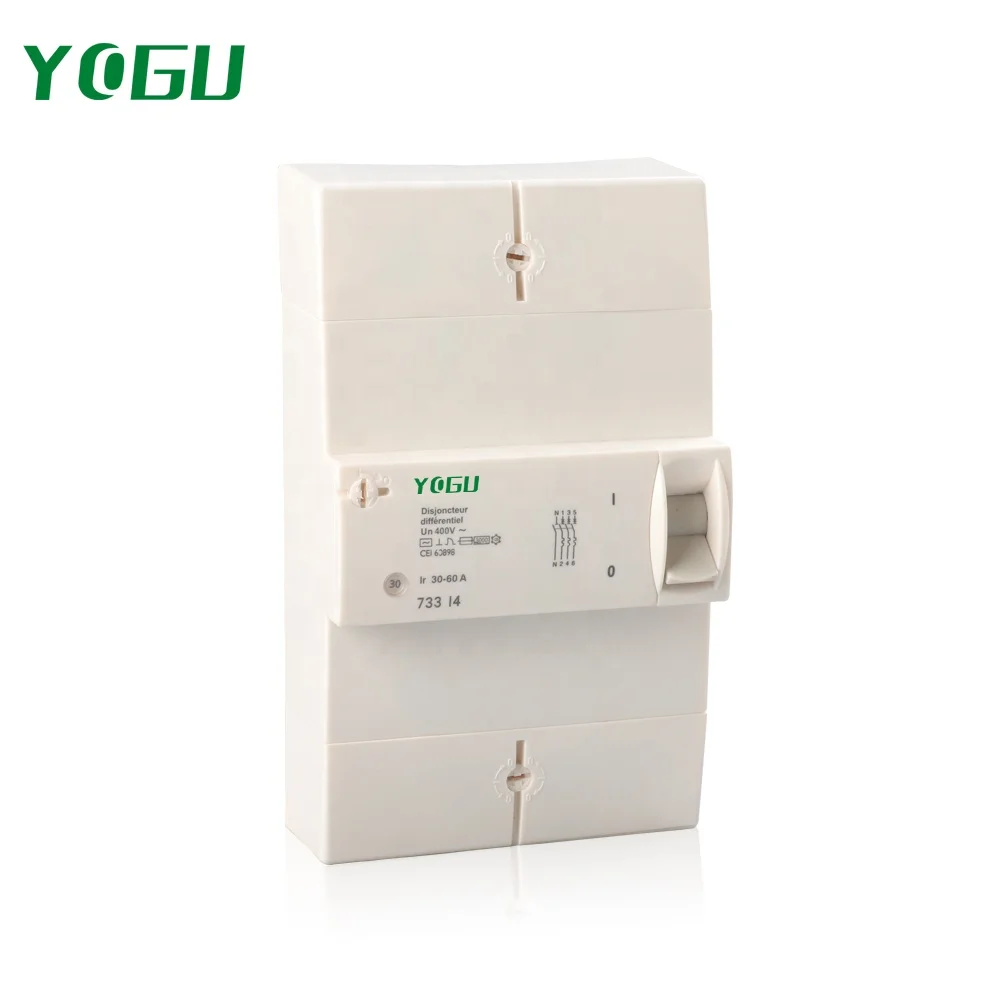

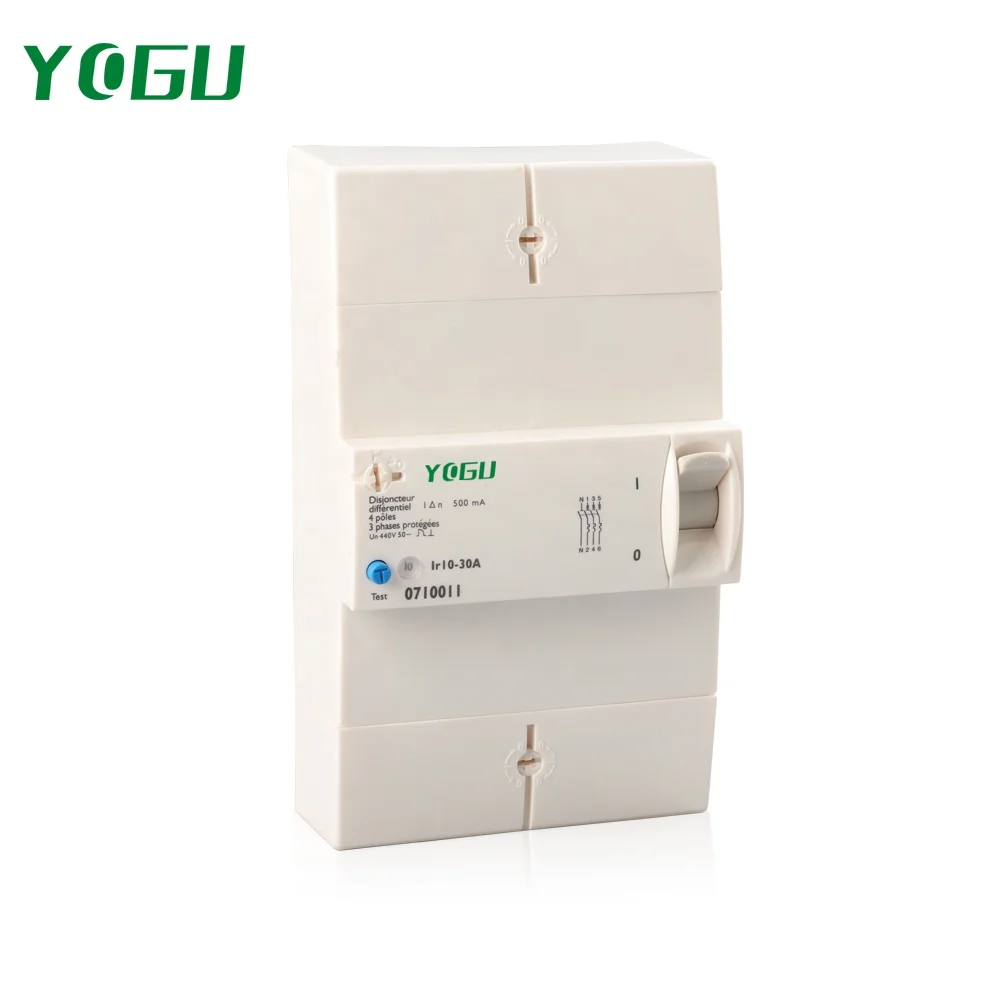

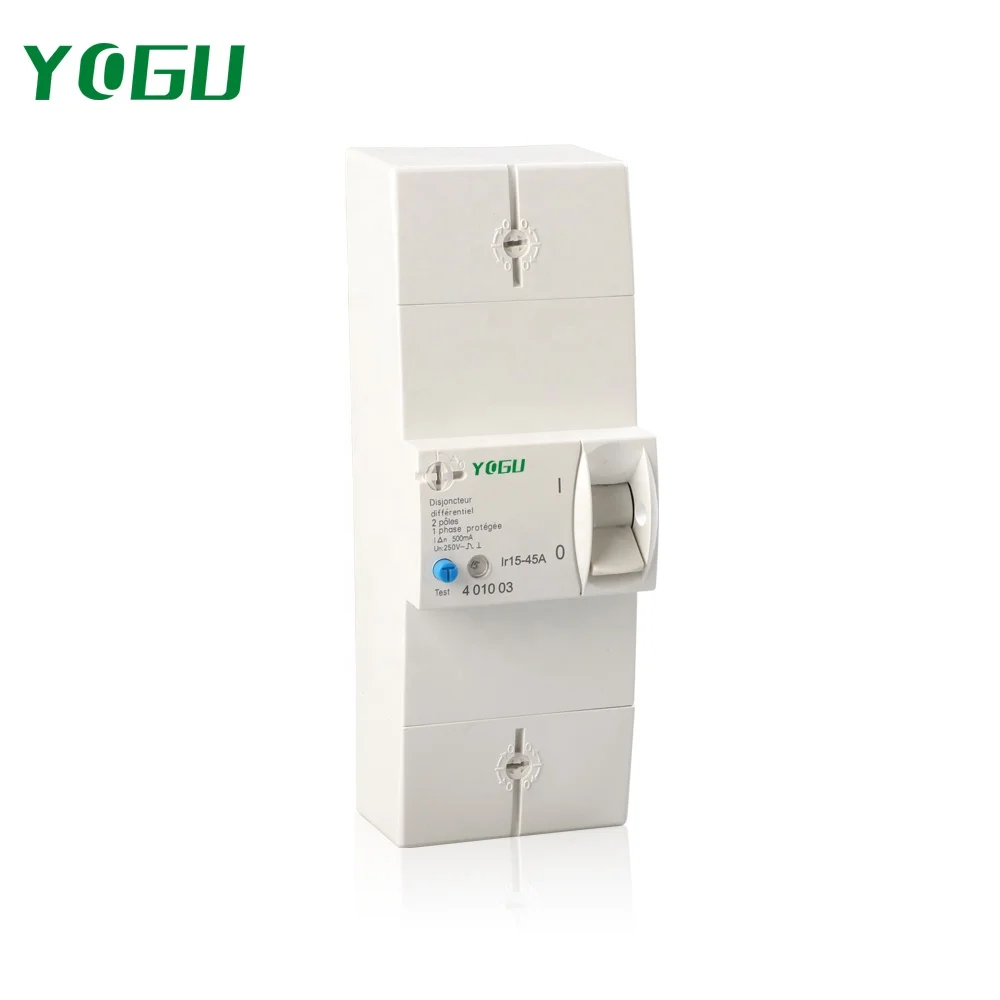

ERDF Branch circuit breaker YBACO.

The YBACO circuit breaker range, from 5 to 60 A, (1 Ph + N) or (3 Ph + N), with or without earth leakage protection (300 mA - 500 mA or 650 mA), offers the right product to fit every type of installation.

Operating principles

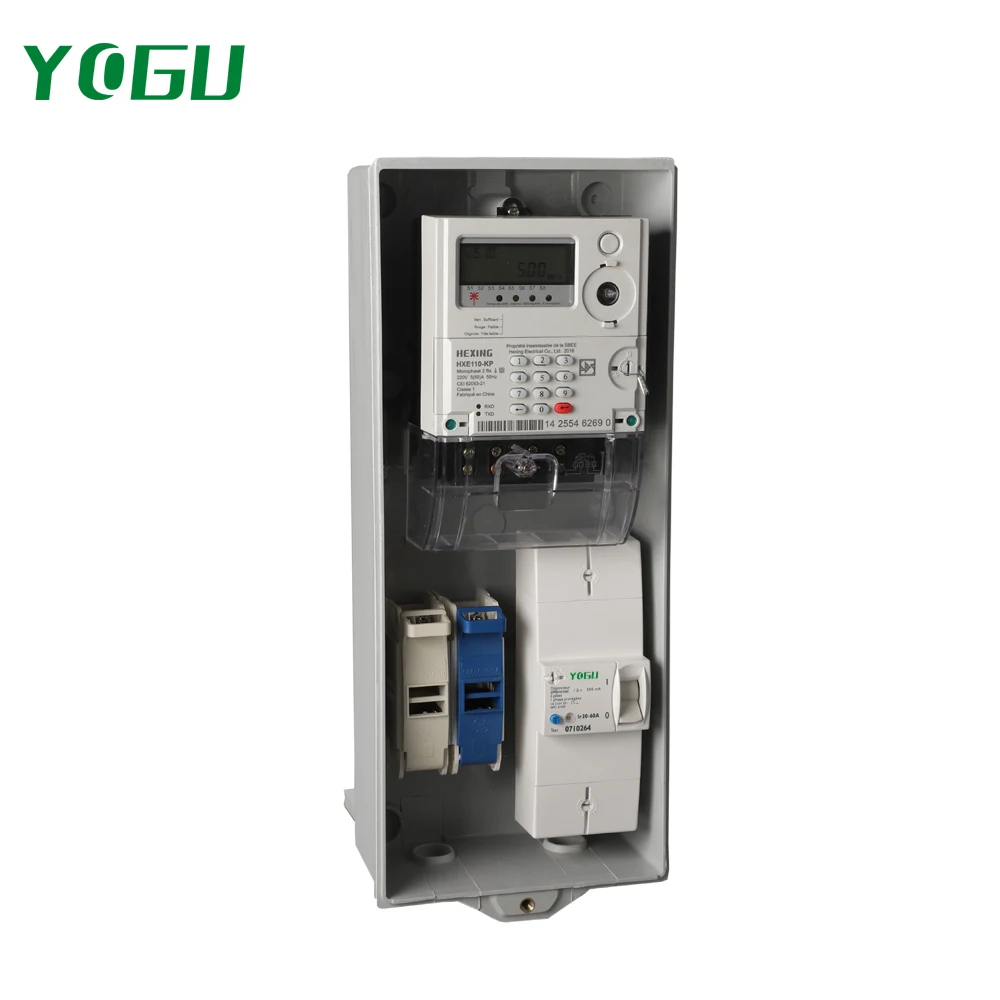

1. Service connections are the interface between the Utility and the end-user customer.
2. They connect the customer's electrical installation to the power distribution network.

Advantages

1. Low-cost product, suitable for conventional service connections.
2. Multiple rating device.
3. Several levels of earth leakage sensitivity.
4. Complies with the French NFC 62 411standards.

Electrical characteristics

1. earth leakage break time: < 0.2 s for 1 In ,   < 0.1 s for 2 In
2. earth leakage tripping: 300 mA, 500 mA or 650 mA
3. operating temperature: - 20 ° C to + 55 ° C
4. voltage drop:  < 0.3 V
5. insulation resistance:  > 2 M
6. dielectric withstand
7. 2 kV AC for 1 minute
8. 4 kV between poles and frame
9. tripping curve: C type & D type

10. operation in all positions
11. ON/OFF control by a handle
12. rating easily changed
13. lead-sealable terminal shields
14. captive terminal screws
15. pivoting terminals
16. copper cables up to 35 mm²
17. neutral identified in blue
