Портативные машины для слива отработанного масла с емкостью

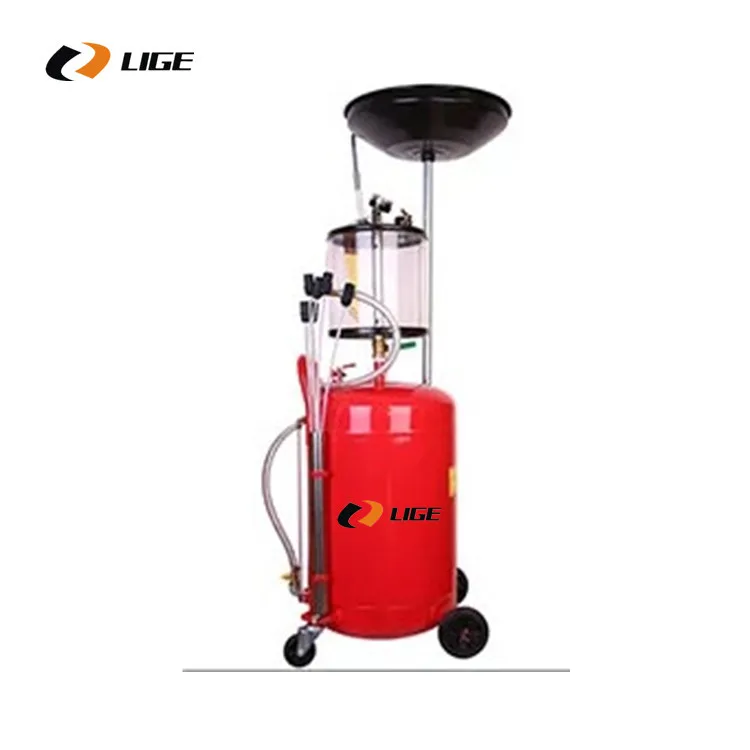

 Pneumatic Waste Oil Drain Collector Feature:
1.Height adjustable telescopic steel drain pan fitted with grid filter
2.Air discharge drain with hose supplied
3.Reservoir oil level indicator tube
4. Power from air compressor, safe and easy operation

DS-Q917B

* Operating Instructions
Oil drain tank for collecting all kinds of trashy oil from auto, agriculture mechanism, etc.
1.Let the auto rise to up,then push oil drain tank under the automobile engine;and remove the oil discharge screw
2.Open the oil valve of oil basin,at the same time open the inlet valve at the top of the oil tank;then waste oil into the storage tank from the oil basin.

Waste oil discharged from the storage tank.
1.Open the ball valve that lead to the hook,and use the hook to hook the bin
2.Use the connector connected to compressed air quickly at the top of the equipment;close the oil valve, open compressed air switch(Note:when the safety valve begin to exhaust,then the compressed air switch can be closed);then the waste oil is discharged from the hook.

* Maintenance Instructions
1)Regularly check whether the equipment has leakage phenomenon, if yes,it should be make a maintenance immediately ;
2)Always check whether the hose connection is sealed;
3)In order to avoid corrosion , the waste oil in storage tank should not be stored for a long time;
4)The equipment surface should be wiped clean commonly by towel or cloth, keep equipment clean, after use it, please put it in the shade to avoid exposure to sunlight.

* Warning
1)After the training of qualified personnel can use the device;
2)Do not smoking near the equipment;

1. Can it match with workshop?

    Yes,  for waste oil change , functional.

2. How long for the new machine production?

    Production time for 15~20 days

3. MOQ

    20pcs

4. How about the warranty?

    1 year warranty , English manual

5. What about the payment:

    TT

ASZ Automotive Equipment Co.,ltd
Atten: claire                     whatsapp 008613661520526
website: www.dingsheng-china.com
Add: No.758 Huiping rd, Nanxiang High tech park, Jiading, Shanghai, China
