* Using ARM processor and high-speed sampling AD, the system runs smoothly.
* 360V wide voltage input, wider application, can be widely used in non isolated power test.

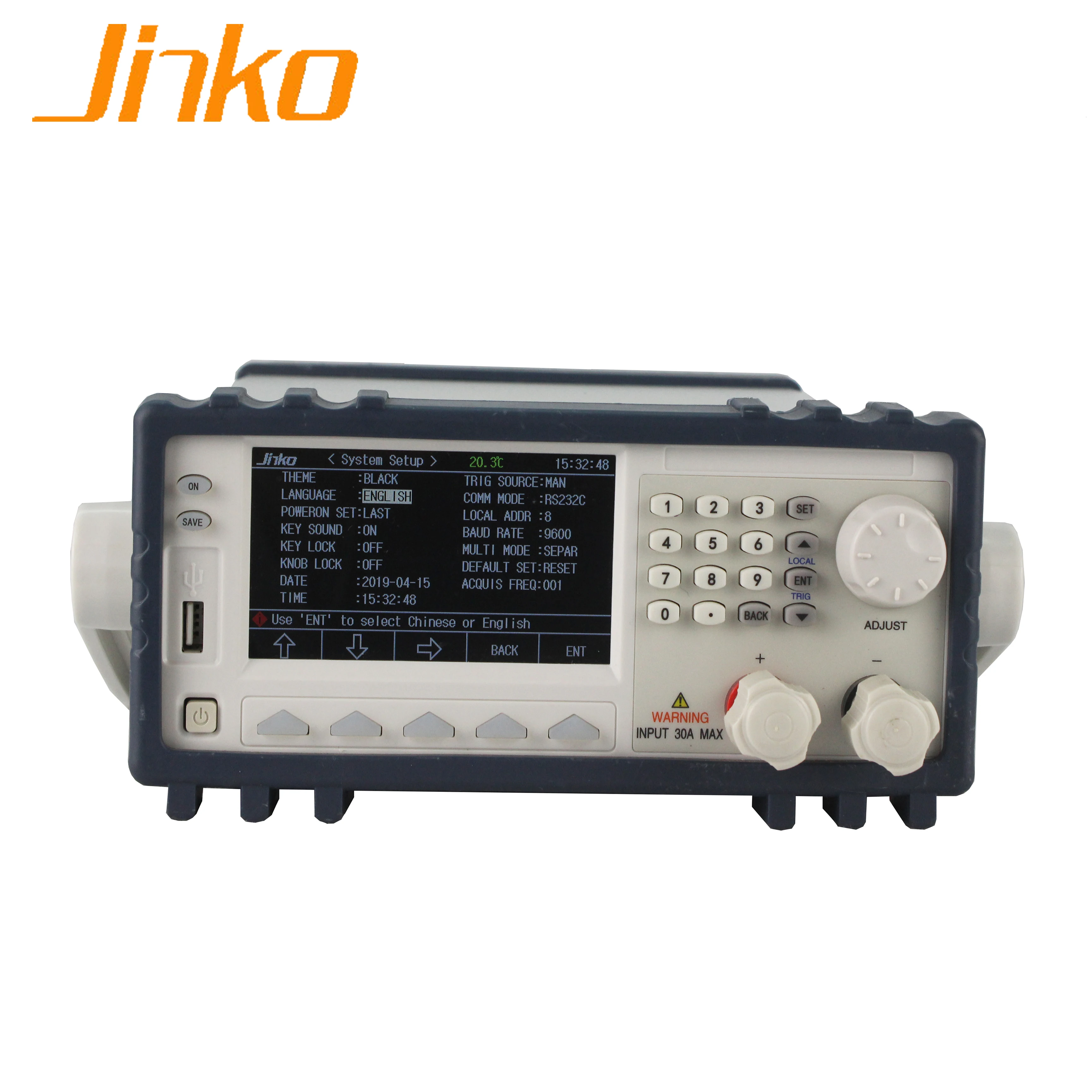

* The 4.3 inch TFT color display screen is comprehensive, clear and intuitive, and supports the operation interface in Chinese and English.
* U disk software update, U disk data storage and screen capture function (JK9930BU/JK9930CU)
* Higher dynamic response speed, high speed power test.

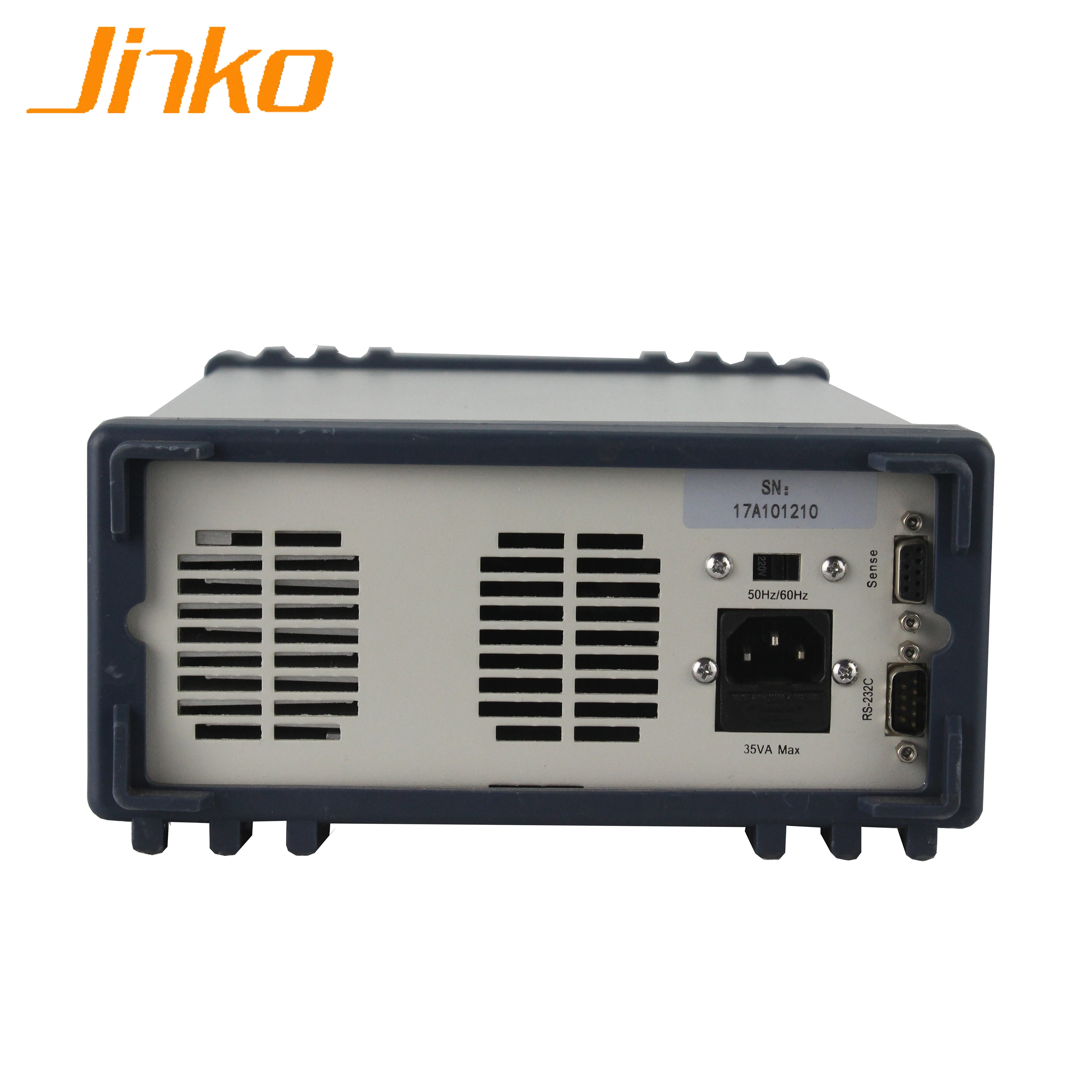

* Standard RS232 interface,can connect with the computer without a special cable.
* Users can purchase the standard RS232 to USB interface freely, and do not need to purchase special connectors for manufacturers to save costs for users.
Technical parameter:
Model
JK9930B
JK9930BU
JK9930C
JK9930CU
Rated value
Input voltage
0~360V
Input current
1mA~30A
Input power
150W
300W
Range
Accuracy
Resolution
Load precision
0-36V
±(0.05%+0.03%FS)
1mV
0-360V
±(0.05%+0.03%FS)
10mV
0-3A
±(0.05%+0.05%FS)
0.1mA
0-30A
±(0.05%+0.05%FS)
1mA
constant voltage mode
1.5V-36V
±(0.05%+0.03%FS)
1mV
1.5V-360V
±(0.05%+0.03%FS)
10mV
constant current mode
0-3A
±(0.05%+0.05%FS)
0.1mA
0-30A
±(0.05%+0.05%FS)
1mA
constant resistance mode
0.05Ω-5Ω
±(0.2%+0.2%FS)
0.001Ω
0.5Ω-50Ω
±(0.1%+0.1%FS)
0.01Ω
5Ω-500Ω
±(0.1%+0.1%FS)
0.1Ω
500Ω-5KΩ
±(1%+1%FS)
1Ω
Constant power mode
0-50W
±(0.1%+0.1%FS)
1mW
0-150W
±(0.1%+0.1%FS)
10mW
0-300W
±(0.1%+0.1%FS)
0.1W
Precision of voltage measurement
0-9.9999V
±(0.05%+0.03%FS)
0.1mV
10.000-99.999V
±(0.05%+0.03%FS)
1mV
100.00-360V
±(0.05%+0.03%FS)
10mV
Precision of current measurement
0-9.9999A
±(0.05%+0.05%FS)
0.1mA
10.000-30.000
±(0.05%+0.05%FS)
1mA
Battery test function
Input voltage:0.8-360V, Maximum capacity:999A/H ,resolution :0.1mA
Discharge time: 1-60000sec
Dynamic test mode
T1&T2(A value or B value test time):0.05mS-999S ,error‹ 2.5%+0.05mS
Scope of protection
>Rated condition 5%
Input terminal impedance
≥200KΩ
Shape size
W*H*D 230mm*100mm*350mm
Weight
JK9930B/JK9930BU :6KG JK9930C/JK9930CU 6.5KG
