LM13UU заводская цена линейная движущаяся втулка шариковый подшипник для запчастей
- Категория: Linear Bearings >>>
- Поставщик: Changsha,Terry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.67 $* | 0.90 $* |
| Aug-16-2025 | 0.82 $* | 0.20 $* |
| Jul-16-2025 | 0.82 $* | 0.1 $* |
| Jun-16-2025 | 0.40 $* | 0.73 $* |
| May-16-2025 | 0.92 $* | 0.33 $* |
| Apr-16-2025 | 0.12 $* | 0.32 $* |
| Mar-16-2025 | 0.25 $* | 0.87 $* |
| Feb-16-2025 | 0.71 $* | 0.34 $* |
| Jan-16-2025 | 0.60 $* | 0.67 $* |
Характеристики
Product Overview

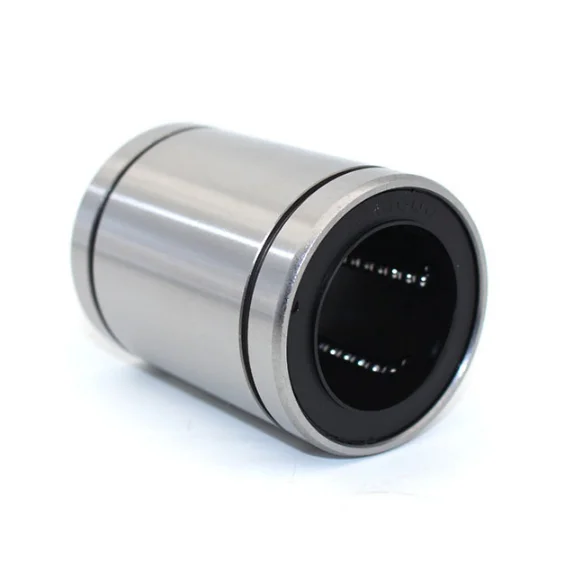

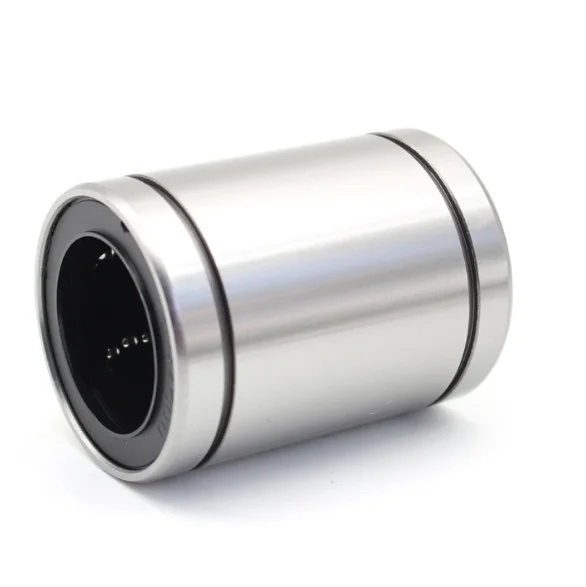

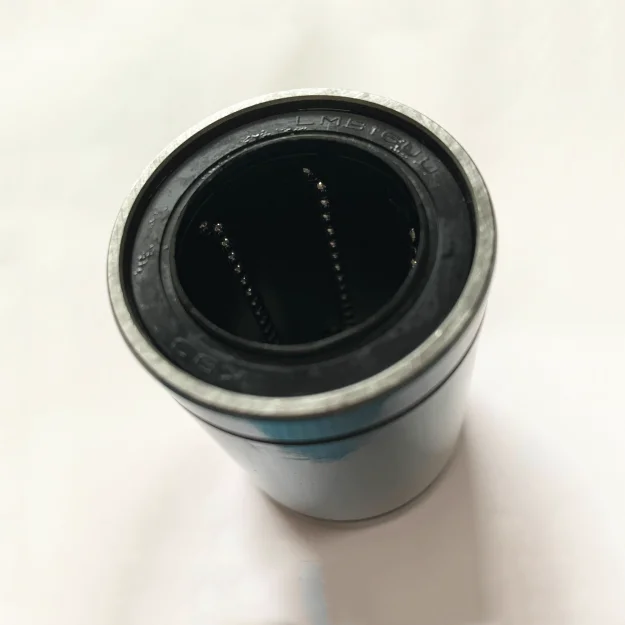

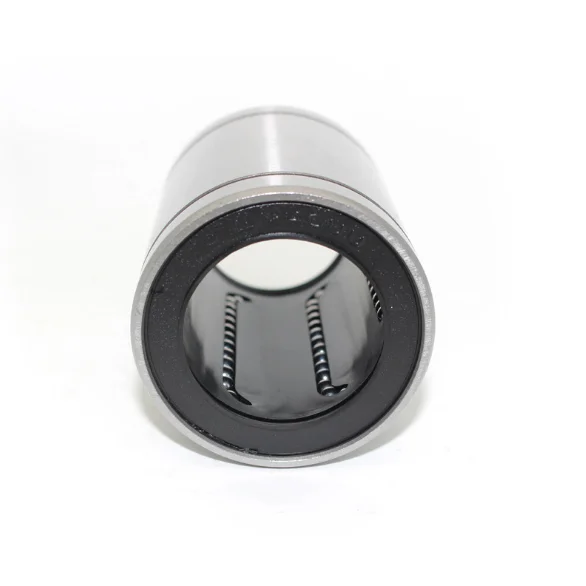

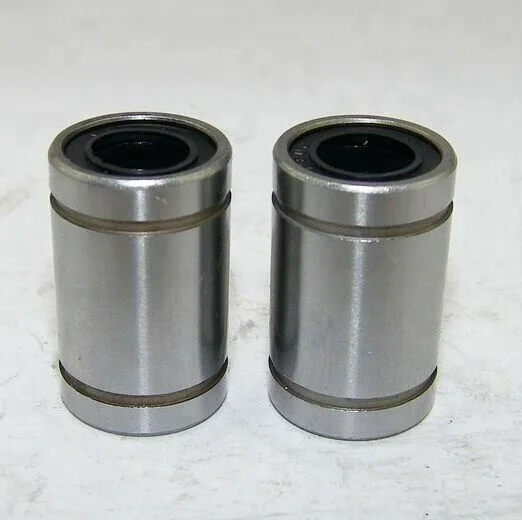

LM13UU Cheap Linear Motion Sliding Ball Bearing For 3D Printer Parts
Linear bearing 's Application
Widely used in the defense, precision machinery, medical instrument, chemical, printing,agriculture.robotic, automatic production line etc. We have Professional and technical personnel,therefore we could make product according to customer's specification.
Linear Bearing LMF Series :
LM linear bearing: LMF8UU, LMF6UU, LMF10UU, LMF12UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU,LMF40UU, LMF50UU, LMF60UU,LMF80UU, LMF100UU
Widely used in the defense, precision machinery, medical instrument, chemical, printing,agriculture.robotic, automatic production line etc. We have Professional and technical personnel,therefore we could make product according to customer's specification.
Linear Bearing LMF Series :
LM linear bearing: LMF8UU, LMF6UU, LMF10UU, LMF12UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU,LMF40UU, LMF50UU, LMF60UU,LMF80UU, LMF100UU
LM series:LM3 LM4 LM5 LM6 LM8 LM10 LM12 LM13 LM16 LM20 LM25 LM30 LM35 LM40 LM50 LM60 LM80
Model No. | Dimensions (mm) | Basic load rating(N) | Weight (gf) | ||||||||||||
Ball Circuit | dr | D | L | B | Dynamic C0 N | Static C0 N | |||||||||
LM5 | LM5UU | 4 | 5 | 10 | 15 | 10.2 | 167 | 206 | 4 | ||||||
LM6 | LM6UU | 4 | 6 | 12 | 19 | 13.5 | 206 | 265 | 7.6 | ||||||
LM8S | LM8SUU | 4 | 8 | 15 | 17 | 11.5 | 176 | 225 | 10.4 | ||||||
LM8 | LM8UU | 4 | 8 | 15 | 24 | 17.5 | 265 | 402 | 15 | ||||||
LM10 | LM10UU | 4 | 10 | 19 | 29 | 22 | 373 | 549 | 29.5 | ||||||
LM12 | LM12UU | 4 | 12 | 21 | 30 | 23 | 412 | 598 | 31.5 | ||||||
LM13 | LM13UU | 4 | 13 | 23 | 32 | 23 | 510 | 784 | 43 | ||||||
LM16 | LM16UU | 5 | 16 | 28 | 37 | 26.5 | 775 | 1180 | 69 | ||||||
LM20 | LM20UU | 5 | 20 | 32 | 42 | 30.5 | 863 | 1370 | 87 | ||||||
LM25 | LM25UU | 6 | 25 | 40 | 59 | 41 | 980 | 1570 | 220 | ||||||
LM30 | LM30UU | 6 | 30 | 45 | 64 | 44.5 | 1570 | 2750 | 250 | ||||||
LM35 | LM35UU | 6 | 35 | 52 | 70 | 49.5 | 1670 | 3140 | 390 | ||||||
LM40 | LM40UU | 6 | 40 | 60 | 80 | 60.5 | 2160 | 4020 | 585 | ||||||
LM50 | LM50UU | 6 | 50 | 80 | 100 | 74 | 3820 | 7940 | 1580 | ||||||
LM60 | LM60UU | 6 | 60 | 90 | 110 | 85 | 4710 | 10000 | 1860 | ||||||
LM80 | LM80UU | 6 | 80 | 120 | 140 | 105.5 | 7350 | 1600 | 4420 | ||||||
LM100 | LM100UU | 6 | 100 | 150 | 175 | 125.5 | 14100 | 34800 | 8600 | ||||||
LM120 | LM120UU | 8 | 120 | 180 | 200 | 158.6 | 16400 | 40000 | 15000 | ||||||
LM150 | LM150UU | 8 | 150 | 210 | 240 | 170.6 | 21100 | 54300 | 20250 | ||||||
Related Products
Company Profile
Changsha Terry Machinery Co.Ltd is a leading supplier of bearings, linear motion system for CNC, ball transfer unit and transmission component. The growing industrial and favorable policy of Changsha benefit the development of Terry Machinery. Our products are utilized in industrial, motorcycle, vehicle and Automation applications. Now we are exporting to 46 countries including USA, GBR, Germany, Spain, Poland, Turkey ect. The goal of Terry Machinery to provide out customers with widest range of products at competitive prices, backed with the best Service.
Certifications
Customer Feedback
FAQ
1.What is the producing process?
-Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
-Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3. What is the transportation?
-If small quantity, we suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
4. Can we design packaging?
-Yes. Except regular packing, and we can make customer's own packing.
5. Can you provide OEM service?
-Yes, we provide OEM service. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
6. Could you tell me the delivery time of your goods?
- Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to the quantity.
7. What's your payment method?
-We can accet PayPal/ West Union/ alibaba order by credit card/ Bank transfer etc.
-Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
-Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3. What is the transportation?
-If small quantity, we suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
4. Can we design packaging?
-Yes. Except regular packing, and we can make customer's own packing.
5. Can you provide OEM service?
-Yes, we provide OEM service. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
6. Could you tell me the delivery time of your goods?
- Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to the quantity.
7. What's your payment method?
-We can accet PayPal/ West Union/ alibaba order by credit card/ Bank transfer etc.
\t\t\t\t\t\t\t\t\tFeedback \t\t\t\t\t\t\t
Changsha Terry Machinery Co.,Ltd
Susu
email : susu (at )ntl-bearing.com
skype :15084721754
whatsapp : 008618974131525
wechat : 18974131525
LM13UU Cheap Linear Motion Sliding Ball Bearing For 3D Printer Parts LM13UU Cheap Linear Motion Sliding Ball Bearing For 3D Printer Parts LM13UU Cheap Linear Motion Sliding Ball Bearing For 3D Printer Parts
