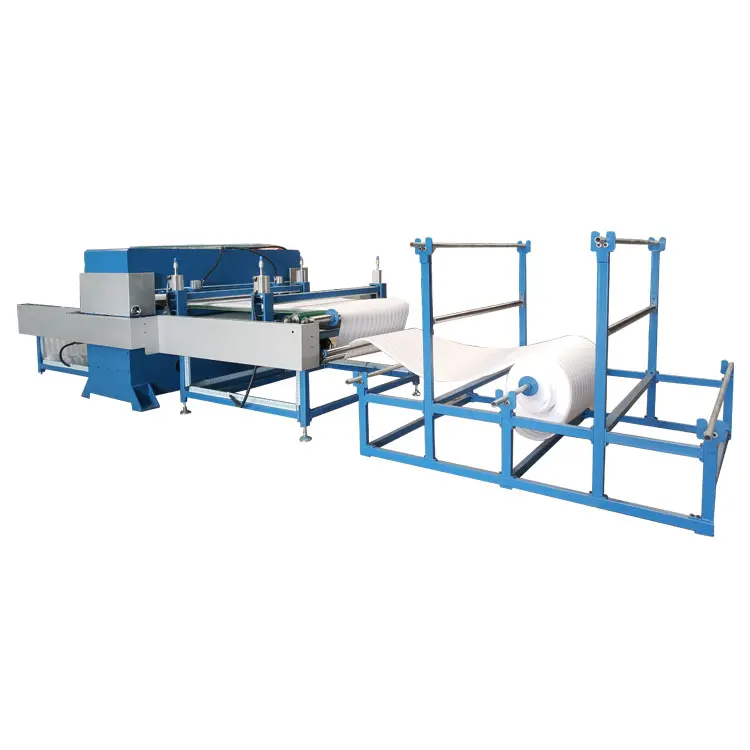

Полностью автоматическая машина для резки прессованной пены

Описание и отзывы

Трекер стоимости

Характеристики



Model	HTA-730T	HTA-740T	HTA-750T	HTA-760T	HTA-780T	HTA-7100T
cutting Force	30Tons	40Tons	50Tons	60Tons	80Tons	100Tons
stroke	50-250mm	50-250mm	50-250mm	50-250mm	50-250mm	50-250mm
cutting Area	510X1250mm	610X1250mm	710X1250mm	810X1250mm	810X1400mm	810X1400mm
Motor power	2.2kw	4kw	4kw	5.5kw	7.5kw	7.5kw
Dimension	1985X950 X1380mm	1985X1050 X1400mm	2030X1150 X1420mm	2085X1250 X1450mm	2385X1250 X1500mm	2385X1250 X1530mm
Weight	1600kg	2000kg	2500kg	2800kg	4000kg	4600kg

Model	HTA-830T	HTA-840T	HTA-850T	HTA-860T	HTA-880T	HTA-8100T
cutting Force	30Tons	40Tons	50Tons	60Tons	80Tons	100Tons
stroke	50-250mm	50-250mm	50-250mm	50-250mm	50-250mm	50-250mm
cutting Area	510X1250mm	610X1250mm	710X1250mm	810X1250mm	810X1400mm	810X1400mm
Motor power	2.2kw	4kw	4kw	5.5kw	7.5kw	7.5kw
Dimension	2335X950 X1380mm	2335X1050 X1400mm	2380X1150 X1420mm	2435X1250 X1450mm	2600X1250 X1500mm	2600X1250 X1530mm
Weight	1800kg	2200kg	2700kg	3000kg	4200kg	4800kg

Model	HTA-950T	HTA-960T	HTA-980T	HTA-9100T	HTA-9120T	HTA-9150T
cutting Force	50Tons	60Tons	80Tons	100Tons	120Tons	150Tons
stroke	50-250mm	50-250mm	50-250mm	50-250mm	50-250mm	50-250mm
cutting Area	710X1250mm	810X1250mm	810X1400mm	810X1400mm	810X1400mm	810X1400mm
Motor power	4kw	5.5kw	7.5kw	7.5kw	11kw	11kw
Dimension	2030X2720 X1420mm	2085X3060 X1450mm	2385X3060 X1500mm	2380X3060 X1530mm	2420X3060 X1550mm	2500X3220 X1600mm
Weight	3000kg	3500kg	4800kg	5500kg	6000kg	6500kg









FAQ

1. What's the warranty of your machines?

12 months Warranty, Life-long technical support

2. How do you help with the installation?

Engineer is available to serve over sea if needed. It is easy for customer to install through video calling. What’s more, we have video tutorial for customers.

3. Can we test our own material by your machine before order?

Yes, please contact us to send your material. We will test and send video to you.

4. Can you make dies (molds) of different products for us?

Yes, we used to do that for customers.

5. Are you factory or trading company?

We are factory.

Don't know what machine is suitable for you?

Please just ask us!

Don't know how the machine working?

Please contact us to see the video!
