DG1200 микро-туннелирующая Расточная машина/машина для подъема труб, tmb.
US $120000-$600000
XCMG официальная XDN500 машина для подъема труб цена на
- Категория: Трубоподъемное оборудование >>>
- Поставщик: XCMG,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 11900.2 $* | 12495.74 $* |
| Aug-15-2025 | 11800.52 $* | 12390.97 $* |
| Jul-15-2025 | 9900.79 $* | 10395.21 $* |
| Jun-15-2025 | 11600.38 $* | 12180.44 $* |
| May-15-2025 | 10100.73 $* | 10605.55 $* |
| Apr-15-2025 | 11400.61 $* | 11970.89 $* |
| Mar-15-2025 | 11300.0 $* | 11865.72 $* |
| Feb-15-2025 | 11200.21 $* | 11760.75 $* |
| Jan-15-2025 | 11100.75 $* | 11655.3 $* |
Характеристики
Product Description

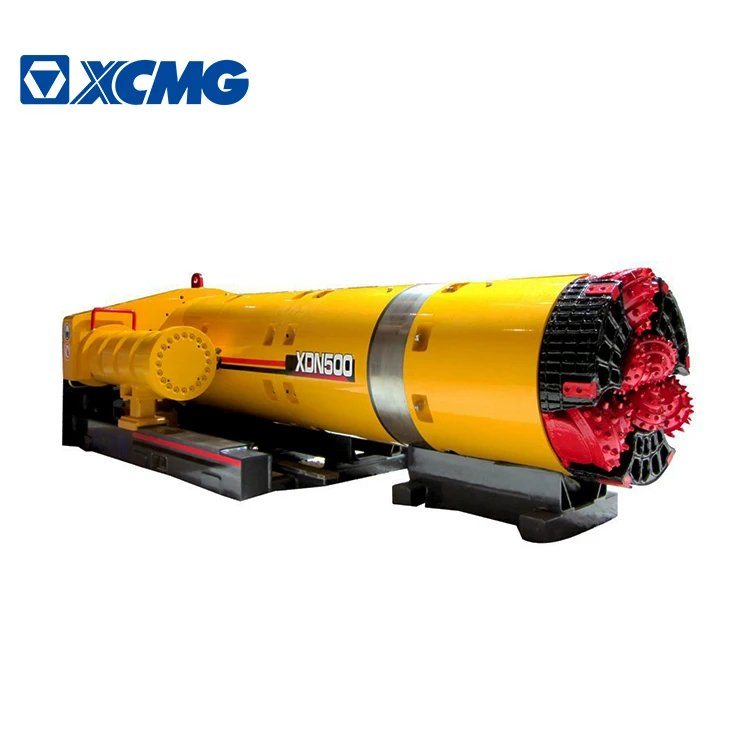

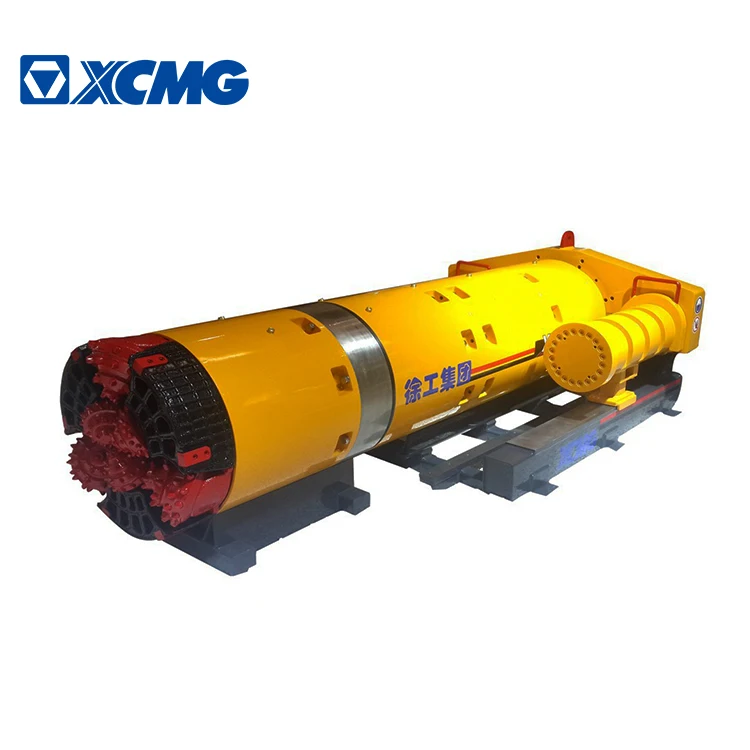

XCMG Official XDN500 Pipe Jacking Machinery price for sale
1.High reliability:Hydraulic overload protection system is reliable and safer,and the water proof is good.
2.Great geology adaptability:Revolution can be adjusted without grade and different cutting wheels are designed for different ground conditions.So it makes great adaptability.
3.High rock breaking efficiency:The special design of large eccentric cone crusher can raise the working efficiency with secondary crushing which also makes rock pieces easier to discharge.
4.Good construction operability:Jacking speed and slurry flow can be continuously adjusted that makes it easier to achieve a balance of jacking speed and delivery of slurry flow.
Product Paramenters
Description | Unit | Parameter value | ||
Pipe diameter | ID | mm | Φ500 | |
OD | Φ670 | |||
Outer diameter× length | mm | Φ690×3200 | ||
Rotation system | Motor power | kW | 37 | |
Torque | kN.m | 22 | ||
Revolution | r/min | 14 | ||
Roll correction system | Force per cylinder | kN | 150 | |
Cylinder number | EA | 3 | ||
Steering angle | ° | 3 | ||
slurry line diameter | mm | Φ75 | ||
Weight | kg | 3500 | ||
Jacking system Motor power | kW | 15 | ||
Jacking cylinders | Thrust | kN | 1000 | |
Number | EA | 2 | ||
Stroke | mm | 760×2 | ||
Launch shaft dimensions | mm | Φ2800 | ||
Reception shaft dimensions | mm | Φ1900 | ||
Charge pump Motor power | kW | 5.5 | ||
Discharge pump Motor power | kW | 11 | ||
Injection pump Motor power | kW | 4 | ||
Product Show
