Автоматический контроллер инкубатора для яиц с программируемым контроллером температуры pt100

Автоматический контроллер инкубатора для яиц с программируемым контроллером температуры pt100

Категория: PLC >>>
Поставщик: Shenzhen,Coolmay,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.31 $*	0.77 $*
Aug-19-2025	0.61 $*	0.75 $*
Jul-19-2025	0.51 $*	0.29 $*
Jun-19-2025	0.32 $*	0.93 $*
May-19-2025	0.98 $*	0.93 $*
Apr-19-2025	0.24 $*	0.97 $*
Mar-19-2025	0.37 $*	0.44 $*
Feb-19-2025	0.37 $*	0.18 $*
Jan-19-2025	0.96 $*	0.84 $*

Характеристики

Product Description

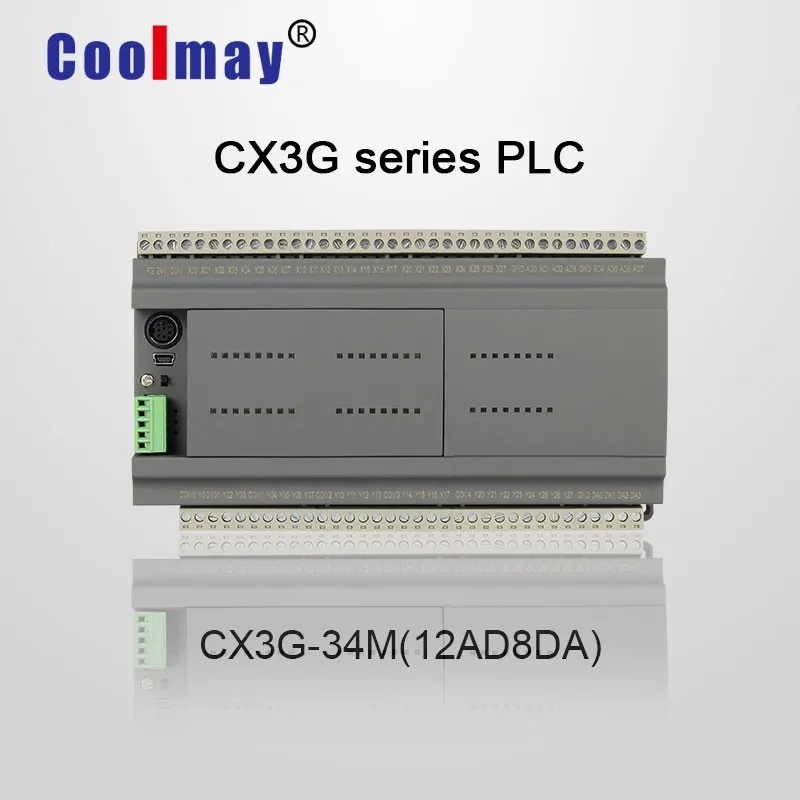

CX3G series PLC

1. Powerful Compatible with FX3G/FX3U/FX3S series PLC,high running speed.

2. Highly Integrated with plc digital input/output, analog input/output, com port etc

3. Multiple High speed counting and high speed pulse.

4. 32K steps program capacity.

5. Special encryption

6. Customized Service Supported!

Detailed Images

\t Model	\t CX3G-16M	\t CX3G-24M CX3G-32M	\t CX3G-34M CX3G-48M	\t CX3G-64M CX3G-80M
\t Dimension	\t 859036mm	\t 1309036mm	\t 2009036mm	\t 2859036mm
\t Cutout size	\t 77*99mm	\t 122*99mm	\t 192*99mm	\t 277*99mm
\t Installation	\t Fixed hole installation and DIN-Rail (35mm )
\t Features	\t Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register
\t I/O level	\t Input: Passive NPN, public terminal isolated Transistor output: NPN Relay output: Normally open dry contact
\t Digital I/O	\t 8DI/8DO	\t 12DI/12DO 16DI/16DO	\t 18DI/16DO 24DI/24DO	\t 32DI/32DO 40DI/40DO
\t DO type	\t Transistor(MT) or mixed(2T6R)	\t Relay(MR) or transistor(MT) or mixed(MRT)
\t High speed counting	\t 6 channel single-phase 60KHz or AB(Z) phase 2 channel 60KHz, 1 channel 10KHz
\t High speed pulse	\t 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz
\t Analog I/O (optional)	\t NULL	\t 6AI/4AO 2AO	\t 12AI/8AO 8AI/4AO	\t 16AI/8AO 4AI/4AO
\t AI type (optional)	\t Type E/K/S/T/J thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ 4-20mA -5V~5V/ -10V~10V(except for CX3G-16M)
\t AO type (optional)	\t 0~10V/ 0-~5V/ 0~20mA/ 4~20mA
\t Default COM port	\t 1 Mini type B USB port, 1 Rs232(Interface terminal is mouse female port with 8 holes), 2 RS485 ports
\t Software	\t Compatible with WORKS 2

Packing & Delivery

232 Programming cable

USB-232 Cable.

Packing, cable included.

CX3G PLC

Naming Rule

(reference model)

PLC Hardware

PLC Features .

1.Powerful.Compatible with FX3G/FX3U/FX3S series PLC , high running speed;

2. Highly integrated. Up to 40DI/40DO, DO can be transistor/ relay /mixed ones;
Up to 16AD(temperature current voltage) 8DA(current voltage optional).

3. Two PLC programming port: Mini Type B USB (with faster reading speed) and RS232 (8 hole mouse head female)

At most 2 RS485 or 1 RS232+1RS485 optional /CAN optional.

4. Multiple High speed counting and high speed pulse High speed counting normally single phase or double phase 5 100KHz, 1 20KHz channel channel or double phase 2 channel 60KHZ,1 channel 10KHZ;
high speed pulse normally 8 channel, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

5. 32K steps program capacity, 32K registers of hold on when power off, support interrupt, linear & circular interpolation, PID and self-justing.

6. Special encryption. Set password as 12345678 to prevent reading data thoroughly

7. More specifications can be customized

PLC controller.

Main control box

VFD inverter .

Car grinding machine control box

HMI/PLC all in one .

Wire bending machine control panel

Special Customized!

1. Model customized, different analog input and output and its type could be customized.

Temperature like PT100, PT1000, NTC10K, NTC50K, E./K/J/S thermocouple etc could be mixed made for different request.

2. Standard is NPN type.

If what you need is relay output type, we could special make PNP type for you.

Note! Once PNP is made, the high speed counter could do at most 10khz, no high speed pulse. S/S to connect 0V.

3. New series plc which is with ethernet port is coming!

First batch will be CX3G-48M (24di/24do).

Coolmay Culture.

Coolmay Members

Coolmay Customers

Production line

Aging 36h at least

FAQ.

1,Are you a manufacturer or trade company?
We are both factory and trae company, we have engineers for study & design and workers for produce and operate etc, we could support you one-stop products and service.

2, What is your MOQ?
No MOQ Limits!
We support sample order, and could do products with & without Logo.

3, How to deal with the interrupt?
http://www.coolmay.net/kindeditor/attached/file/20160722/20160722151620_6881.pdf

4, If I am not familiar with the operation, do you have a manual to help?
Our Software, User Manual and Programme case can be downloaded freely on our official website, or you could consult the sales for those documents.
Meantime, we have engineers team who could do help on your technician problem and give you useful solution.
