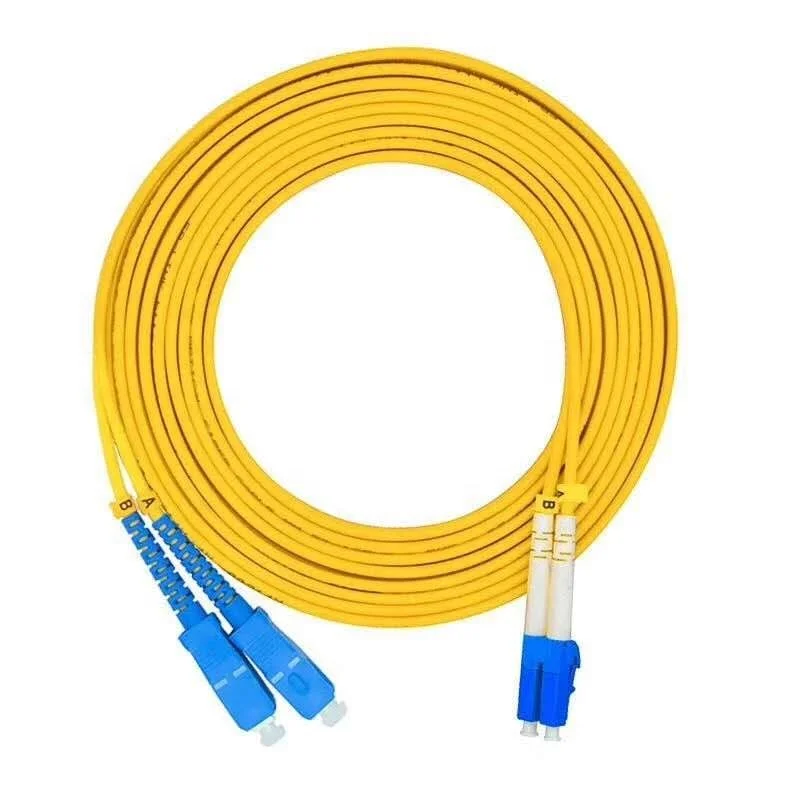

Высокое качество LC-SC волоконно-оптический
- Категория: Прочие телекоммуникационные продукты >>>
- Поставщик: Ningbo,New,Boao,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 83.76 $* | 87.43 $* |
| Aug-16-2025 | 83.34 $* | 87.50 $* |
| Jul-16-2025 | 69.57 $* | 72.83 $* |
| Jun-16-2025 | 81.77 $* | 85.49 $* |
| May-16-2025 | 71.32 $* | 75.78 $* |
| Apr-16-2025 | 80.50 $* | 84.74 $* |
| Mar-16-2025 | 79.28 $* | 83.5 $* |
| Feb-16-2025 | 78.23 $* | 82.70 $* |
| Jan-16-2025 | 78.45 $* | 82.43 $* |
Характеристики
Product Description
LC-SC fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
Feature
1).Low Insertion loss
2).High return loss
3).Good Repeatability
4).Good Interchange
5).Excellent Environmental Adaptability
Application
1).Communication rooms
2).FTTH (Fiber to The Home)
3).LAN (Local Area Network)
4).FOS (fiber optic sensor)
5).Fiber Optic Communication System
6).Optical fiber connected and transmitted equipment
7).Defense combat readiness
4.Specification
|
Type |
Standard,Master |
|
Style |

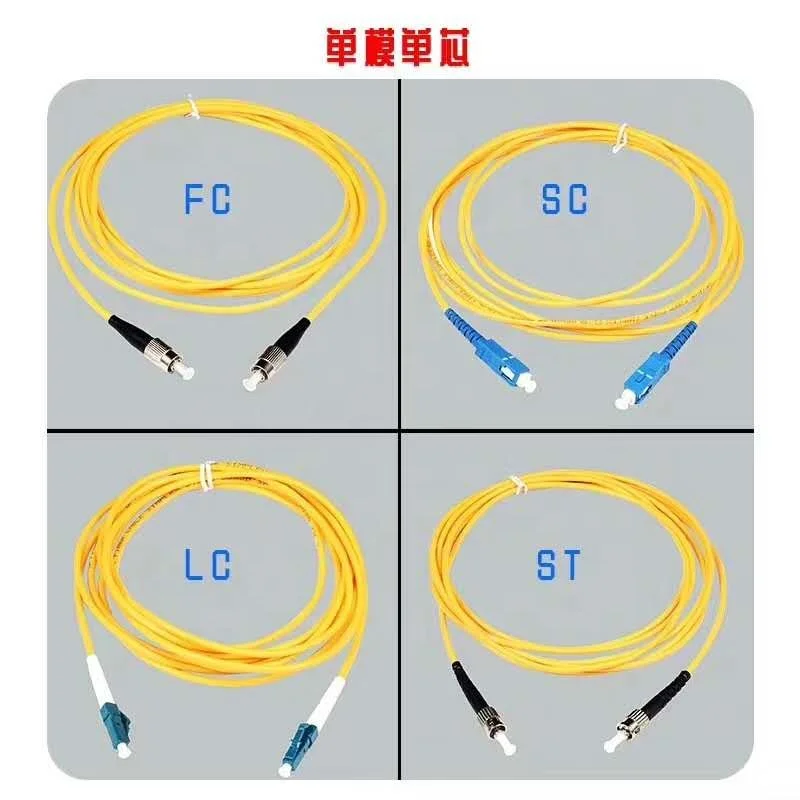

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
|
Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
5.Product list
|
Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Connector |
|
0.9mm 2.0mm 3.0mm |
LC FC SC ST MU D4 MTRJ MPO DIN
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1M 2M 3M4M 5M ......... Customized |
