Датчик давления масляной трубки 100 бар 0-5 В 12 постоянного

Датчик давления масляной трубки 100 бар 0-5 В 12 постоянного

Категория: Pressure Sensors >>>
Поставщик: Huaibei,Huadian,Automation,Technology,Co.,Ltd.

Цена:42,00 $ - 49,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	50.13 $*	53.49 $*
Aug-17-2025	50.19 $*	53.67 $*
Jul-17-2025	42.34 $*	44.44 $*
Jun-17-2025	49.74 $*	51.15 $*
May-17-2025	42.36 $*	44.93 $*
Apr-17-2025	48.61 $*	50.71 $*
Mar-17-2025	47.46 $*	49.44 $*
Feb-17-2025	47.36 $*	49.84 $*
Jan-17-2025	47.26 $*	49.86 $*

Характеристики

Hot selling

Hot selling products

Huadian auto home

Product Description

Brief Description

HDP 500 series pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core.The internal ASIC converts the sensor millivolt signal into standard voltage,current or frequency signal,which can be directly connected with computer interface card,control instrument,intelligent
instrument or PLC.Current output mode can be used for distance transmission.

It has small volume,light weight,all stainless steel sealing structure and can work in corrosive environment.The product is easy to installand has high anti-vibration and anti-impact performance.It is widely used in process control,aviation,aerospace, automobile,medical equipment,HVAC and other fields.

Details Images

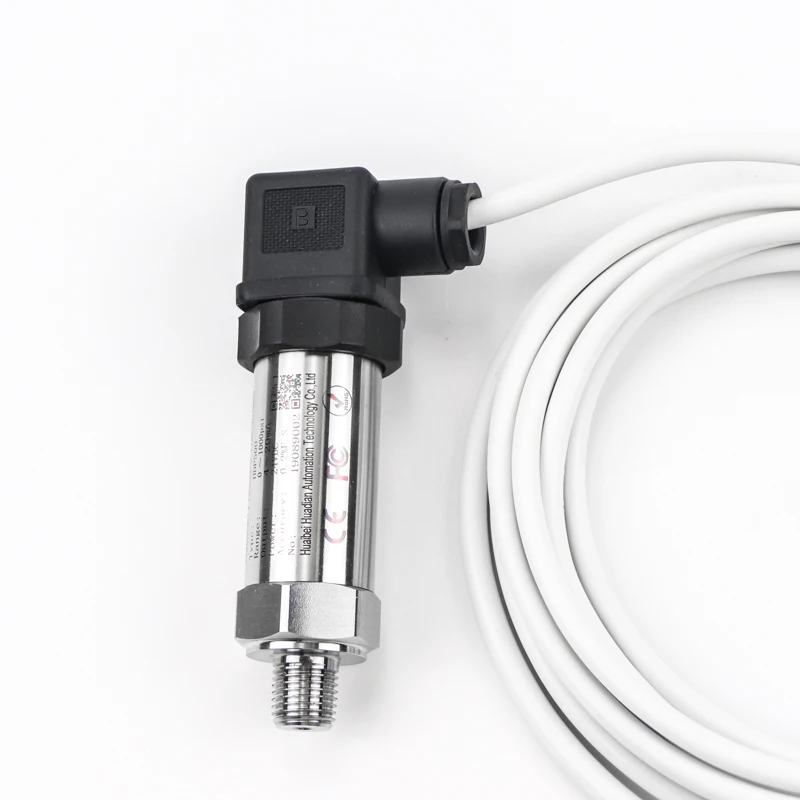

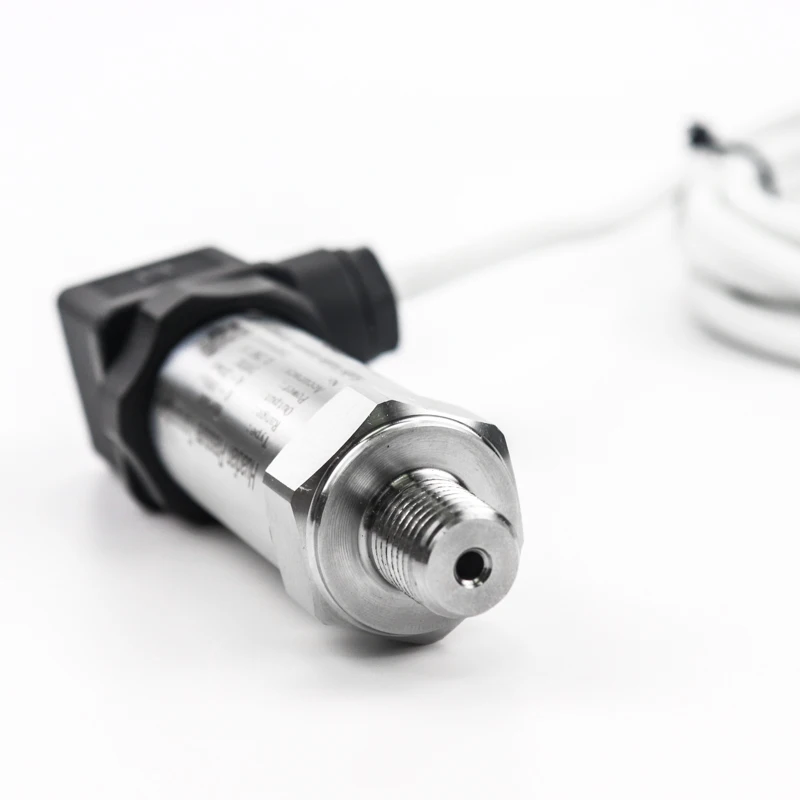

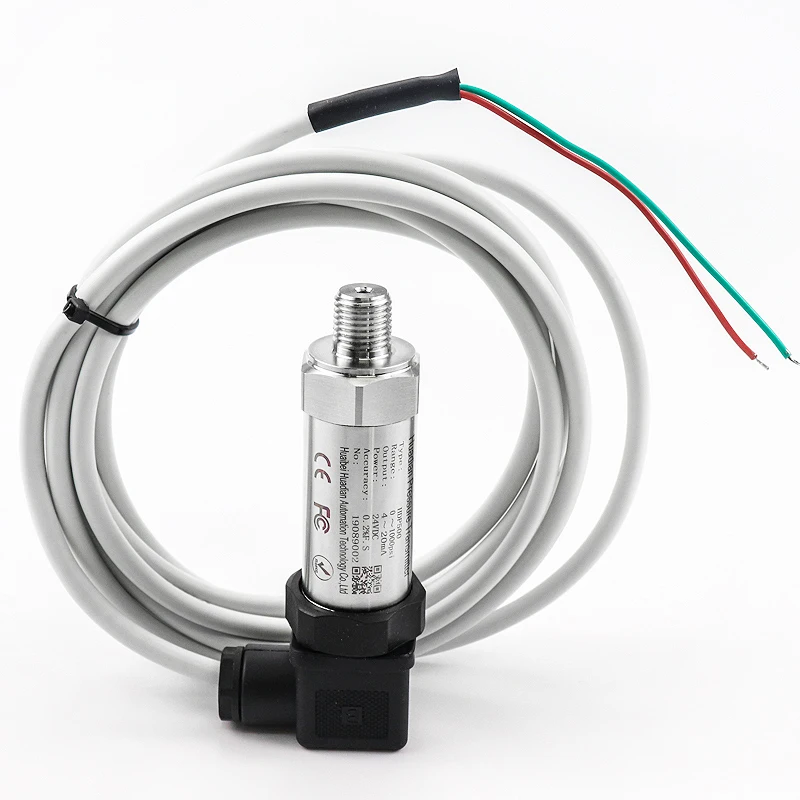

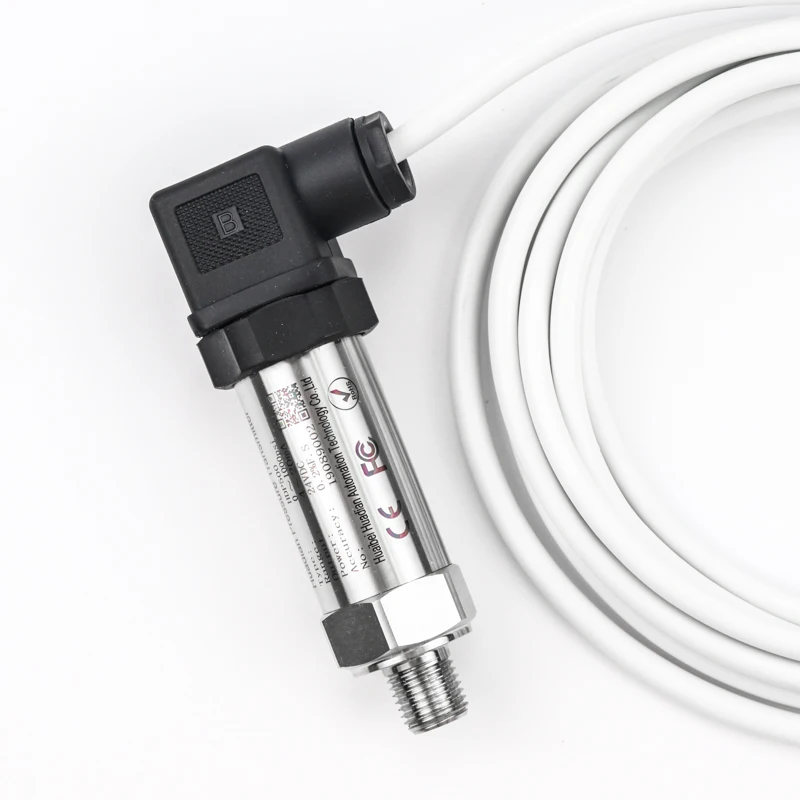

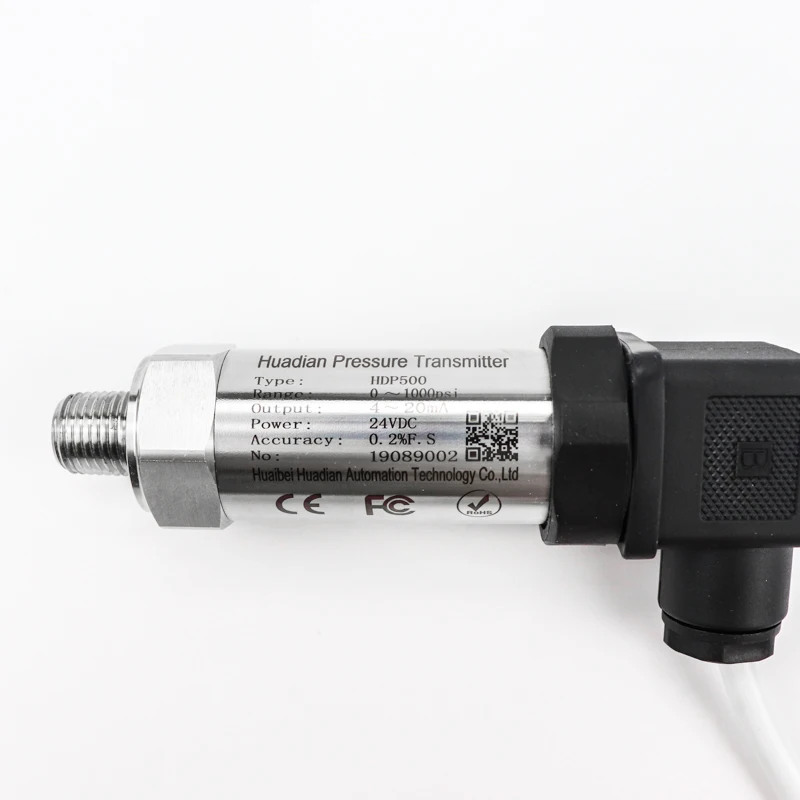

HDP500-1

Main Technical Parameters

Model	HDP500
Power supply	24VDC
Output single	4~20mA,1~5V,0~10V,RS485
Measuring range	-0.1...0...60Mpa
Compensation temperature	-10~70℃
Medium temperature	40~80℃
Environment temperature	-40~85℃
Measuring media	Gaseous,Liquid,Water
Pressure type	Gaugepressure,Absolutepressure
Accuracy	0.1%F.S,0.25%F.S,0.5%F.S(standard)
Zero tempe drift	±0.03%F.S/℃
Sensitivity temperature drift	±0.03%F.S/℃
Overload	200%F.S
Long-terms tability	≤0.2%F.S/year
Inherent frequency	5kHz~650kHz
Protection grade	IP65
