Алюминиевая лестница для кабеля/стойка
- Категория: Cable Trays >>>
- Поставщик: Weifang,Guqiang,Cable,Tray,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.92 $* | 0.22 $* |
| Aug-16-2025 | 0.43 $* | 0.44 $* |
| Jul-16-2025 | 0.95 $* | 0.50 $* |
| Jun-16-2025 | 0.50 $* | 0.14 $* |
| May-16-2025 | 0.0 $* | 0.14 $* |
| Apr-16-2025 | 0.15 $* | 0.6 $* |
| Mar-16-2025 | 0.28 $* | 0.44 $* |
| Feb-16-2025 | 0.91 $* | 0.65 $* |
| Jan-16-2025 | 0.69 $* | 0.40 $* |
Характеристики

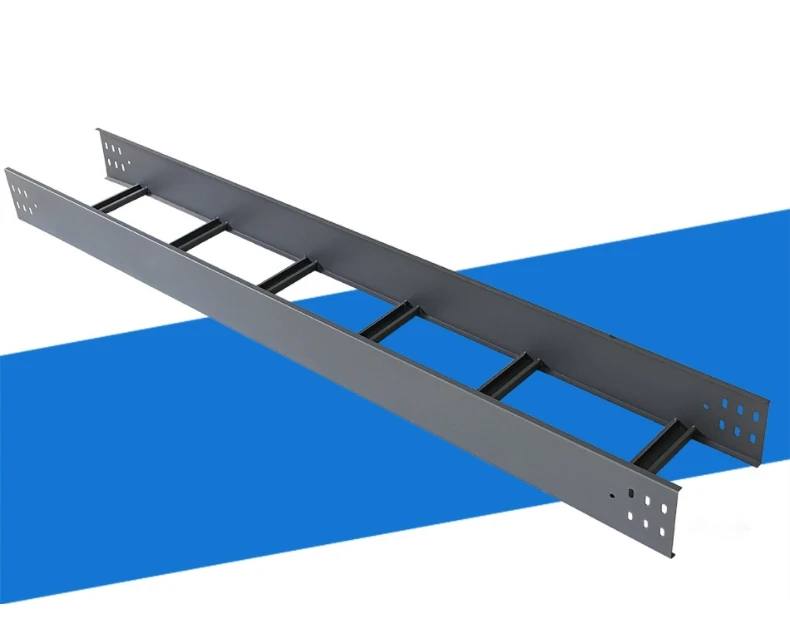

Aluminium Cable Tray Ladder /Ladder Cable Tray /Cable Ladder Rack Support Price
Note: Due to the products is Customized one, Above price is NOT CORRECT, Please send me your detailed products requirement(materials, diameter, specification, surfacetreatment, Drawings) and order quantity to get an accurate quote. Tks!
Company Information
Advantages
1. Low cost, significant cost savings compared to standard traditional tray products.
2. Light in weight, wide range of sizes.
3. Fast heat dispersion.
4. Strong enough to withstand short circuits. Provides strength, rigidity without additional hardware.
5. Adapts to difficult architectural designs to accommodate changes in direction and elevation of cable runs.
6.Flexible, easy and fast installation. Design allows cable exit or entry at any point.
7. Cables can be secured to clamps or ties.
8.Various hardware accessories available to fix, support and install.
9. Safe smooth edge design to protect cable.
10.Easy for line check and cleaning , easy maintained.
Product Description
Category1.Perforated Cable Tray; Ladder Type Cable Tray; Trough Type Cable Tray
Perforated cable tray also called ventilated cable tray, It's offers good ventilation to the cable tray which will accordingly increase the current carring capacity of the cables.
Materials:
1. Carbon Steel
2. Pre Galvanized Steel Plate (GI, G.I.)
3. Stainless Steel SS304 and SS316L
4. Aluminum
5. FRP (GRP, Fiberglass)
Specification:
-- Thickness: 0.5 mm - 2.0 mm (22 - 27 Gauge)
-- Height: 25 mm - 500 mm (Light, Medium, Heavy Duty)
-- Width: 50 mm - 1200 mm
-- Length: 2-10M (can be produced according to appointed length)
-- Finished: Pre-galvanized (Z80 - Z275), hot dipped galvanized, power coating
Features:
-- Increase the current carrying capacity of cables
-- Takes up to 25 percent less space than ladder
-- Hole pattern designed to provide maximum flexibility for positioning cable ties
-- Fast speed of installation
Category 2 .Wire Mesh Cable Tray
1. Materials: Steel Wire
2. Finished:
A. Electric Galvanized (Suit for indoor installation)
B. Hot Dip Galvanized (Zinc thickness is between 60 to 80um)
C. Stainless Steel (201, 202, 304, 316, 316L)
3. Size (Wire Mesh Cable Trays’ Size Means Internal Size)
<1>. Height:30mm, 54mm
Width:50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm, 600mm.
<2>. Height:105mm, 150mm
Width:100mm, 150mm, 200mm, 300mm, 400mm, 500mm.
All Wire Mess Cable Trays’ Length is 3000mm.
Production Flow
Our Services
FAQ
1. Why choose your company?
Because we are factory directly, So the price is lower. Delivery time can be ensured.
Because we are factory directly, So the price is lower. Delivery time can be ensured.
2.Where is your factory located? How can I visit there?
Our factory is located in Weifang City, Shandong Province, China,
Our factory is located in Weifang City, Shandong Province, China,
About 2 hours bus ride from Qingdao Airport Or Jinan Airport. In our city also has an airport(Weifang Airport). So it's really convenient for you to come to our company. We are here warmly welcome you.
3.What type of payment do you have available?
TT and L/C, As to sample order West union will be also acceptable.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
Each products need be inspected before into the wherehouse. Like our brand 'GUQIANG' Which means our products firm and strong. Our boss and all GUQIANG staff had pay highly attention of the quality.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
Each products need be inspected before into the wherehouse. Like our brand 'GUQIANG' Which means our products firm and strong. Our boss and all GUQIANG staff had pay highly attention of the quality.
6. How can I get a quotation?
Because all our products are OEM products. This means customized products. In order to send you an accurate quotation, the following information will be needed: Materials and thickness, Size, Surface treatment, order quantity, Drawings will be highly appreciated. Then I will send you an accurate quotation.
Packaging & Shipping
If you are intreasted of our products and company, Please don't hesitate to contact me. Guqiang Staff warmly welcome you come to visit our company, Hope we can have long term cooperation in the near future!
Contacts: Cynthia Zhang
Whatsapp: 13780837561 SKYPE: cindyzhangjj
Tell:+86 536 8105896 Cell: +86 137 8083 7561
