Промышленная материнская плата поддерживает 4 * DDR4 DIMM память 12 USB 10 COM Intel LGA1151 6-го/7-го i3 i5 i7
- Категория: Motherboards >>>
- Поставщик: Shenzhen,Hanzsung,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.42 $* | 0.49 $* |
| Aug-18-2025 | 0.60 $* | 0.48 $* |
| Jul-18-2025 | 0.39 $* | 0.89 $* |
| Jun-18-2025 | 0.56 $* | 0.69 $* |
| May-18-2025 | 0.78 $* | 0.38 $* |
| Apr-18-2025 | 0.86 $* | 0.64 $* |
| Mar-18-2025 | 0.10 $* | 0.49 $* |
| Feb-18-2025 | 0.52 $* | 0.80 $* |
| Jan-18-2025 | 0.56 $* | 0.3 $* |
Характеристики
Industrial motherboard support 4*DDR4 DIMM memory 12*USB 10*COM Intel LGA1151 6th/7th i3 i5 i7 ATX motherboard
Intel IoT Solutions
We are an Intel IoT Solutions Alliance Affiliate Member with professional R&D Team
16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe
YANYUGONGKONG - Intel industrial Firewall Industrial Motherboards /Appliance.
YANYUGONGKONG also provide the service of custom design to meet your special requirement.
Chassis / PVC membrane etc can custom.
oem network appliance/ Nano computer etc.
Product Description
CPU | Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor |
Chipset | Adopt Intel B150 Express chipset,compatible with intel100 series chipset |
Memory | 4*DDR4 DIMM memory slot, support dual channel 2133/1866MHz memory, up to 64GB |
Display | Integrated Intel® HD Graphics, support DirectX12,OpenGL4.4, support 4K/60Hz 1*VGA, support the highest resolution: 1920X1200@60Hz 1*HD OUTPUT1.4, support the highest resolution: 4096X2304 @24Hz 1*DP, support the highest resolution 4096X2304@60Hz 1*Embedded Display port, support single display, double display mode, extend mode |
Expansion Slot | Support 1*PCIE x16, 1*PCIEx4, 1*PCIEx1 |
| 4* PCI Expansion slot |
Network | Integrated 2* Intel® WGI211AT Gigabit Ethernet, support Wake On LAN,PXE |
Storage | Provide 4* SATA 3.0 HDD port, transmission rate up to 6Gbps |
| Provide 1* MSATA SSD port, transmission rate up to 6Gbps |
| Provide 1* M.2, support M.2 2280 standard SSD |
Audio | Integrated ALC892 7.1 channel high fidelity audio controller,support MIC,Line_out,Line_in |

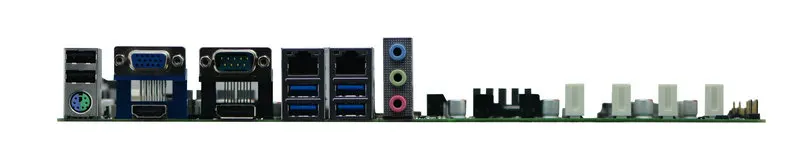

Rear I /O | 1* PS/2 KB/MS connector |
| 1* VGA |
| 1* HD OUTPUT |
| 1* DB9 RS232 COM port |
| cccccc |
| 2* USB 2.0 |
| 4* USB 3.0 |
| 2* RJ-45 Gigabit LAN port |
| 1* Line out (green),1* Line in (blue),1* MIC (red) |
Internal I/O
| 1* JVGA1 display port, 1*12pin same signal with DB15 |
| 1* PS/2 KB/MS port 1*6pin |
| 1*JHD OUTPUT port 2*10pin,same signal with HD OUTPUT port |
| 1* Embedded Display port,2*15pin |
| 9* RS232 COM port (COM3,COM4 support RS232/RS485/422) |
| 1* LPT printing port 2*13pin |
| 1* Front audio port 2*5pin |
| 4* USB 2.0 port 2*5Pin |
| 2* USB3.0 port 2*10pin |
| 1* Front panel function button and LED indicator connector 2*5pin |
| 1* 24pin ATX power input port |
| 1* 8pin ATX power input port |
GPIO function | Support 4 way input output GPIO |
Fan connector | 1* 4pin CPU smart fan connector, 1* 4pin system smart fan connector |
BIOS | AMI 128Mb Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power Type | Adopt 24Pin ATX power supply |
Working Temp. | -10℃~60℃ |
Storage Temp. | -20℃~70℃ |
Working Humidity | 5~90% relative humidity, non-condensing |
Dimension | 305mm x 245mm |

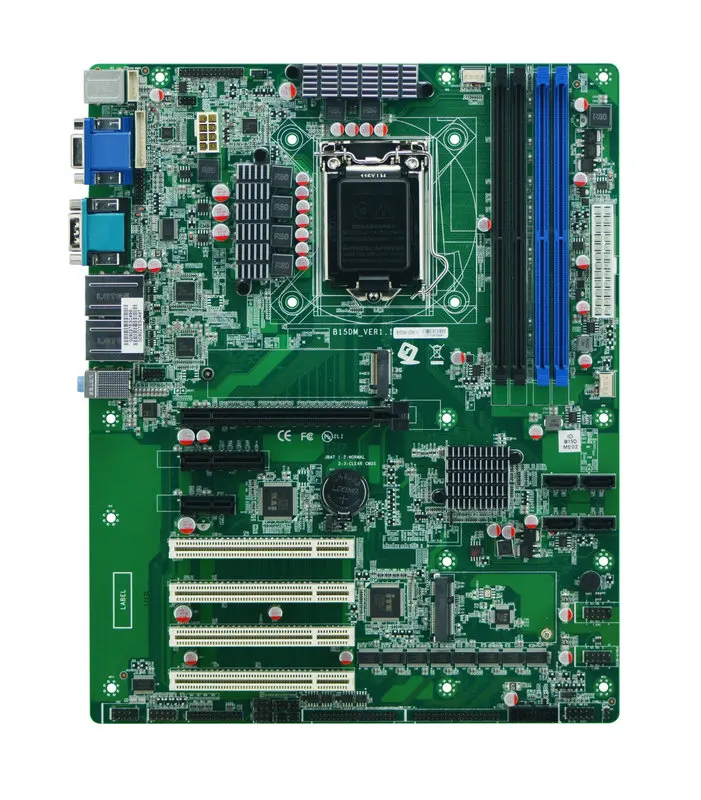

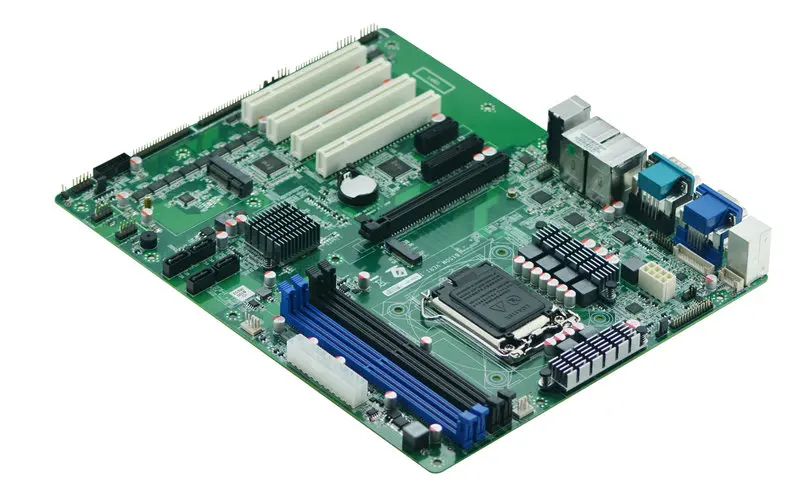

Detailed Images
Order Information
NO. | Model | Processor | Southbridge | Memory | VGA | HD OUTPUT | DP | EDP | LAN | USB | COM | RS485/422 | Power |
1 | B15DM VER:1.1 | LGA1151 | B150 | 4*DDR4 | 1 | 1 | 1 | 1 | 2*211AT | 12 | 10 | COM3/COM4 | ATX |
Company Information
YANYUGONGKONG(HANZSUNG)
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.
Our products include:mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard,
firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC,All-in-one PC,
Embedded PC ,Vehicle computers,Cloud Terminal,Networking Security,OPS Mini PC
Computer,OEM / ODM available.
l Small Qty : FedEx,EMS,UPS Express Saver,TNT,DHL,UPS Expedited
l Large Quantity : Air / Sea
l Lead Time : 1~3 days for sample order, 15 working days for mass order.
1-3 YEARS MANUFACTURER'S LIMITED WARRANTY
Hanzsung products have been tested for quality control and free of defects prior to shipping. If a product is not working properly, please contact our technical support staff so they may assist you.
Please send product only, do not send accessories or other parts if not requested as they may not be returned.
8/f,Building 3, Guo Le
High-tech Industrial Park ,Li Rong Road .Dalang,
Longhua,BaoAn District,
Shenzhen City,China
Shenzhen Hanzsung Technology Co., Ltd.
Hanzsung confirms the feasibility of the repair and issues a RMA number to the customer for tracking the repair status.
FAQ
Q1: Can you put my brand name (logo) on these products
A1: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 1-3 days for one sample, 15 working days for a large quantity.
Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.
Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.
