Ограничитель тока XRNP класс электрического
- Категория: Fuses >>>
- Поставщик: Wenzhou,Shuguang,Fuse,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.47 $* | 0.67 $* |
| Aug-19-2025 | 0.97 $* | 0.49 $* |
| Jul-19-2025 | 0.1 $* | 0.98 $* |
| Jun-19-2025 | 0.53 $* | 0.96 $* |
| May-19-2025 | 0.93 $* | 0.96 $* |
| Apr-19-2025 | 0.42 $* | 0.40 $* |
| Mar-19-2025 | 0.93 $* | 0.51 $* |
| Feb-19-2025 | 0.72 $* | 0.92 $* |
| Jan-19-2025 | 0.40 $* | 0.12 $* |
Характеристики

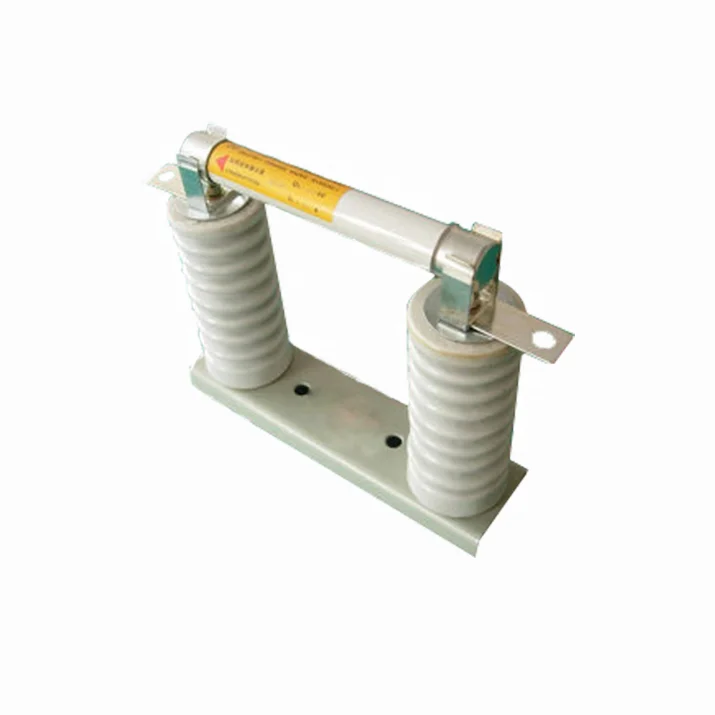

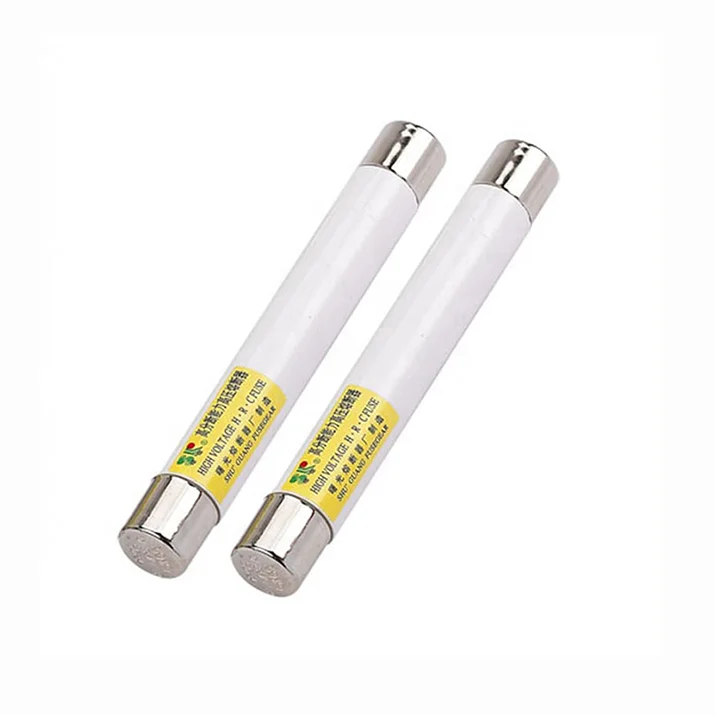

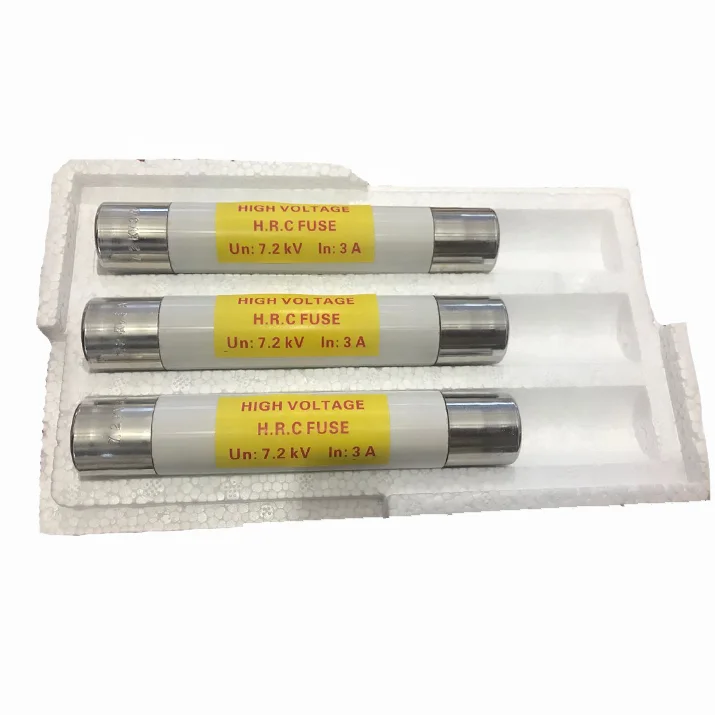

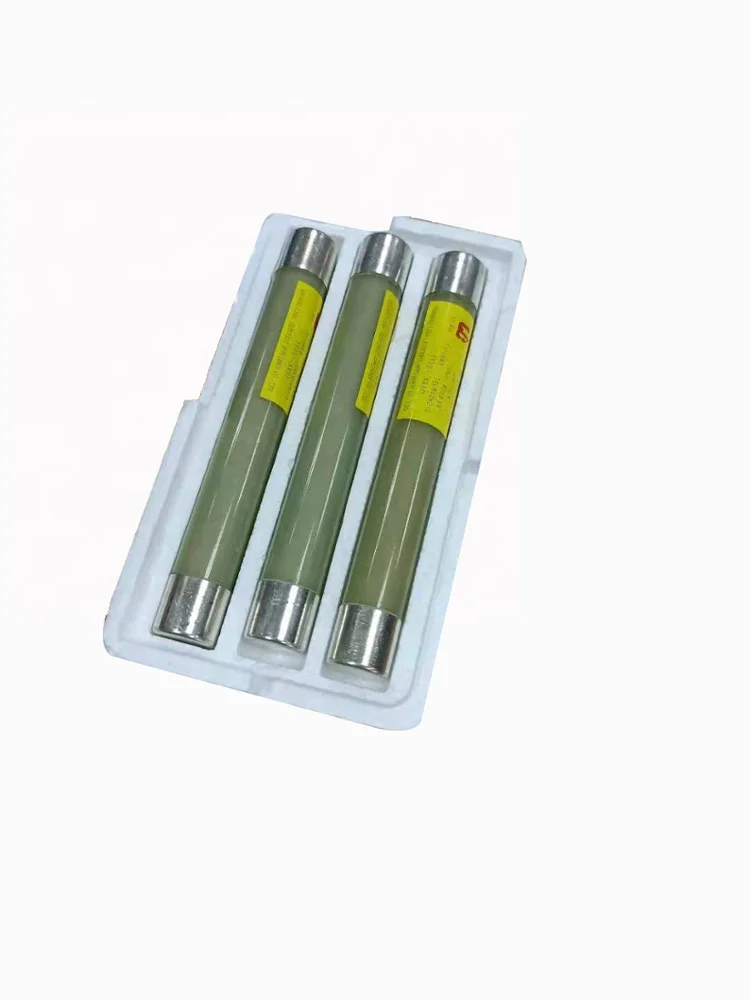

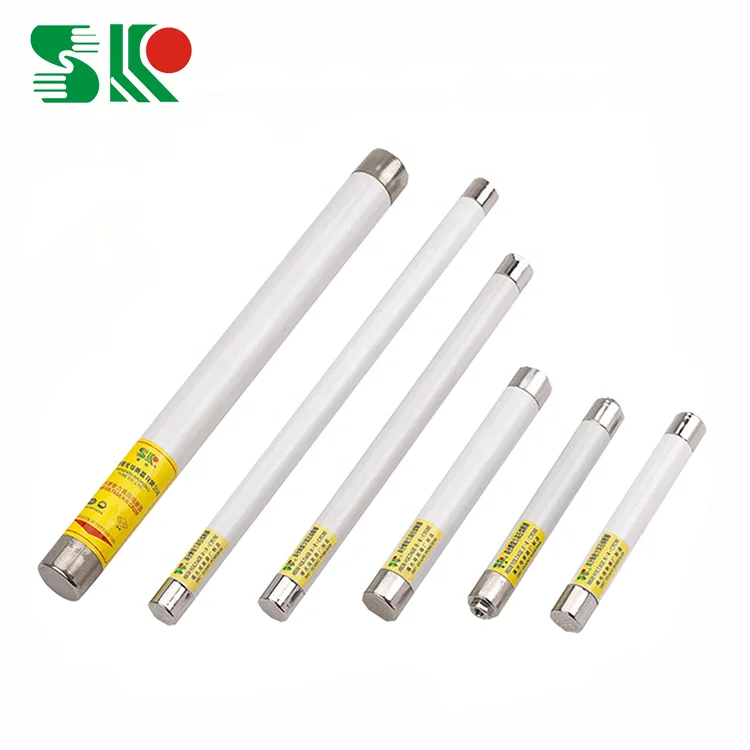

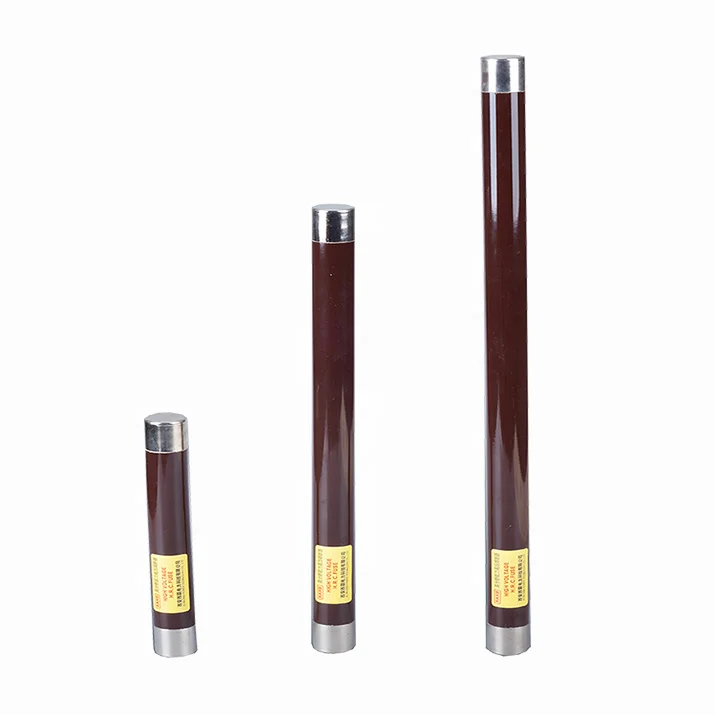

XRNP current limiting electrical fuse rating
Product Description
1.H.V HRC current-limiting fuses type XRNP for transformer protection is mainly used in AC 50Hz, rated voltage 3.6kV to
40.5 kV, rated current uo to 6.3A circuit for protection transformers from overload and short-circuit.
2.It conforms to IEC282-1, BS and GB 15166.2
Dimension
TYPE | RATED VOLTAGE (KV) | RATD CURRENT (A) | MAIN DIMENSION (mm) | WEIGHT (KG) | RATED CUT-OFF CURRENT (KA) | |
LENGTH |
DIAMETER
|
| ||||
XRNP-3.6 | 3.6 | 0.2,0.3,0.5,1,2,3.15 |
142 |
25
|
0.19 |
50 |
XRNP-7.2 | 7.2 | 194 | 25 | 0.19 | ||
XRNP-12 | 12 | 194 | 25 | 1.12 | ||
XRNP-12 | 12 | 2,3.15,6.3,10 | 192 | 51 (FIGURE3) | 1.12 | |
XRNP-24 | 24 | 0.5,1,2,3.15 | 354 | 25 | 0.43
| 40 |
XRNP-40.5 |
40.5 | 0.2,0.3,0.5,1,2,3.15 | 465 | 25 | 0.55 |
31.5 |
0.2,0.5,1,2,3.15,4,5 | 465 | 30 | ||||
0.2,0.5,1,2,3.15,5,6.3 | 440 | 41 | ||||
