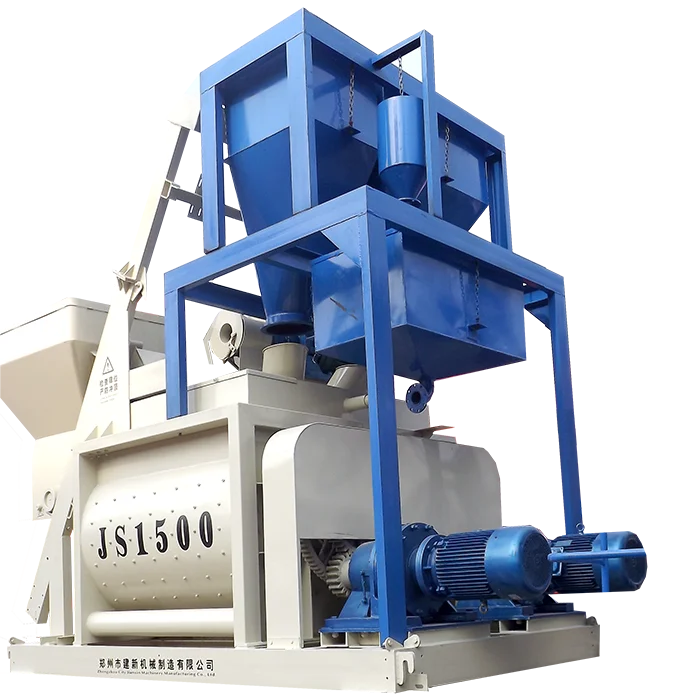

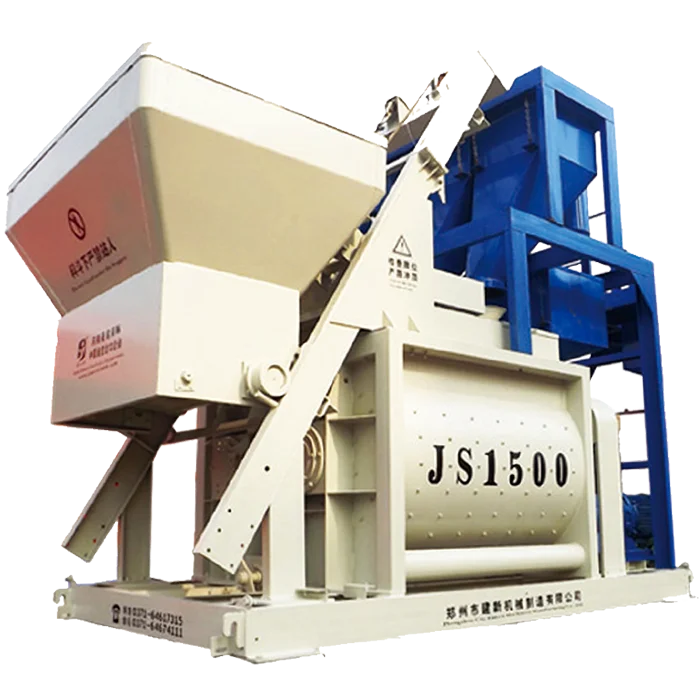

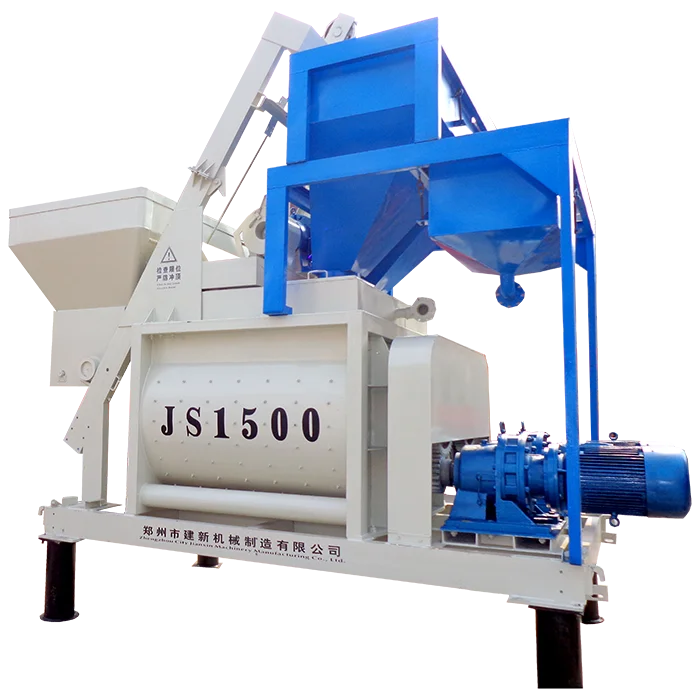

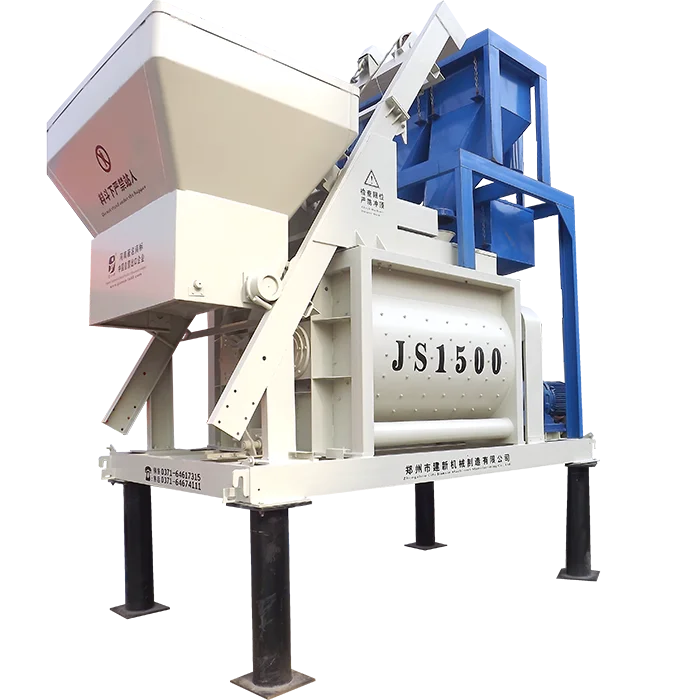

Автоматический самозарядный двухвальный JS1500A двойной циклоидный редуктор Бетономешалка

Описание и отзывы

Трекер стоимости

Характеристики







JS1500 concrete mixer Mixing system



    The mixing system is composed of an electric motor, a pulley, a speed reducer, an open gear, a stirring drum stirring device, an oil supply device and the like. The motor is directly connected to the cycloidal pin reducer, and the two output shafts of the reducer are driven by two pairs of open gears to rotate the two horizontally arranged stirring shafts at the same speed.





JS1500 concrete mixer Feeding system



    The feeding system is composed of a hoisting mechanism, a feeding dragon frame, a hopper, a feeding nozzle and the like. The brake motor drives the reel to rotate through the reducer, and the wire rope climbs along the loading rack rail through the pulley pulling hopper. When climbing to the preset height, a pair of rollers on the bottom door of the hopper enters the water rail of the loading rack, and the bucket door automatically opens. The material is fed into the mixing drum through the feed nozzle.





JS1500 concrete mixer Discharging system

The unloading system consists of unloading door, air pump, reversing valve, air valve, cylinder, electrical and other mechanisms.The discharge door is at the bottom of the mixer, and the pneumatic discharge and the opening and closing position of the discharge door are controlled by the cylinder. The position of the sealing strip can be adjusted to ensure the sealing of the discharge door. The unloading manual operating lever of JS1500 concrete mixing station is used for emergency unloading during temporary power failure and cylinder failure. It should be removed in peacetime to prevent injury.





JS1500 concrete mixer Electrical System

The electrical circuit of JS1500 concrete mixer has air switch, fuse, thermal relay, short circuit protection and overload protection. Control buttons and air switch handles and indicators are located on the distribution box door and have a door lock. There is a protective cover on the button.





Project	Discharge capacity	Feed capacity	Theoretical productivity	Maximum granule of aggregate (Lithotripsy/Pebble)	Speed of mixing blade		Power of agitator	Improve motor power	Pump motor power	Shape size (Length, width and height)
JS1500A	1500L	2400L	≤90m³/h	≤60/80	19.5(R/min)	2×8(number)	2×22KW	YEZ160L-4 Project 15KW	50DWB20-8A 2.2KW	4720×2200 ×3000

Project	Discharge capacity	Feed capacity	Theoretical productivity	Maximum granule of aggregate (Lithotripsy/Pebble)	Working cycle time	Power of stirred motor	Speed of stirred motor	Shape size (Length, width and height)
JS1500B	1500L	2400L	≤90m³/h	≤60/80	60(S)	2×22KW	24.5(r/min)	3000×2400 ×2125





    Zhengzhou Jianxin Machinery Manufacturing Co., Ltd. is a high-end technology enterprise that integrates R&D, manufacturing, sales, and service. It has been established for more than 30 years, and it has always adhered to the production of equipment for concrete mixing plants. It is a development project for China's construction industry. Provide high-quality high-end concrete production equipment and construction programs.





    Professional technical and service teams have provided inexhaustible motivation for building a new century-long foundation. At present, all new brand equipments are designed, produced, assembled and tested in accordance with the ISO9001 international quality certification system standards. Currently, they have been sold in more than 20 countries and regions at home and abroad, and treat each customer seriously, providing them with quality equipment and services. In order to improve the interests of customers, it is the compliance of the establishment of new standards. Quality is the lifeblood of products, and high-quality after-sales service is our top priority.

FAQ

Q How about the quality of your products?

A Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.Chinese top brands or world grade brands like Siemens motors etc are equiped.



Q How about the price?
A As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount and ensurance.



Q Do you provide after-sale service?
A Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.It usually takes 1-3 days for training , 10-15 days for installation,1-2days for commission,1-2days for pre-operation.



Q Do you provide equipment operation training?
A Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.It's about 90-120 usd a day.



Q Can you test our samples?
A Yes. You can send your samples to us for test and analysis.



Q How long it takes to do all the installation
A It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.



Q Can we visit your factory?
A Yes. You can visit our factory at anytime you want.
