1300 мм клейкая машина для продольной
- Категория: Other Packaging Machines >>>
- Поставщик: Taicang,Yuyu,Plastic,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11305.14 $* | 11870.68 $* |
| Aug-16-2025 | 11210.96 $* | 11771.6 $* |
| Jul-16-2025 | 9405.28 $* | 9875.13 $* |
| Jun-16-2025 | 11020.23 $* | 11571.63 $* |
| May-16-2025 | 9595.48 $* | 10075.17 $* |
| Apr-16-2025 | 10830.79 $* | 11372.38 $* |
| Mar-16-2025 | 10735.11 $* | 11272.13 $* |
| Feb-16-2025 | 10640.71 $* | 11172.87 $* |
| Jan-16-2025 | 10545.85 $* | 11072.6 $* |
Характеристики

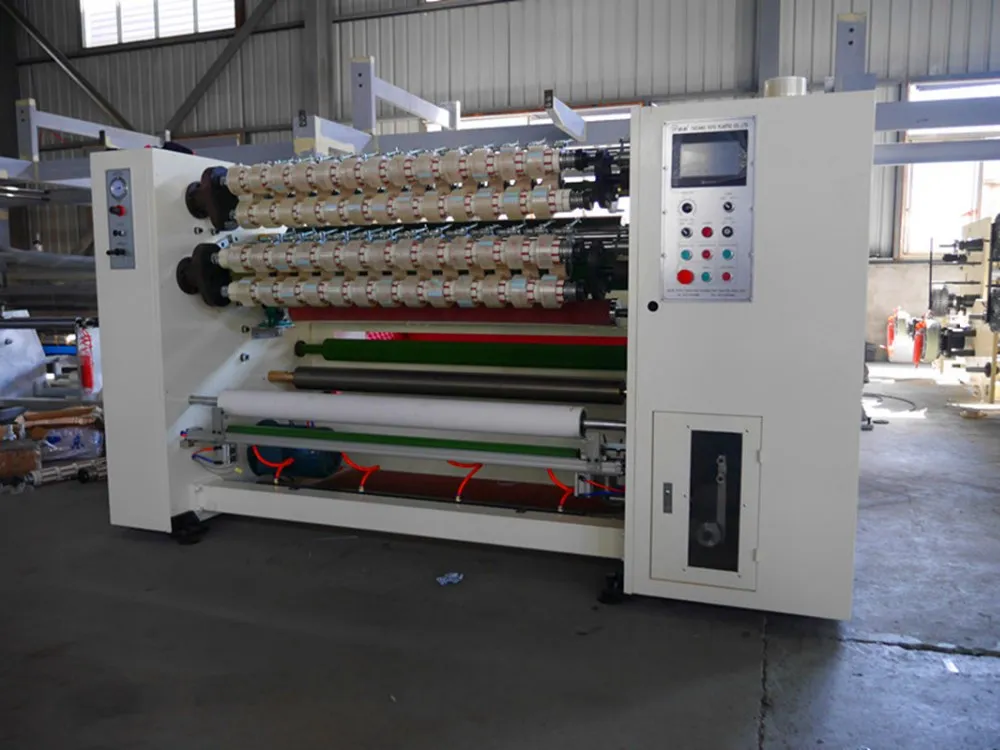

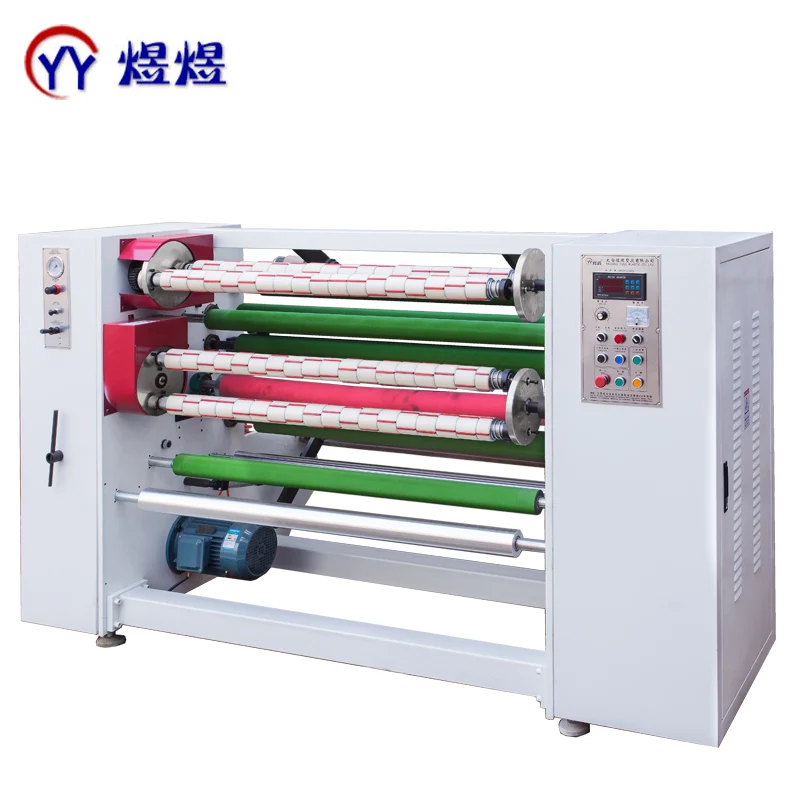

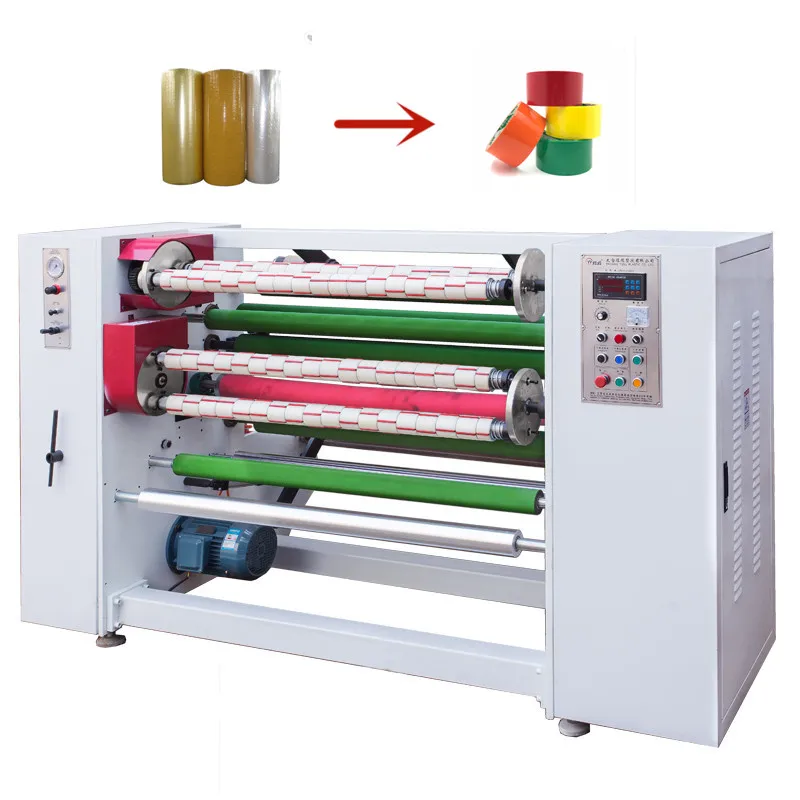

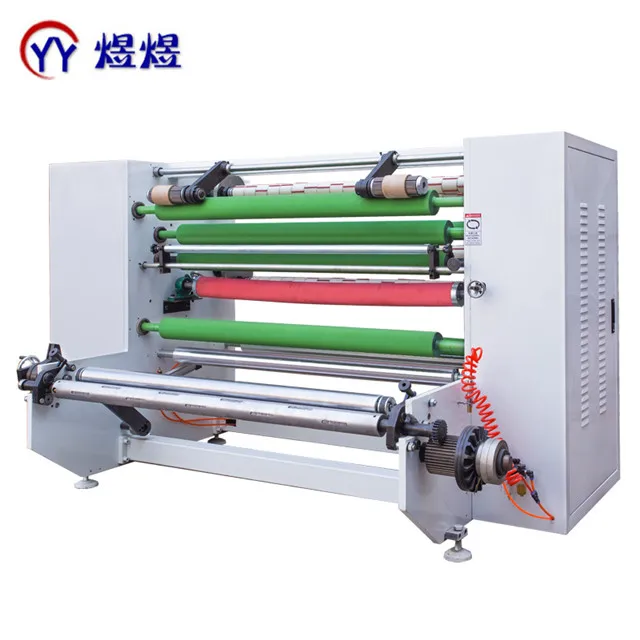

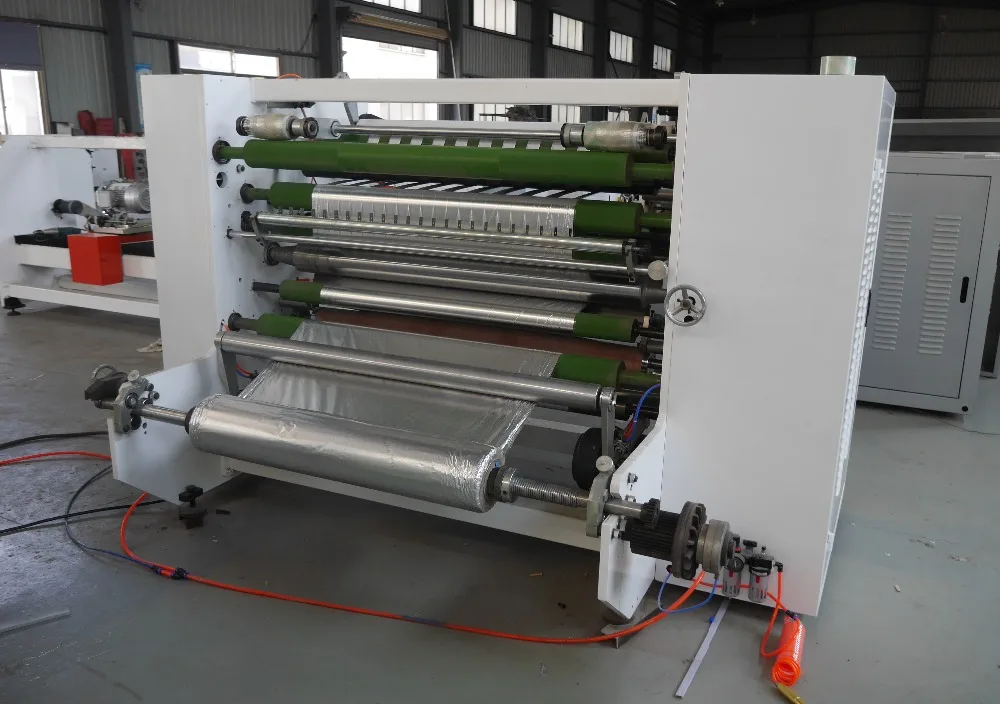

1300mm adhesive bopp film tape slitting machine
1300mm adhesive bopp film tape slitting machine field:
bopp tape slitting machine is suitable for BOPP/OPP adhesive/Glass paper tape/cellophane paper with high speed.
2.1300mm adhesive bopp film tape slitting machine Features:
1. Crowned stretch roll: adopt “pulling flat board” device to eliminate the corrugated phenomenon in the course of sending materials of adhesive tapes.
2. centralized control panel for easy operation. Control operation speed by variable frequency and variable speed.
3. three-step length setting provides extremely smooth rewinding operations to give accurate rewinding length.
4. Automatic four-shaft exchange is adopted. Once rewinding operation is completed, the machine will automatically perform shaft changes.
5. Pneumatic braking is to control the unwind tension. The rewind tension is controlled by the clutch and independent slide setting for free adjustment of the tensile force.
3.Technical parameters:
Model | YU-210 | YU-210 |
Effective width | 1300 mm | 1600 mm |
Max. unwind diameter | 800mm | 800mm |
Min. slitting width | 12mm | 12mm |
Max. rewind diameter(shaft1") exchange 4 shafts | 75mm | 75mm |
Max. rewind diameter(shaft3") exchange 4 shafts | 200mm | 200mm |
Max. rewind diameter(shaft3") exchange 2 shafts | 300mm | 300mm |
Machine speed | 0-180m/min | 0-180m/min |
Slitting blade | 0.2×22×60mm | 0.2×22×60mm |
Main power | 5.5KW | 5.5KW |
production process
raw materials:
Certificate
Company Profile
Yu Yu Plastic Co., Ltd is located in China Tape Technology Industry Park, Taicang City, Jiangsu Provience where is near to Shanghai City .The company is a professional manufacture of adhensive tape device after the Steel Machinery. We provide professional technology, perfect service,so that every customer can feel free to buy and feel comfortable to use.
The company is a research and development, design, production, sale , trade in one large multi-functional integrated modern enterprise, which specializing in automatic rewinding machine,slitting machine,cutting machine,manufacturing machines for tape.
With a coating machine,slitting machine,cutting machine prototype,ready and waiting for your visit.Customers are free to choose the style,working site to customize and have a train operation for you. Zhao Manjun, the general manager has the experience for many years to solve your questions on technology,production and operation in 24 hours.
Packaging & Shipping
Packaging Type: Case, Film
Packaging Material:Wood , Plastic
Shipping Port : NormallyShanghai Port Also Can According To Your Demands
FAQ
1)Q: Are you trading companies or manufacturers
A: We are a manufacturer located in taicang city,jiangsu province,China.With 20 years of industry experience,we welcome customers to visit our factory.
2) Q: What are your main products?
A: Our company is a professional manufacturer of adhesive tape and whole plant equipment.Main production glue, coating,rewinding, cutting, packaging and other special equipment.We also offer custom services
3) Q: What is your equipment advantage?
A: All outsourcing products will be supplied by well-known suppliers, and the equipment will be tested well before delivery Customers can visit the equipment or take their materials for testing
4) Q:What is the expected life of Motor and other parts?
A:The host equipments are entitled to one year warranty&free replacement&life time technical support service
5) Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A:Yes, we have our own professional design engineers,and can customize products according to your requirement.we have much experience on this almost40% of our customer need customization on their machines

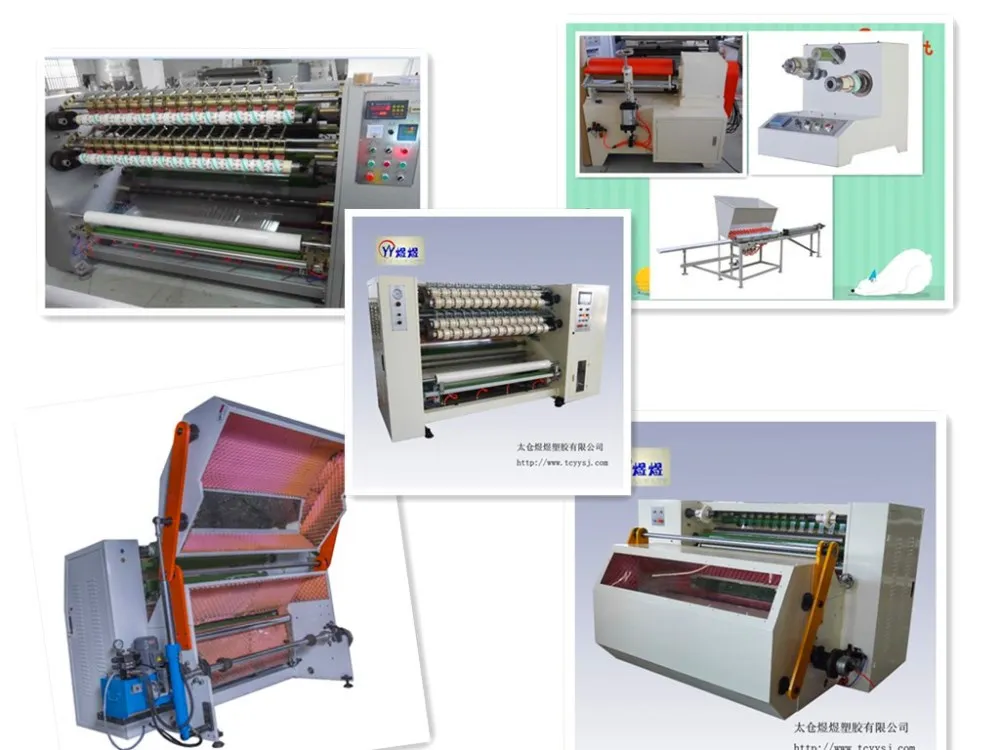

Main Product
1300mm adhesive bopp film tape slitting machine
