Dongfeng 6x4 Left / Right Hand Drive 10 Wheel 16cbm  Garbage Compactor Truck

Dongfeng 6x4 Left / Right Hand Drive 10 Wheel 16cbm  Garbage Compactor Truck



1.Function introduction



Garbage compactor truck applies to the national general garbage bucket, with self-unloading function, hydraulic operation, garbage bucket can be hung from the crane, the swing arm once work cycle time: 60S. The car is characterized by the separation of the bucket from the body of the vehicle, which enables a single vehicle to work in conjunction with multiple buckets and recycle it, which fully improves the vehicle's transport capacity. It is particularly suitable for short-distance transport, such as the cleanup of urban waste by the sanitation department. , transportation, etc.



Brand recommendation:DF FOTON JAC HOWO SINOTRUK SHACMAN



Tonnage:3-18 CBM customized

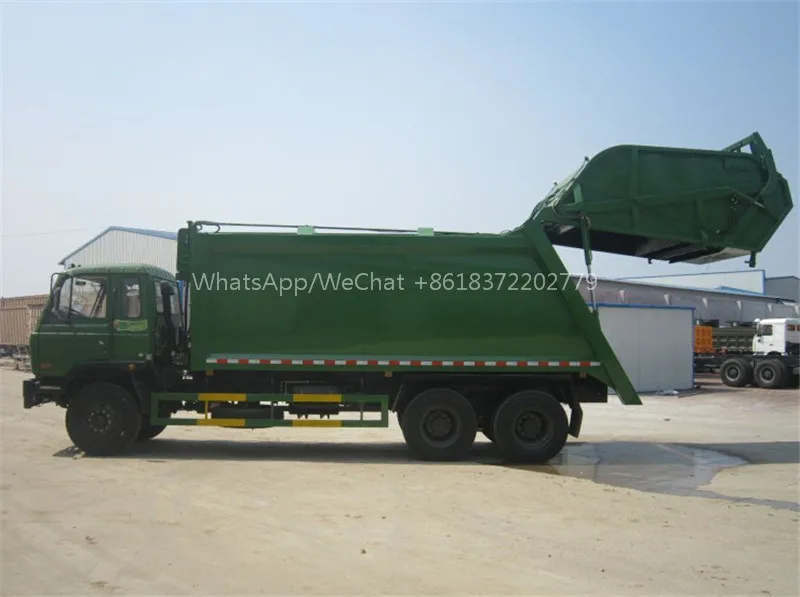

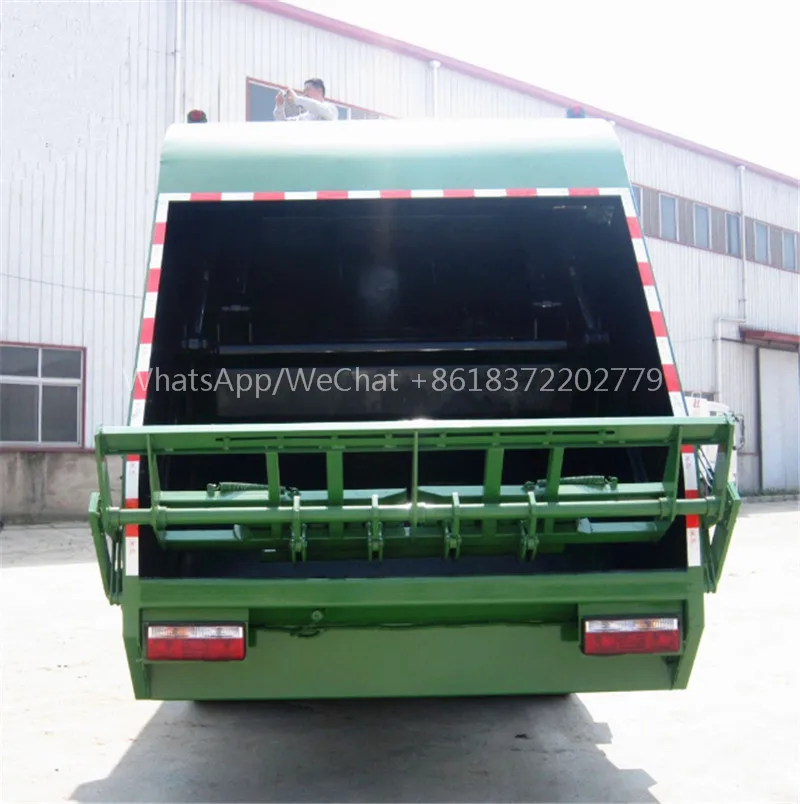

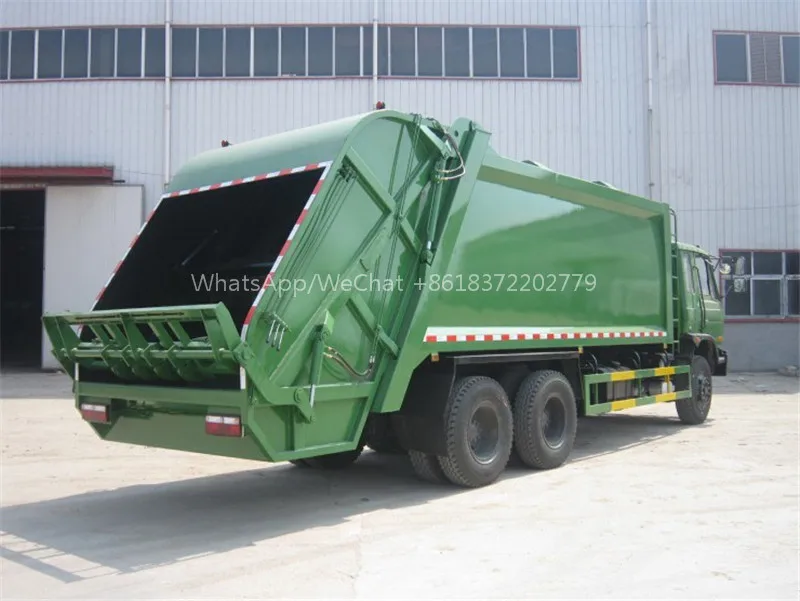

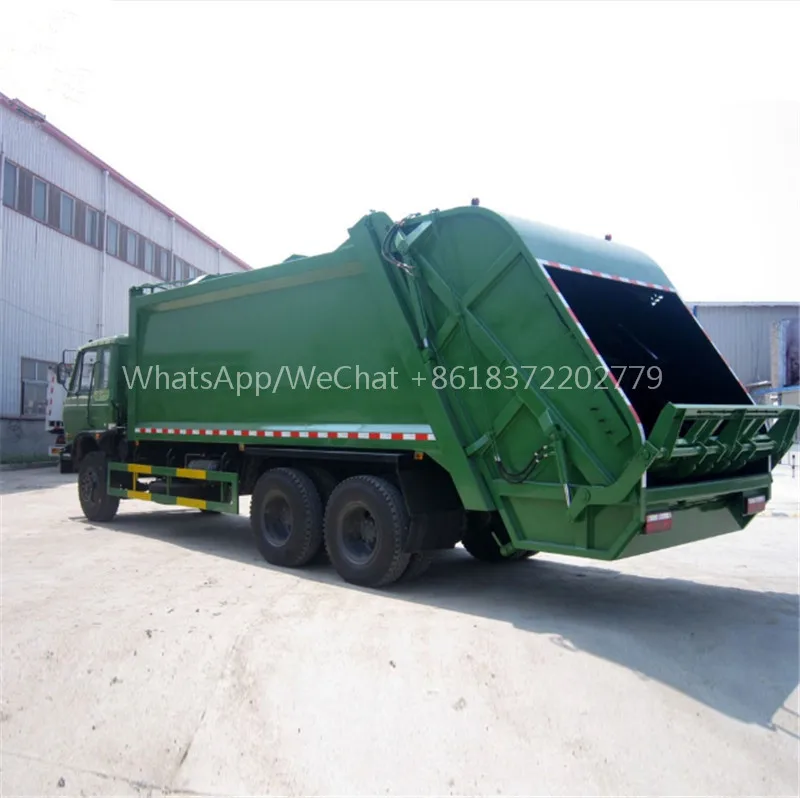

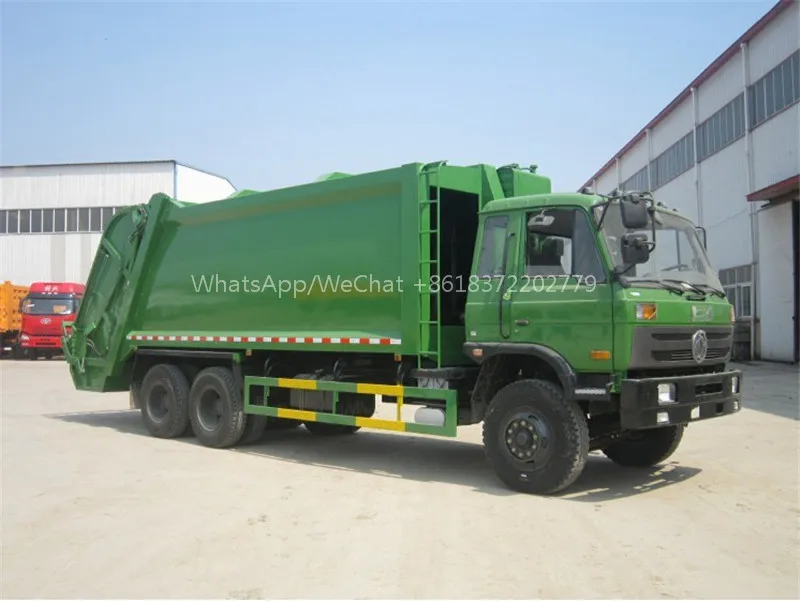

2.Pictures for reference









3.Technical parameter reference

Main Technology Parameter
Product Name	Dongfeng 16m3 garbage compactor truck
Driving Type	6x4,left /right hand drive
Color & Logo	Accept customization
Weights
G.V.W(kg)	25000
Curb weight(kg)	10000 (Approx.)
Dimensions
Wheelbase(mm)	4500+1350
Overall Dimension(mm)	9800×2500×3150(Approx.)
Garbage collection capacity	16 m3
Engine
Engine type	4 stroke ,Water cooled, direct injection, turbo charger
No. of cylinders	6 cylinders
Displacement(L)	9.26L
Max. output (hp/kw)	280/205
Emission standard	Euro 3  (Euro 4 /5 optional)
Drive Line
Transmission	FAST 9 speeds ,9 forwards,1 reverse gear,manual operation
Steering	Power steering
Brake	Air brake
ABS	With
Cab
Cabin	One and half cab,three passengers (2+ driver) all welded steel cab
Standard configuration	Air conditioner ,heater, central lock ,power window .USB,AM/FM radio, two sun reflectors
Axle
Front axle	5 tons
Rear axle	20 tons
Tire specification
Tire specification	10.00R20 steel wire tire,10 tires+1 spare tire
10m3 garbage compactor truck
Box volume	16m3
Box material	Side 5mm,bottom 5mm
Sewage tanker	200L
Compaction ratio	By volume not less than 5:1
Work cycle time	Not more than 35 seconds
Hydraulic system pressure	16Mpa

China professional trucks supplier factory direct sale established in 2004
Accept product customization
Contact person :Amanda Zhang
Tel/ Whatsapp/ Wechat/ Skype: +8618372202779
Facebook:https://www.facebook.com/amandatruck

If you are interested,pls don't hesitate to contact me for the latest quotation !



4.RFQ

1. What is the term of delivery?

Answer: EXW, FOB, CIF, DPA.

2. What is the payment term?

Answer: FOB,CIF,DPA; T/T,30% in advance and 70% balance before shipping.

3. How about the delivery time?

Answer: Commonly, it takes 15~25 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.

4. What is the warranty time?

Answer: 12 month from the date of supply.

5. What is the packaging?

Answer: bulk ship, ro-ro ship, container ship.

             Professional, economic and safe methods and measures to package trucks or equipments.

6. Can we supply samples if customers need sample in advance?

Answer: If we just right have the sample in stock, we can supply it for you. But the customer need pay for the cost.

7. How to establish a long term cooperation?

Answer: We try our best to guarantee great quality and good price policy for our old customers to ensure the benefits of our customers.

Moreover, we respect every customer and sincerely do business, making friends with them, no matter who they are, wherer they are from.

5.Contact us
