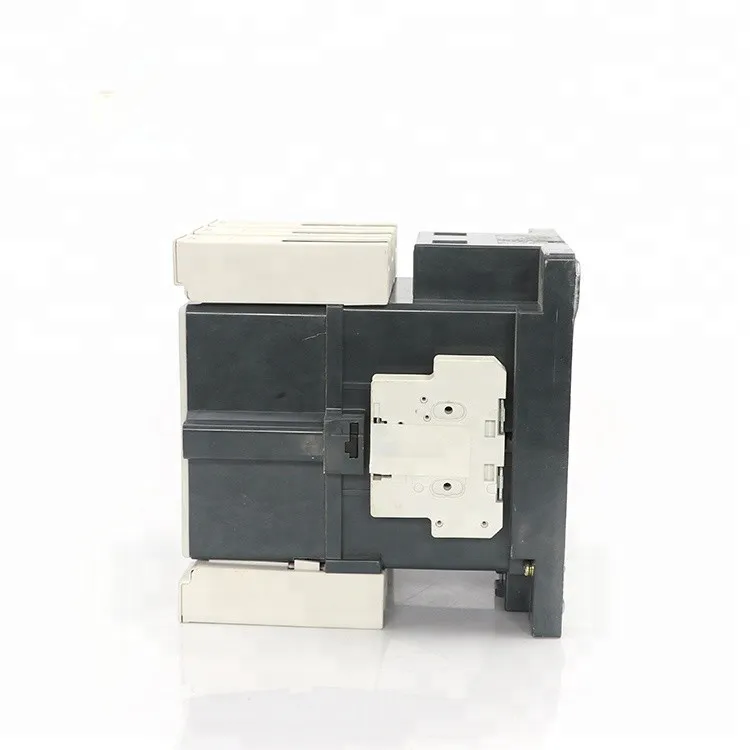

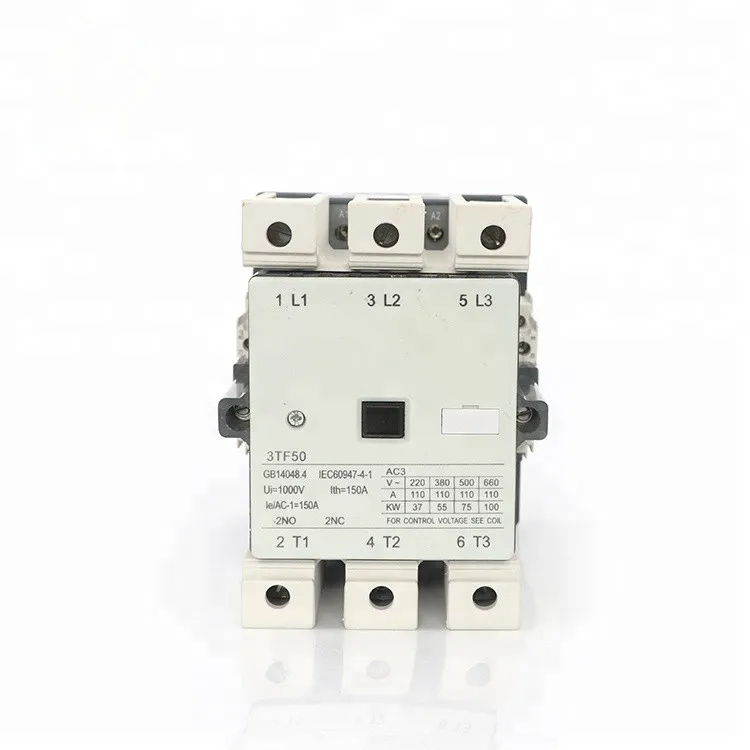

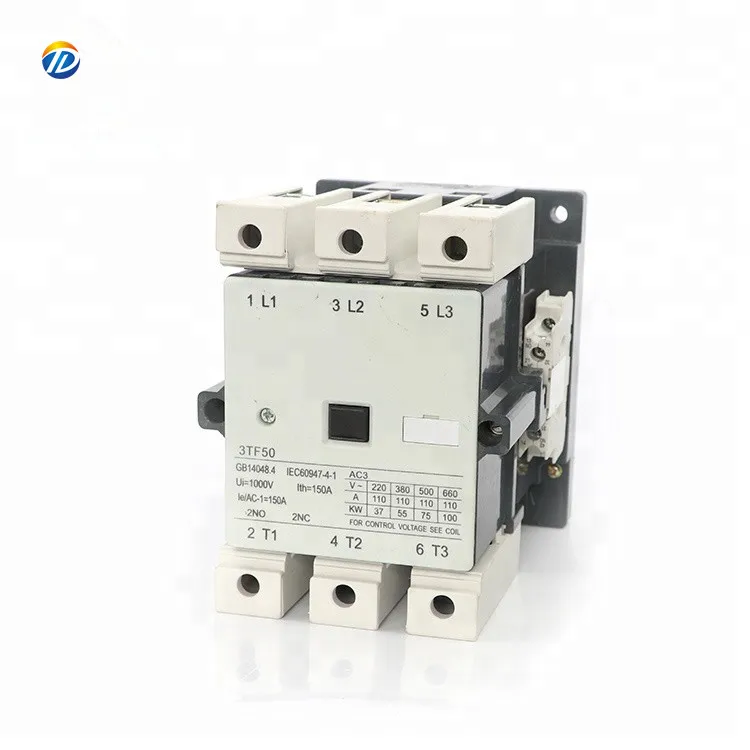

Высокое качество 3TF CJX1 серии 3TF40 3TF42 3TF46 3TF48 3TF50 3TF52 3TF55 3TF56 3TF57 3 фазы 220v 380V магнитный контактор переменного

 3TF series AC contactor is used for making and breaking, and for frequent starting and controlling the motor.3TF series AC contactor mainly used for making/breaking electric.CJX1/3TF series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to com-pose a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.The contactor is a straight motion mechanism having double breaking contacts. The auxiliary contacts are arranged 2NO.2NC at most, it is employed the flexible locking connection between the contact support and core, three are no arcisolated panel in the Ie≤22A contactor. In the In≥32A contactors. Three are moulded arc-chute with arc-isolated panel, because all contacts are made of high cnonfusibility and against corrosion silver alloy. All series products can be mounted by screw, Ie≤32A contactor also by installation rail.

Ningbo DOTO Electric Co., Ltd. Earliest Factories found from 2000. We are specialized in quality Current Transformer, Counter, Hour Meter, Contactor, Lightning arrester, Fuse cutout, Circuit breaker,Capacitor, Automatic Compensation Controller.

We have passed ISO9001 quality management system certification and ISO14001 environment management system certification. Our products have CE, CCC certification. Since its establishment, our value and reputation has been constantly improved under customers' approval. Our company has transferred from the initial trading mode to current productive integrated entity. Now we own 100 workers and 3000m2 factory area, include 5 people' design and technology teamwork. DOTO cargo exported to Japan, Turkey, India, Vietnam , Singapore, Russia and other countries. We constantly supply high quality products, thoughtful technical support and after-sale service for our customers via our abundant technical experience, advanced equipments and complete management system.

DOTO is willing to cooperate with prospective clients from all over the world to create a better tomorrow.
