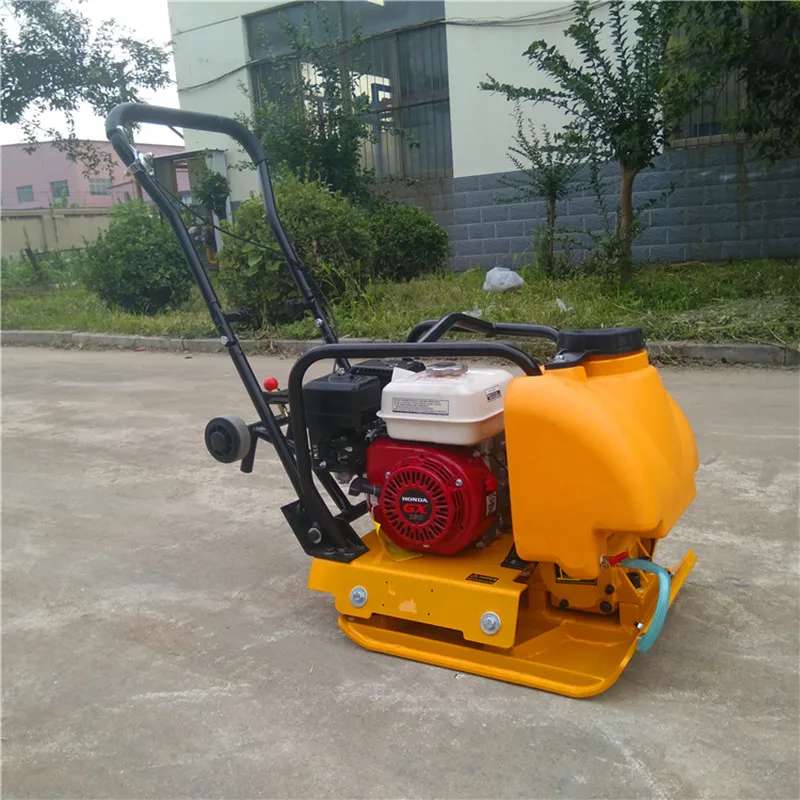

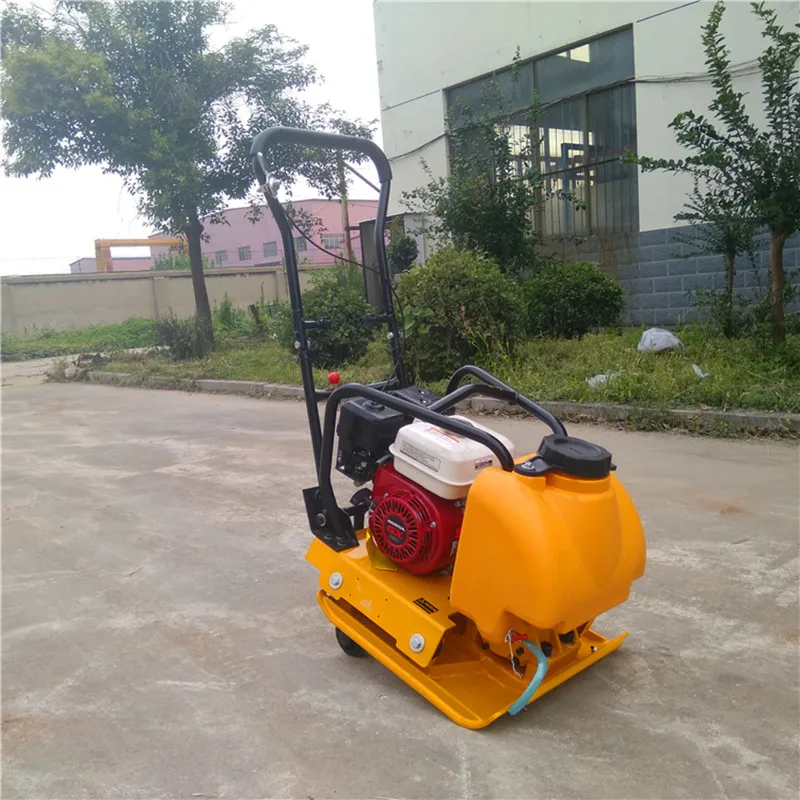

Introduction of Plate Compactor
Used for asphalt, soil, sand, gravel, and mixer soils in the areas of construction, civil or road engineering, gardening, it is easy to handle, have high performance, highly durable, easy operation, user friendly low maintenance design.
Less time and less costly to repair
Best choice for compaction of sand, gravel and mixer soils in narrow trenches and along foundations, walls and abutments
Features of Plate Compactor
1.Foldable hand for easy transportation and stock
2.The open plate provides self cleaning
3.Built-in wheel for easy transportation
4.Heavy-duty shock mounts reduce vibration to the upper engine and handle
5.Sealed belt cover to prevent sand and soil in
6.Lifting hook as standar part
7.The round edger protects the exciter housing and even objects around working site
8.Throttle control is available as optional
9. Protective frame is available as optional
Technical Parameter of Plate Compactor
Model | STP-60 | STP-90 | STP-125 | STP-160 |
Engine | HONDA GX160 | HONDA GX160 | HONDA GX160 | HONDA GX160 |
Engine type | Gasoline Air cooling | Gasoline Air cooling | Gasoline Air cooling | Gasoline Air cooling |
Power(HP) | 5.5 | 5.5 | 5.5 | 5.5 |
Work Speed(m/min) | 34 | 23 | 28 | 27 |
Exciting Force(KN) | 10.5 | 15 | 25 | 30.5 |
Excitation Frequency(HZ) | 93 | 92 | 72 | 67 |
Work Efficiency(sq.m./hr) | 423 | 405 | 400 | 500 |
Compaction Depth(cm) | 20 | 30 | 30 | 50 |
Working weight(KG) | 66 | 90 | 125 | 159 |
Plate size(cm) | 50*35 | 53*50 | 62*40 | 73*37 |
Rammer size(mm) | L1080*W350 *H850 | L1100*W500 *H850 | L1200*W400 *H930 | L1250*W370 *H930 |
