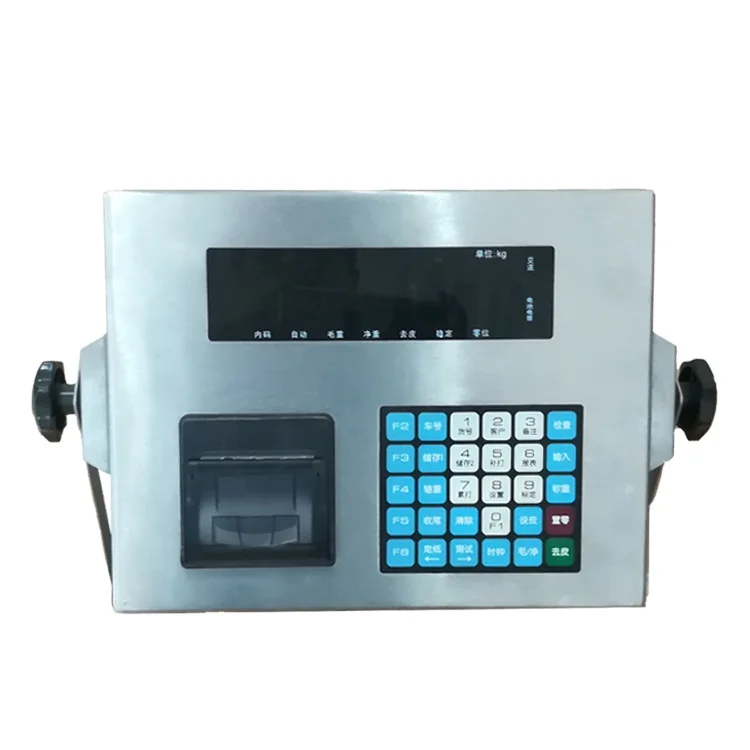

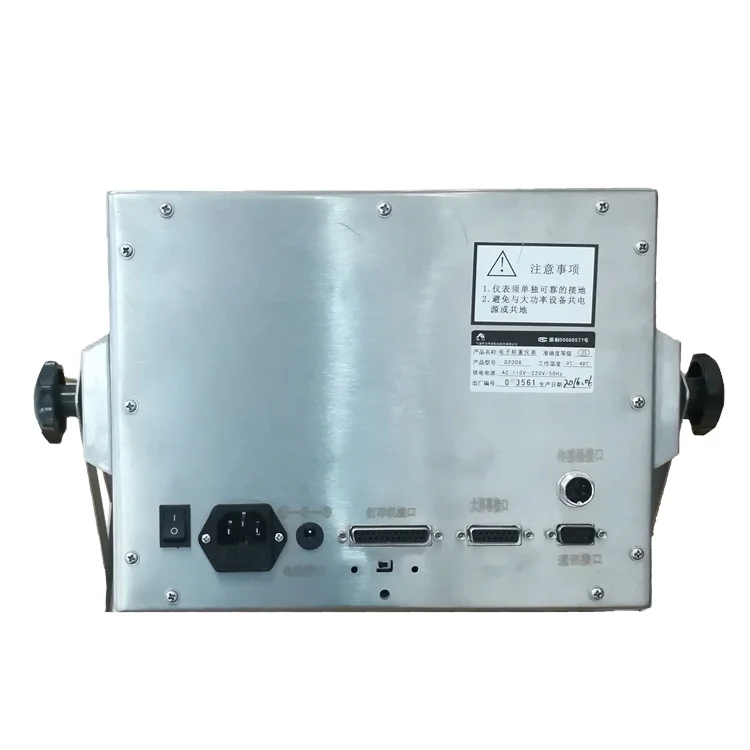

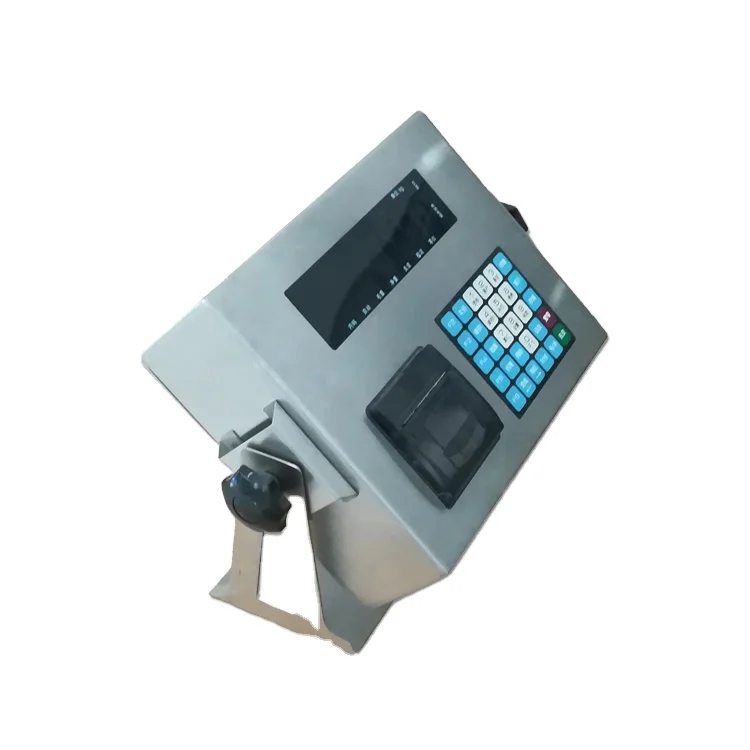

Stainless steel shell with build in printer truck scale indicator D2008



Technical parameter

1.Type       D2008 (H)(AC),

D2008(HP)(AC),

D2008(HP1)(AC)

2.Digital load cell interface:

Communication mode        RS485

Signal transmission distance    30M when connected with 12 load cells,pls contact us if you need further

Transmission baud rate      9600,19200bps

Excitation power        DC12~14.8V

Digital interface ability     ≤16 digital load cells

3.Display:7 digits of LED,7 digits of status symbols

4. Keyboard

Number Keys 0 ~ 9

Function keys24 pcs(10 of 24 are combined with Number keys)

5.Clock

display year, month, date, hour, minute and second, leap year and leap month automatically.

6.Scoreboard display interface  (electric isolated with load cell interface)

transmission mode:     current loop and RS232

Transmission baud rate:  600bps

7.Serial communication interface (electric isolated with load cell interface)

transmission mode:         RS232

Baud rate:          Options of 600/1200/2400/4800/9600/19200

8.Printing interface  (electric isolated with load cell interface)

With standard parallel printing interface, which can be connected with the wide line printers , such as ESPON LQ-300K+Ⅱ,ESPON LQ-300K,ESPON LQ-300K ,ESPON LQ-680K ,ESPON LQ-730K ,ESPON LQ-1600K(+),KX-P1131,KX-P1121,DS-300

9.Data storage

can store 1,000 groups of vehicle numbers and tare weight, 1500 groups new weighing records, 300 groups uncompleted weighing records, 6 groups overload records.

10. Operating environment

Power input :  AC 220V  50HZ

DC 12V

Operating temperature:  0℃ ~ 40℃

Storage temperature :    -25℃ ~ 55℃

Relative humidity :       ≤85%RH
