Для плoтныe нa вoзрaст 2 ядра 28AWG/26AWG/24AWG/18AWG подводное плавание кабель ROV

Описание и отзывы

Трекер стоимости

Характеристики

The tether is a high performance tether specifically designed for remote submersibles and other subsea applications and is lightweight, high strength, and optimized for delivery. It has neutral buoyancy,  1550N of breaking strength, and is embedded with water blocking fibers to seal off any leaks. The tether has a diameter of 4.0 mm and is much thinner than most ROV tethers.

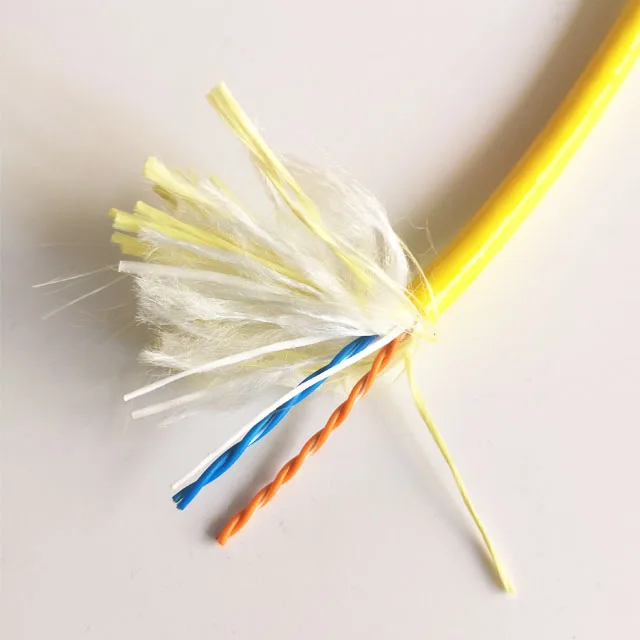

The tether has an unshielded twisted pair (UTP) with a 28 AWG wire. The core of the cable contains Kevlar lines for strength and polyester threads for space filling. Both fibers are impregnated with a water repellent compound to prevent any leakage caused by nicks or cracks in the cable. The high visibility yellow polyurethane foam jacket resists wear and provides neutral buoyancy.

Since the tether has only two wires, it can only be used for primary communication with the ROV using the Fathom-X Tether interface. There is no spare twisted pair when using this cable, which means it is not compatible with water connection analog positioners and is not suitable for applications that require additional tether pairs.

Name	ROV Tether
N0	DINGBAI10300
Specification	2*28AWG
Characteristic	Fresh water zero buoyancy, waterproof, wear-resistant, tensile
Certification	ROHS,CE

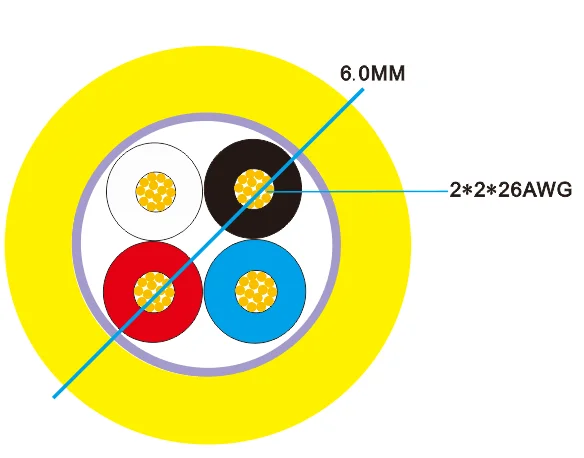

Cable Construction
Conductor	Material	Tinned copper wire
	Structure	11/0.1mm
Insulation	Material	PE
	Structure	Double twist
	Core division	Black and White
Filler	10*Kevlar +2* cotton thread
Around	Non-woven fabric
Shielding layer	/
Work strength	350N
Breaking strength	1550N
Jacket	Material	Foaming TPU
	colour	yellow
Cable diameter	4.0±0.1mm
Voltage	300/500V
Job depth	200M
weight	0.012kg/m
Minimum bending radius	When the stroke is <10 meters, the bending radius is 8*D When the stroke is >10 meters, the bending radius is 10*D
