Оцинкованная сетка 3 0 мм/рулоны проволочной сетки с покрытием из

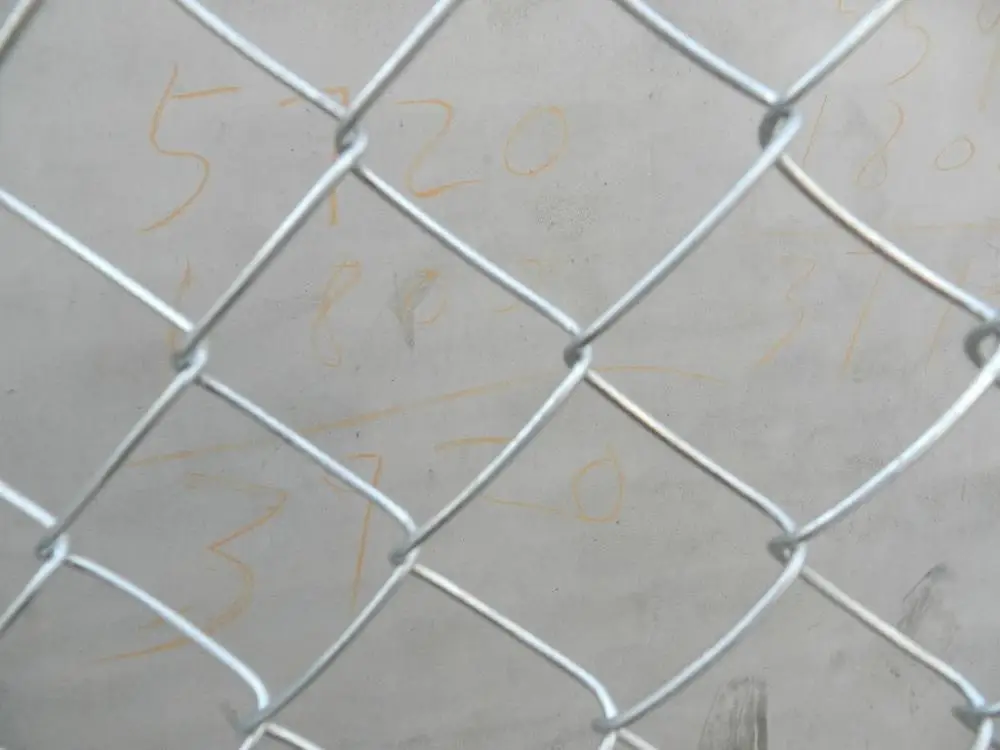

 3.0mm galvanized chain link fence/pvc coated chain link wire mesh rolls

• Material: Low Carbon Steel Wire;
• Surface Treatment : Color : Green, Blue, Grey and White, etc;
  • PVC Coated
  • Hot Dipped Galvanized
  • Electric galvanized
• Mesh Size : 1-4" (40-100mm);
• Wire Guage/Diameter : 2.0-4mm;
• Selvage Type : Twist or Knuckle (See the picture below);
• Length : 10-50m;
• Height : 1.0m-3.0m;
• Round Post Dia : 40-60mm;

• Dimension of Galvanized Chain Link Fence
  Mesh           (mm)	Wire  Diameter (mm)	Width (m)	Length         (m)
  40 x 40	1.8 – 3.0	0.5 – 4.0	5 - 25
  50 x 50	1.8 – 3.5	0.5 – 4.0	5 - 25
  60 x 60	1.8 – 4.0	0.5 – 4.0	5 - 25
  80 x 80	2.5 – 4.0	0.5 – 4.0	5 - 25
  100 x 100	2.5 – 4.0	0.5 – 4.0	5 - 25



  Dimension of PVC coated Chain Link Fence
  Mesh           (mm)	Wire  Diameter (mm)	Width (m)	Length           (m)
  40 x 40	2.8 – 3.8	0.5 – 4.0	5 - 25
  50 x 50	3.0 – 5.0	0.5 – 4.0	5 - 25
  60 x 60	3.0 – 5.0	0.5 – 4.0	5 - 25
  80 x 80	3.0 – 5.0	0.5 – 4.0	5 - 25
  100 x 100	3.0 – 5.0	0.5 – 4.0	5 - 25
