API 16A high quality chock manifolds / 15000psi choke manifold
Product Description

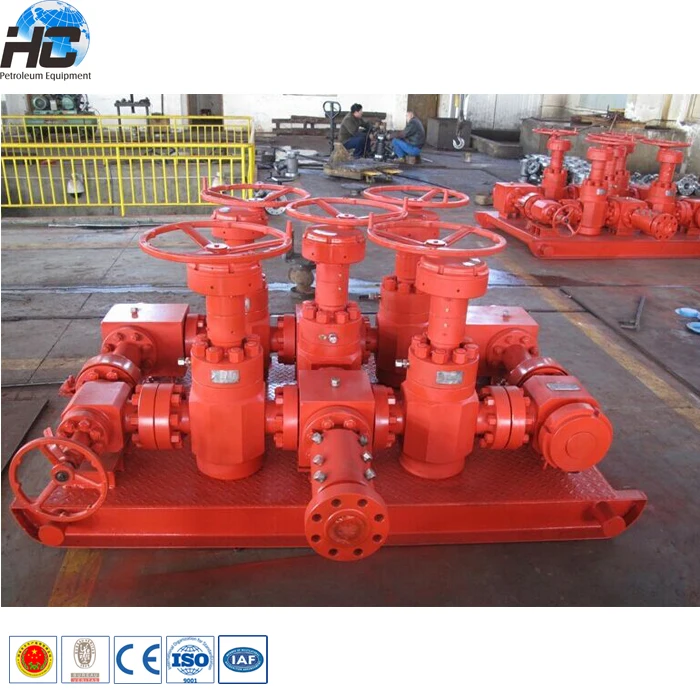

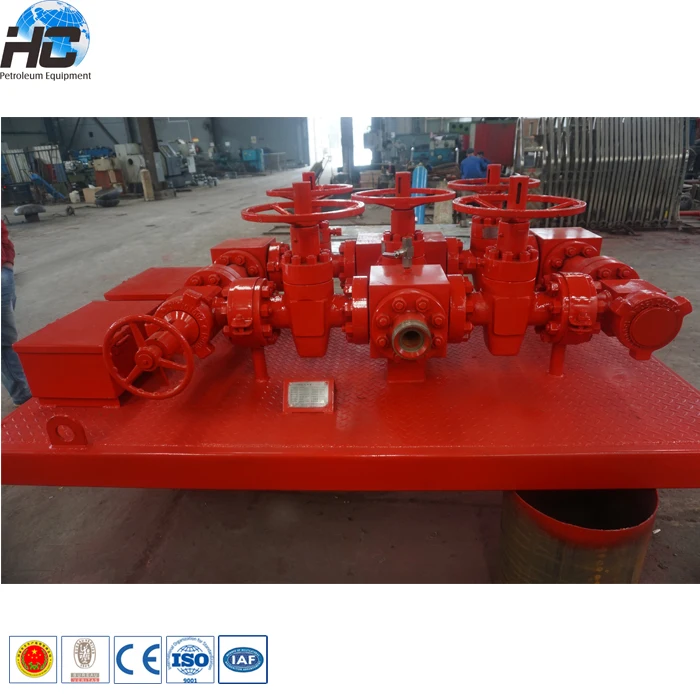

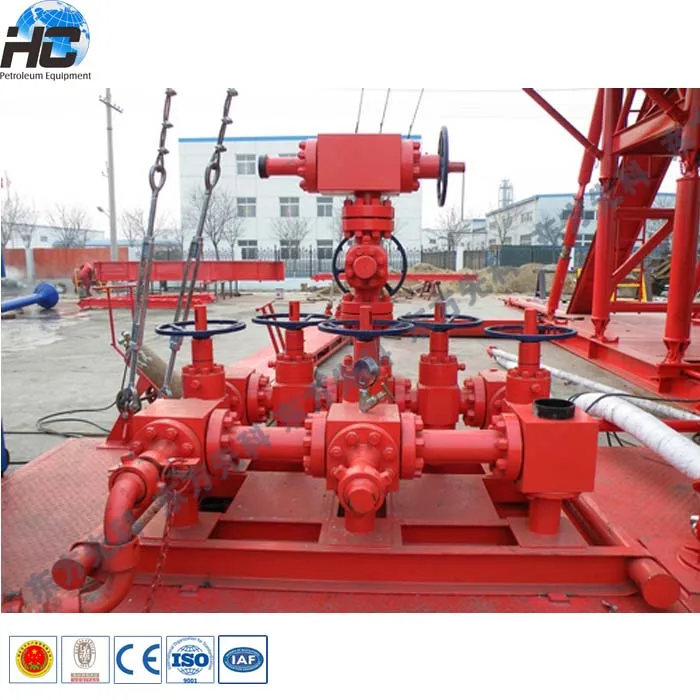

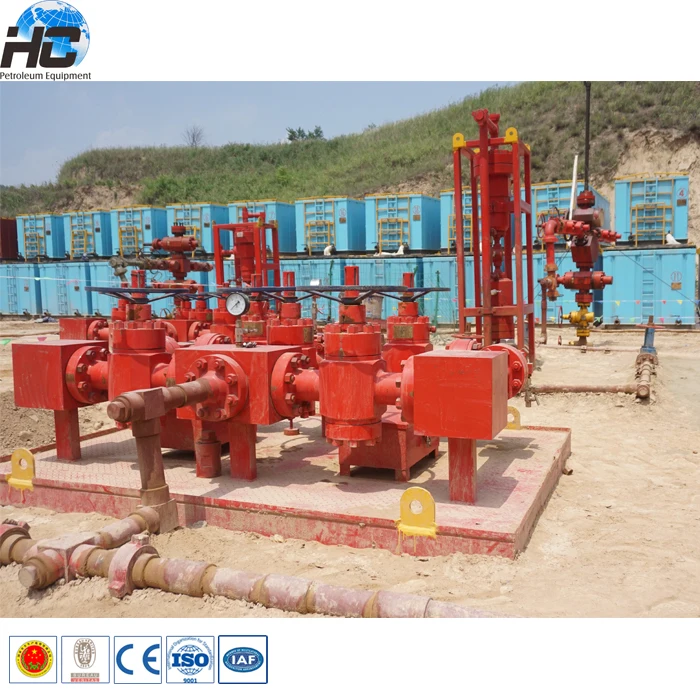

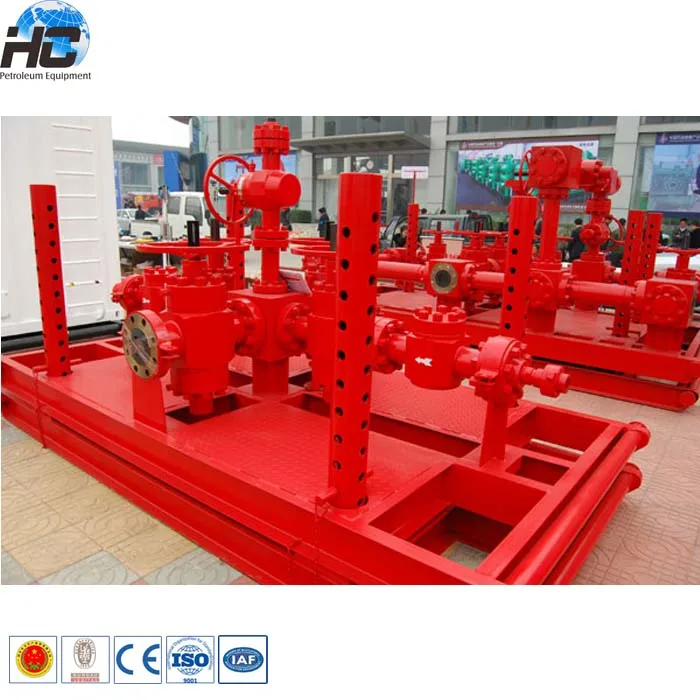

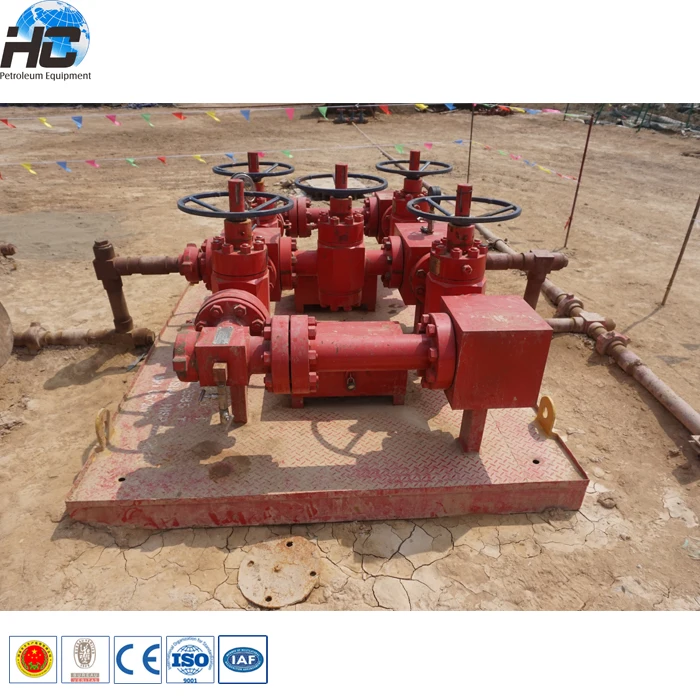

Well testing choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well.
The technical parameters about API 16A high quality chock manifolds / 15000psi choke manifold
Pressure Parameters
105MPa(15000psi)
Color
Red
Model
CM78-105
Design Pressure
105MPa
Weight
4630kg(10260lb)
Dimension(L×W×H)
3270×2371×1038.7mm 128.83×93.34×40.95in
Material Level
EE
Product specification level
PRL3
Working Temperature
PU(-29℃~121℃)
Product performance level
PR1
Nozzle
Fixed and adjustable nozzle
Characteristics
Five gate design
Work medium
Mud,oil and drilling fluid
Connection type
Flange
Main features of API 16A high quality chock manifolds / 15000psi choke manifold as below:
1.Control the well fluid flow. 2.Built-in Cameron style gate valves which can be redressed on pipeline. 3.Standard two flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke. 4.Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection. 5.Metal-to-metal, double seal to ensure reliability in harsh environments. 6.15000psi adjustable nozzle adopts gear handle,which can reduce the operating torque. 7.Positive choke is equipped with tungsten steel lining,making it twear-resisting and corrosion resistant.
