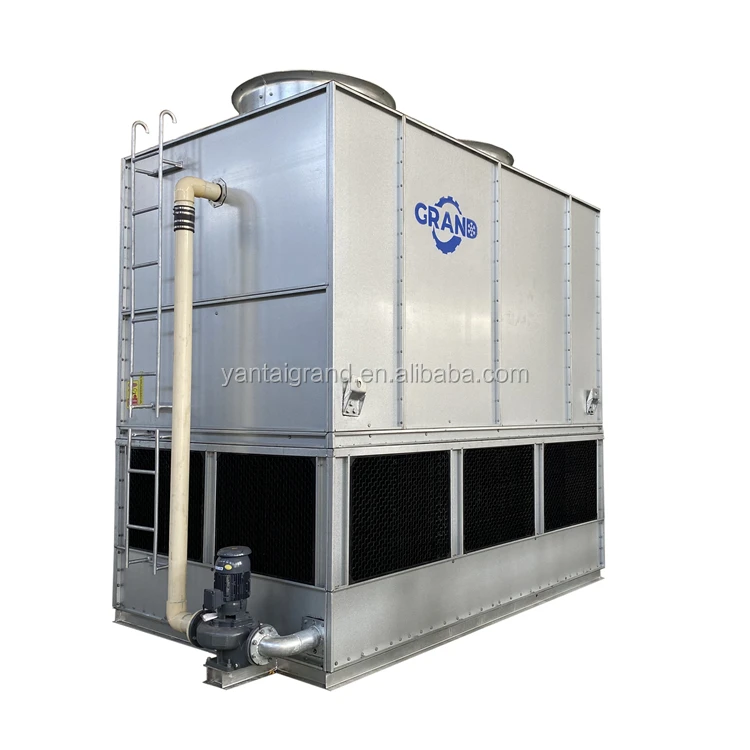

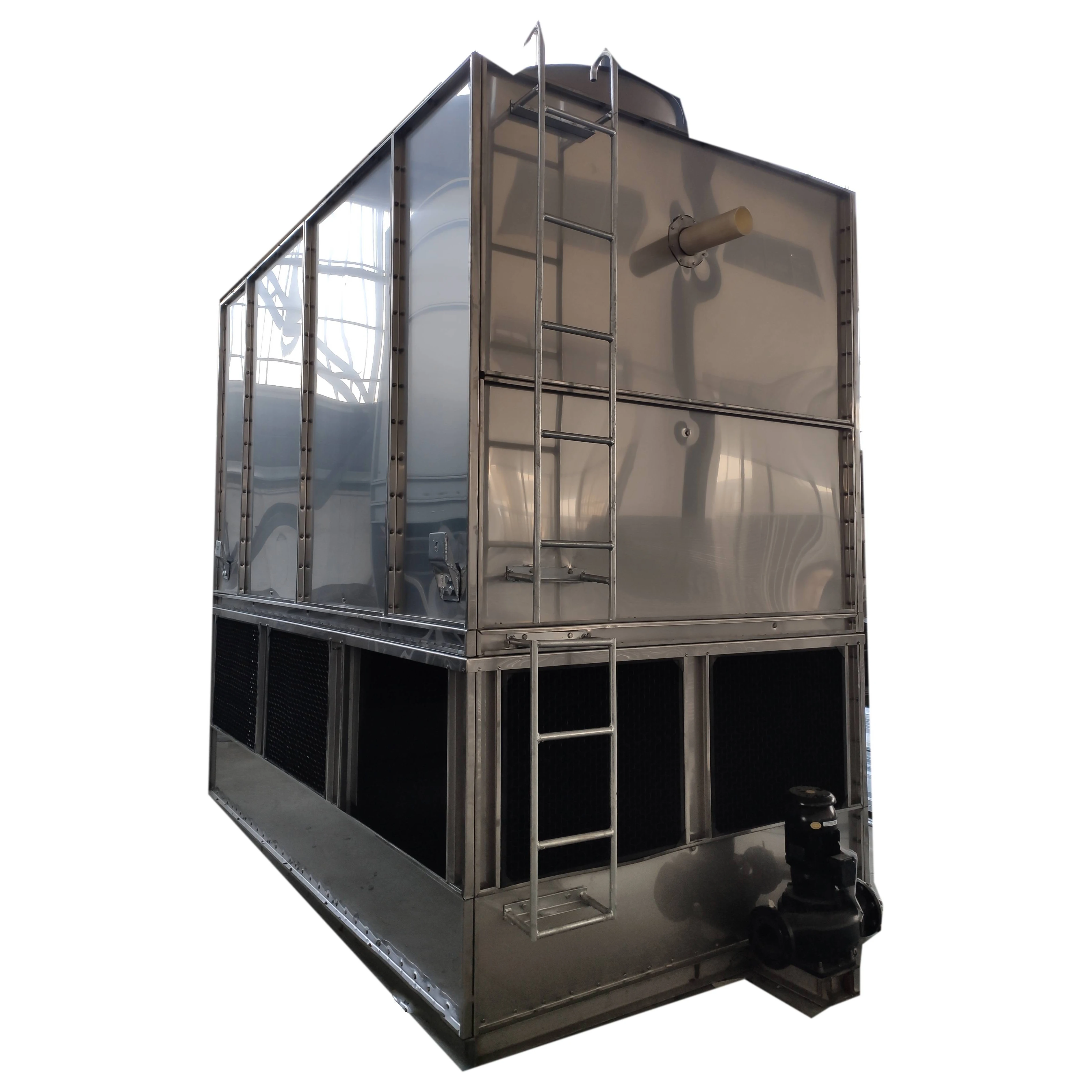

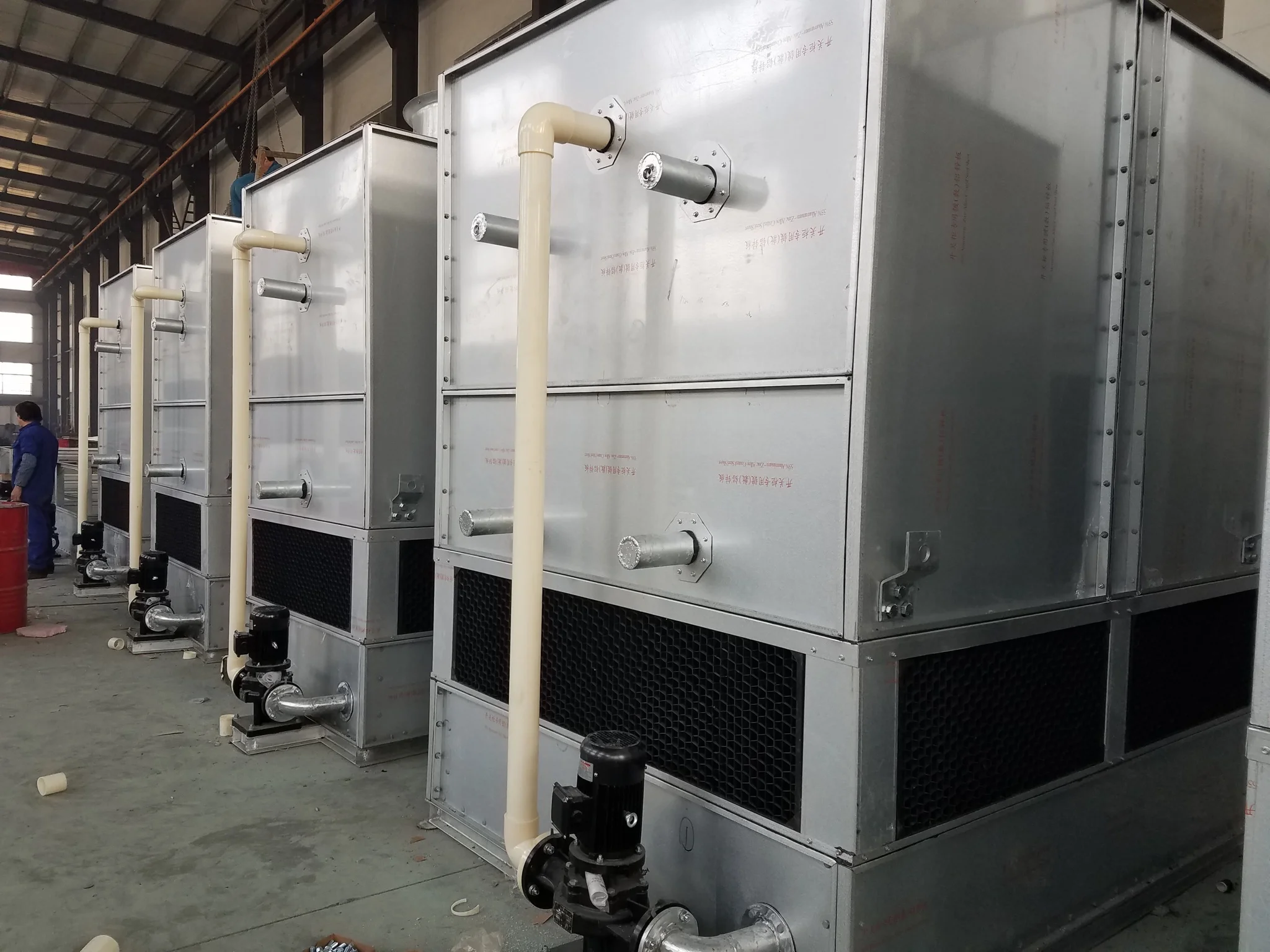

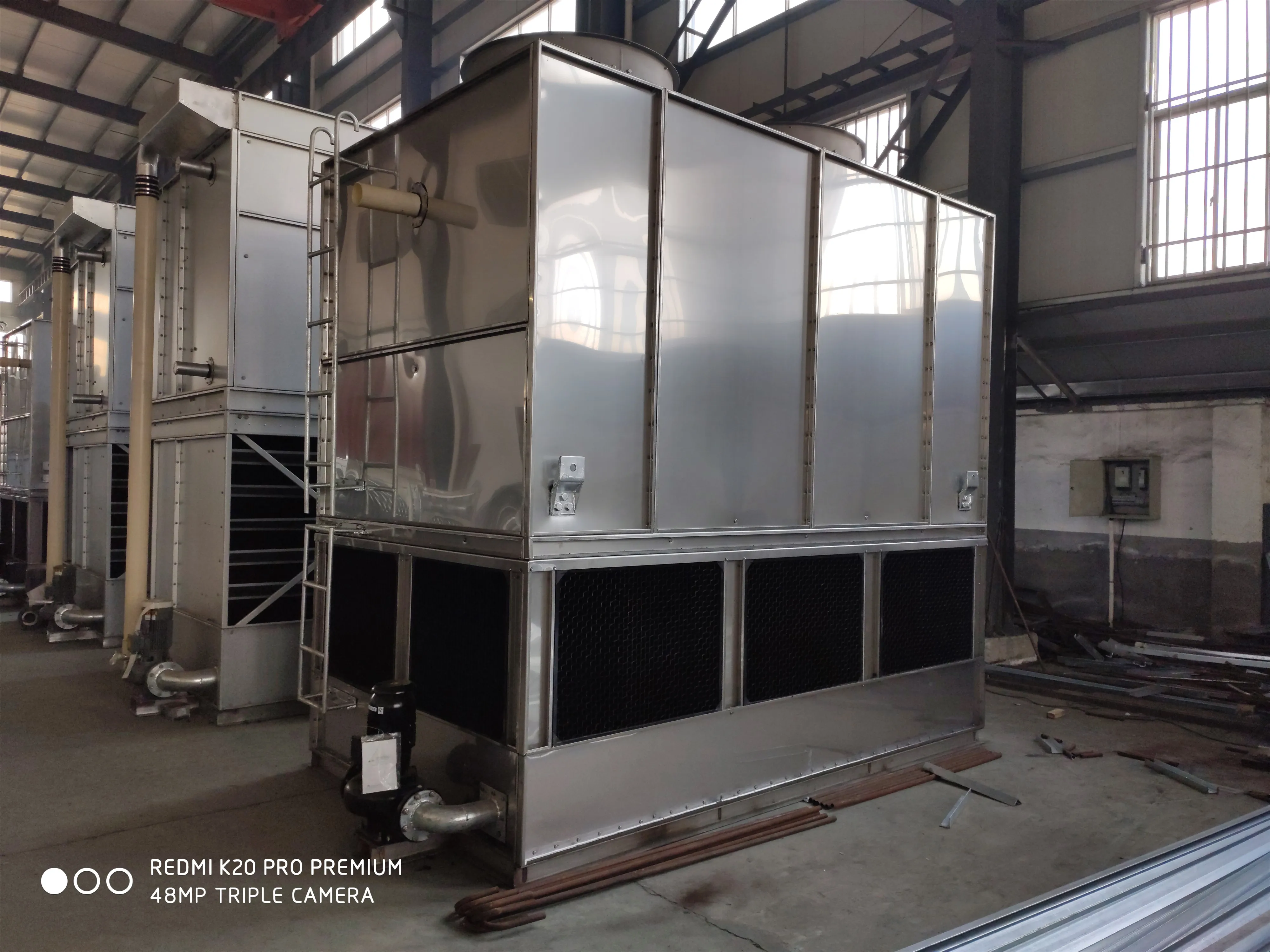

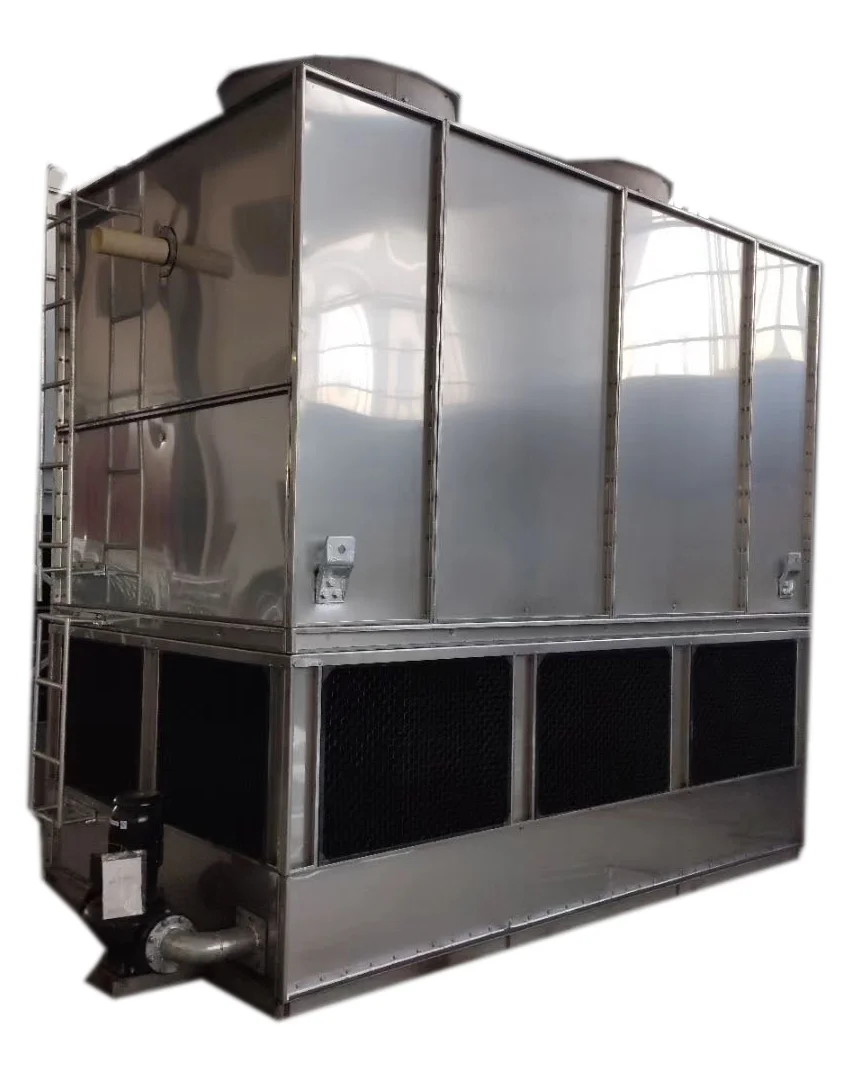

Evaporative condenser is required for rejecting latent heat of refrigerant in cooling towers. It is fabricated using tough metal alloy made structure with corrosion protective surface coating for enhanced durability. It is highly appreciated for having low installation cost with excellent energy efficiency. Evaporative Condenser offered by us is also available in chemical free system to assure environment friendly nature.
Features:
· Highly efficient in nature
· Compact and sturdy build quality
· Long lasting service life)
Working principle
Heat exchange takes place between the high-temp Gaseous refrigerant in pipe coil and water sprayed onto it.
The high-temp Gaseous refrigerant turns into liquid during the process.
The fresh air travels from the bottom to the top of the condenser, taking away the vapor of the heated spay water. The vapor water will be stopped by the water fender board and flows into the collection basin through pipe coils, and then pumped back into the circulation system. The lost water can be re-supplied with the water level regulator
FAQ
If you want to sent us a inquiry about the evaporative condenser ,Please confirm some question as follow :
1) Your local electrical power (?V ?HZ ?P)
2 ) Where will the evaporative condenser will be installed in , close to the ocean or far away to the ocean ?
3 ) What material of panel and condenser coil will you choose , stainless steel or hot dip galvanized or other ?
4 ) If you do not know how to choose one right model , please tell us the compressor 's cooling capacity(kw) ,motor capa. (kw) , quantity (set) , condensing temperature and your local wet bulb temperature . According those data , one right evaporative condenser capacity will be calculated
