Product Description

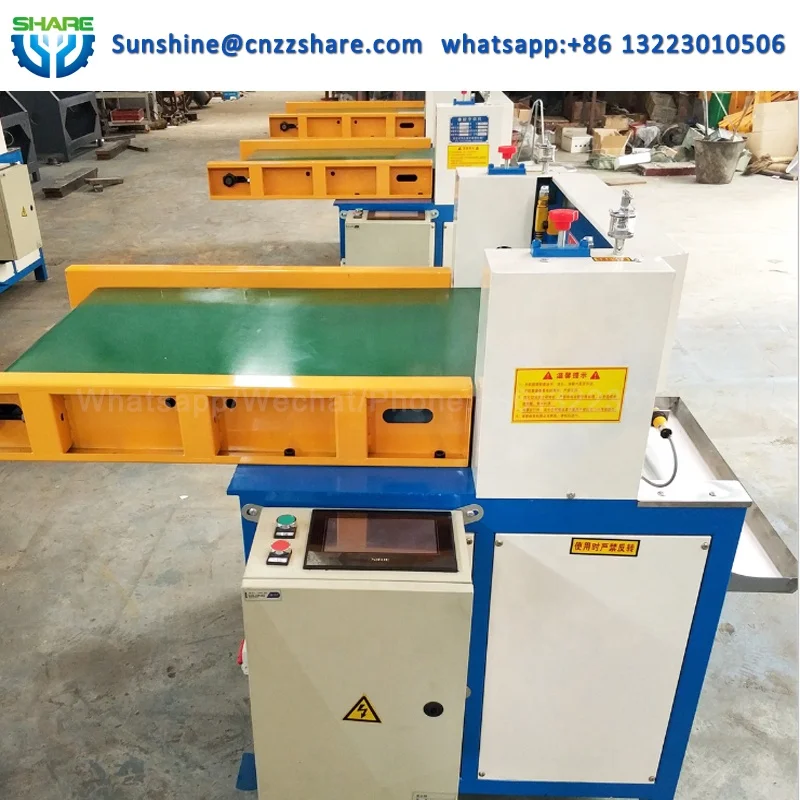

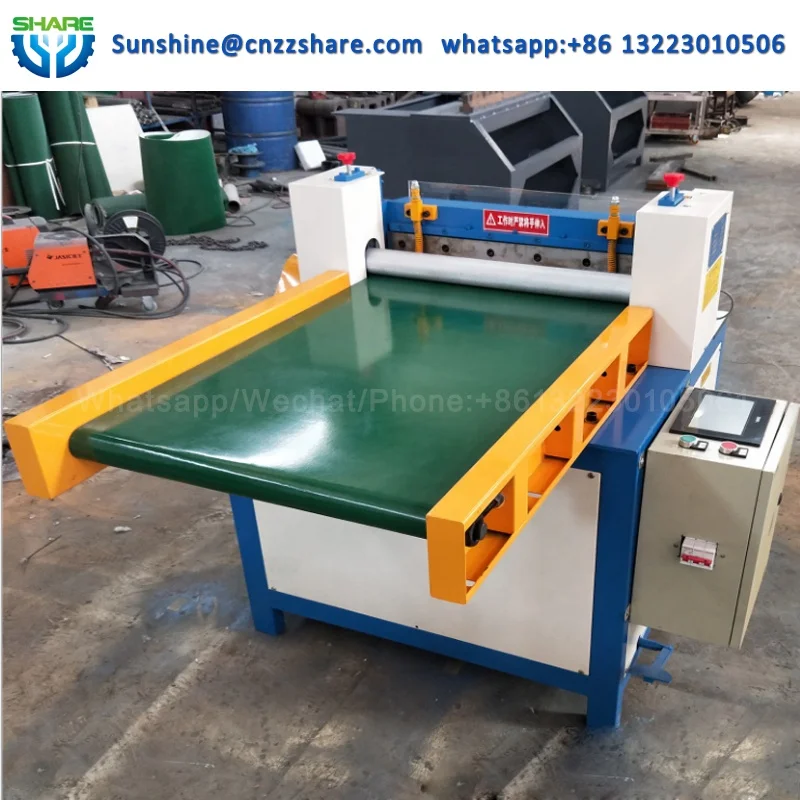

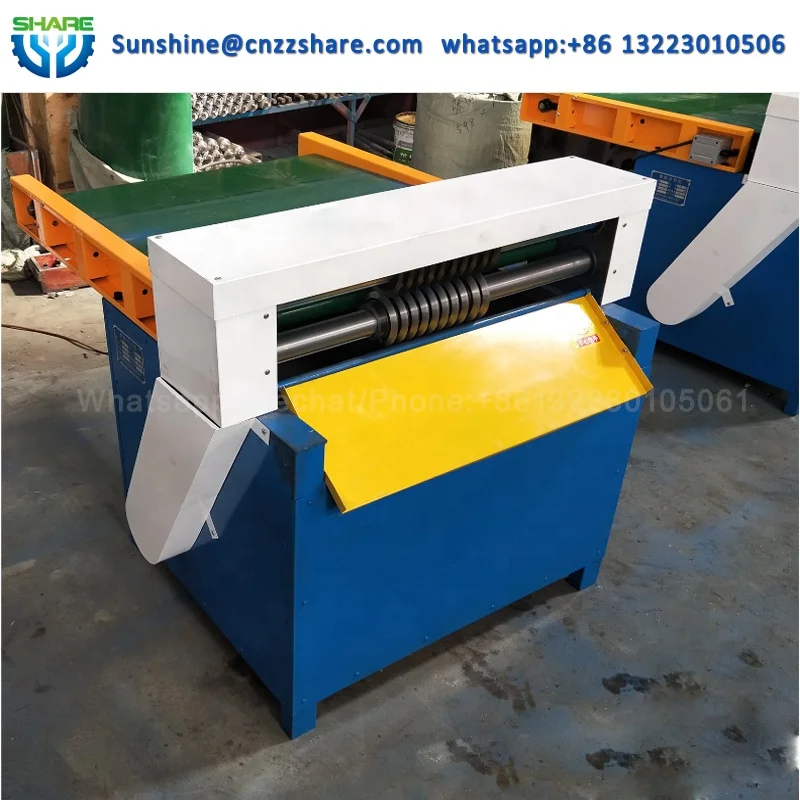

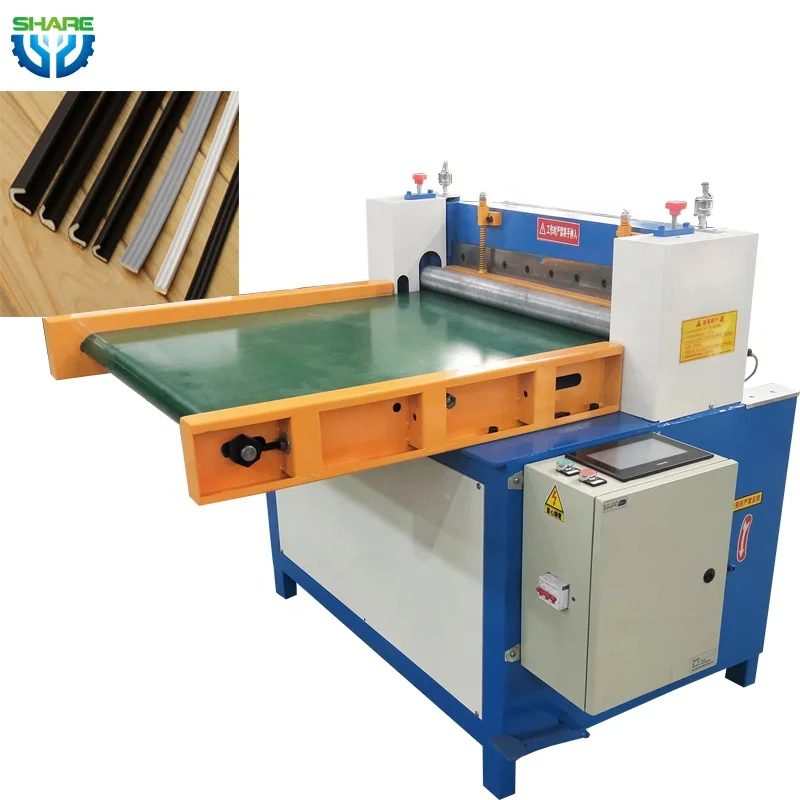

Rubber strip cutter sheet making rubber band cutting machine

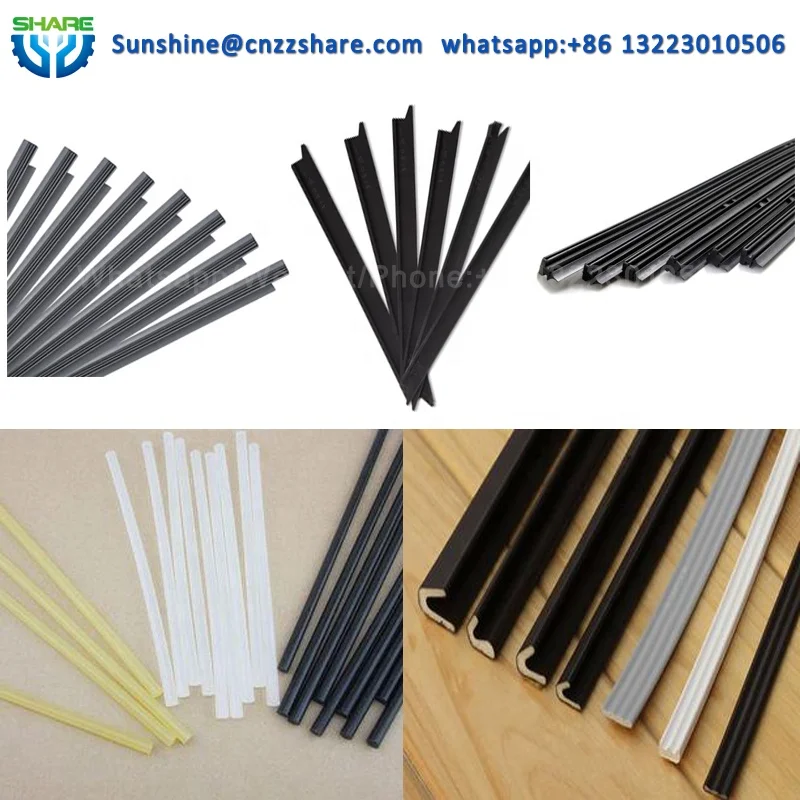

The rubber slitting machine produced by our factory has replaced the backward process of manual material cutting, and ensured the shearing precision, avoided the material waste, improved the working efficiency and reduced the cost.The machine is suitable for cutting various materials such as rubber, silicone, polyester film, film, leather, sponge, glass fiber, carbon fiber, paper, aluminum sheet, etc.

Detailed Images

Model	SRXJ-QTJ600	SRXJ-QTJS600	SRXJ-QTJS800
Voltage	220v/380v, 50hz or as your request
Effective Blade Length	600mm	600mm	800mm
Cutting adjust range	1-65mm	1-9000mm	1-9000mm
Cutting thickness	2-18mm	2-20mm	2-20mm
Carrier way	Platform	Conveyor	Conveyor
Power	2.2kw	2.2kw	3kw
Speed	75times/min	75times/min	60times/min
Control system	Interactive touch screen
Dimension	10008001100mm	125011501120mm	145011501120mm

Features

1. The CNC operating system adopts the famous brand (xinjie) 7-inch touch screen, PLC, the response speed is fast, the service life is long, the after-sale service has the safeguard, the system screen has many dimensions to store the page, convenient your quick setting.

Feature

2.The machine slide is made of copper, with advantages of self-lubrication, wear resistance and long service life.

Feature

3. The power output of this machine adopts hangzhou famous brand worm gear reducer, which has the advantages of low noise, good heat dissipation, long life, large power transmission, impact resistance, etc.

Feature

4. The transmission system of this machine adopts v-belt transmission with tooth shape, which has the advantages of low noise, high friction, wear resistance, no heat and low power loss, etc. Its price and life is ordinary triangle belt 3 times.

Feature

5. Blade material selection alloy steel tungsten steel, sharpness, wear resistance, especially suitable for rubber and other materials of high frequency cutting.

Feature

6. PVC conveyor belt easy to put the material, the material does not run off, so that the film feeding tension is constant, to ensure the maximum accuracy of size.

Feature

7. The stainless steel outlet has registered the appearance design patent, the design is reasonable, the slope is big, the material slides smoothly does not block the material.
The discharge port is equipped with infrared induction switch to prevent improper hand cutting.
