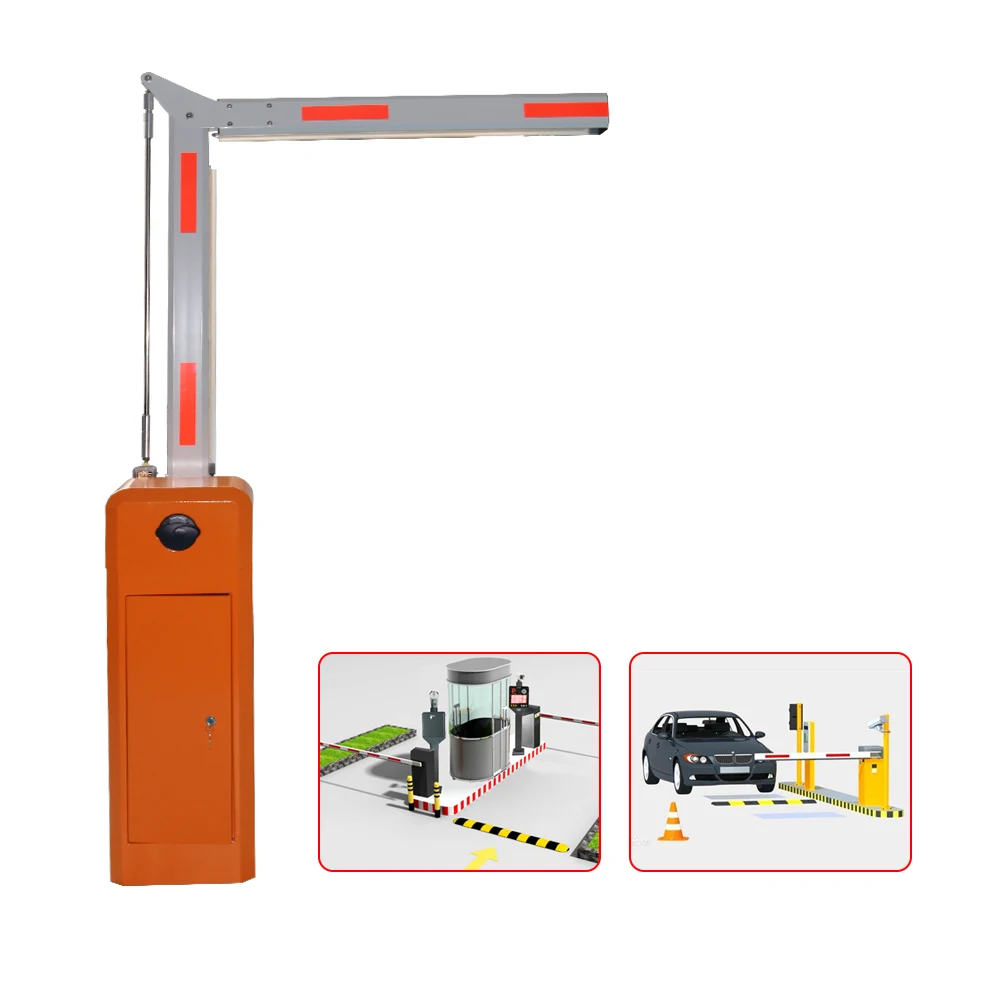

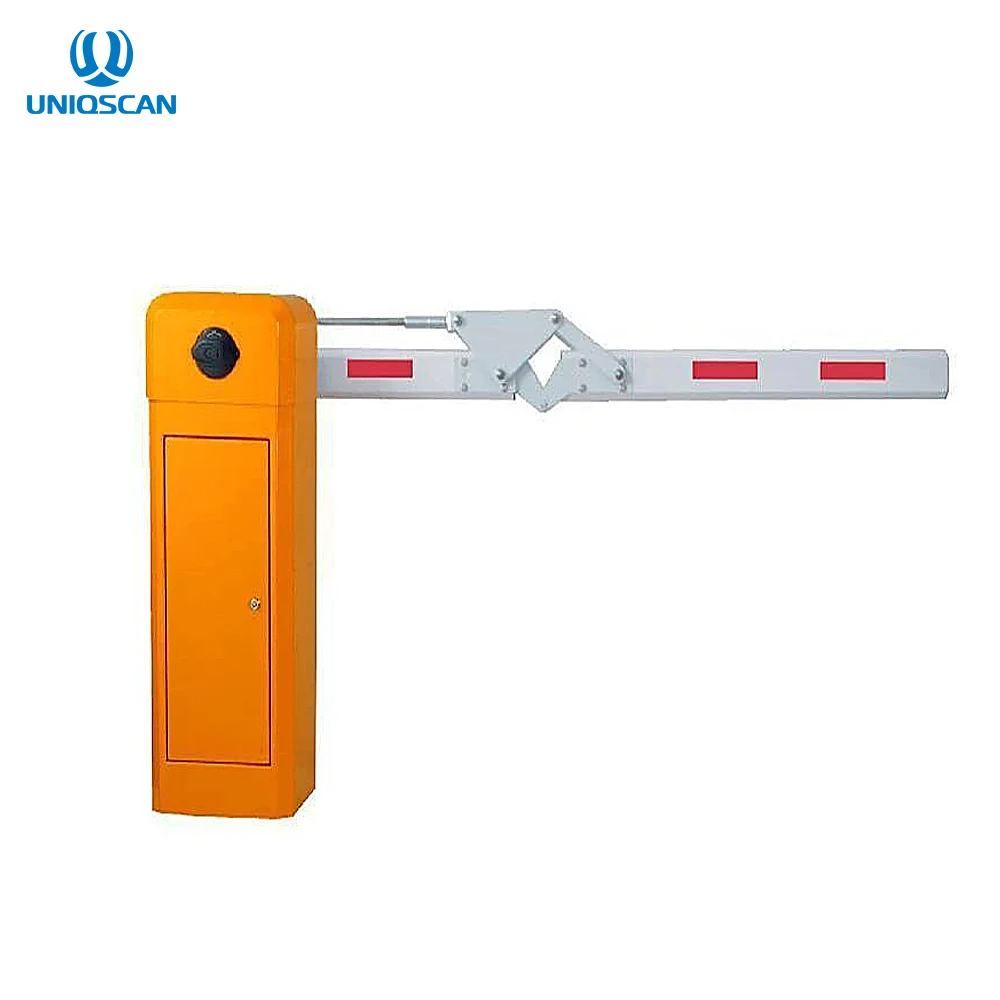

Additional RFID card access control 5 million operation time folding arm boom barrier gate



Specification:

Open/Close time	3-6s depends on the arm length
Arm Length	3-6m
Working Temperature	-35℃ to +75℃
MTBF	>5million times
Power Supply	220V±10 %   50/60HZ /110V±10 %   50/60HZ
Rated Power	120W
Related Humidity	≤90%
Remote Control Distance	>30M
Net Weight	60KG







Straight Arm Speed (Seconds)	1s	3s	6s
Straight Arm Length	≤3m	≤4.5m	≤6m



Characters



Ø For security, the barrier will automatically go back when meet obstacles during closing.

Ø Brushless DC motor is more powerful and no maintenance.

Ø Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.

Ø The barrier can be installation both rightward and rightward.

Ø All the operation process is soft without any noise and shaking.

Ø Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.

Ø Green light and red light are used inside for indication the position of the beam.

Ø Manual release device to operate the barrier when power failure.

Ø Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.

Ø Motor cooling fan to avoid the over-heating possibility.

Ø Auto closing realization through menu setting on the control panel.

Ø Wire control, remote control optional

Ø Infrared protection (requires correlation infrared device)

Ø Optional housing color: yellow, orange, white, red and blue etc.

Ø Variable frequency controller automatically detects and optimizes boom moving, ensures smooth moving without shake

Ø System automatically self-checks operation status and reports errors code

Ø Simplified design, easy installation and maintenance reduces your labor cost

Ø Closing Priority

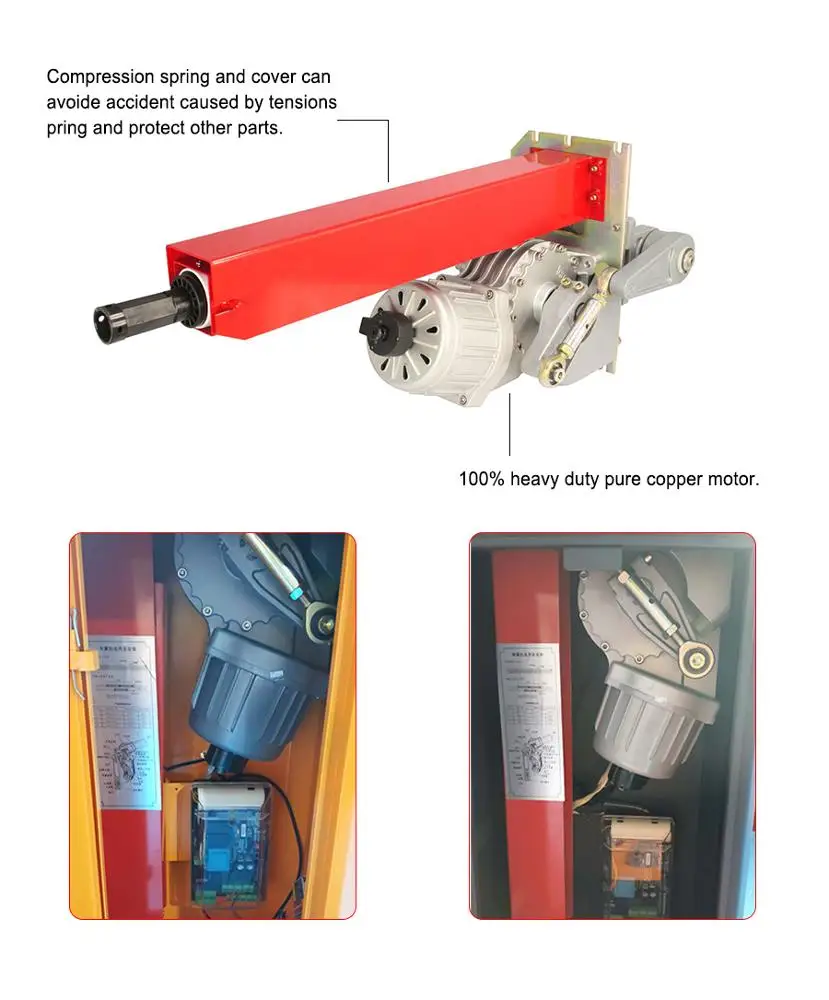

Ø The crank-arm linkage structure adapts to the compression spring, which can be selected to avoid accidents caused by the spring breaking.

Ø RS 485 Communication Module is compatible (Optional)

Ø Boom swing-off protects boom and vehicle (optional)

Ø Alarm when boom swing-off (optional)

Ø Automatically close after the given time (programmable)

Ø Automatically close or open by loop detector (Optional)

Ø Heavy-duty and simple-design housing

Ø Anti-condensation in cold climate

Ø Transparent plastic covers on Control Board



Application

Parking lots, toll gates, border, Goods yards, Railway crossings, Commercial premises, Apartment block access, housing estate etc.



Details Images

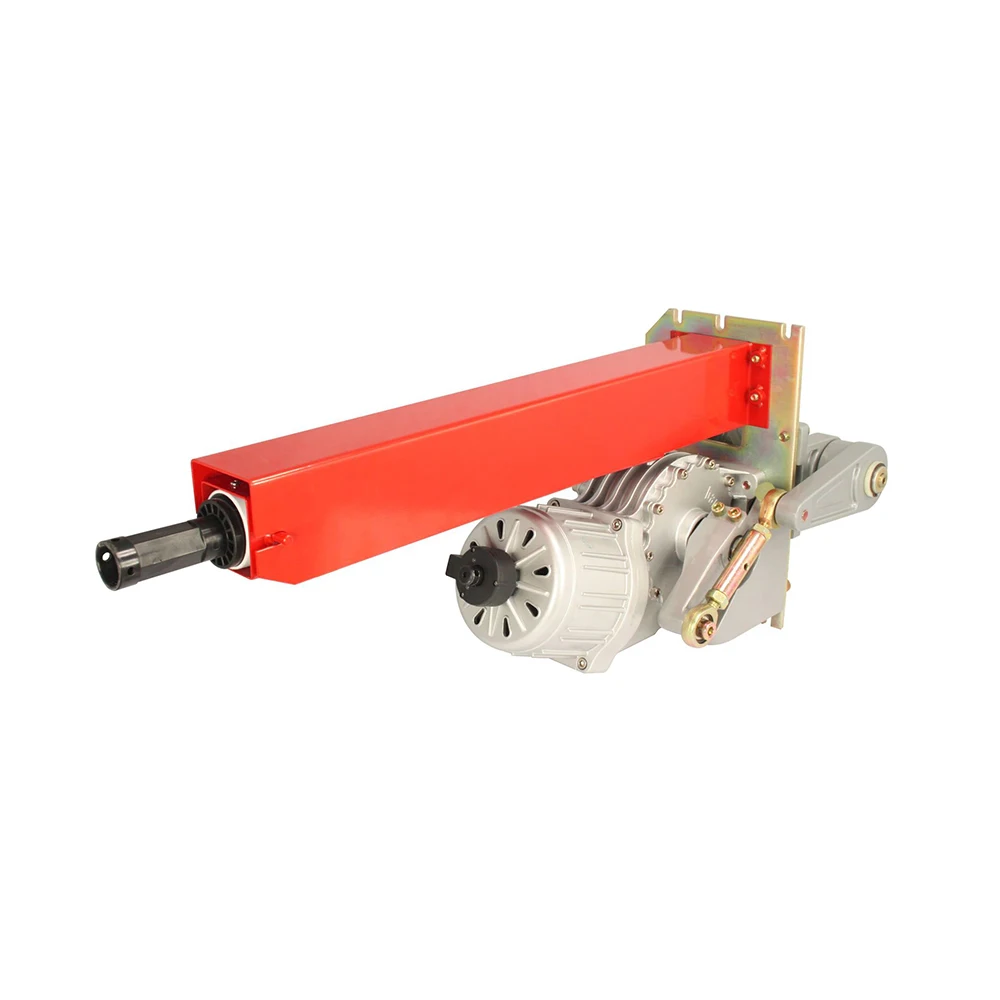

 Product Diagram

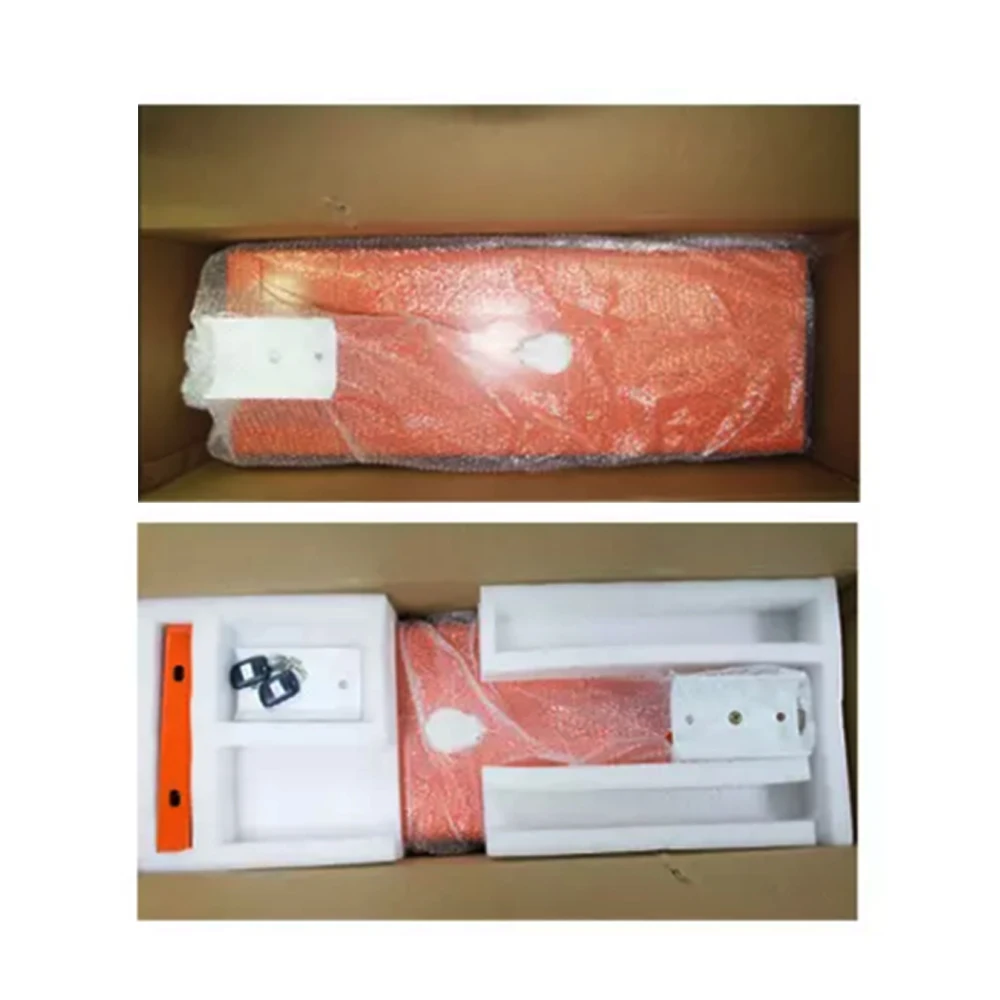

 Package

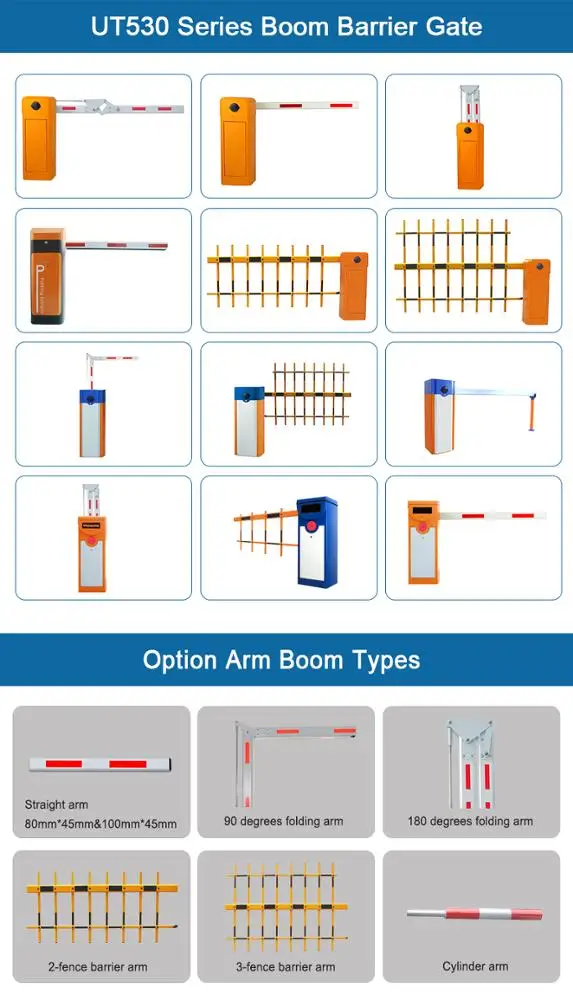

Other Boom Gate Type
