Характеристики

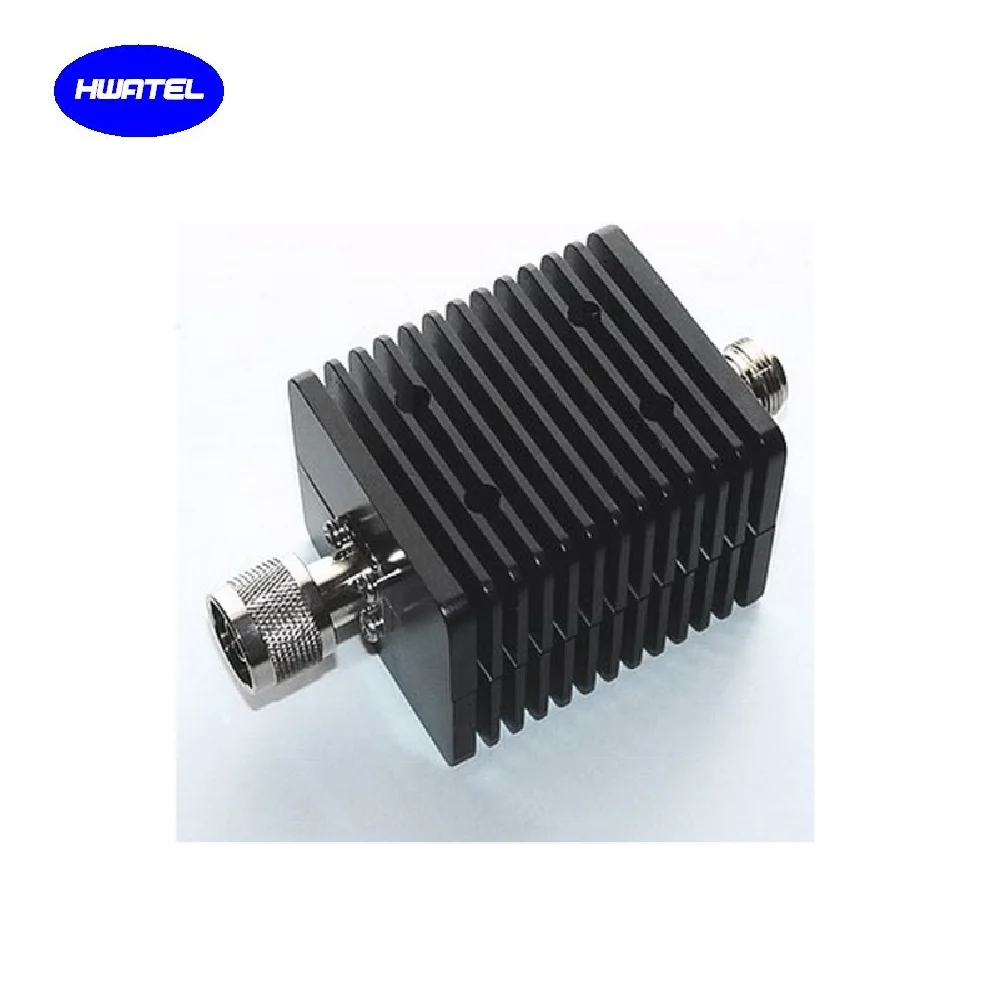

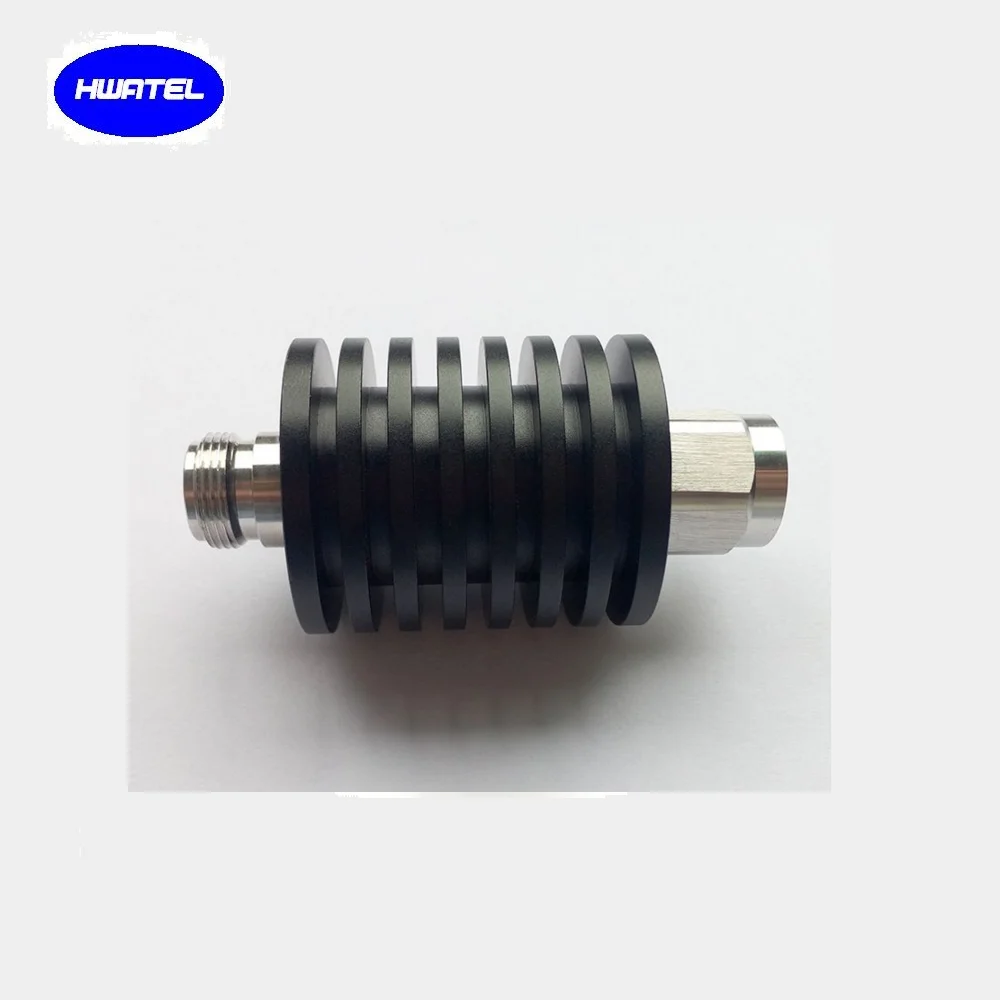

HT ATT-2-N

2 Watt N connector Attenuators

Overview

HWATEL Attenuator is an electronic device that reduces the amplitude of a signal without appreciably distorting its waveform. Attenuators are usually passive devices made from resistors. The degree of attenuation is fixed and available from 1 dB to 60 dB.

Feature

Available from DC to 18G Hz
Connector: SMA, N, 7/16 DIN, L27
Power rating from 1W to 2000 Watt

Tech Specification

Type	Average Power(W)	Peak Power(KW)	Frequency Range(GHz)	VSWR	Nominal Attenuation (dB)	Connector
SMA	1	0.25	dc-18	1.15-1.35	1-10,20,30	SMA
TS2	2	0.5	dc-12.4	1.10-1.35	1-10,20,30,40	N,BNC,SMA,TNC
TS5	5	0.5	dc-4	1.10-1.25	1-10,20,30	N,BNC,SMA,TNC
DTS10	10	1	dc-12.4	1.10-1.35	1-10,20,30	N,SMA,TNC
DTS25	25	1	dc-18	1.10-1.35	1-10,20,30	N,7/16
DTS50	50	10	dc-12.4	1.10-1.35	10,20,30	N,7/16
DTS80	80	10	dc-4	1.10-1.35	10,20,30	N,7/16
DTS100	100	10	dc-12.4	1.10-1.35	10,20,30,40	N,7/16
DTS150	150	10	dc-4	1.15-1.4	10,20,30,40	N,7/16
DTS200	200	10	dc-4	1.15-1.4	10,20,30,40	N,7/16
DTS250	250	10	dc-4	1.15-1.4	10,20,30,40	N,7/16
DTS300	300	10	dc-4	1.15-1.4	10,20,30,40,50	N,7/16
DTS400	400	10	dc-4	1.15-1.4	10,20,30,40,50	N,7/16
DTS500	500	10	dc-4	1.15-1.4	10,20,30,40,50	N,7/16
DTS800	800	20	dc-4	1.15-1.4	40,50,60	N,7/16
DTS1000	1000	50	dc-4	1.15-1.4	30,40,50,60	N,L27
DTS2000	2000	100	dc-1	1.25	30,40,50,60	N,L27
