SA CJX9 1P 1 5 Американская классификация проводов 2р 3 4-полюсный автоматический реле специального назначения Ac кондиционер контактор 20 30 40 50 60 75 90A Замена Конденсатора

SA CJX9 1P 1 5 Американская классификация проводов 2р 3 4-полюсный автоматический реле специального назначения Ac кондиционер контактор 20 30 40 50 60 75 90A Замена Конденсатора

Категория: Контакторы >>>
Поставщик: Yueqing,Yougu,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.44 $*	0.27 $*
Aug-16-2025	0.57 $*	0.18 $*
Jul-16-2025	0.81 $*	0.85 $*
Jun-16-2025	0.28 $*	0.93 $*
May-16-2025	0.57 $*	0.62 $*
Apr-16-2025	0.47 $*	0.86 $*
Mar-16-2025	0.53 $*	0.98 $*
Feb-16-2025	0.4 $*	0.34 $*
Jan-16-2025	0.59 $*	0.95 $*

Характеристики

Product Details

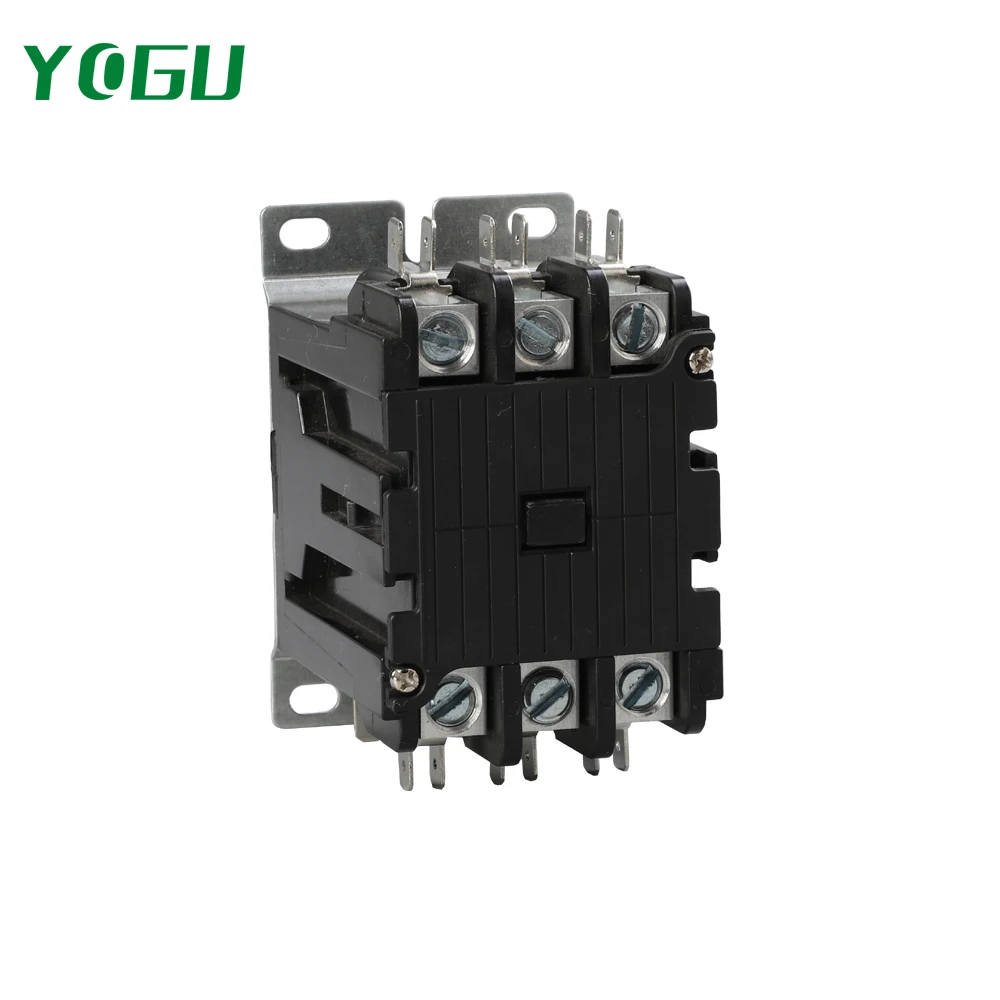

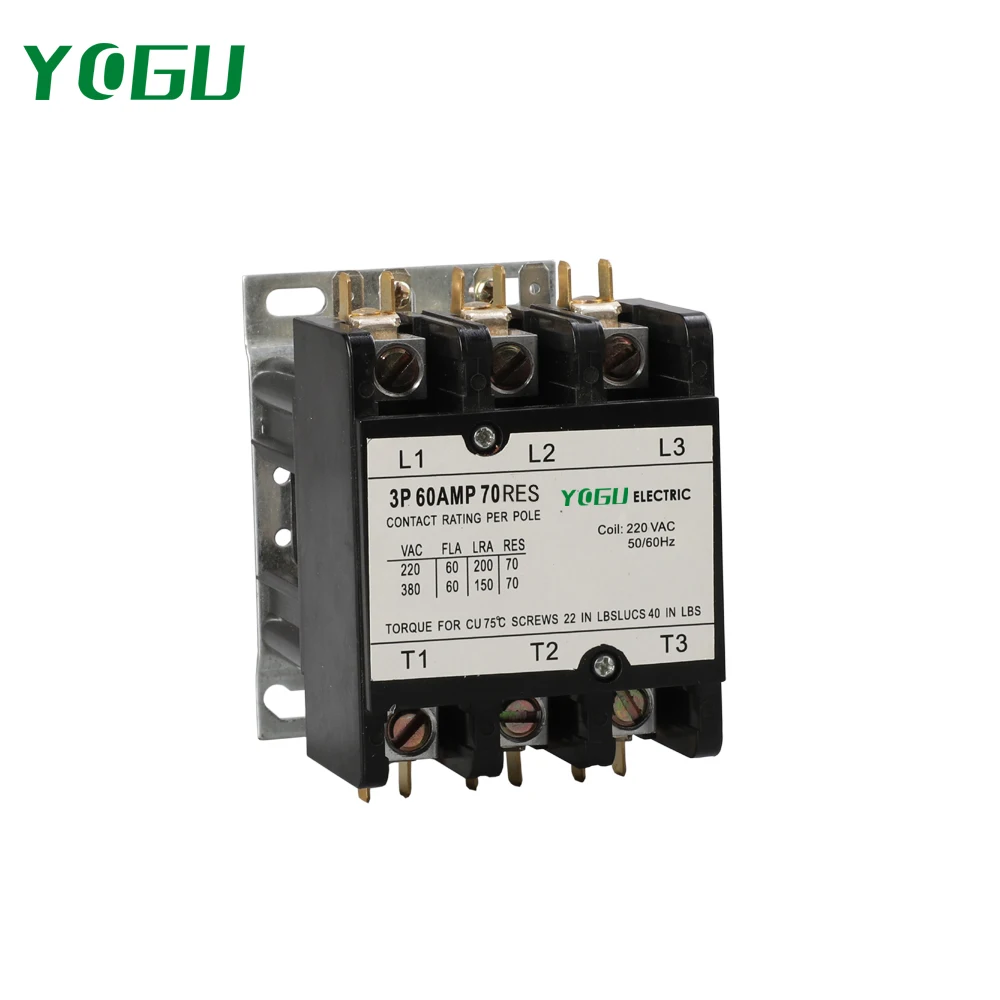

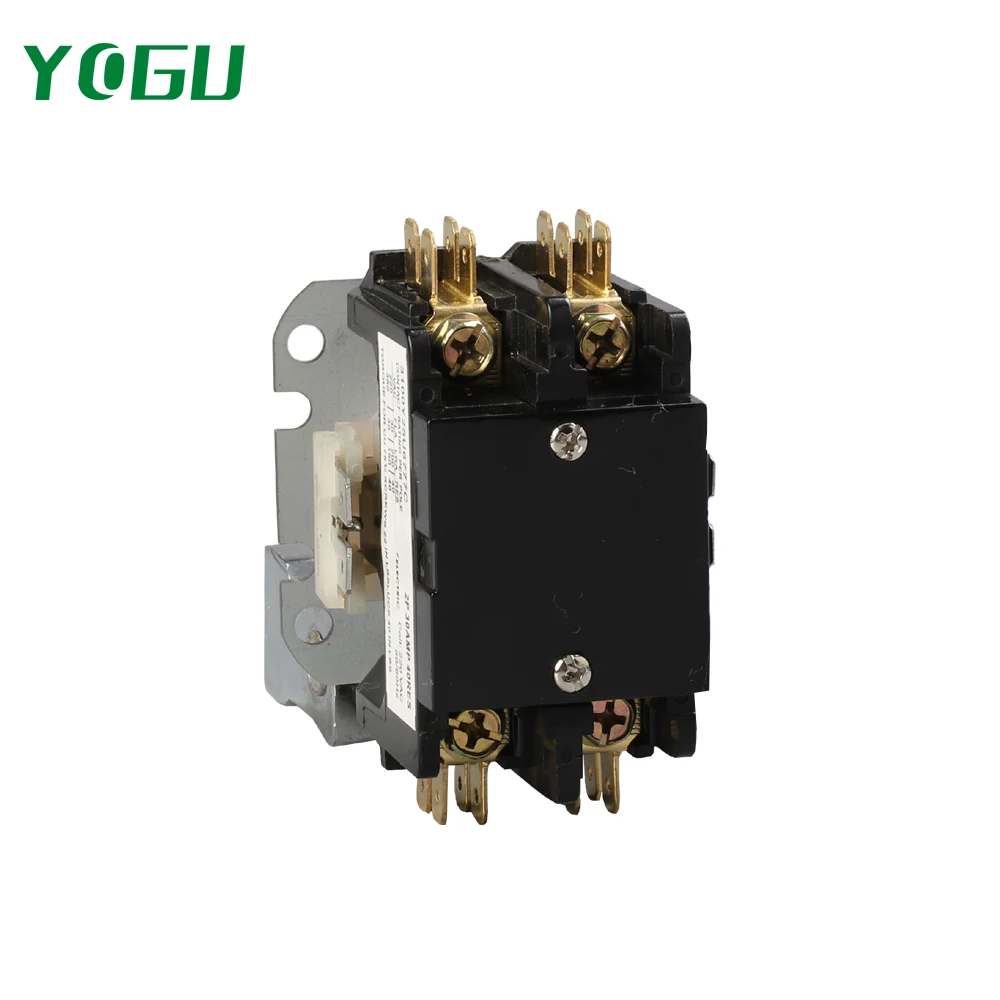

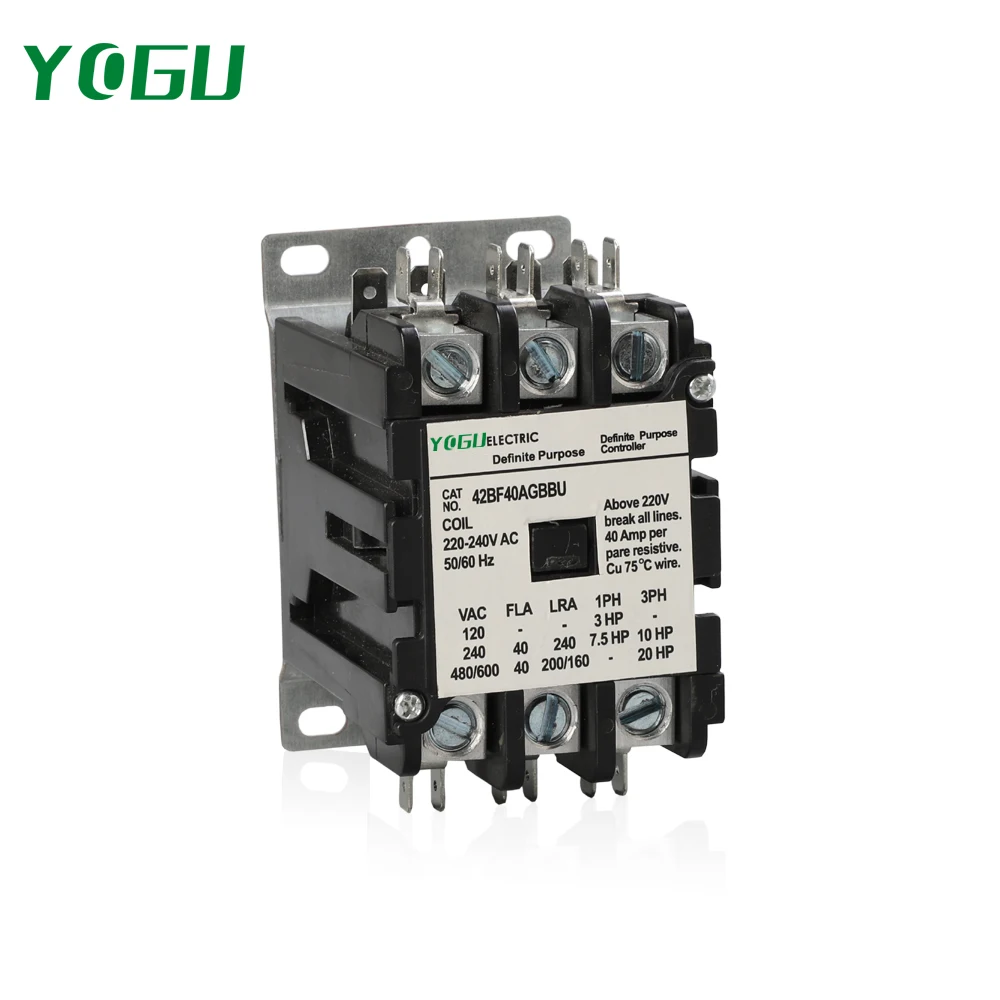

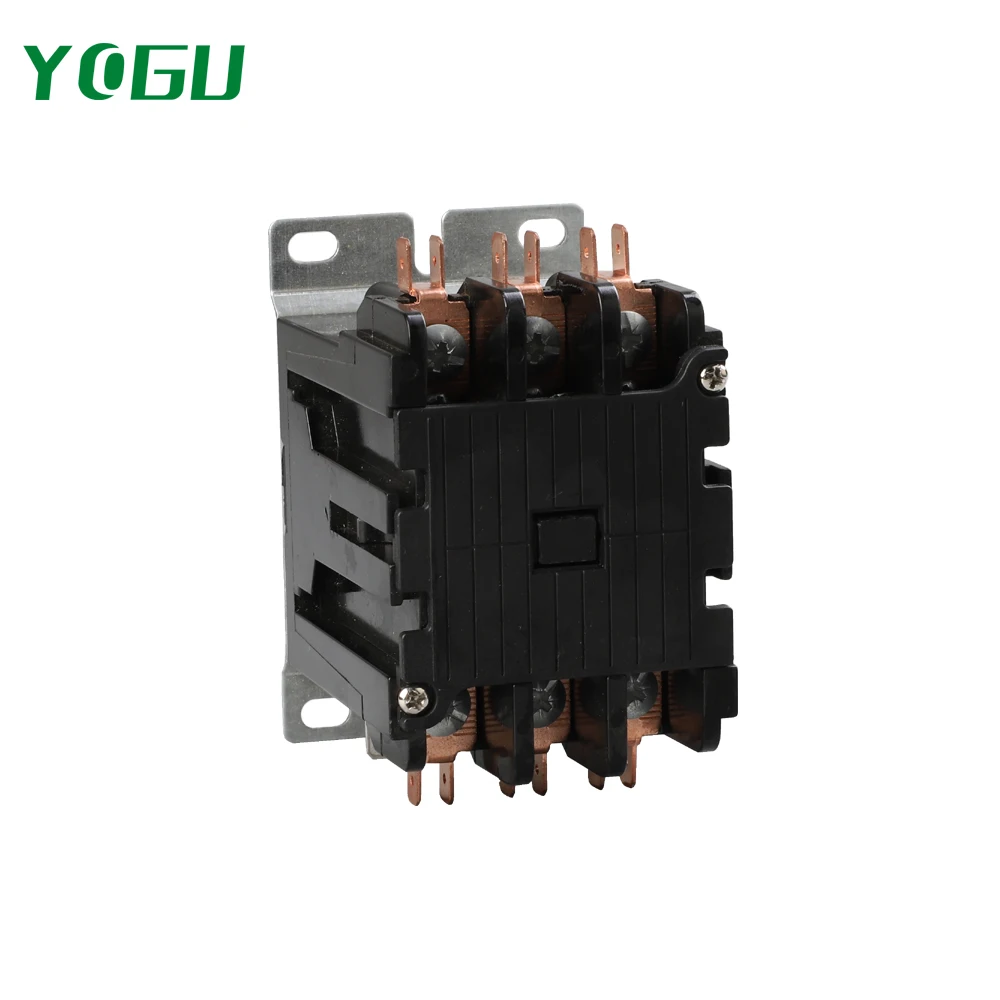

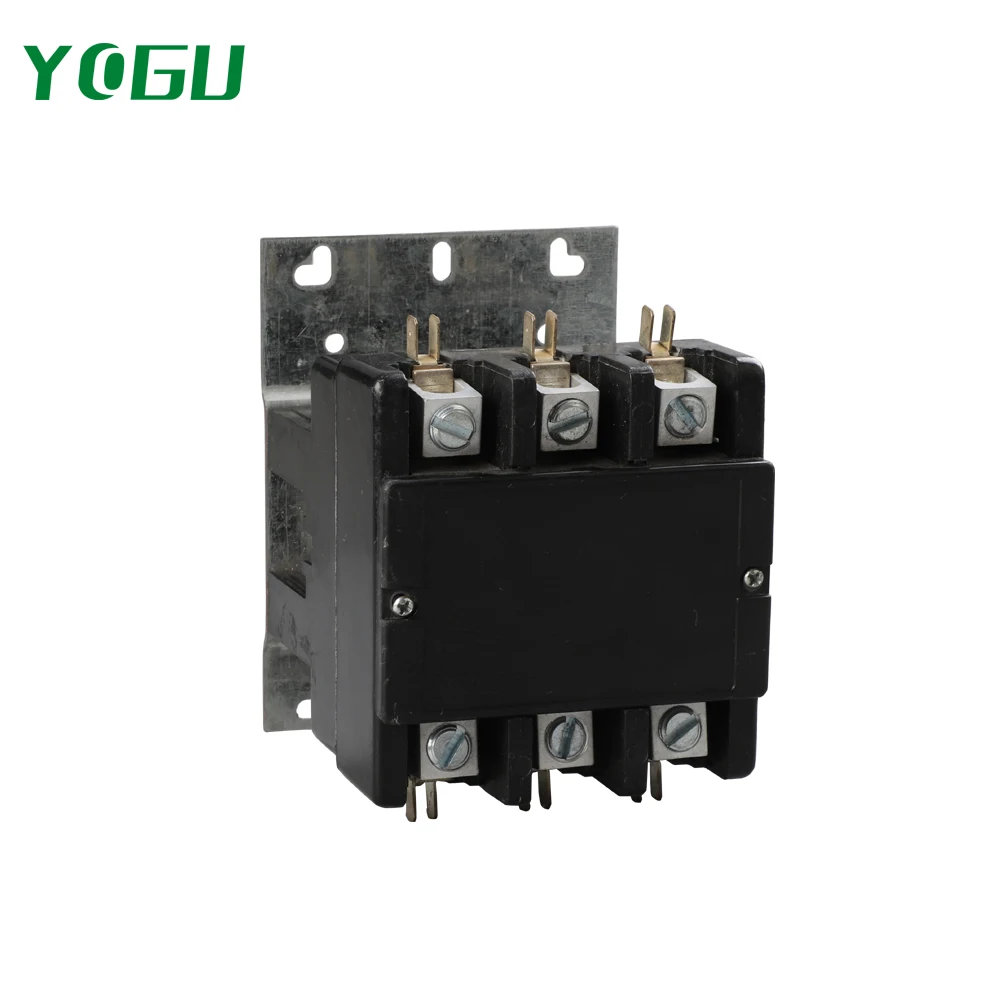

CJX9 Definite Purpose Contactor

is mainly applicable to a line of AC 50Hz or 60Hz, rated working voltage up to 600V and rated working current up to 60A, used to close or and to switch off the line. It complies to IEC947-4-1. Straight-through wiring replaces 1.5 pole devices used primarily in residential central air conditioning. Replaces many types 117 contactors used by OEM's Universal style mounting bracket fits existing mounting holes Screw terminals and quick connect terminals for easy installation.

Application

1. At present, widely used in the control circuit of the main three-phase three-phase machinery and the air conditioner compressor.
2. The contactor is produced according to IEC 60947.

3. Obtained IS09001 quality system certification, CE, CCC, ROHS certification.

\t Coil rating	\t 1 Pole Contactor				\t 2 Pole Contactor
\t Nominal coil voltage	\t 24	\t 120	\t 208/240	\t 277	\t 24	\t 120	\t 208/240	\t 277
\t Nominal coil resistance Ohms	\t 18	\t 420	\t 1800	\t 2500	\t 11	\t 237	\t 1000	\t 1600
\t Maximum pick up voltage	\t 18	\t 88	\t 177	\t 221	\t 18	\t 88	\t 177	\t 221
\t Maximum drop out voltage	\t 6-15	\t 20-70	\t 40-140	\t 50-165	\t 6-15	\t 20-70	\t 40-140	\t 50-165
\t Nominal inrush VA@50Hz	\t 31	\t 31	\t 31	\t 31	\t 33	\t 33	\t 33	\t 33
\t Nominal inrush VA@60Hz	\t 28	\t 28	\t 28	\t 28	\t 30	\t 30	\t 30	\t 30
\t Nominal sealed VA@50Hz	\t 6	\t 6	\t 6	\t 6	\t 8	\t 8	\t 8	\t 8
\t Nominal sealed VA@60Hz	\t 5	\t 5	\t 5	\t 5	\t 6.5	\t 6.5	\t 6.5	\t 6.5
\t Maximum coil voltage	\t 30	\t 132	\t 264	\t 300	\t 30	\t 132	\t 264	\t 300

Product Inspection

Yueqing Yougu Electric Co., Ltd

is a professional manufacturer of kinds of circuit breakers, ac contactors, SPD, motor protectors, and distribution boxes, etc. We specialized in the field of low-voltage electric appliances for more than 15 years. Providing customers with quality products and professional services is our goal.
